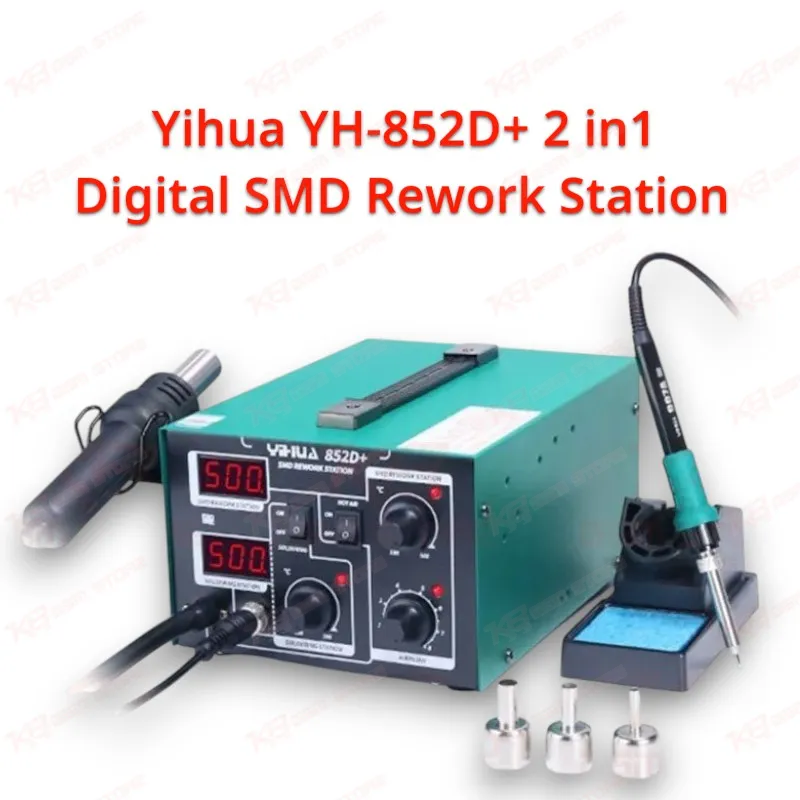

Yihua YH-852D+ 2 in1 Digital SMD Rework Station

YIHUA 852D+ 2 in1 Pump Type 660W Hot Air Gun Digital Soldering Iron Desolating Station SMD Constant Temperature Rework Station

Yihua YH-852D+ 2 in1 Best Price in Pakistan

YIHUA 852D+ 2 in1

• Two-in one hot air gun and soldering iron, dual LED digital display, stylish compact, feature-rich, space-saving and low shipping costs.
• LED temperature display, more accurate temperature control, more stable temperature and clearer operation.
• Fine control diaphragm pump is used for powerful air flow; the smaller the gun nozzle, the stronger the air flow.
• Advanced ceramic rimmed heating core for extremely stable performance
• Applicable for desoldering several types of elements: SOIC, CHIP, QFP, PLCC, BGA; the smaller the gun nozzle, the stronger the force; suitable for single solder spot desoldering.
• This machine fast heating, fast temperature compensation, high precision and stable temperature control, it can effectively prevent cold solder joints.
• The heating element uses imported high-power heating elements for fast temperature compensation, especially suitable for desoldering raw terminals, large joints and hard-to-reach places, not to mention desoldering general solder joints.
• This unit has an anti-static design that effectively prevents damage to delicate components;

Machine Parameters:

• Rated voltage AC 220V ± 10% 50Hz
• Engine power 660W (MAX)
• working environment 0~40℃ relative humidity <80%
• Storage temperature -20~80℃ relative humidity <80%
• Machine size: 25.5*18.8*12.5 cm

Part of the performance parameters of Hot air gun Soldering iron:

• Working voltage: AC 220V ± 10% 50Hz AC 26V ± 10% 50Hz
• output power: 550W 40W
• Air flow mode: Diaphragm pump —–
• Air flow : 24-28L/min (max) —-
• Temperature stability: ±15℃ (static) ±10℃ (static)
• Display: LED LED
• Heater: Ceramic core heater General heater
• Tip to ground impedance : —- <2Ω

• Package Includes:
