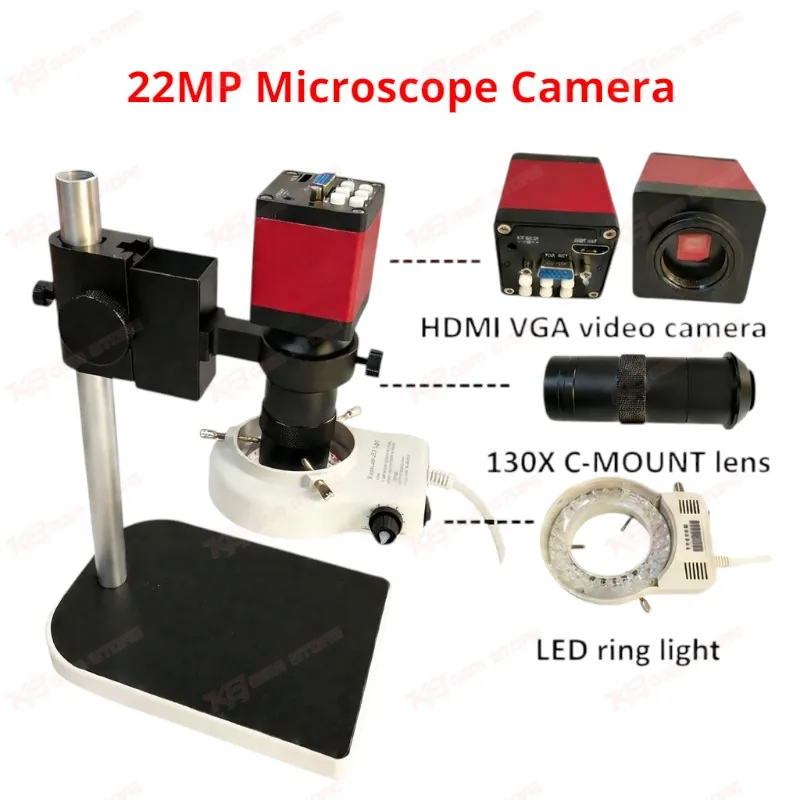

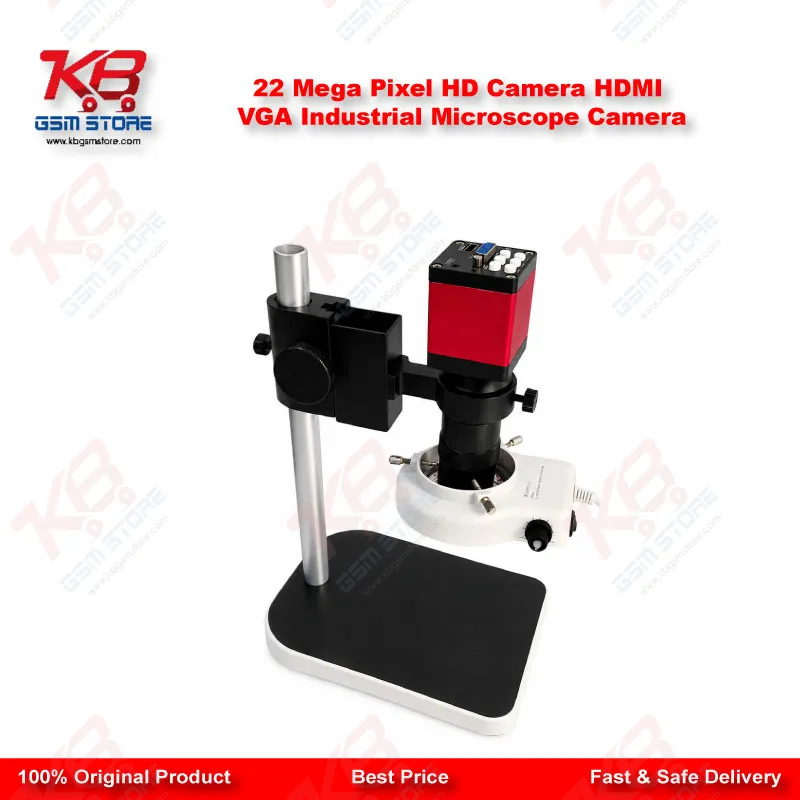

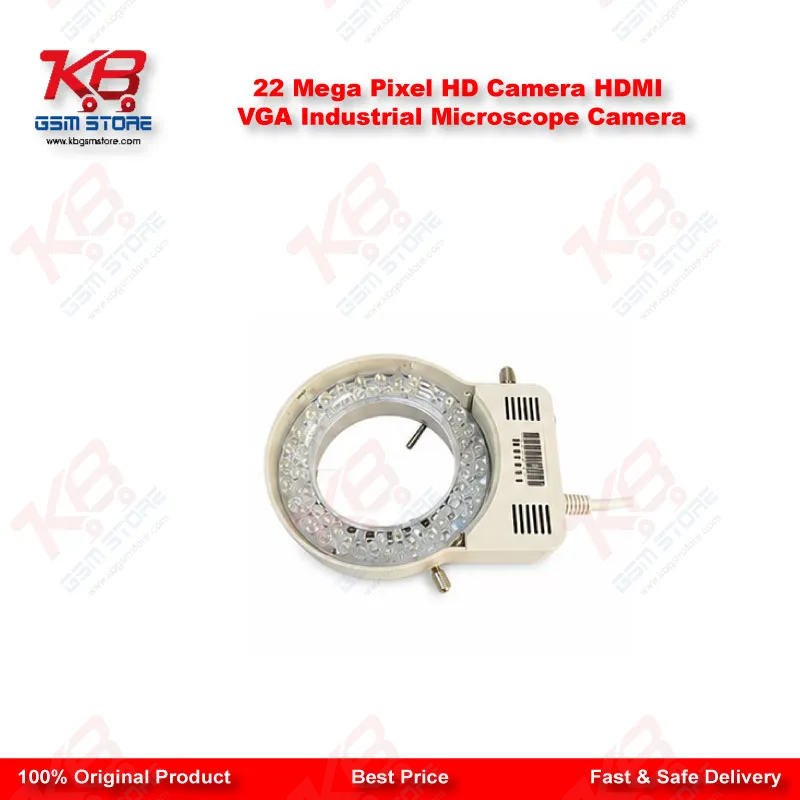

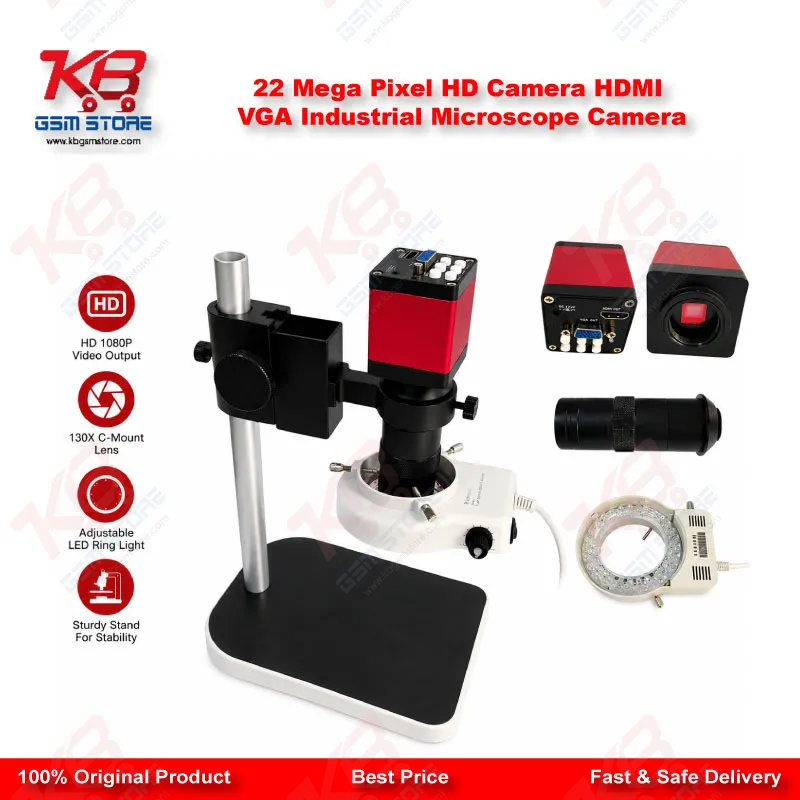

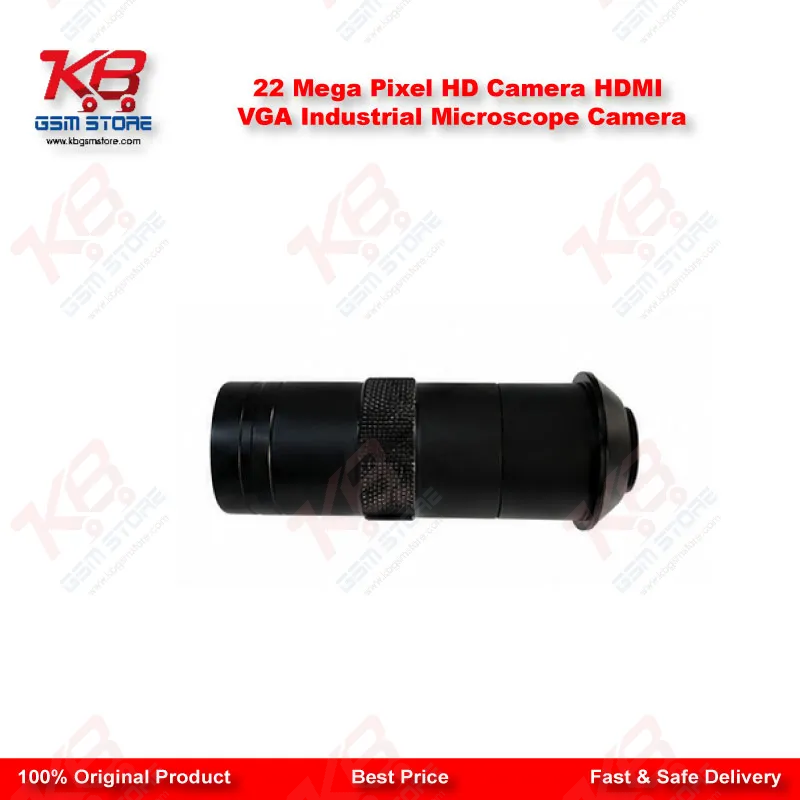

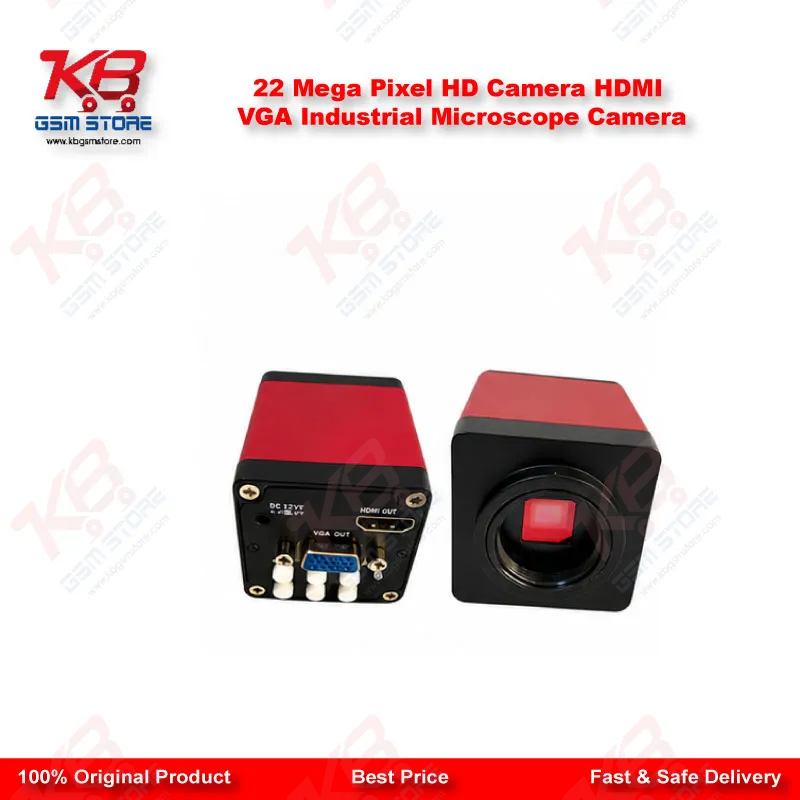

When you're staring at a motherboard trying to spot a hairline crack on a PMIC pad, a sharp, lag-free image on a big screen changes everything. This 22MP industrial microscope camera puts a Sony IMX307 CMOS sensor behind dual HDMI and VGA outputs, so you can send a live feed to whatever display sits on your bench — a monitor, a projector, or an old VGA screen you already own — without buying extra converters. You get 1280×720 resolution at 60 frames per second, which keeps the picture smooth even when your hands are moving fast under the lens during hot air rework or IC reballing. The camera ships with a 130X C-mount lens, giving you enough magnification to check solder joints, trace hairline board cracks, and confirm component placement before you commit to a jumper or IC change. An LED ring light comes in the box too, so you're not fighting shadows on reflective board surfaces or under a hooded workbench light. On the software side, the onboard menu runs in English and Chinese and gives you the controls a technician actually uses during a repair session. You can freeze a frame to study a joint closely, mirror the image left-right or up-down to match your working angle, and switch to negative mode when you need extra contrast on a tricky trace. The built-in crosshair system supports eight horizontal and eight vertical reference lines in adjustable colors, which helps when you're aligning a BGA chip or checking pad spacing before reflow. White balance runs on auto, so you don't lose time recalibrating color every time you move the camera to a new spot on the board. Because the HDMI and VGA outputs run at the same time, this camera works well in a shared workshop setup — one technician can monitor a repair on a large screen for training purposes while another handles the actual board work. It's also a practical fit if your bench display only has a VGA input; you're not locked out just because your monitor predates HDMI. The C-mount lens interface means the 130X lens isn't your only option — if your workflow later calls for a different magnification range, you can swap in another C-mount lens without replacing the whole camera. That flexibility matters if you're scaling from basic phone repair into PCB-level laptop or motherboard work, where a tighter or wider field of view helps depending on the board size. In day-to-day use, this setup earns its place on the bench for IC-level diagnostics — spotting cold solder joints, corrosion, lifted pads, and damaged traces before you start any hardware fault fix. It's equally useful for quality checks after reballing, letting you confirm ball alignment under magnification before you reflow. For repair shops handling volume, having the image on a shared monitor instead of a small microscope eyepiece also reduces neck strain over long sessions and makes it easier to double-check tricky jobs with a second opinion before touching the board again. Overall, this is a straightforward, no-frills addition to a microsoldering or PCB inspection bench: dual video output, a usable magnification lens, integrated lighting, and onscreen tools that match how technicians actually work through a repair, not just how a spec sheet reads.
