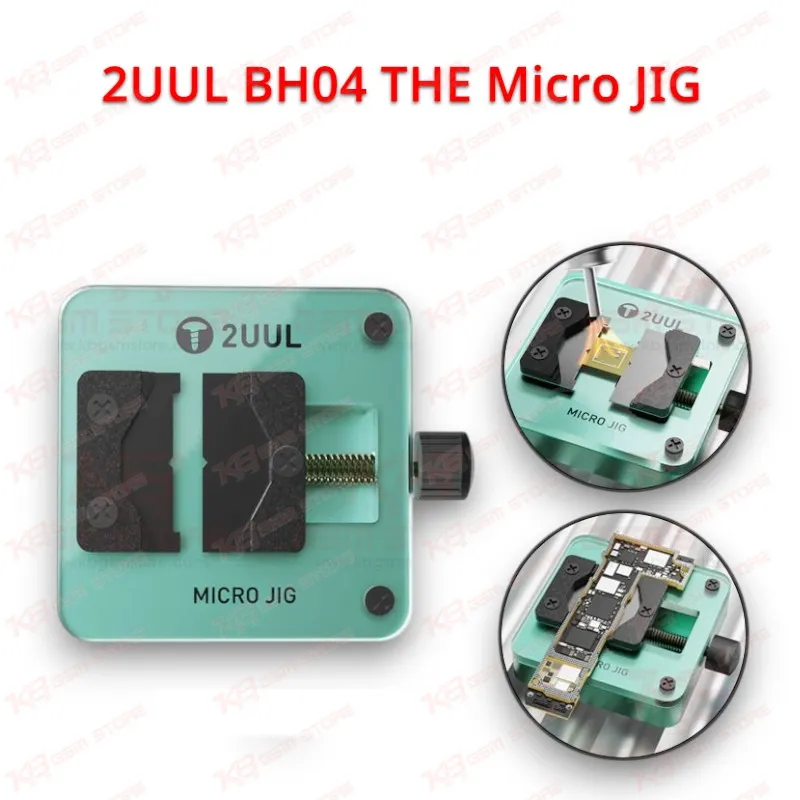

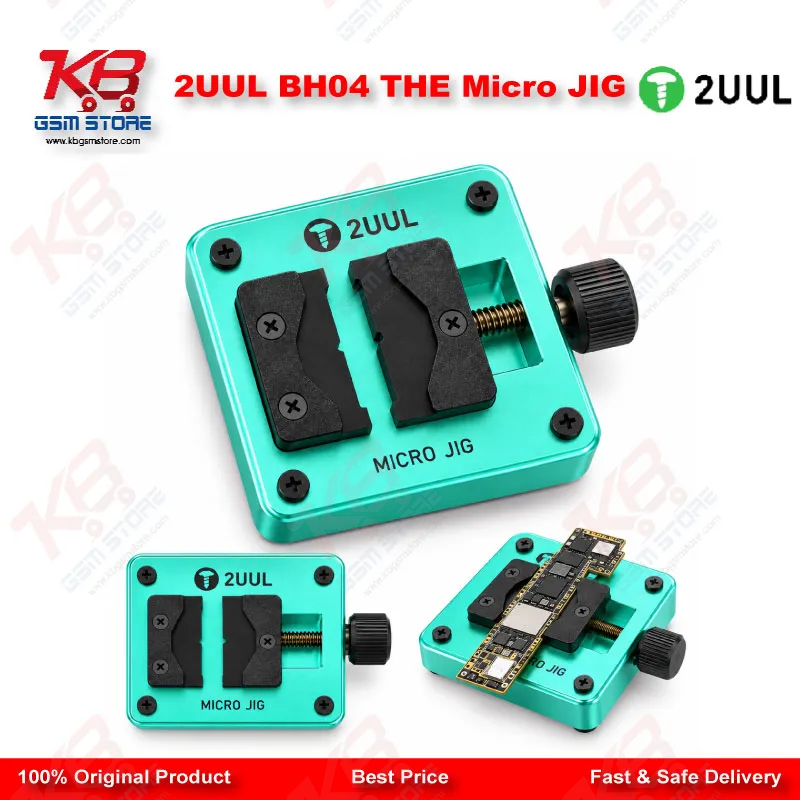

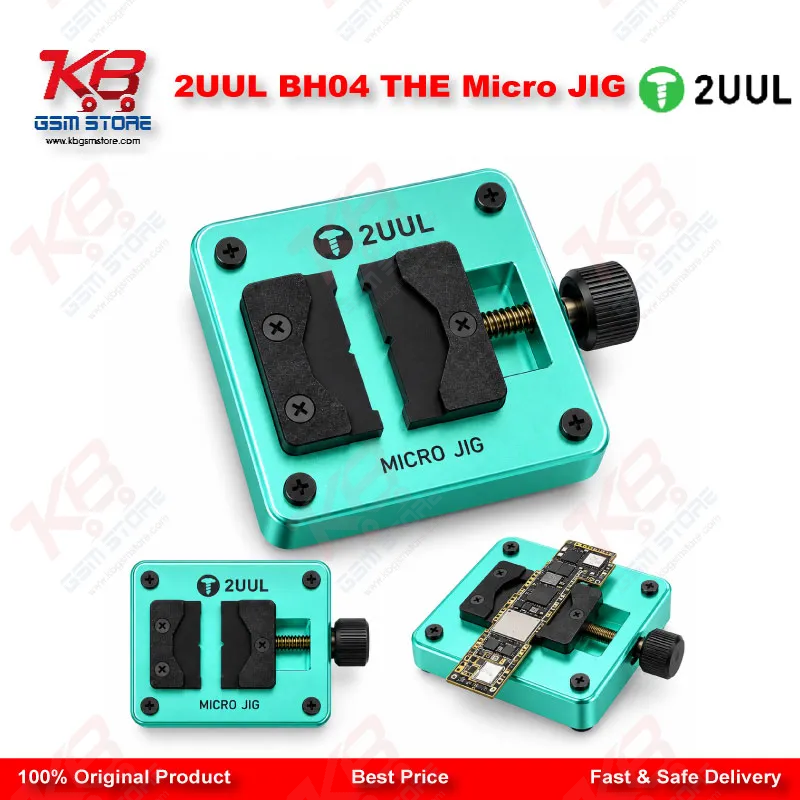

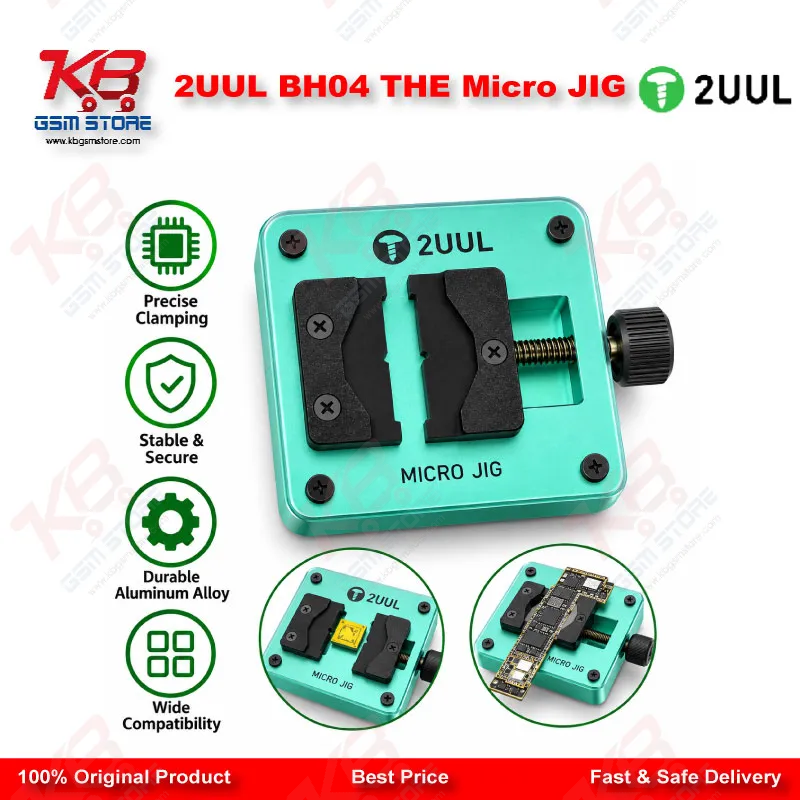

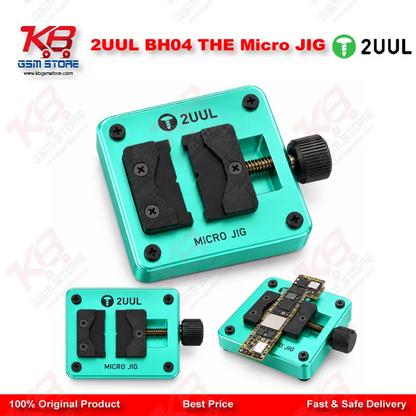

Holding a motherboard steady while running hot air over an IC is one of the most basic problems on any repair bench, and the 2UUL BH04 THE Micro JIG is built specifically to solve it without the board sliding, tilting, or bouncing back mid-job. The fixture uses a rotary locking shaft rather than a simple clamp screw, so once you lock a board or IC in place it stays fixed without spring-back — a detail that matters when you're running a hot air gun at higher temperatures and can't afford the board creeping out of position. The base sits on a special anti-skid pad, which keeps the whole jig planted on the workbench even when you're applying side pressure to separate a chip or scrape old glue, so you're not fighting the tool while you're fighting the board. Underneath the clamp, 2UUL added a heat sink section that lets hot air disperse instead of pooling around the fixture — on a lot of cheaper jigs, trapped heat ends up warping nearby components or making the clamp itself too hot to adjust mid-repair, and this design avoids that. Height adjustment runs across three gear positions — high, middle, and low — handled by loosening the two screws at the bottom, sliding the fixing plate to the position that matches your board thickness, and tightening the screws back down to lock it. That range makes the BH04 usable across different motherboard sizes and shapes rather than being tuned to one specific device generation, so it stays useful as your board inventory changes. One of the more practical uses beyond straightforward board holding is back-glue removal on ICs: the clamp is shaped to bear the load along the IC beam itself, holding up the empty sections of the chip so you can scrape or pry off the glue without putting pressure directly on the die and cracking it — a failure mode that ruins otherwise-good ICs when technicians try to do this freehand. It's also built to protect the upper and lower layers of double-layer motherboards during maintenance, which matters on newer boards where layers are stacked tightly and a slipping clamp can scratch or lift a trace you didn't even know was there. For CPU and NAND work specifically, the fixture holds these larger chips securely enough to run reballing, reflow, or IC swap jobs without needing a second hand to steady the board — freeing you up to work the hot air gun or soldering iron with proper control. On a Pakistani repair bench where techs are switching between dead phone diagnostics, IC change karna, and board cleaning jobs back-to-back, having one fixture that adjusts across board sizes instead of stocking three separate jigs cuts down both cost and clutter. The 2UUL BH04 THE Micro JIG fits into the same workflow as your hot air station, microscope, and reballing kit — it's the part of the setup that keeps the board still so the rest of your tools can actually do their job accurately, whether that's a hardware fault repair, a CPU reflow, or straightforward IC removal for a chip swap.
