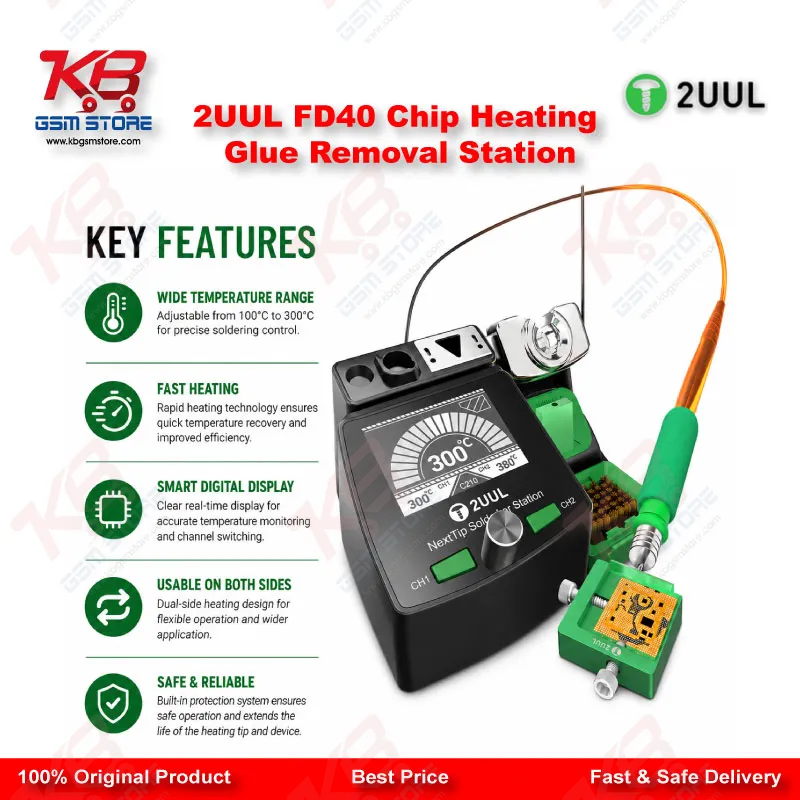

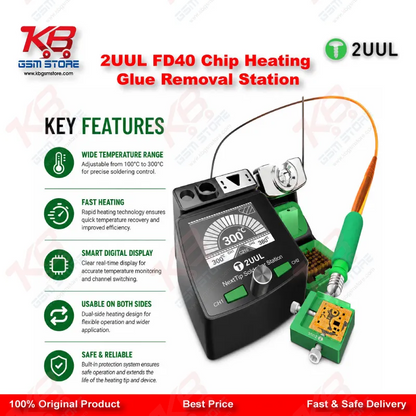

Every GSM technician knows the moment a stubborn IC refuses to lift off a motherboard. You heat it with the hot air gun, apply a little extra pressure, and suddenly a pad tears or the chip cracks. The 2UUL FD40 Chip Heating Glue Removal Station exists to stop that exact problem before it starts, by preheating the underfill glue beneath the chip so it separates cleanly instead of fighting you.

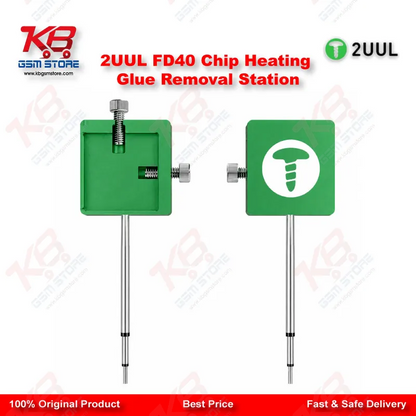

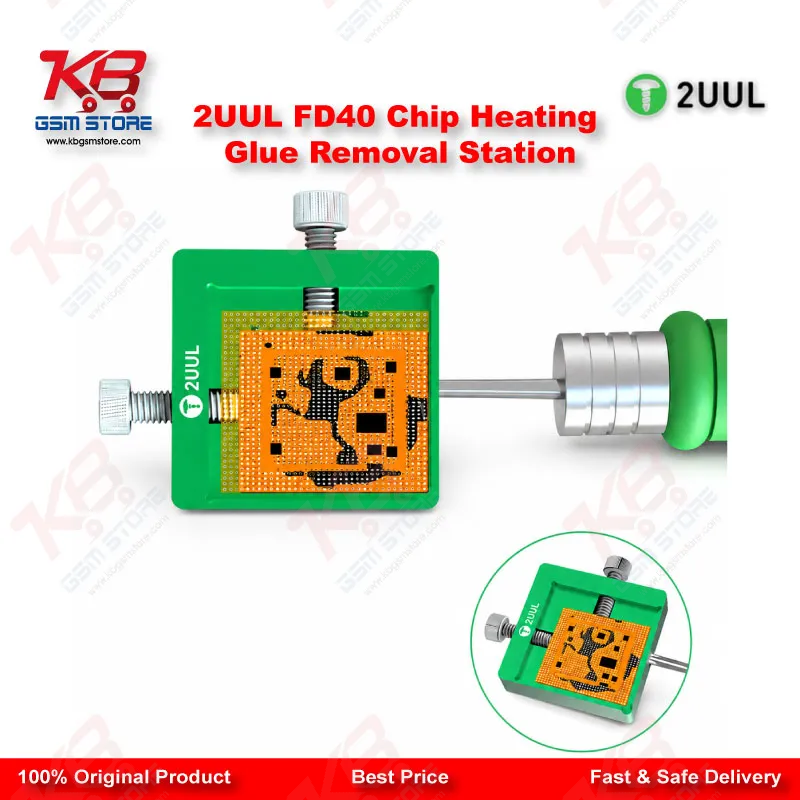

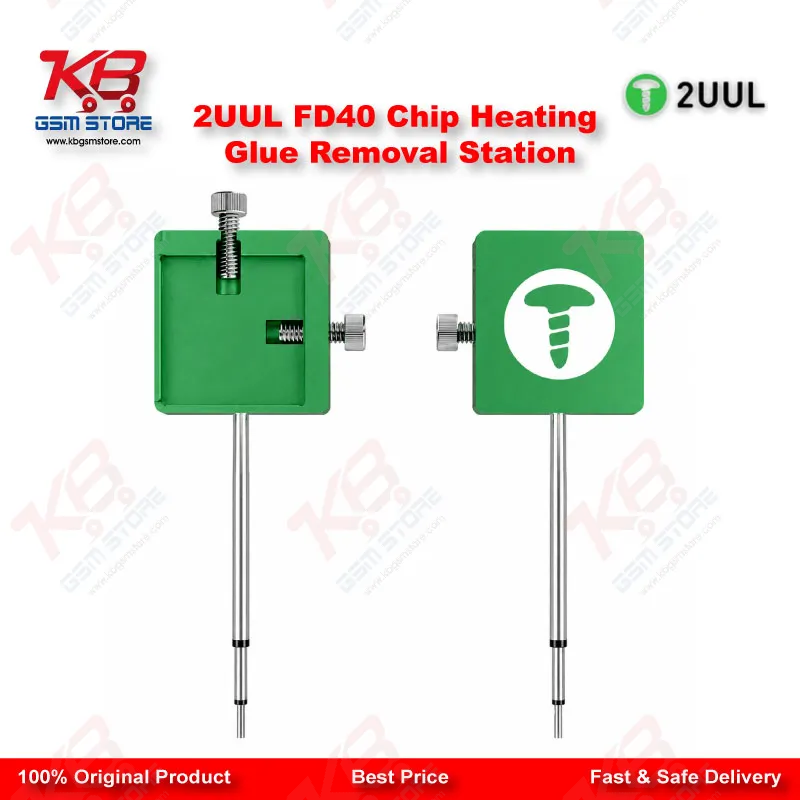

This station uses a focused 16×17mm heating platform, sized specifically for the CPU, NAND flash, PMIC, and common BGA chips you handle on phone motherboards every day. Instead of blasting heat across the whole board with a hot air gun, you get controlled, direct heat exactly where the underfill sits. That precision matters when your board has SMD components packed close together — you soften the glue under the target chip without cooking capacitors or connectors nearby.
The recommended operating range sits between 150°C and 200°C, which lines up with how underfill epoxy actually behaves. Below that range, the glue stays too rigid and you end up back to prying and risking pad damage. Push much higher and you flirt with warping the chip package or damaging surrounding solder joints. Working inside this window gives you a predictable softening effect every time you place a board on the platform.
The heating block itself is engineered for uniform heat transfer to the base of the chip. That uniformity is the real value here — uneven heating means one corner of the underfill releases while the rest stays locked, which is exactly how pads get ripped during forced removal. With even heat spread across the platform, the whole underfill layer softens together, so when you lift the chip, it comes away cleanly with minimal resistance.For BGA reballing and rework, this preheating step isn't optional if you want repeat customers. A phone that comes in for a dead-after-flash IC change or a hang-on-logo board fault often needs the faulty chip removed and reballed. If you crack that pad during removal, you've turned a straightforward IC change into a much harder trace repair, or worse, a scrapped board. Running the chip on the FD40 first, letting the underfill soften, then lifting with your hot air station or tweezers, keeps your success rate high and your rework time low.The compact, lightweight build means it doesn't eat up space on your bench. Most repair shops in Pakistan run tight workshop layouts with a hot air station, soldering iron, microscope, and reballing platform all within arm's reach. A small dedicated preheater slots into that setup without forcing you to rearrange your whole station.This tool fits naturally into your existing chip-level repair workflow. You'd typically bring a board in for diagnosis, isolate the faulty IC through your usual box or software checks, then move to physical removal. That's where the FD40 earns its place on the bench — as the step between diagnosis and disassembly that protects your motherboard investment. Pair it with your existing BGA stencils, reballing platform, and hot air rework station, and you get a more complete, damage-conscious repair process rather than relying on raw heat and force alone.
