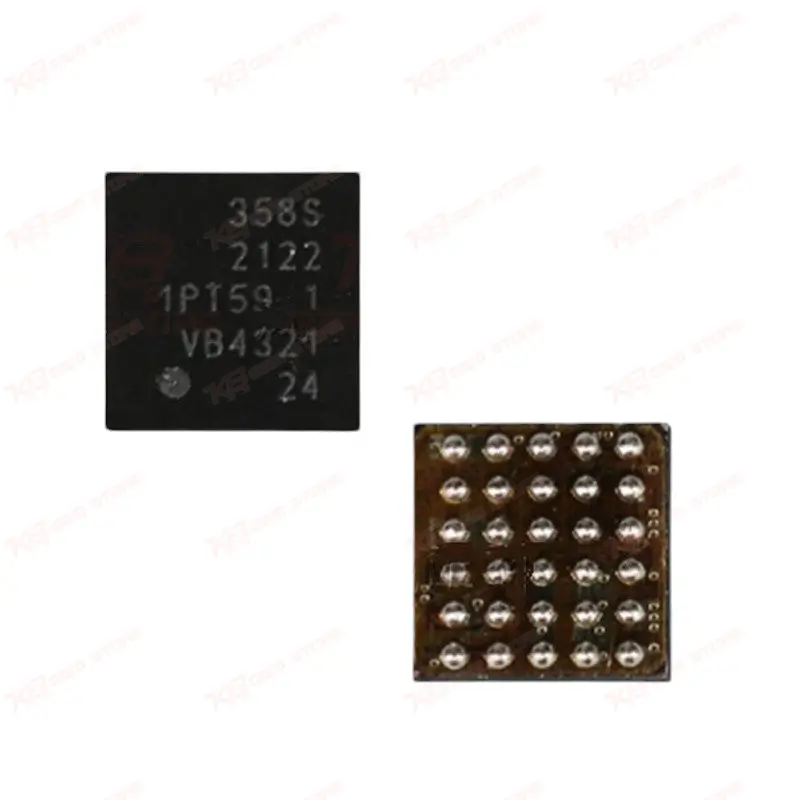

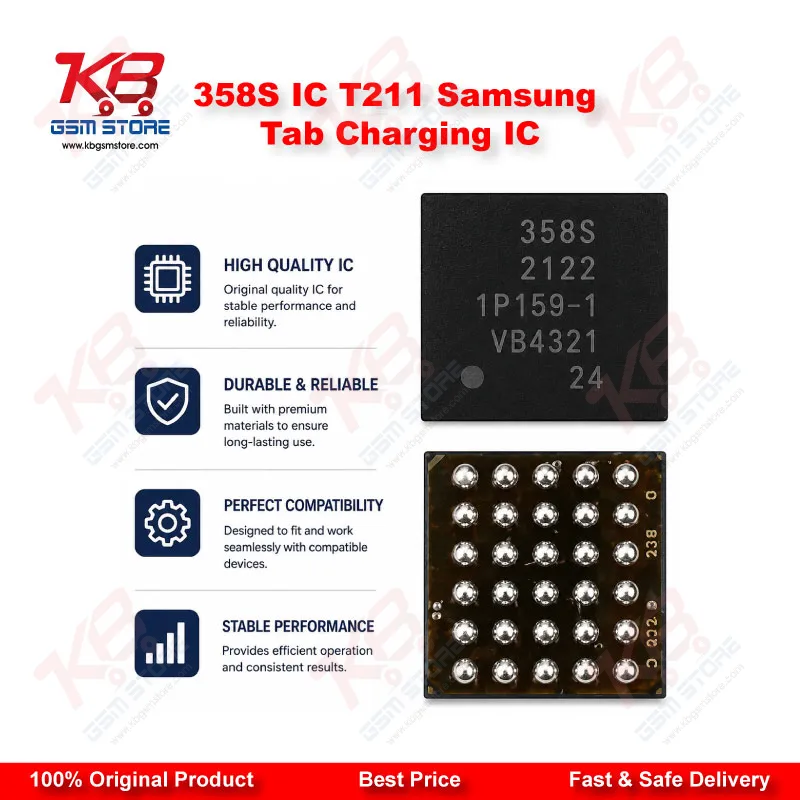

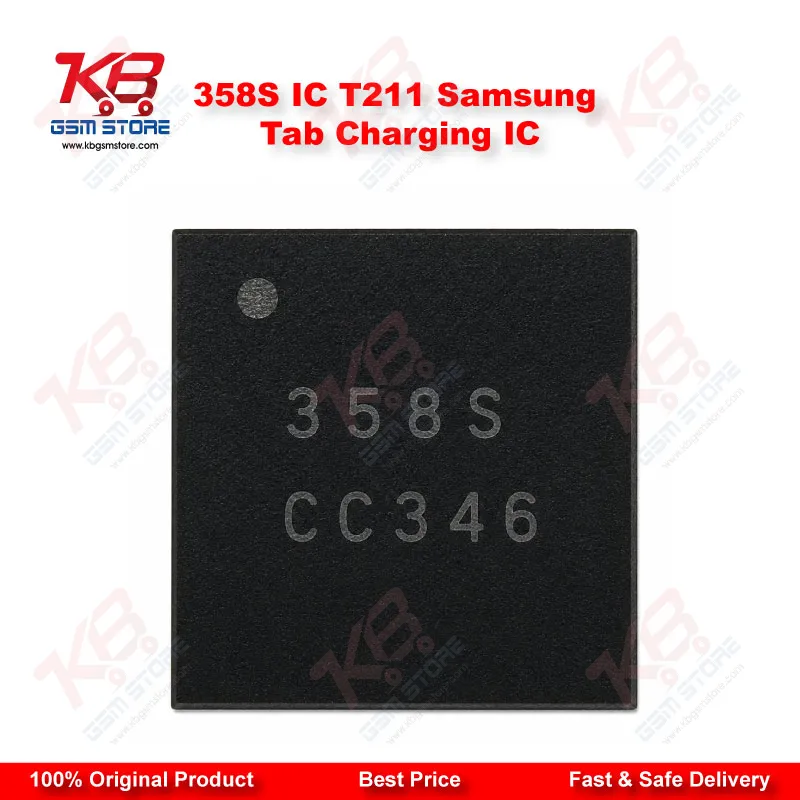

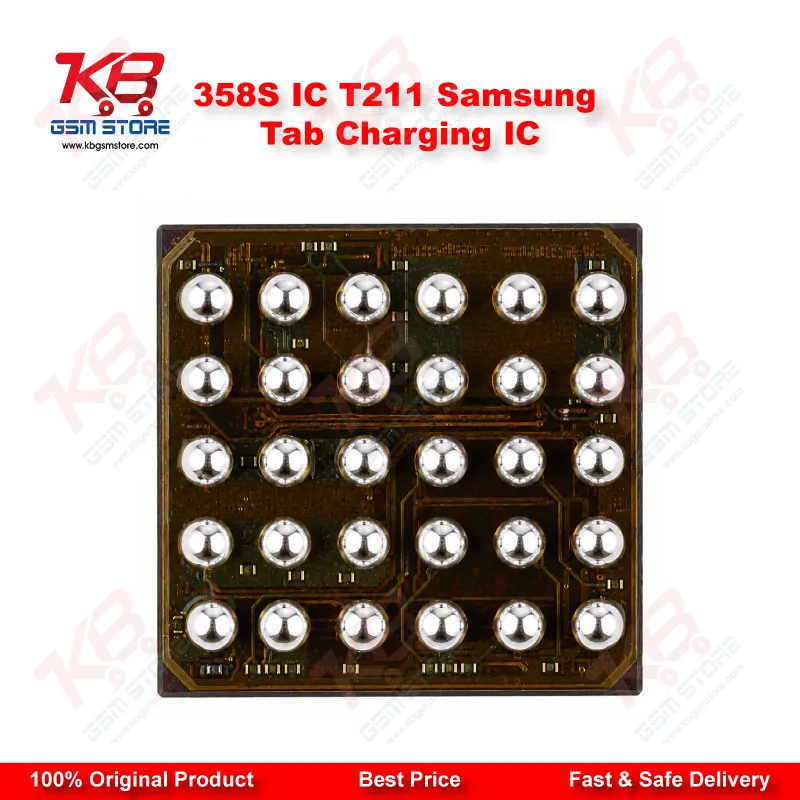

358S IC T211 Samsung Tab Charging IC

358S IC T211 Samsung Tab Charging IC

Regular price Rs.500.00 PKR
Regular price Sale price Rs.500.00 PKR
Sale Sold out
Shipping calculated at checkout.
Quantity

The 358S IC T211 is the charging and USB control chip used on Samsung Galaxy Tab 3 7.0 boards, commonly found at position U506. When a tablet shows a fake charging symptom, charges intermittently, or refuses to detect the charger at all, this IC is one of the first checkpoints in your diagnosis. It handles charging current control and USB data line switching on the tablet's power circuit. KB GSM Store supplies the 358S as a genuine replacement part for technicians handling T210, T211, and T215 board repairs across Lahore, Karachi, and Islamabad repair markets. Stock up for fast turnaround on charging-related jobs at your workshop.

⚖️ Weight: 0.01 kg

SKU:MST-IC-16

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

Charging complaints are one of the most common jobs that land on a GSM repair bench, and on the Samsung Galaxy Tab 3 7.0 series, the 358S IC sits right at the center of that fault line. This chip controls charging current regulation and USB signal switching for the tablet, and it's mounted at board position U506 on the T210 and T211 motherboards. When a customer brings in a tablet that shows "charging" on the screen but the battery percentage never climbs, or the tablet only charges when the cable is wiggled at a certain angle, this IC is one of the first components you check before moving on to the charging port or battery itself.
You already know the drill on this kind of dead-after-flash or fake-charging case. First rule out a bad charging port or a worn-out cable, then check the battery health, and if both test fine, the fault usually traces back to this IC or the trace feeding it. A multimeter check on the input and output lines around U506 will often confirm whether the chip has failed or whether you're dealing with a lifted trace or a jumper issue instead. If the IC has gone bad from moisture damage, a static short, or age, direct replacement is the fix, and there's no workaround for it once the chip itself is confirmed faulty.
Replacing the 358S follows the same reballing and hot air process you use across the board on fine-pitch charging ICs. Cover the surrounding components with heat-insulation tape, apply flux directly on the chip, and lift it with your hot air station without pushing past 350°C to avoid damaging the pads underneath. Clean the footprint thoroughly with flux and a fine tip before placing the new IC, then reflow with steady heat and check alignment under your microscope before powering the board back on. Rushing this step is where most technicians end up with a board that still won't charge even after the "repair," so take the extra thirty seconds to confirm the chip sat flat before you move to testing.
Genuine 358S chips matter here more than most people think. Counterfeit or recycled ICs from unverified sources fail fast, sometimes within days of the repair, and that comes straight back to your shop as a comeback job that eats into your margin and your reputation. Sourcing a verified, tested chip up front means fewer repeat visits and a customer who trusts your shop the next time their device acts up.
This part is compatible with the Samsung Galaxy Tab 3 7.0 series carrying model numbers T210, T211, and T215, and it's the same charging and USB control function whether the board came in as a WiFi-only or 3G variant of that lineup. Keep a few of these in your parts drawer alongside your usual charging port and battery stock, since Tab 3 charging faults still show up regularly given how many of these tablets are still in daily use across Pakistan.
For technicians running a busy repair counter, having this IC on hand means a same-day turnaround on Tab 3 charging complaints instead of telling the customer to come back next week. Pair it with a good flux paste, a fine hot air nozzle, and a steady hand under the microscope, and this becomes a routine fifteen-minute board job rather than a guessing game.

Key Features

  • Genuine 358S charging control chip for Tab 3 7.0 boards
  • Fixes fake charging and non-charging symptoms
  • Handles USB data line switching alongside charge control
  • Direct fit at U506 position, no board modification needed
  • Compatible across T210, T211, and T215 variants
  • Suitable for standard hot air reballing workflow
  • Tested part sourced for repair shop reliability
  • Compact SMD package fits standard rework tools

Specifications

Brand Entity Samsung
Product Entity 358S Charging IC
Technology Entity USB Charging Control Chip
Compatible Device Entities Samsung Galaxy Tab 3 7.0 T210, T211, T215
Repair Process Entity IC Reballing, Charging Circuit Repair
Industry Entity Mobile Repair Parts, GSM Repair Pakistan

FAQ

What is the product name?
The product name is the 358S IC T211 Samsung Tab Charging IC.
What is the brand of this product?
This IC is used on Samsung Galaxy Tab devices and marked with the 358S part designation.
What is the model of this product?
The model designation is 358S.
What is this product used for?
This IC is used to repair fake charging or non-charging faults on Samsung Galaxy Tab 3 7.0 boards.
Which devices are compatible with this product?
This IC is compatible with Samsung Galaxy Tab 3 7.0 models T210, T211, and T215.
Who should use this product?
This product is suitable for mobile repair technicians, repair shops, service centers, and professional users.
Where is the 358S IC located on the Tab 3 board?
The 358S IC sits at board position U506 on the Tab 3 7.0 motherboard.
What is the safe heat limit when removing this IC?
Heat should stay below 350 degrees centigrade during removal to avoid damaging the surrounding pads.
