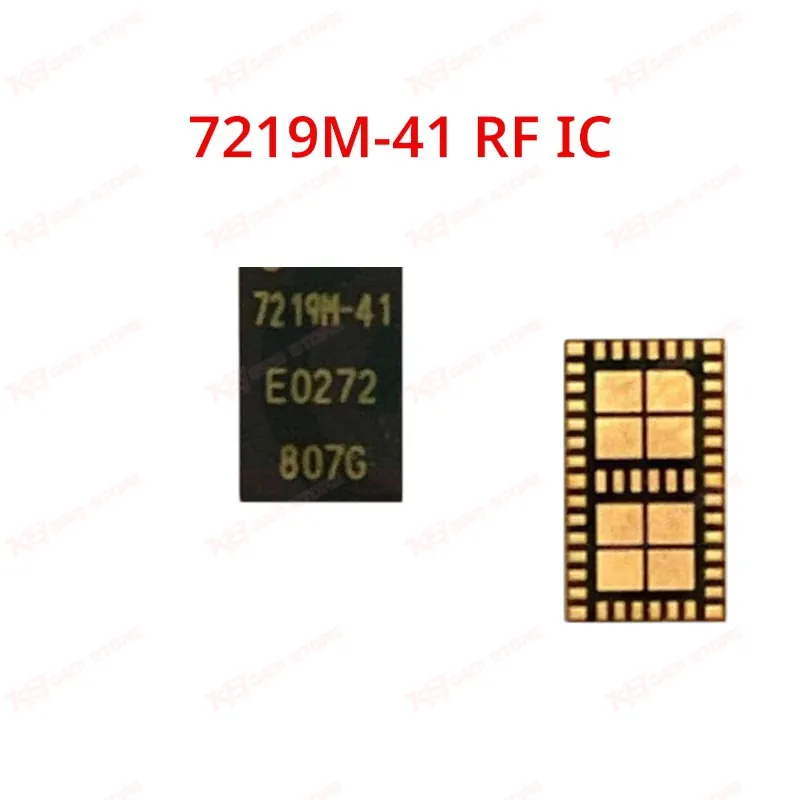

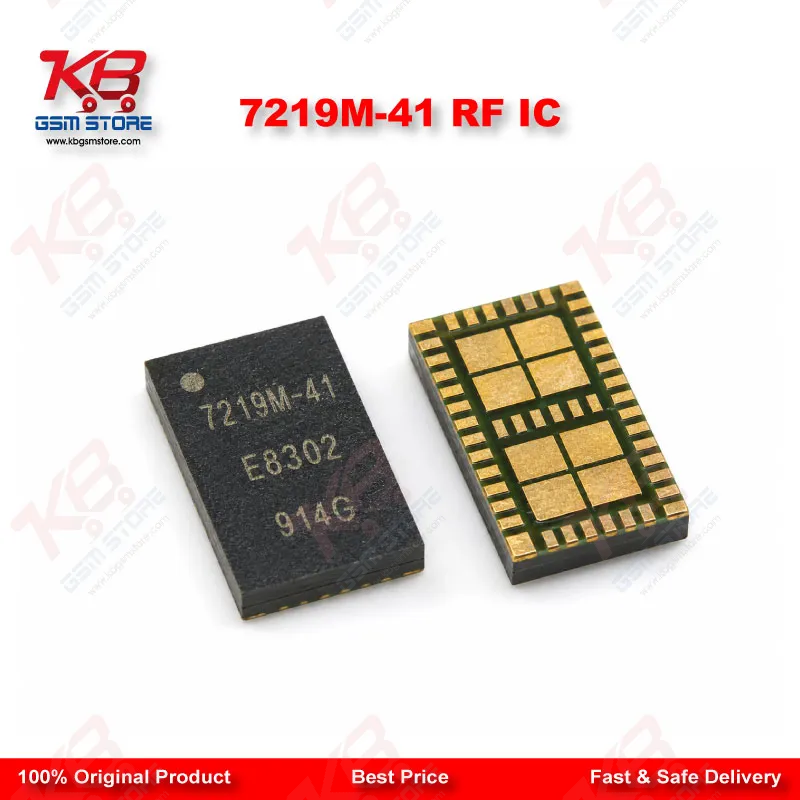

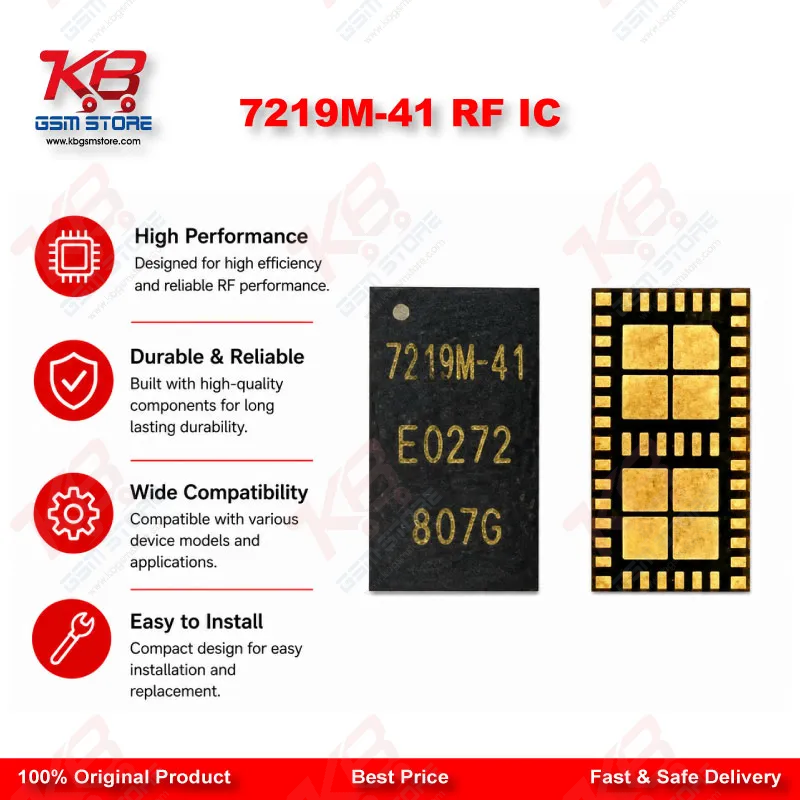

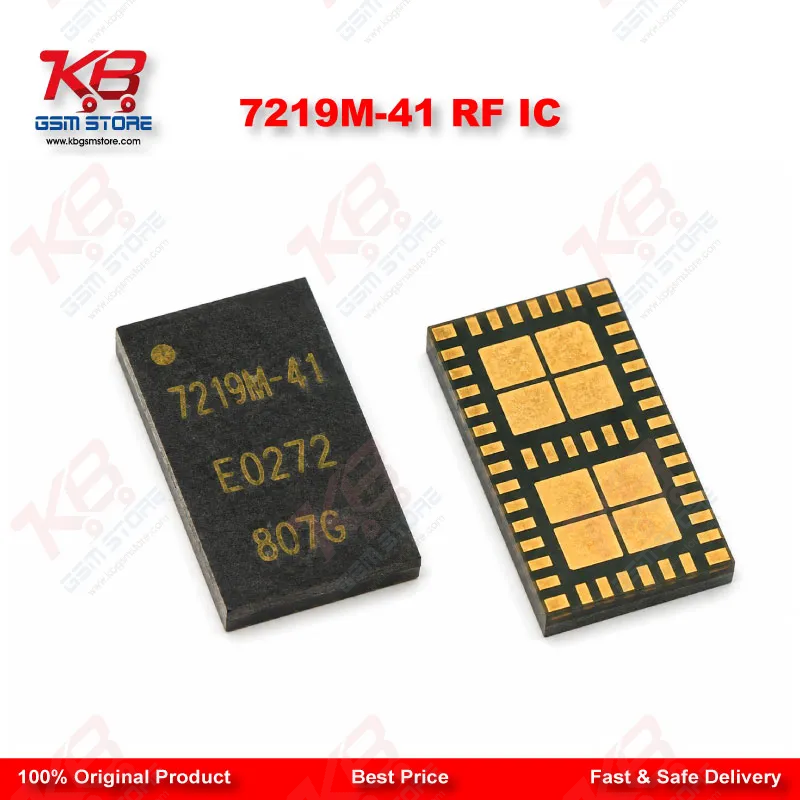

7219M-41 RF IC

When a customer walks into your shop with an OPPO A5S or Samsung A20S showing no network, dropped calls, or a weak signal bar that never improves regardless of location, the fault usually traces back to the RF power amplifier stage rather than the antenna or SIM tray. The 7219M-41 sits on the RF front-end and handles signal amplification before transmission, so a failure here shows up as intermittent network loss, "no service" after a drop, or a phone that only catches signal near a window.You'll typically encounter this fault after liquid damage, a hard drop that cracks solder joints, or after a previous repair disturbed the RF section during another IC change. Before you commit to swapping the 7219M-41, confirm the fault with a multimeter or your board-level diagnostic setup — check for shorted lines around the PA IC pad and rule out antenna connector damage or a cracked RF cable first, since those mimic the same symptoms and don't need an IC change.Removal and replacement follow the standard workflow for small-footprint RF ICs. Set your hot air station to a controlled temperature profile suited to the board's other components, since overheating a densely packed motherboard risks damaging adjacent parts. Clean the pad thoroughly after removing the faulty IC, reapply flux, and either direct-solder or reball the new 7219M-41 depending on your bench setup and the ball pitch on this specific footprint. A precise reflow here matters — RF ICs are sensitive to cold joints, and a partial connection often produces the same weak-signal symptom you started with, sending you back to square one.After reflow, test the board before full reassembly. Insert a SIM, check signal bars against a known-working device on the same network, and confirm data connectivity holds under load rather than just showing bars at idle. This catches cold solder joints immediately instead of after the phone is back in the customer's hands.This IC fits directly into your existing ISP and reballing workflow if you're already servicing OPPO and Samsung entry-level boards. Technicians running a dedicated RF repair bench — with a hot air station, microscope, and reballing stencils on hand — will find the 7219M-41 a routine swap once the fault is correctly isolated. Pairing this IC with a stable soldering station and a fine-tip reballing stencil keeps your success rate high across repeat network-issue jobs.Because this is a compatible replacement IC manufactured for board-level repair use rather than an OEM-branded component, always verify against your specific board revision before ordering in bulk. KB GSM Store ships the 7219M-41 pre-tested to reduce dead-on-arrival returns, so your workshop can move straight from diagnosis to reflow without a separate verification step.
