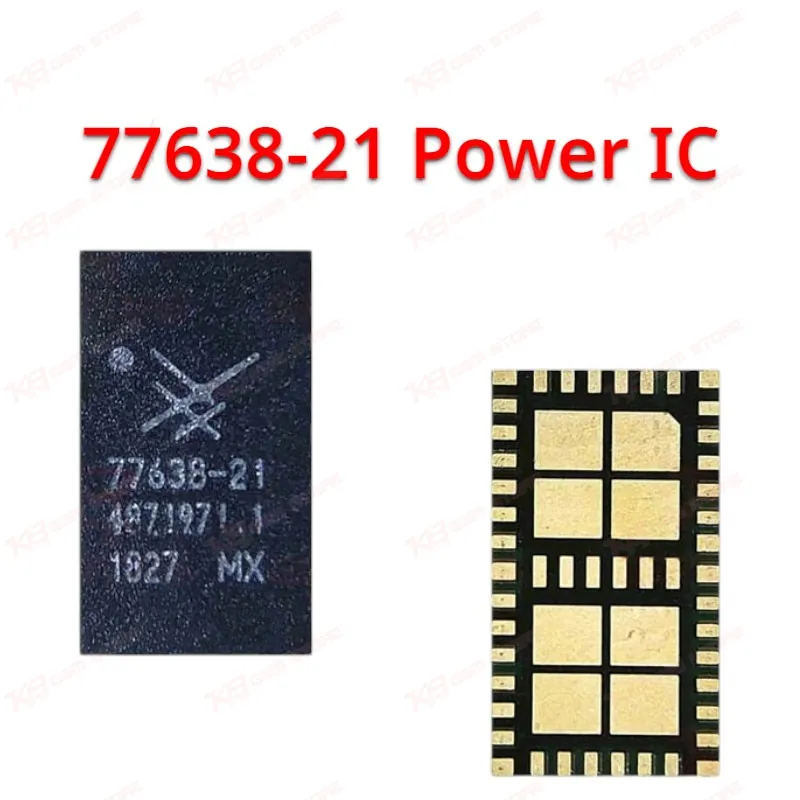

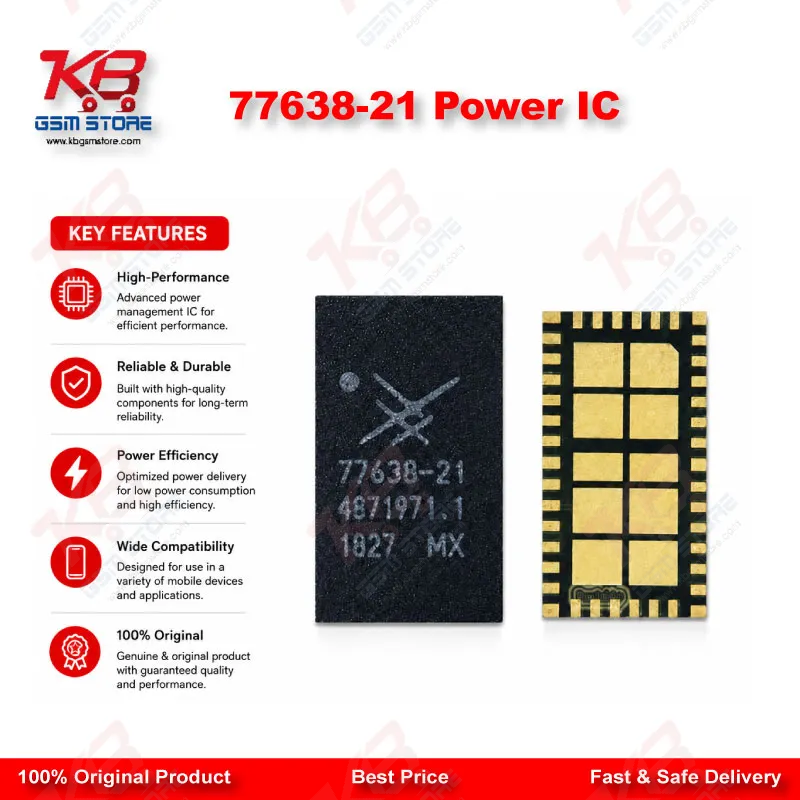

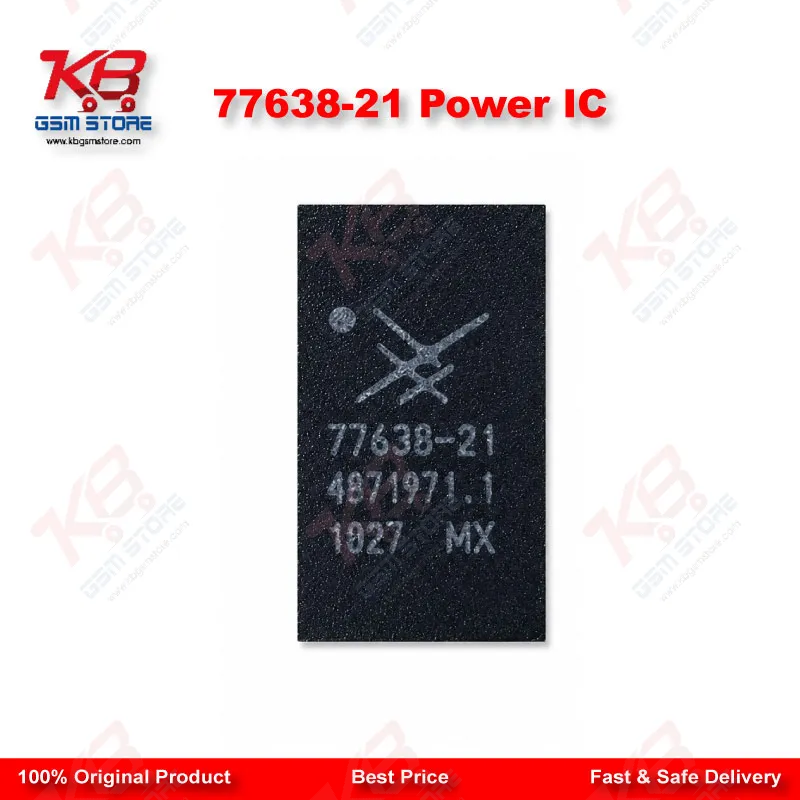

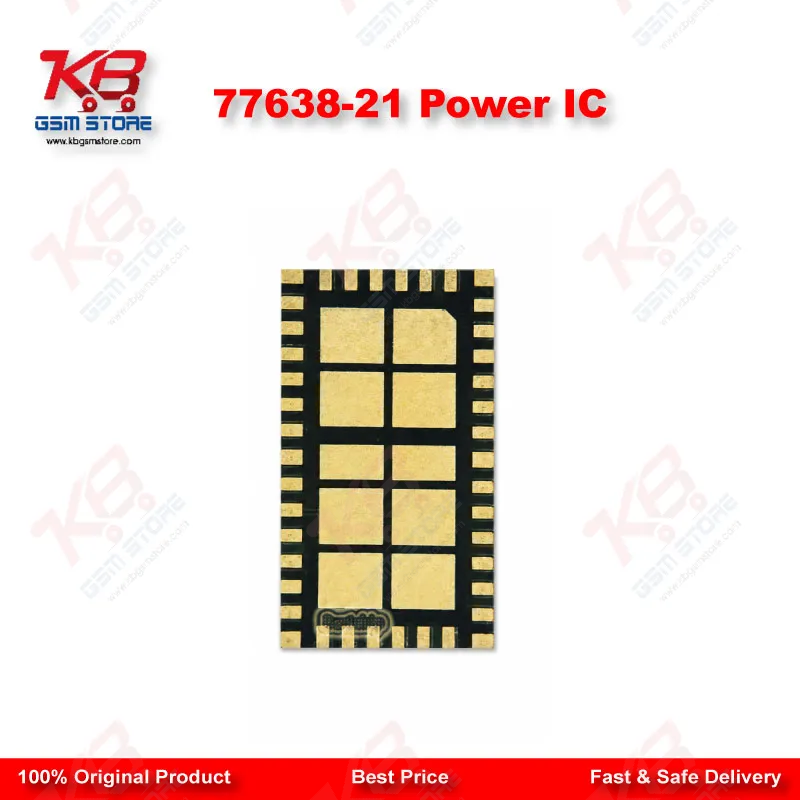

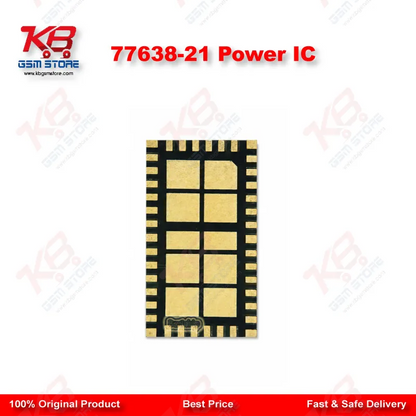

77638-21 Power IC

Network complaints are some of the trickiest calls a repair shop gets, because "no signal" can mean ten different things on the board. The 77638-21 narrows that search fast. It's a genuine SKY77638-21 power amplifier module from Skyworks Solutions, part of their SkyLiTE multimode multiband PA family, and it sits directly in the transmit signal path on Samsung Galaxy S9 (G960) boards. When this chip degrades, you get the classic symptoms: weak network, dropped calls, phone stuck searching, or a full loss of signal despite a working SIM and antenna.A power amplifier IC like this one takes the low-power RF signal from the transceiver and boosts it enough to actually reach a cell tower. It supports GSM/EDGE alongside WCDMA and LTE transmission, covering the multimode operation these boards need across different network types and regions. When technicians talk about "PA IC gone" or "TX chip dead", this is the exact category of part they mean — not the charging circuit, not the baseband, but the amplifier stage that pushes your outgoing signal.On your repair bench, this chip becomes relevant in a specific set of situations. Liquid damage near the RF section often takes out the PA IC first, since corrosion attacks these fine-pitch modules quickly. A phone dropped and showing intermittent network afterward is worth checking here too, since a hairline crack in the module or a lifted pad breaks the transmit path without killing the whole board. You'll also see this chip fail after a botched repair attempt elsewhere on the RF section, where excess heat during an unrelated fix damaged the PA unintentionally.Diagnosis before replacement matters more with PA ICs than almost any other component. Before you commit to changing the 77638-21, confirm the fault sits at the amplifier stage and not upstream at the transceiver or downstream at the antenna switch. A quick check with a signal generator or box tool that reads TX power output helps isolate the real fault. Swapping the IC on a board where the real issue is a cracked antenna connector wastes your part and your time, so isolate first, then replace.Installation itself follows standard BGA/MCM rework practice. Clean the pads thoroughly after removing the old chip, since flux residue or lifted pads under a multi-chip module cause reflow problems that mimic a bad part even when the new IC is fine. Reball if the original footprint has any damage, align carefully under magnification given the fine pitch, and reflow with a controlled profile rather than free-handing the hot air station. Rushing this step is the single biggest reason technicians report "changed the IC but problem is the same" — it's almost always a reflow or alignment issue, not a bad chip.For Pakistani repair shops handling volume network complaints, keeping the 77638-21 in stock alongside your other Samsung S9 board-level parts saves turnaround time on a repair category customers expect fixed same-day. Pair it with a decent hot air rework station and a stencil sized for MCM packages, and this becomes a routine fix rather than a board write-off. Always source from verified suppliers, since counterfeit PA ICs are common in this part number range and tend to fail again within days of installation, costing you the customer's trust along with the repeat labor.
