Every mobile repair shop reaches a point where a basic soldering iron just can't keep up. Motherboard-level work — IC reballing, jumper wires on tiny pads, connector rework, board-level component replacement — needs a tool that heats fast, holds temperature under load, and doesn't drift while you're mid-solder. The Aifen A5 Pro is built around exactly that requirement, and it's become one of the more trusted budget-friendly options among technicians who need JBC-style performance without JBC-level pricing.
At the core of the A5 Pro is a 120W chip-controlled heating system. Unlike older analog stations that regulate temperature through raw AC voltage swings, the A5 Pro uses program-chip control, which means the heating response is faster and far more precise. When you lift the handle off the stand, the tip reaches working temperature in seconds rather than the slow ramp-up you get from cheaper irons. For a technician running back-to-back repairs — dead phone diagnosis, charging IC replacement, display connector rework — that speed adds up over a full day on the bench.
Temperature control runs from 100°C to 450°C (212°F to 842°F), covering everything from delicate flex cable soldering to heavier ground-shield and connector work. You can switch the display between Celsius and Fahrenheit depending on what you're used to. The station also includes a temperature compensation function, which automatically adjusts the tip's output during actual soldering contact — so when the tip touches a cold board or a large ground plane and loses heat, the station compensates in real time instead of leaving you underpowered mid-joint. This is the difference technicians notice most when moving up from basic irons: the tip doesn't sag in temperature the moment it touches metal.

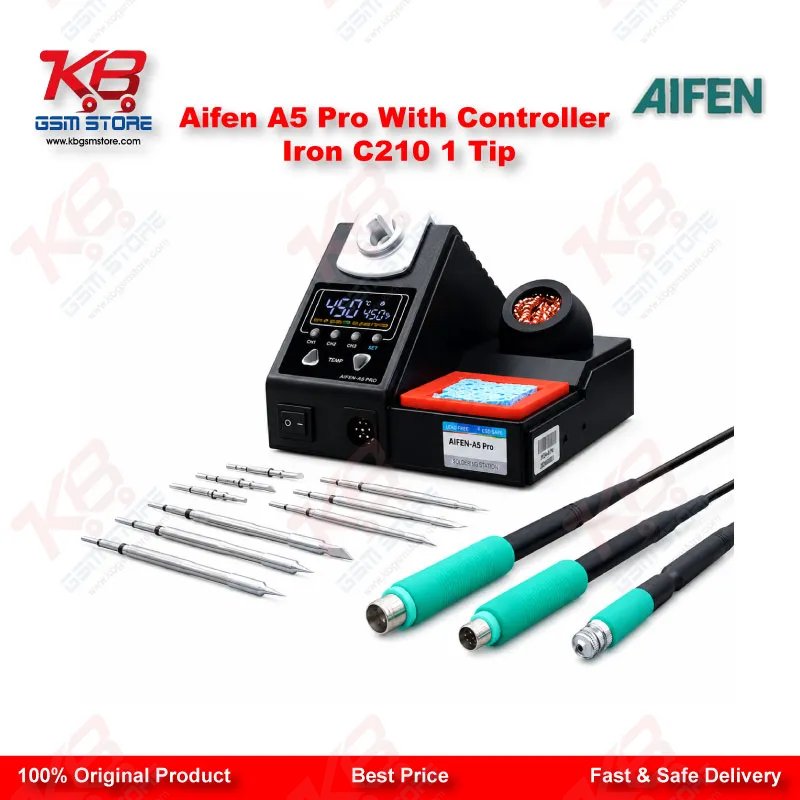

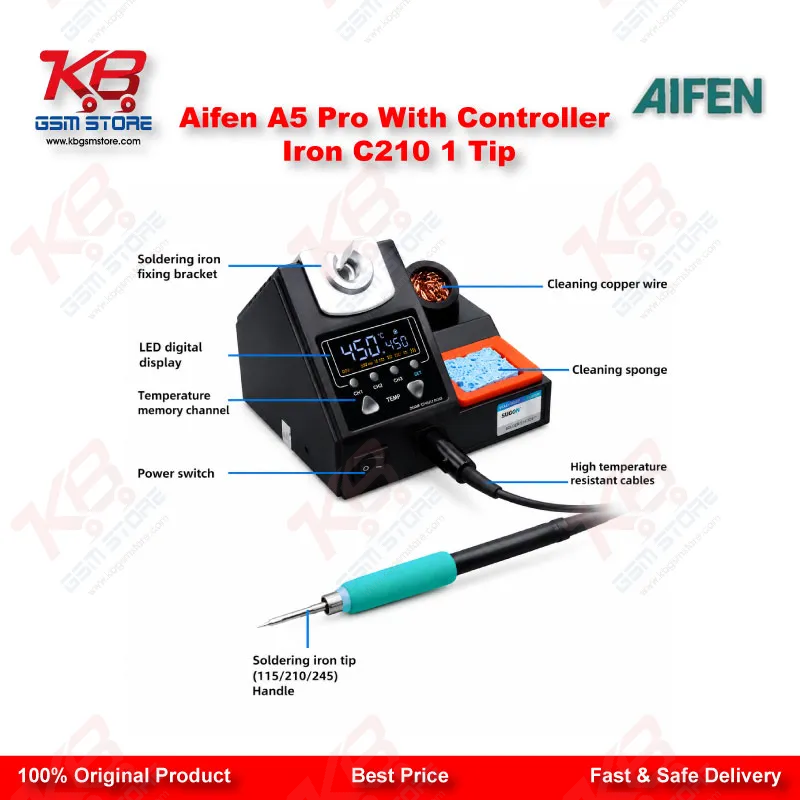

The A5 Pro ships with a C210 handle and one soldering tip, but the real strength of this station is its compatibility. It works with C115, C210, and C245 handles and tips, all of which are JBC-standard, so if your workshop already has JBC-compatible tips from other tools, they'll likely fit here too. This lets you scale your tip inventory based on the actual work you do — finer C115 tips for delicate SMD and IC leg work, C210 for general-purpose soldering, and C245 for heavier thermal mass jobs — without buying a new station for each.

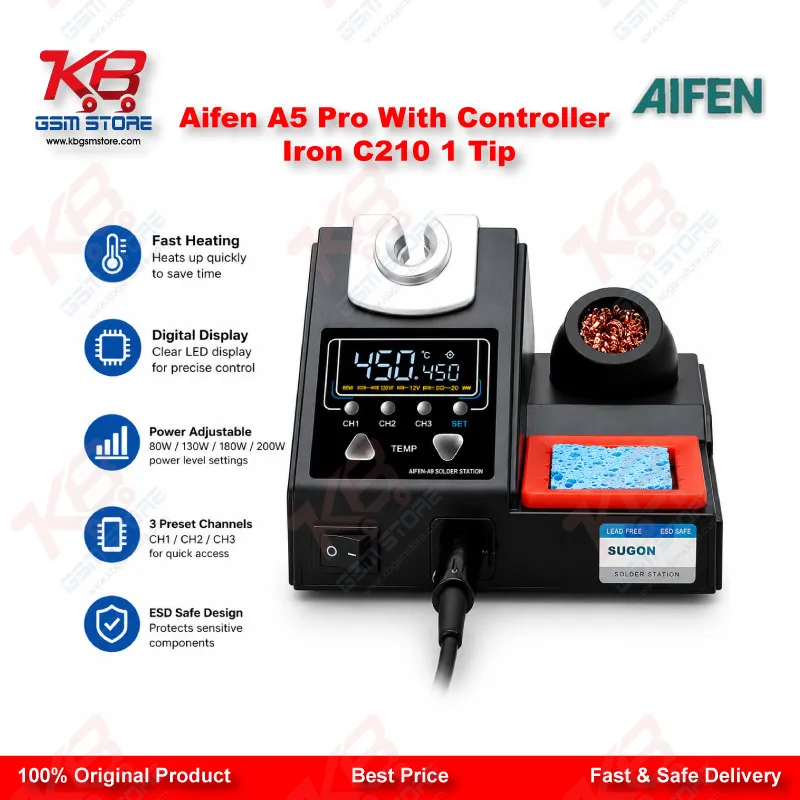

Workflow features are where this station separates itself from entry-level irons. It holds three memory channels, so you can store your commonly used temperatures — say, one for flex cable work, one for IC soldering, one for general board repair — and switch between them with a short press instead of manually dialing in numbers every time you change tasks. A long press stores a new setting into memory. There are also four preset standby temperatures (0, 150°C, 180°C, and 200°C), with "0" effectively powering the tip down while keeping the station on standby, useful if you're stepping away from the bench without wanting to fully shut down and reheat later.
Safety and tip longevity are built into the handle itself. It has a dormant metal sensing ring, so the moment you set the handle back into its stand, the station automatically drops into sleep mode. This isn't just a convenience feature — it directly extends tip life. Oxidation and tip burnout are two of the most common reasons soldering tips fail early, and both happen faster when a tip sits at full temperature with nothing to solder. Auto-sleep keeps the tip from idling hot between repairs, which matters a lot in a shop running the iron for hours daily.

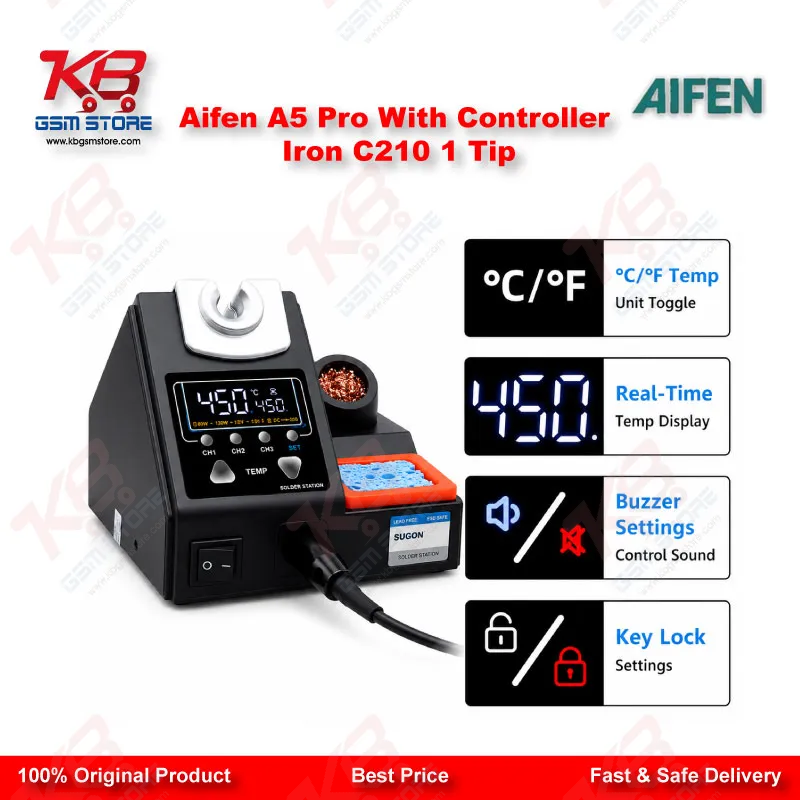

The station runs on universal input voltage, accepting both AC 220V and AC 110V at 50-60Hz, so it works without modification on Pakistan's standard power supply and travels fine if you're setting up a second bench or mobile repair unit. The digital display shows both current and target temperature simultaneously, so you always know exactly where the tip sits relative to your set point — no guessing whether it's stabilized before you start soldering.
For a Pakistani repair shop, this station fits directly into daily hardware fault diagnosis and rework: reflowing charging port connectors, board-level jumper work after a dead-after-flash situation, reballing small ICs, and general SMD desoldering. Because it's chip-controlled and thermally responsive, it's suited to technicians moving up from basic 60-70W irons who are tired of tips that can't hold heat on ground planes or larger pads. It's also a practical second station for shops that already run a JBC or Sugon-brand setup, since tip compatibility carries over.
This isn't a hot air rework station and isn't meant to replace one — it's a dedicated contact soldering iron built for precision joint work, not for reflowing BGA chips or removing ICs with hot air. Pair it with a separate hot air station for full board-level rework capability.
