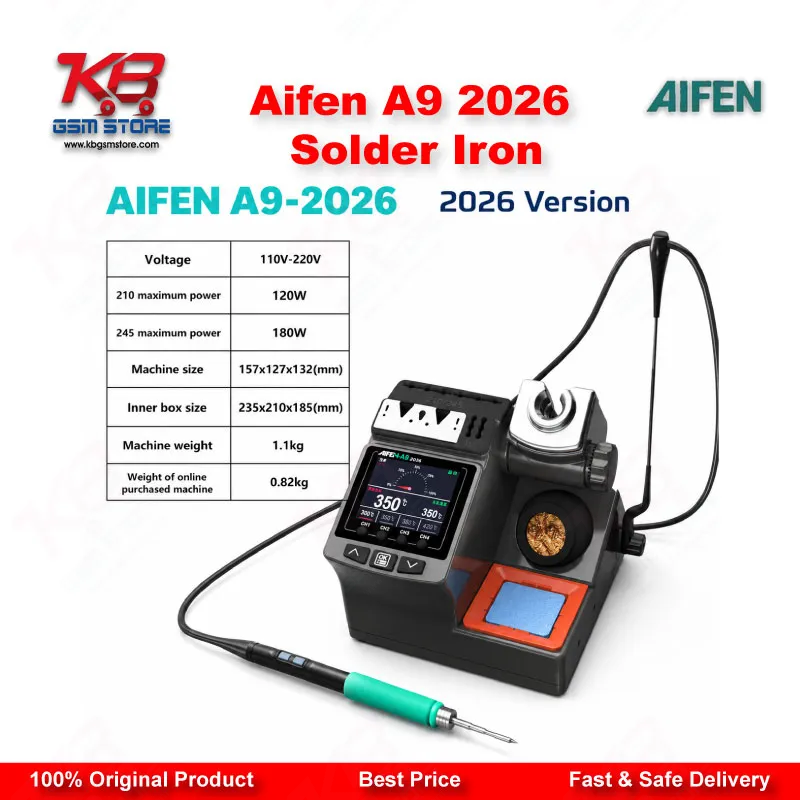

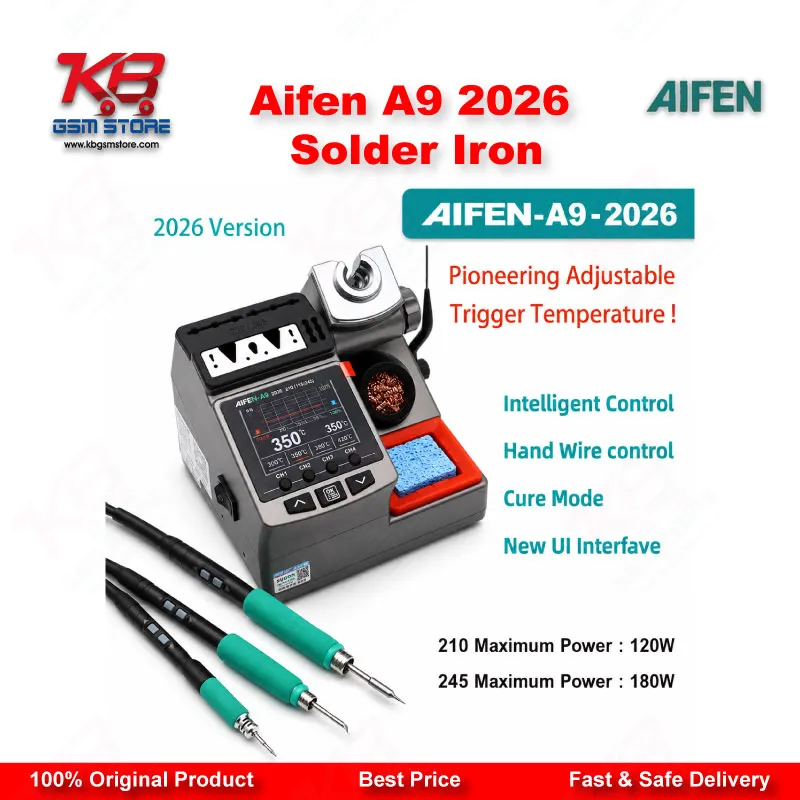

AIFEN A9 2026 Soldering Rework Station (120W/180W) – C115/C210/C245 Compatible

Every motherboard repair lives or dies on
heat control, and that's exactly where the AIFEN A9 2026 earns its place on a
busy repair bench. This isn't a basic soldering iron you plug in and hope for
the best — it's a programmable rework station built around a chip that manages
temperature the way a JBC-style station does, recovering heat almost instantly
between solder joints so you're not fighting cold-tip drag on a tightly packed
motherboard.

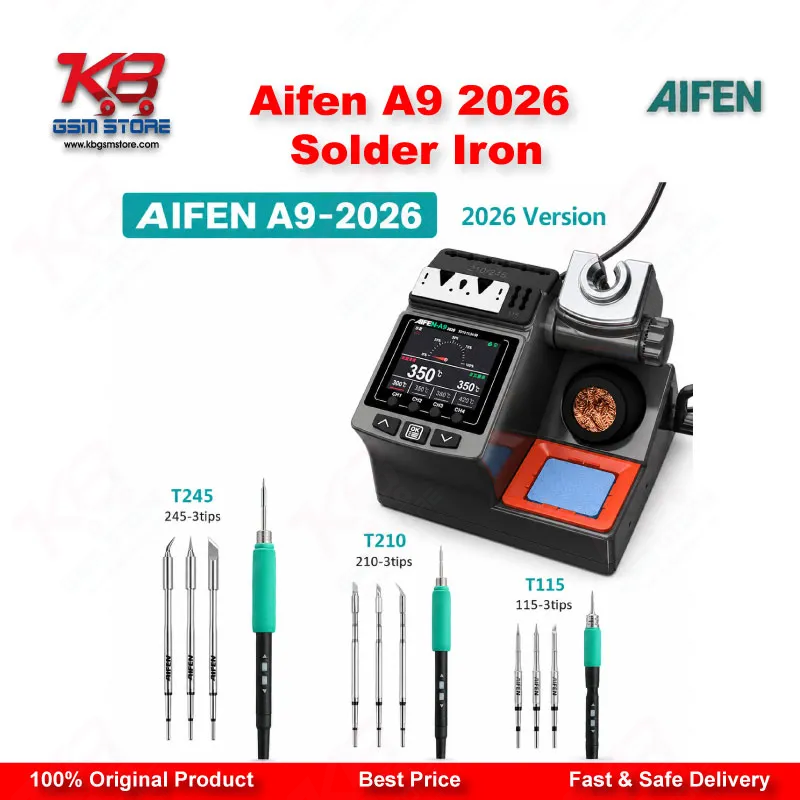

The base unit accepts three handle
families: T210, T115, and T245. Drop in a T210 or T115 handle and you're
working at up to 120W, plenty for everyday SMD component removal, jumper work,
and general PCB soldering. Switch to the T245 handle and the station pushes up
to 180W, the kind of output you reach for when you're lifting a stubborn CPU or
NAND IC that won't budge with lower heat. You don't need a second station for
that jump in power — one A9 2026 base handles both ranges depending on which
handle you plug in.

The temperature system itself is the real
upgrade here. AIFEN runs a program-chip controller instead of the older
AC-voltage-based heating logic you'll find in cheaper irons, which means the
tip reaches working temperature in around two seconds and snaps back to your
set point almost immediately after each touch on a pad. On a real bench, that
translates to fewer reflow passes, less time hovering the tip on a chip waiting
for heat to recover, and a noticeably lower risk of lifting pads on boards that
are already fragile from a previous repair attempt.

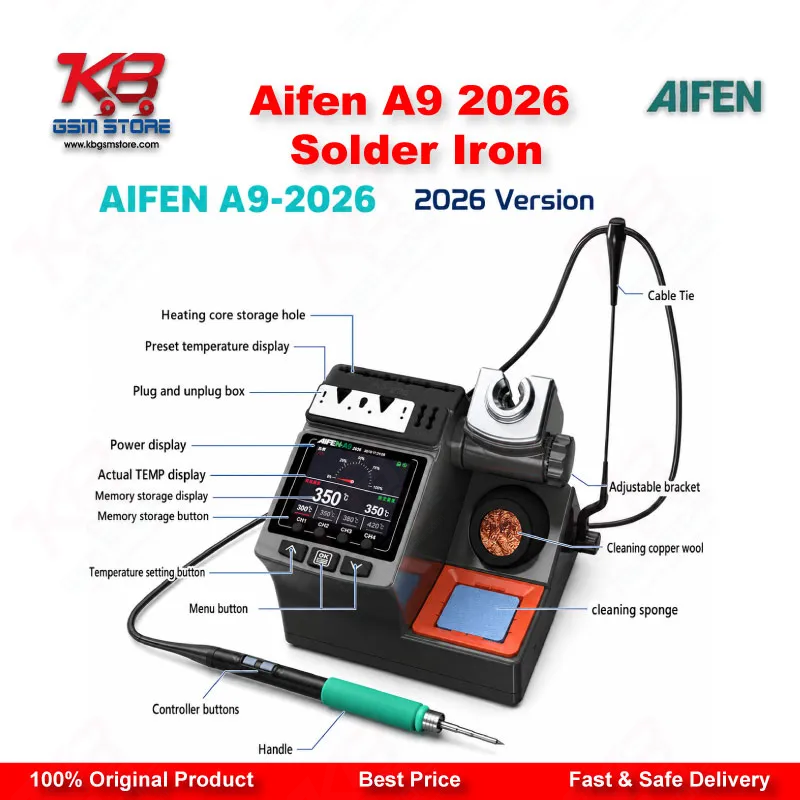

A curve display mode sits on the front
panel and tracks your set temperature against the actual tip temperature in
real time, so you see a heat dip the moment it happens instead of guessing why

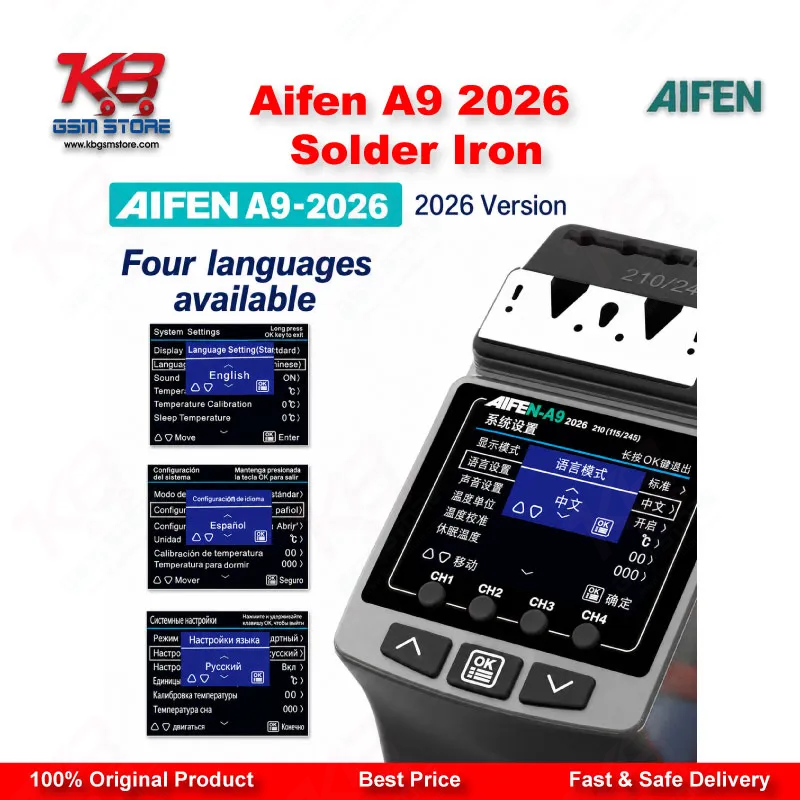

a joint isn't flowing. The interface runs in four languages — Chinese, English,
Spanish, and Russian — which matters if your shop has more than one technician
on rotation. Contact temperature return keeps the tip stable while you're
working dense BGA pad clusters where even small temperature swings show up as
cold joints or shorts.

For technicians who prefer adjusting heat
without reaching across the bench, the wire control handle puts temperature
buttons right on the iron itself. You raise or lower the set point mid-job
without breaking your hold on the board, which speeds up repetitive desoldering
work like pulling charging ICs or removing damaged power management chips. When
you set the handle down, the adjustable hibernation bracket drops it into sleep
mode automatically — no manual power-down step, no wasted heat sitting idle, and
the tip lasts longer because it isn't oxidizing at full temperature between
jobs. Lift the handle and it's back to your working temperature within seconds.

Tip compatibility covers C115, C210, and
C245 series soldering iron tips, matching the handle you've installed. That
range covers fine-pitch SMD work on smaller tips through to higher-mass BGA and
connector soldering on the larger C245 tips, so a single station moves between
board-level micro-soldering and heavier rework without a tool change. A
silicone tip storage box keeps spare tips organized and protected from
corrosion, and the included copper cleaning wool handles dry tip cleaning
without the thermal shock that wet sponges can cause on some alloys.

On a Pakistani repair bench, this station
fits the daily grind of board-level work — IC change karna on a dead phone,
jumper lagana after a liquid damage cleanup, or reflowing a power IC on a board
stuck on hang on logo. The universal AC 110V/220V input means it runs straight
off local mains without a separate voltage converter, and the fast heat
recovery cuts down the dead time technicians lose between jobs when running
back-to-back repairs through a busy shop day.

Where this station sits in your repair
workflow: it's the soldering and rework stage that follows diagnostics. Once
you've confirmed a hardware fault — a shorted IC, a cracked solder joint
causing a charging issue, or a damaged PCB pad from a previous repair — the A9
2026 is the tool that does the physical chip removal, cleaning, and
reinstallation before you move on to programming, flashing, or final testing.
It pairs naturally with hot air stations for BGA reballing, microscopes for pad
inspection, and ISP or eMMC tools for the data-recovery side of board repair,
making it a core piece of equipment rather than a standalone gadget.

Build quality and control logic are the two
things that separate this from entry-level irons sold at the same price point.
The mechanical short-circuit protection shuts the unit down automatically if
something goes wrong on the board side, protecting both your station and the
device you're working on. Combined with the keylock and standby temperature
presets carried over from earlier A9 models, this is a station designed for a
shop running it for hours every day, not a hobby bench used occasionally.

If your workshop handles motherboard-level
repair — chip removal, BGA rework, jumper soldering, or general SMD work — the
AIFEN A9 2026 gives you the heat control and handle flexibility to move between
light and heavy soldering jobs without switching equipment.
