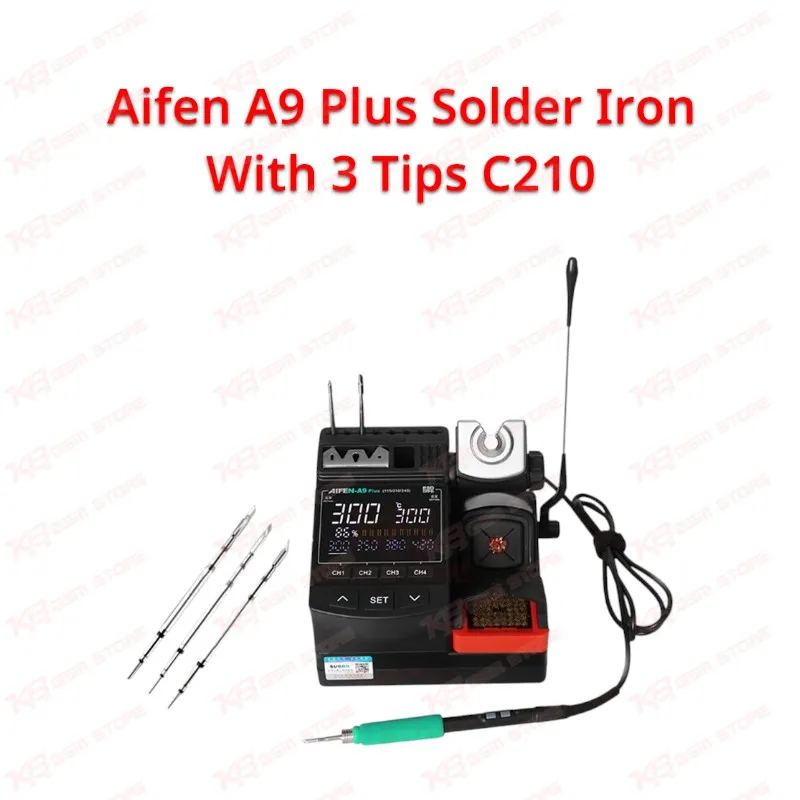

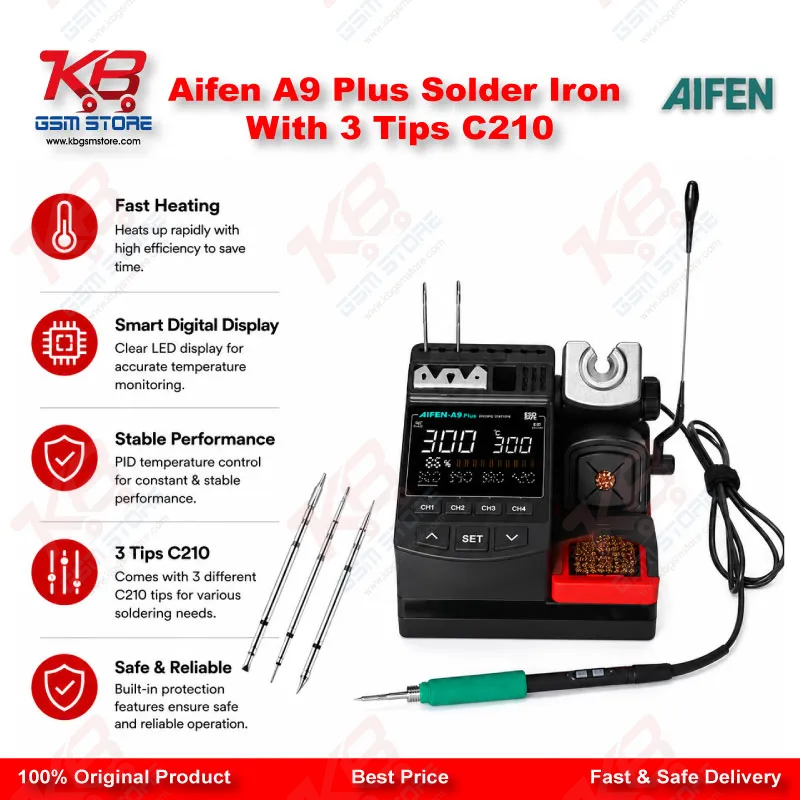

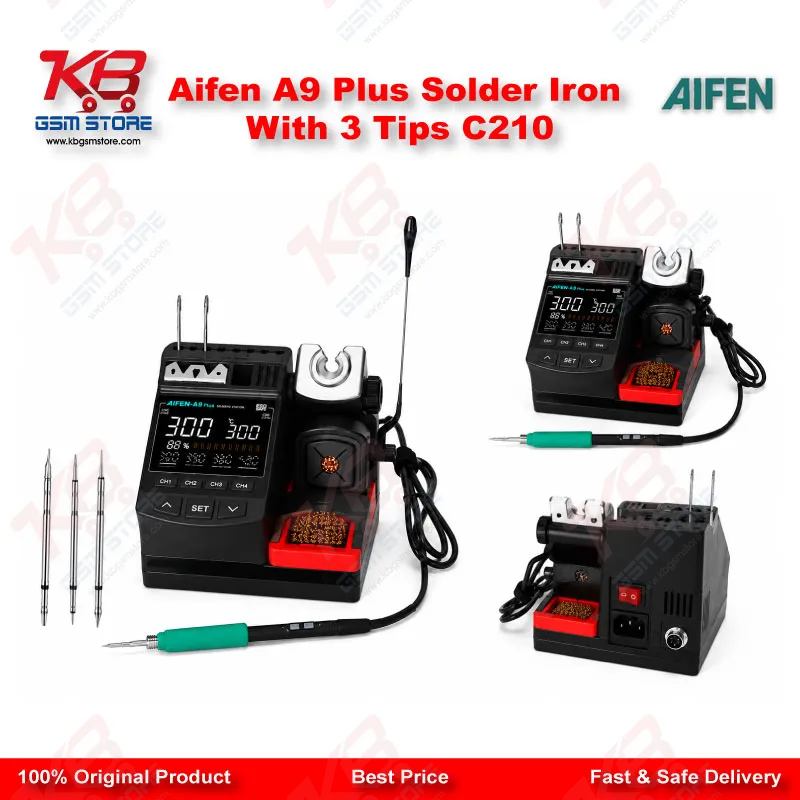

Aifen A9 Plus Solder Iron With 3 Tips C210

Any technician who has fought a weak iron mid-reflow knows how much a stable heat source matters. The Aifen A9 Plus solves that problem with a program chip temperature control system instead of the old AC voltage regulation found in cheaper stations. Set your temperature, and the station holds it tight even during back-to-back soldering on a busy repair bench. Power output reaches 120W standard with a 160W max mode, pulling from a universal AC 100-240V input at 50-60Hz. That range means the station runs on Pakistani mains power without a step-down converter, which matters for shops dealing with voltage fluctuation. Temperature adjustment spans 100°C to 450°C, covering everything from delicate SMD components to stubborn lead-free joints that need extra heat to flow properly. The station comes standard with a C210 handle and 3 matching iron tips, and the same base also accepts C115 and C245 tips, so your investment carries forward if you switch handle types later for different repair jobs. Tip changes happen without switching the station off, which saves real time when you're moving between board-level tasks like IC reballing prep and connector rework in the same session. Temperature control and power switching both sit on the handle itself, so you're not reaching across the bench to the base unit every time you need to adjust heat. That's a small detail, but on a workshop table crowded with a hot air station, microscope, and test box, keeping your hands near the work matters. The digital display shows set temperature, actual temperature, power percentage, and a progress bar together, so you always know exactly where the iron sits before you touch the board. Four temperature preset slots mean you can save your go-to settings for common jobs — one for charging port pins, one for network IC work, one for general board cleaning, one for higher-heat lead-free soldering — and switch between them with a button press instead of dialing in numbers each time. That consistency reduces the risk of overheating a pad during a rushed repair, which is often what turns a simple charging issue into a lifted trace and a much bigger job. The sleep function activates automatically the moment you set the handle back on its stand. The heating core stops drawing full power in standby, extending tip life and cutting down on oxidation that builds up when a tip sits hot and idle between jobs. Lift the handle again and it returns to working temperature almost immediately, so there's no dead time waiting for the iron to catch back up. Where this station earns its place on a professional bench is board-level repair work. For dead phone diagnostics where a component needs replacing, precise heat control prevents damage to neighboring parts on a densely packed PCB. For boot loop and hang-on-logo cases traced back to a faulty IC, the A9 Plus gives you the control needed for clean IC removal and reinstallation without dragging pads. For charging issue repairs involving connector or filter IC work, stable low-to-mid range heat keeps the joint clean without scorching the flex or connector housing. Soldering and rework quality depends heavily on tip condition, and the redesigned cleaning system on this model — a covered tip cleaner that limits solder splatter — keeps the tip surface in better shape over daily use compared to open-sponge designs. That translates into cleaner joints and fewer cold-solder comebacks, which matters when your shop's reputation rides on first-time-fix rates. For a repair shop or service center handling a mix of phone, tablet, and small PCB work, this station replaces the need for separate basic irons at different stations. One base unit with interchangeable handle types (C115, C210, C245) covers general soldering, precision SMD work, and higher-power desoldering, all from the same control unit. That consolidation saves bench space and reduces the number of tools a technician needs to manage during a shift. The Aifen A9 Plus fits naturally into an existing GSM repair workflow — pairing with a hot air rework station for component removal, a microscope for fine-pitch inspection, and a PCB holder for stable board positioning during longer repair jobs. Technicians already running the A9 Pro will find the Plus version a direct upgrade path, with the extra preset slot, sleep-on-stand function, and larger display adding practical day-to-day convenience without changing the core workflow they already know. Whether you're running a single-technician repair counter or a multi-bench service center, a soldering station that holds temperature accurately and recovers heat fast directly affects how many repairs you can complete in a day — and how many of those repairs come back.
