Pick up the AIFEN A9ED handle and the first
thing you notice is the screen — full color, readable at a glance, showing your
set temperature next to the actual tip temperature in real time. On a workshop
bench where you're juggling diagnostics, a customer waiting at the counter, and
a board with a hardware fault staring back at you, that kind of instant readout
matters more than it sounds. You catch a temperature dip the moment it happens
instead of finding out later when a joint comes out cold.
AIFEN built the A9ED around the same tip
and handle family as the rest of their lineup — C115, C210, and C245 series
tips, running on 115, 210, or 245 handles. That gives you one base station
covering a wide span of work: smaller tips for delicate SMD component removal
and IC change karna on tightly packed boards, larger tips when you're pulling a
connector or working a bigger pad that needs more thermal mass behind it. Tips

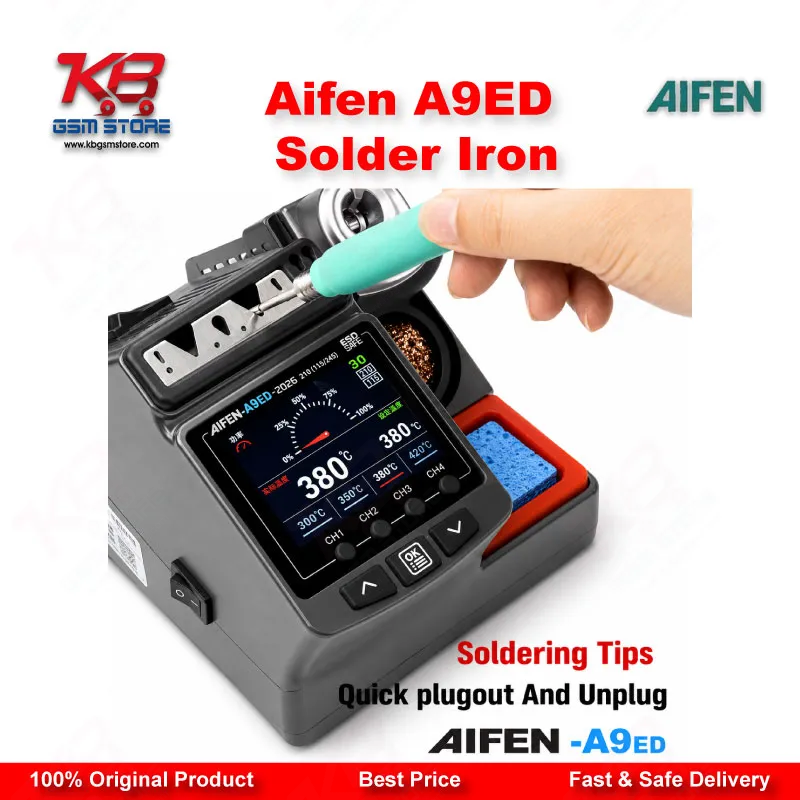

pull out and plug back in directly, so swapping between jobs takes seconds rather
than a full handle change.
Temperature control runs from 0°C up to
450°C, wide enough to cover everything from low-heat work on
temperature-sensitive components to full power for stubborn solder joints. The
CH1-CH4 memory buttons store four separate temperature presets, which matters
once you're running mixed jobs through the day — recall your low setting for
jumper lagana on a thin trace, then jump straight to your high preset for a CPU
pad without re-entering numbers each time. An adjustable trigger temperature
setting, configurable between 0°C and 50°C, controls when the station activates
lower-power sleep behavior once the handle goes back on its bracket, cutting
unnecessary heat exposure on the tip when you're not actively soldering.

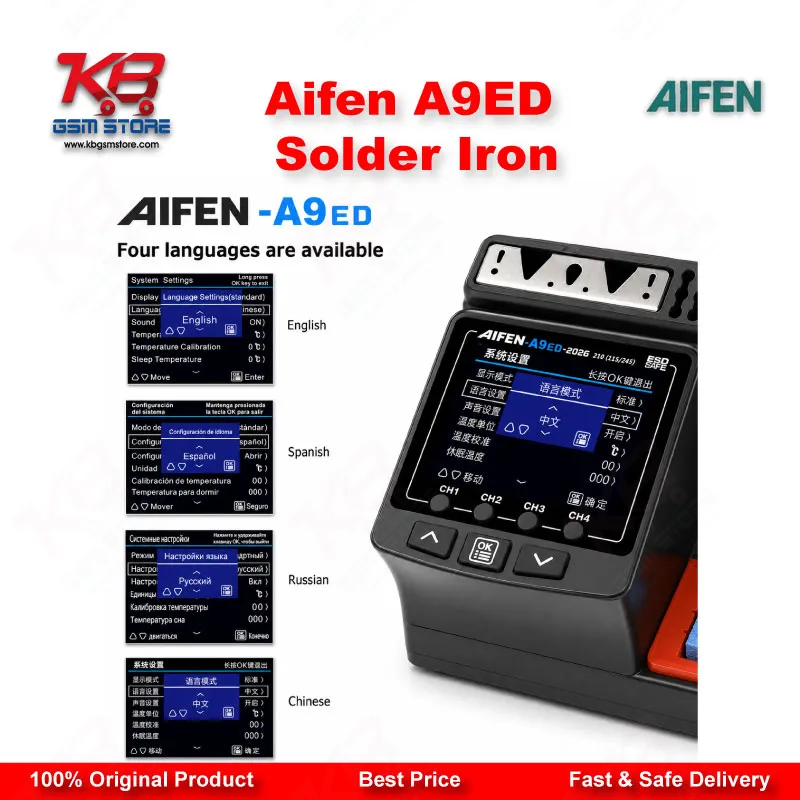

The interface itself runs in four languages
— English, Spanish, Russian, and Chinese — switchable through the system
settings menu, which helps if more than one technician shares the same station.

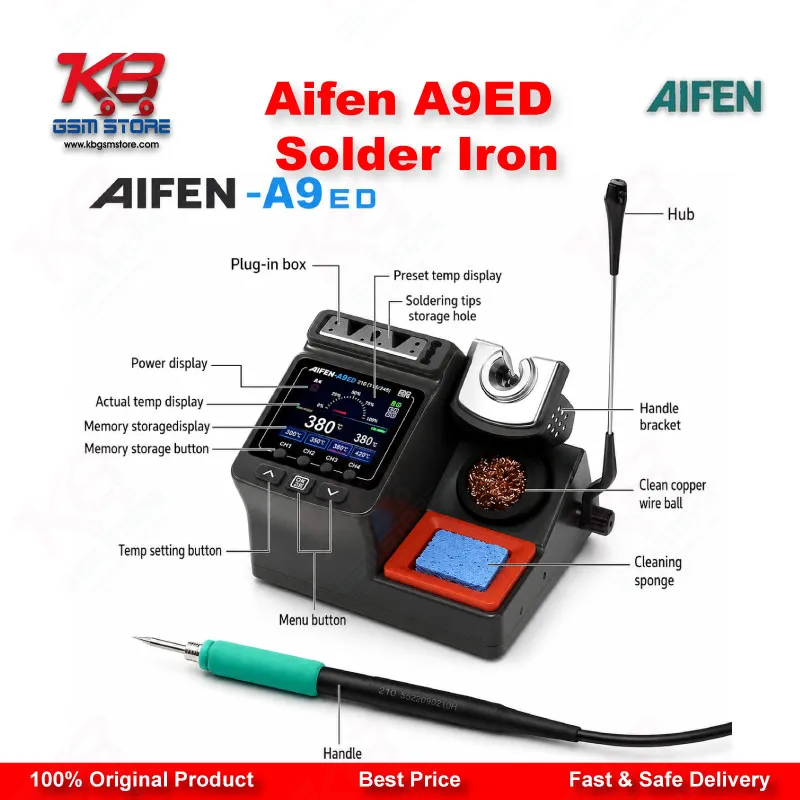

Buttons are straightforward: Menu to navigate, Up/Down to adjust values, OK to
confirm, with a long press on OK backing out of settings. There's no learning
curve here that slows down a technician who just wants to set a temperature and
start working.
Where the A9ED earns its place on a
Pakistani repair bench is in the everyday grind: a dead phone that needs an IC
reflowed, a board showing a charging issue traced back to a cracked solder
joint, or a display problem caused by a loose flex connector pad that needs a
touch-up. This isn't a specialty tool reserved for rare jobs — it's the station
you reach for multiple times a shift, and the rapid heating and quick
temperature recovery keep you moving instead of standing around waiting for the
tip to catch up after every touch on the board.
In terms of where this fits your overall
repair workflow, the A9ED sits at the rework and soldering stage, the physical
step that follows diagnostics and precedes programming or flashing. Once you've
identified a hardware fault on a board — a shorted IC, a failed power
management chip, a board stuck on hang on logo because of a damaged trace — the
soldering station is what removes the bad component, cleans the pad, and
prepares the board for a replacement part. Pair it naturally with a hot air
station for reballing and reflow work, a microscope for inspecting fine SMD
pads before and after soldering, and a multimeter for confirming continuity
once the new component is in place.
Build details support all-day use rather
than occasional hobby soldering. The main control unit measures roughly 14cm x
14.5cm x 12cm and weighs about 0.68kg, small enough to sit on a crowded bench
without eating up your working space. Universal AC 100-240V input at 50/60Hz
means you plug it straight into local mains without a step-down converter, and
the included cleaning sponge plus copper wire cleaning ball cover both wet and
dry tip maintenance so oxidized tips don't slow you down between jobs.
AIFEN positions the A9ED as a
cost-effective option in their lineup, and the spec sheet backs that up — full
color screen, four memory presets, wide tip compatibility, and a sleep-trigger
function usually reserved for pricier stations, without the premium price tag
attached to their higher-end models. For a shop running steady volumes of
motherboard-level repair, that combination of practical features and accessible
cost makes the A9ED a sensible choice for a primary or secondary soldering
station.
If your repair work covers SMD desoldering,
jumper soldering, IC removal and reinstallation, or general PCB-level repair on
mobile phones, the AIFEN A9ED gives you accurate temperature monitoring and tip
flexibility without adding unnecessary complexity to your bench.
