Aifen F3 Hot Air Gun 1000W — Roc Curve Mode BGA Rework Station for Mobile Motherboard Repair

Hot air gun work on
mobile motherboards demands a tool that separates preheating from peak
desoldering temperature — and does it reliably every time. Rush a cold board
straight to 400°C and you risk PCB warping, pad lift, or nearby component
damage. The Aifen F3 solves this with its Roc three-segment curve heating mode:
a built-in workflow that guides the heating process through three distinct
temperature stages before the board reaches desoldering readiness.

Here's how Roc mode
works in practice. You configure three heating intervals — stage one and stage
two handle preheating at progressively higher temperatures, each for a set
duration you control. Stage three reaches your target desoldering temperature.
Once the F3 completes all three stages, the buzzer sounds — that's your signal
to start chip removal. The display shows current stage, real-time temperature,
air volume level, and countdown timer throughout the entire sequence. No
guessing when the board is ready, no watching a temperature dial hoping it
stabilizes. When the buzzer goes off, the board is at the correct temperature
for clean BGA chip removal.

This matters
enormously for IC change karna jobs on high-value motherboards — Samsung,
iPhone, Qualcomm Snapdragon-based boards, MediaTek chipset boards — where a
single misjudged desoldering temperature causes pad damage that turns a simple
hardware fault repair into an expensive rework job. The Roc curve mode takes
that risk out of the equation by standardizing your preheating workflow.

The F3 runs on a 1000W
switching power supply that supports global voltage input. Whether your
workshop operates on standard Pakistani 220V power or you're connecting through
a voltage regulator for sensitive work, the F3 handles it. Switching power supply
architecture also means the unit stays compact and light — no heavy transformer
adds bulk to your repair bench. Air volume adjusts from level 001 to 160,
giving you fine control from gentle PCB warm-up passes to full-force airflow
for larger component removal.

The heating core
system is one of the F3's standout design upgrades. The 7B rotary heating core
installs and removes by hand — turn to lock, turn to release, no screwdriver
needed. When your heating core wears out or you need to swap to an 11b
integrated core for different work, the changeover takes seconds rather than
interrupting your workflow with tools. One 7B core comes standard in the
package; the included 11b integrated core gives you a backup ready to go.

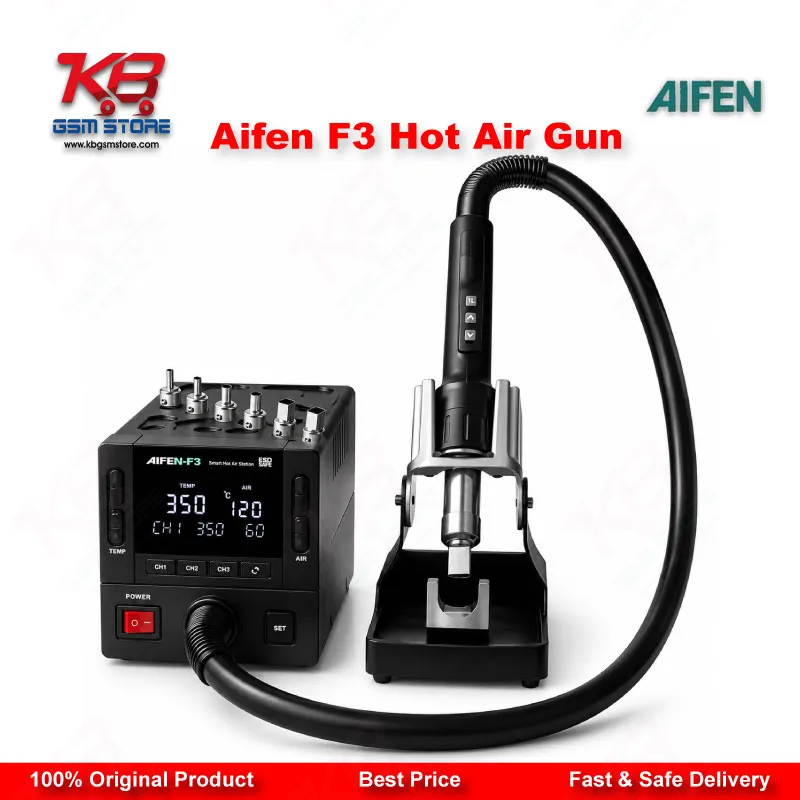

Six nozzles come
standard with the F3, including the 15×15mm and 15×17mm square nozzles
specifically sized for motherboard chip removal work. These square nozzles
focus heat precisely over BGA pads and surface-mounted ICs, preventing heat
spread to adjacent components. The TJ-218 dedicated bracket keeps the handle
positioned at the correct angle during work — essential for long desoldering
sessions where arm fatigue affects precision placement.

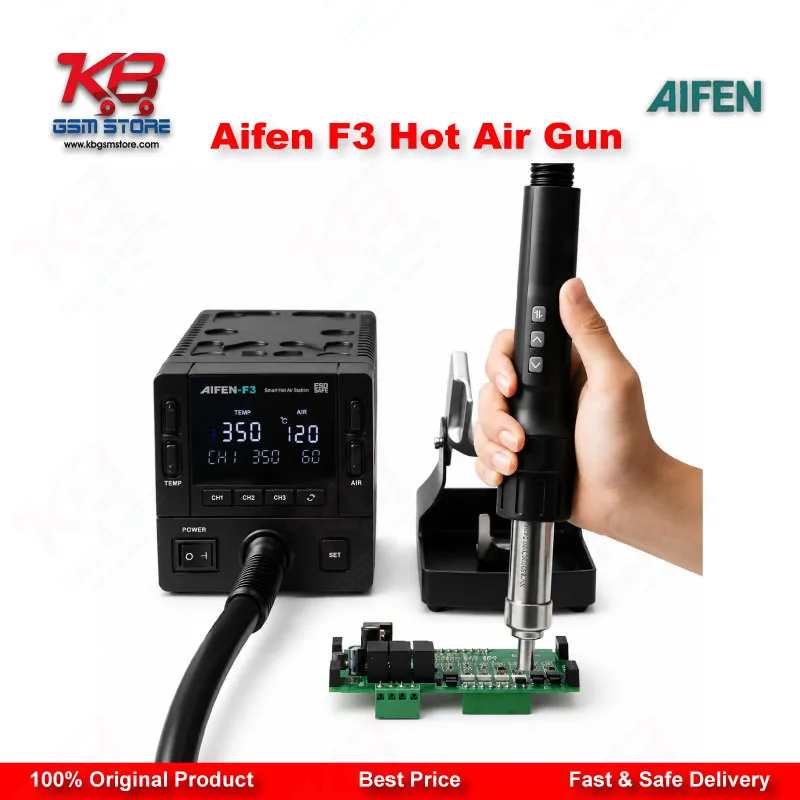

The line control
handle gives you dual operation modes: temperature control mode for direct
adjustment, and memory control mode where you recall saved settings for
repeated jobs. Pakistani repair shops running high volumes of the same model —
like Samsung A-series or iPhone 12/13 board rework — benefit from saving your
proven temperature and air volume profiles and recalling them instantly across
every unit that comes in.

The F3's temperature
range spans 100°C to 500°C, covering everything from gentle flex cable
reseating at low temperatures to full BGA chip desoldering at the upper range.
Display work, charging IC removal, dead after flash board inspection requiring
component swaps, network IC replacement — all of these jobs sit within the F3's

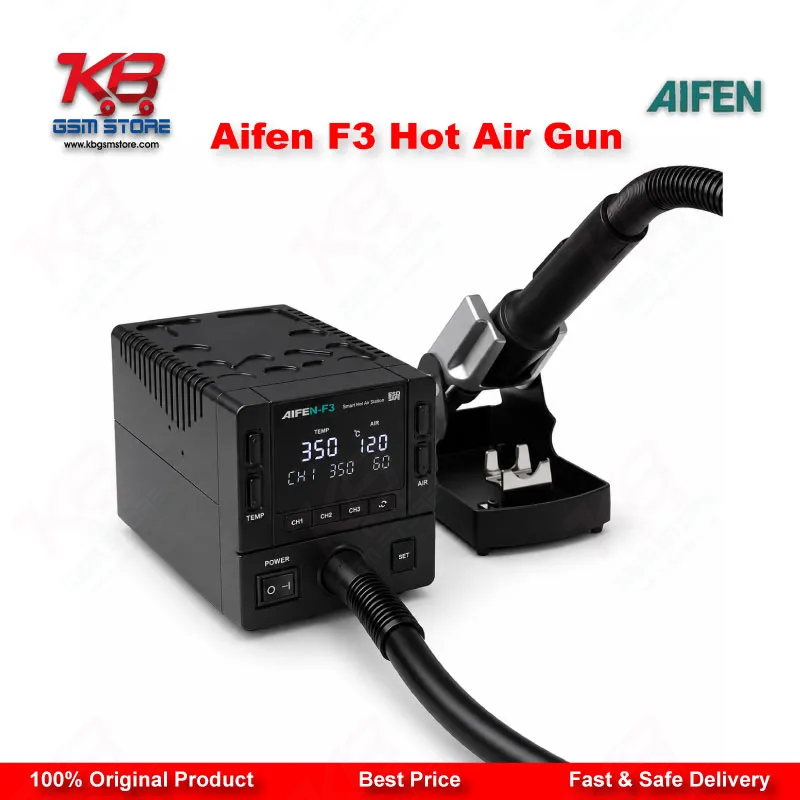

operating parameters. The color screen UI shows all active parameters
simultaneously: stage, temperature setpoint, real-time temperature, air volume,
and countdown — so you keep eyes on the work, not on hunting through menus.

The complete package —
host, 7B and 11b heating cores, six nozzles, TJ-218 bracket, connect wires,
power cord, and manual — arrives ready for immediate use on your repair bench.
