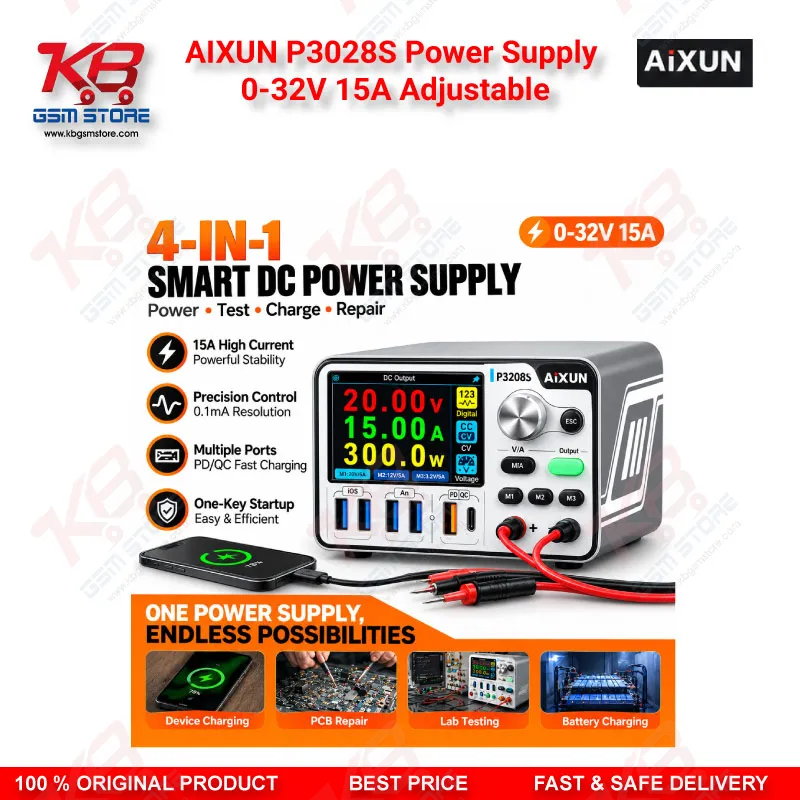

AIXUN P3208S Power Supply 0-32V 15A Adjustable

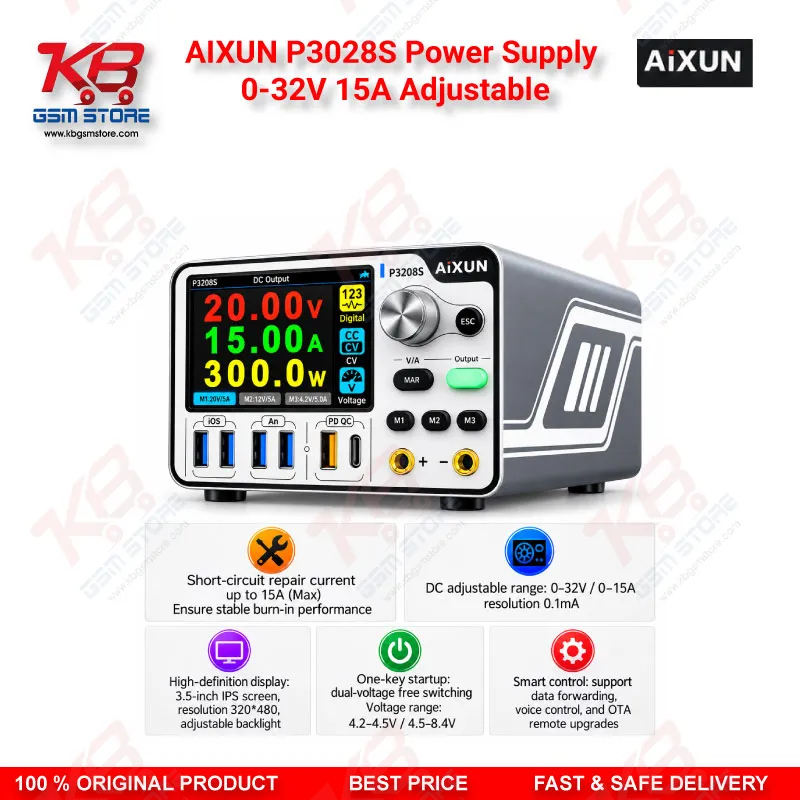

Your dead phone jobs get faster when you stop guessing about power. The AIXUN P3208S is a 0-32V, 0-15A adjustable regulated supply that works as a fast-charge tester, a one-key boot station, and a short-circuit checker, so most board-level diagnostics run from one bench unit. You set the voltage and current limit before you touch the board, then watch the draw on the 3.5-inch IPS screen, which shows voltage, current, power, and operating status in real time. A board pulling normal current tells you the power path is clear, while a sudden spike or a current that stays pinned at your limit points to a short that needs tracing. The 15A range covers the heavier loads you meet on power ICs, charging circuits, and burn-in work, and the 10mV and 1mA adjustment resolution gives you the fine control you need when you chase leakage. Most technicians start with a low current limit and a gentle voltage, then raise the limit step by step as the board shows how much it draws. That sequence protects good parts while you look for the fault, which matters when you plan a jumper lagana or an IC change karna job and want to confirm the board before you lift anything. Burn-in and aging tests are where this unit earns its place on a busy bench. You set a steady voltage, hold the current at the level your test requires, and let the board run while the station shows how the load behaves over time. That longer window catches intermittent faults that a quick power-on check misses, especially on boards that look fine until they warm up. Your diagnostic order matters. Check the input supply first, then the power management section, then the charging path, and only then start lifting parts. When you follow that order, the station narrows down the fault before you reach for the microscope, and your reballing kits and PCB holders stay on the shelf until you need them. For a boot loop issue or a hang on logo, the power curve shows whether the board takes charge at all, and you can compare it against a known good unit on the same settings. The one-key boot function powers iPhone logic boards without a battery by switching between 4.2-4.5V and 4.5-8.4V, and it remembers your last setting so you do not reconfigure after every power cycle. Dual-channel power-on switching covers iOS and Android handsets, so you do not need separate stations for each brand on your bench. The fast-charge side supports PD and QC protocols along with QC5, Super VOOC, and AVS, with up to 60W output, so you can test charging behavior on phones and laptops from the same station. When a phone shows a charging issue or stays dead on the charger, you can check the port, the charging IC, and the power path while the station reports each change in voltage and current. Battery fast charging is supported through the included adaptor, which helps when you need the battery topped up during a diagnostic session. The unit accepts 110/230V mains input, which suits the supply on Pakistani workshop benches, and it delivers a rated 300W maximum output for sustained testing. Bluetooth and WiFi connectivity lets you upgrade the firmware, and PC data forwarding makes it possible to record readings for your repair records or for a customer who asks what you found. The package covers three 4-in-1 power-on cables, six FPC cable sets for iPhone 11 to 16 series, a one-key boot-up docking station, a battery fast charging adaptor, a pair of banana plug alligator clip leads, a power cord, and a grounding wire. Connect the grounding wire before you power the station, set your limits, and run the first board at low current to confirm your wiring. The banana plug leads suit general board work, while the FPC sets handle direct power-on on supported iPhone boards. This station fits repair shops, service centers, and technicians who test boards every day and want one unit for power, testing, and fast charging. It replaces a pile of single-purpose tools with one station that keeps your readings clear, your workflow tight, and your repair decisions grounded in the numbers in front of you.
