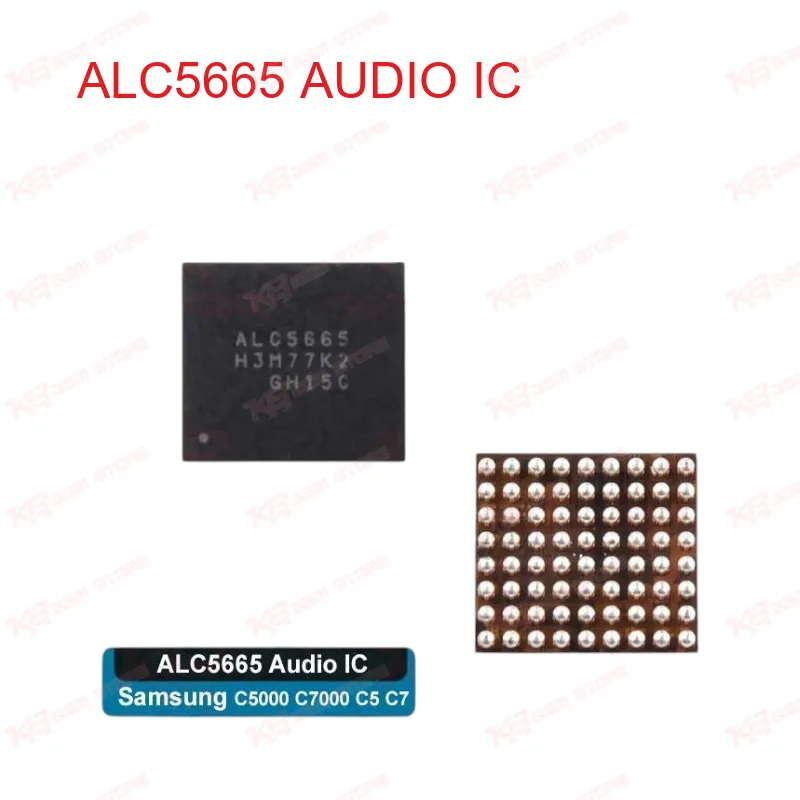

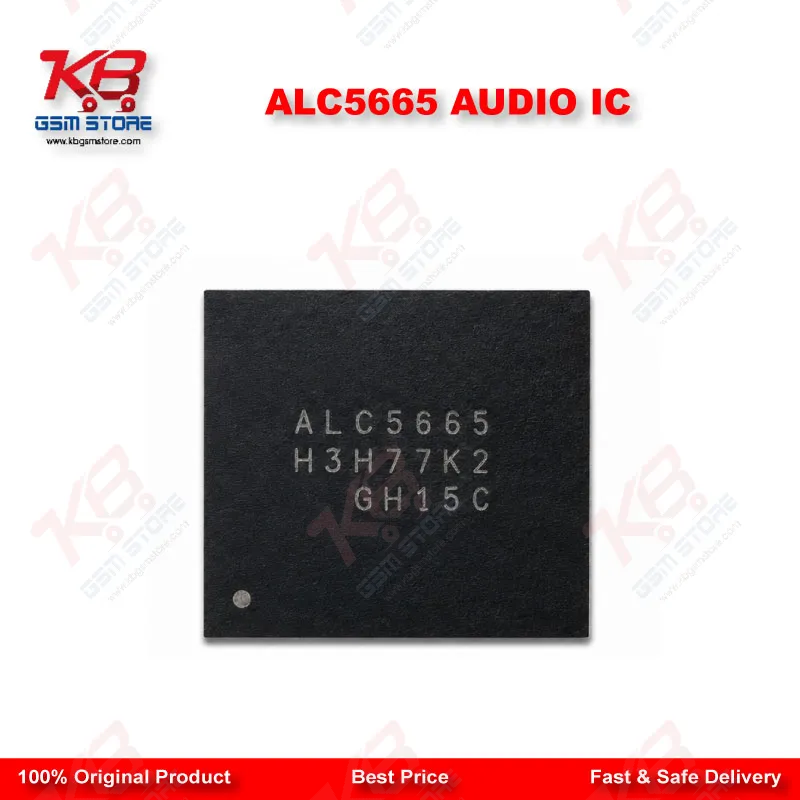

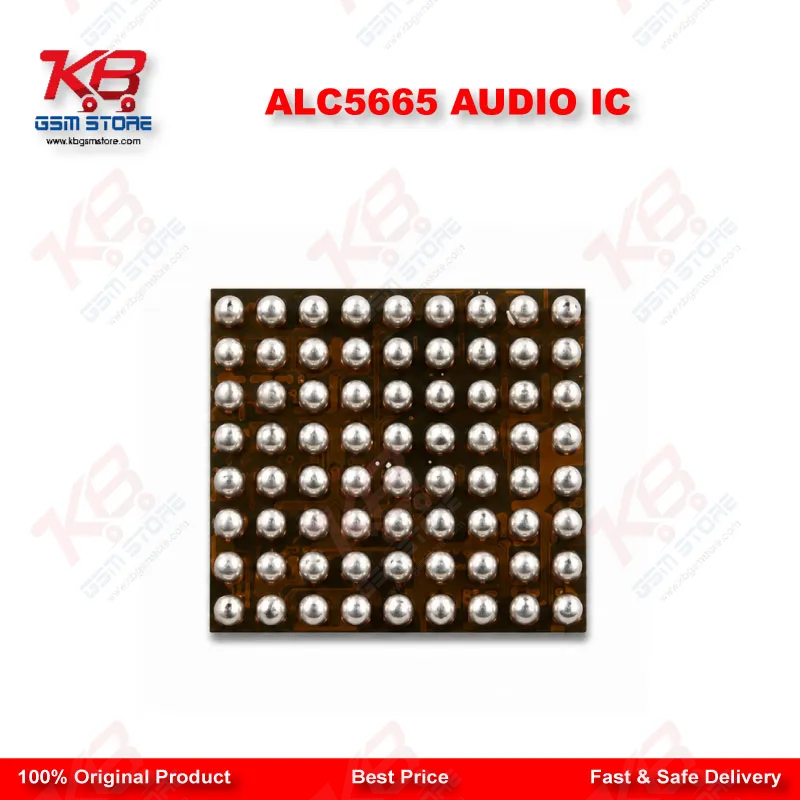

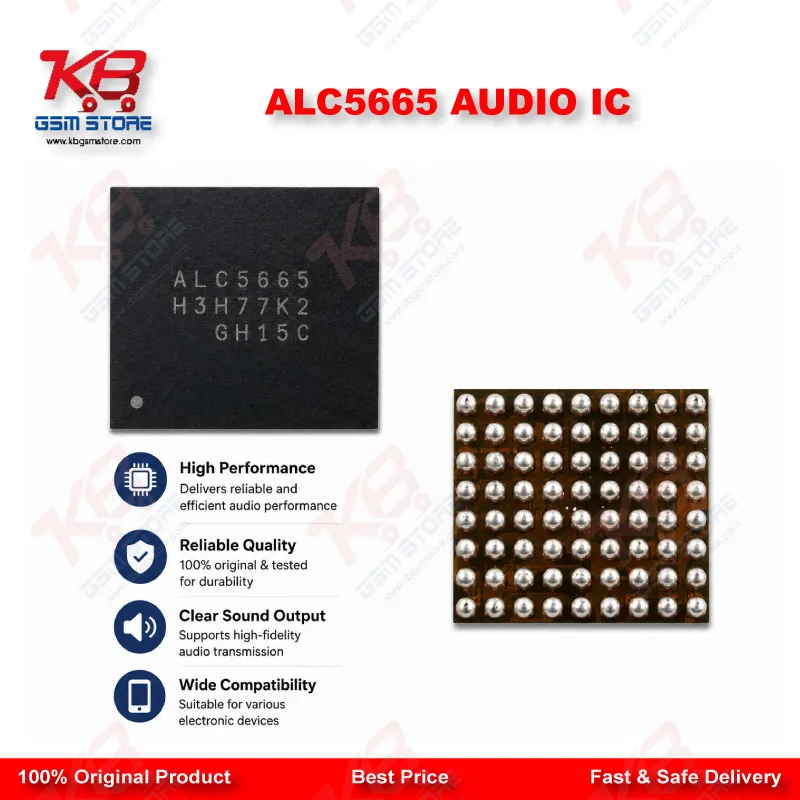

Sound faults on Samsung Galaxy boards are one of the more common jobs a Pakistani repair bench sees, and the ALC5665 audio codec IC sits right at the center of a large share of those repairs. This is a Realtek-manufactured integrated circuit built for digital audio processing on mobile motherboards. It converts the digital audio stream from the application processor into analog signals for the speaker and earpiece, and it converts analog microphone input back into digital data the system can process. When a phone comes in with no sound from the speaker, a mic that customers say "sunta nahi" during calls, distorted or crackling audio, or a headset that the phone won't detect properly, the ALC5665 is one of the first components a technician should suspect once basic software resets and connector checks are ruled out. The chip ships in a BGA (Ball Grid Array) package, which means it sits flush against the board with solder balls underneath rather than exposed legs. Reworking it correctly needs a hot air rework station with accurate temperature control, quality flux, a fine tip nozzle, and a steady hand — trying to lift or reseat it with a regular iron risks lifting pads or damaging neighboring components. Most technicians on a Pakistani repair bench treat this as a standard reballing and reflow job: remove the faulty IC, clean the pads thoroughly, reball with fresh solder balls matched to the pad count, align under magnification, and reflow at a controlled profile before running an audio test. This IC appears across a wide range of Samsung Galaxy models, most commonly cited on A-series boards like the Galaxy A50, A51, and A25, M-series boards including the M17, M21, M30, M31, and the M307/M215 variants, and on C-series and N-series boards such as the C5, C7, C7000, C7010, and N770. Because Samsung reuses board layouts and component placements across regional variants and sub-models, the exact list of compatible boards can extend beyond any single source, so always confirm the IC marking and board layout against your specific unit before ordering a replacement. A dead or degraded ALC5665 typically shows up as one or more of these symptoms: complete loss of speaker sound with the phone otherwise functioning normally, one-way or muffled calls where the caller can't hear the user, background hiss or static that gets worse over time, or a phone stuck showing a headset icon even with nothing plugged in. Before condemning the IC, technicians should check speaker and mic flex connectors, run a factory diagnostic audio test, and rule out liquid damage corrosion on nearby traces — audio faults from board-level component failure and audio faults from connector or software issues look identical to the end user but need very different fixes. Stocking the ALC5665 as a bench-ready spare saves turnaround time on one of the most frequent repair categories a Samsung-focused shop handles. KB GSM Store supplies it individually or in bulk for shops running high volumes of Samsung audio repairs across Lahore, Karachi, and Islamabad, with the part tested before it ships so it's ready to reflow straight onto the board.
