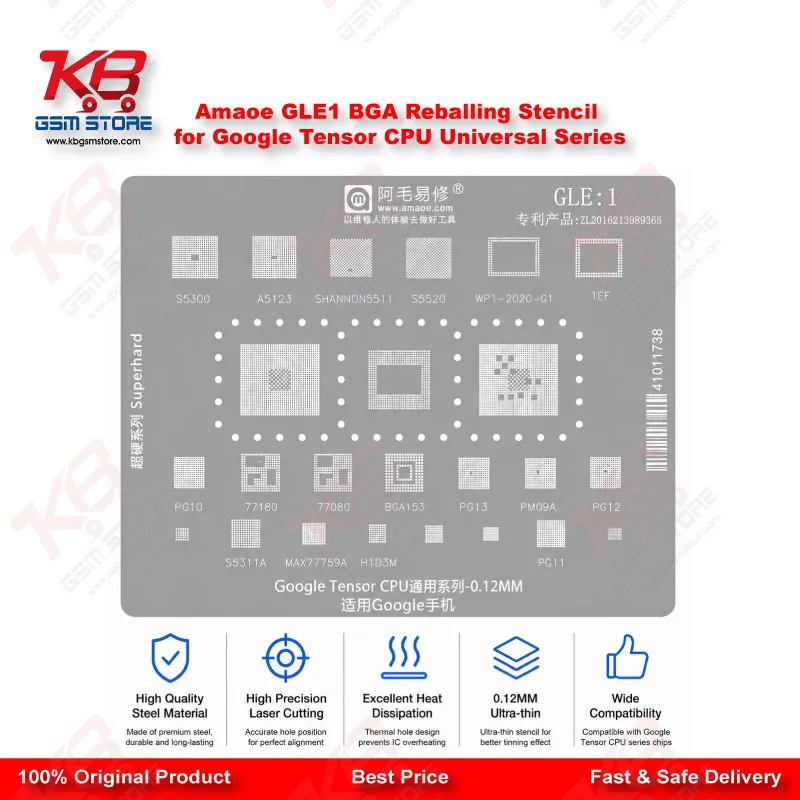

Amaoe GLE1 0.12mm BGA Reballing Stencil for Google Tensor CPU – Universal Series

Reballing a Google Tensor CPU demands a stencil that lines up every ball position on the first try, and the Amaoe GLE1 is built exactly for that job. This is a universal series stencil designed specifically for Google Tensor processors, the chipsets found across the Pixel lineup that Pakistani technicians increasingly see coming in for dead after flash and hardware fault repairs.
The stencil uses a 0.12mm aperture, a size chosen for the ball pitch and pad density typical of modern Tensor packages. At this thickness, solder ball deposits come out even across the entire grid, so you avoid the bridging and thin spots that cause a reball to fail testing after reassembly. Stainless steel construction means the GLE1 handles direct heat from your hot air station without warping, so the same stencil keeps its shape through dozens of jobs rather than degrading after a handful of uses.
Working with this stencil follows the standard reballing sequence your bench already runs: strip the old solder from the CPU pads, clean the substrate thoroughly, seat the Tensor CPU into the stencil so the apertures sit flush over the ball pads, then apply solder balls or paste with a squeegee pass. Once the tin sits correctly in every hole, reflow under controlled heat and lift the stencil away cleanly. Because the aperture spacing matches the actual Tensor ball layout, technicians get fewer misaligned balls and less rework compared to using a generic universal stencil that only approximates the pitch.
This stencil earns its place in board-level repair work, not just casual IC swaps. When a Pixel motherboard comes in with a CPU that needs to come off for reballing due to boot loop issue symptoms, board short, or a failed IC change karna attempt elsewhere, the GLE1 gives you a repeatable path back to a working reball instead of guessing at ball placement freehand. It also fits into training environments, where instructors need a stencil that produces consistent results so students can actually see correct technique rather than compensate for a poor-quality tool.
Because it is a passive tool with no electronics inside, there is nothing to configure and nothing that wears out except the stencil mesh itself with heavy use. Store it flat, keep it free of old solder residue between jobs, and it stays accurate for a long service life on the bench. For a repair shop that regularly takes in Google Pixel devices, keeping a GLE1 on hand alongside your standard reballing kit means you are not stuck outsourcing Tensor CPU work or turning away jobs that need precise chip-level repair.
Pair it with your existing hot air rework station, flux, and solder balls, and the GLE1 slots directly into the reballing station and reballing kits category of tools your workshop already runs daily.
