Amaoe MU5 Stencil

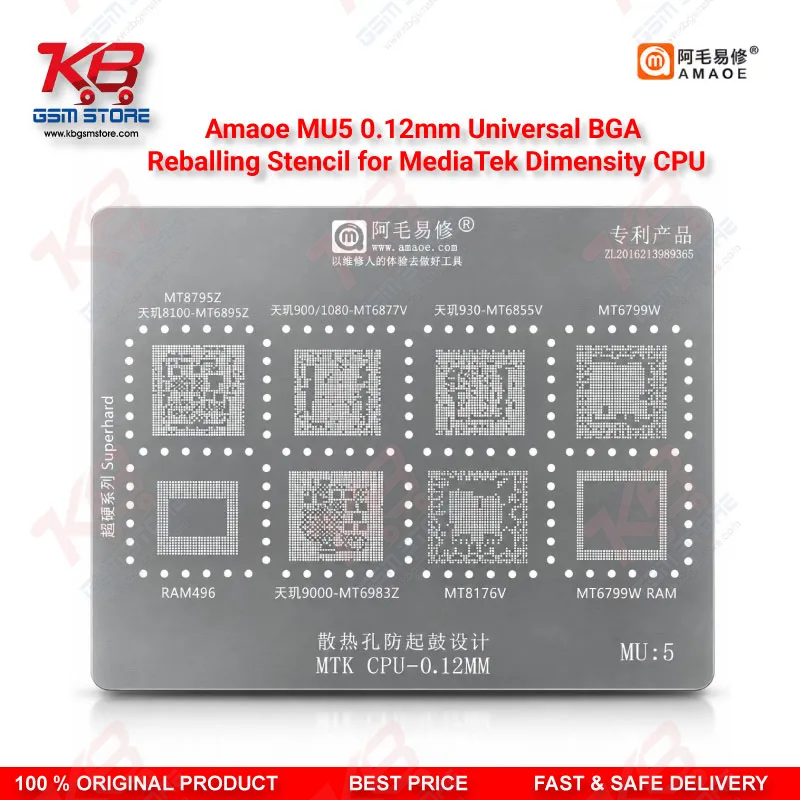

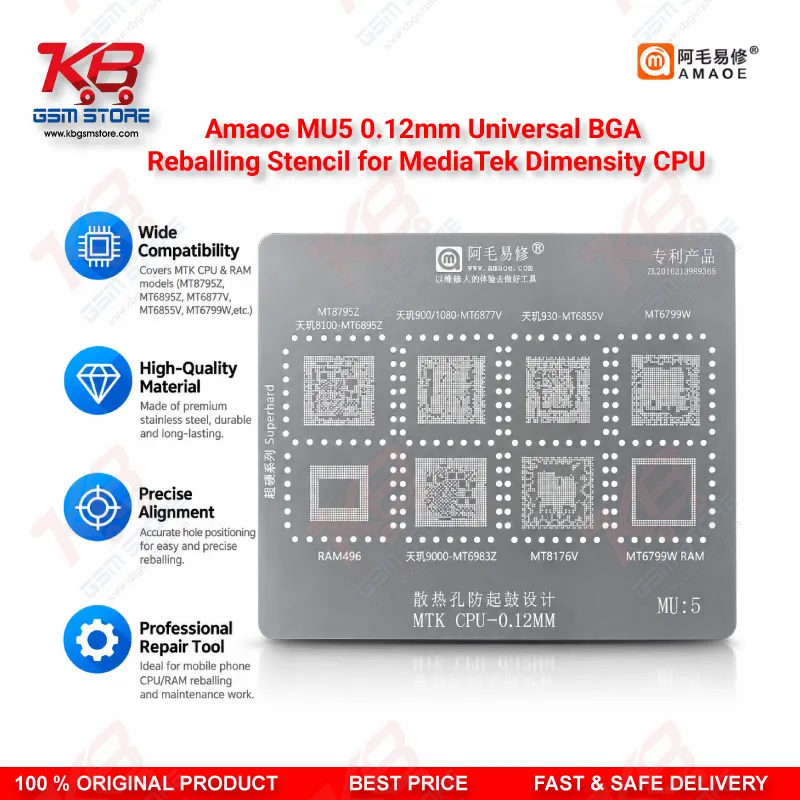

The Amaoe MU5 solves a real problem on the reballing bench: keeping a drawer full of single-chipset stencils for every MediaTek variant that walks through the door. This universal template packs patterns for MT8795Z, Dimensity 8100 (MT6895Z), Dimensity 900/1080 (MT6877V), Dimensity 930 (MT6855V), MT6799W, RAM496, Dimensity 9000 (MT6983Z), and MT8176V onto one 0.12mm steel mesh, so a technician working across mixed Android stock — Oppo, Vivo, Infinix, Tecno, and other Dimensity-based devices — reballs multiple CPU and RAM packages without hunting for a matching template each time. The 0.12mm thickness sits at the sweet spot for fine-pitch BGA work: thin enough to deposit an accurate, uniform amount of solder paste or ball volume per pad, but rigid enough to resist warping under repeated heat cycles from a hot air station or preheater. That consistency directly affects yield on the bench — under-dosed pads lead to dead after flash boards from cold joints, while over-dosed pads bridge and short, so a stencil that holds its geometry through dozens of uses cuts down on rework and repeat visits. Amaoe builds the MU5 in its Superhard Series line, using a steel alloy chosen specifically to resist deformation, which matters because a warped stencil is the most common reason technicians blame reballing failures on the paste or the iron when the real fault sits in the template. Pin locations on the MU5 are machined to align directly with the ball-grid layout of each supported chipset, so once the correct chipset option is selected on the stencil, seating it over the IC or PCB pattern gives repeatable alignment rather than the trial-and-error positioning that generic universal mesh stencils often require. The square-round hole design is a deliberate middle ground: square holes hold more paste volume for stronger joint formation, while the rounded corners reduce paste smearing and stencil clogging during repeated use, which keeps cleanup between jobs faster. In a typical workflow, the MU5 fits after CPU or RAM removal from the board — once the faulty package is lifted for reballing or replacement, the stencil is aligned over the component, solder paste or solder balls are applied through the mesh, and the assembly goes through a controlled reflow on a hot air rework station or IR preheater. This makes it a core tool for CPU reballing, RAM reballing, and dead phone recovery work where a board is hanging on logo, stuck in a boot loop, or completely unresponsive due to a cracked or lifted BGA joint on a Dimensity chipset. Technicians running a mixed repair queue benefit most: rather than stocking six or seven chipset-specific stencils, the MU5 covers a meaningful slice of current-generation MediaTek CPUs and RAM packages from one template, reducing tool clutter on a workshop bench and shortening the time between board diagnosis and reballing. It pairs naturally with a hot air rework station, a PCB fixture or holder to keep the board steady during alignment, flux, and either solder paste or preformed solder balls depending on shop preference. For a service center or repair shop handling steady volumes of Dimensity-based Android devices, the MU5 earns its place as a standing bench tool rather than a single-job consumable, and its steel construction means it holds up across ongoing daily reballing work instead of degrading after a handful of reflow cycles.
