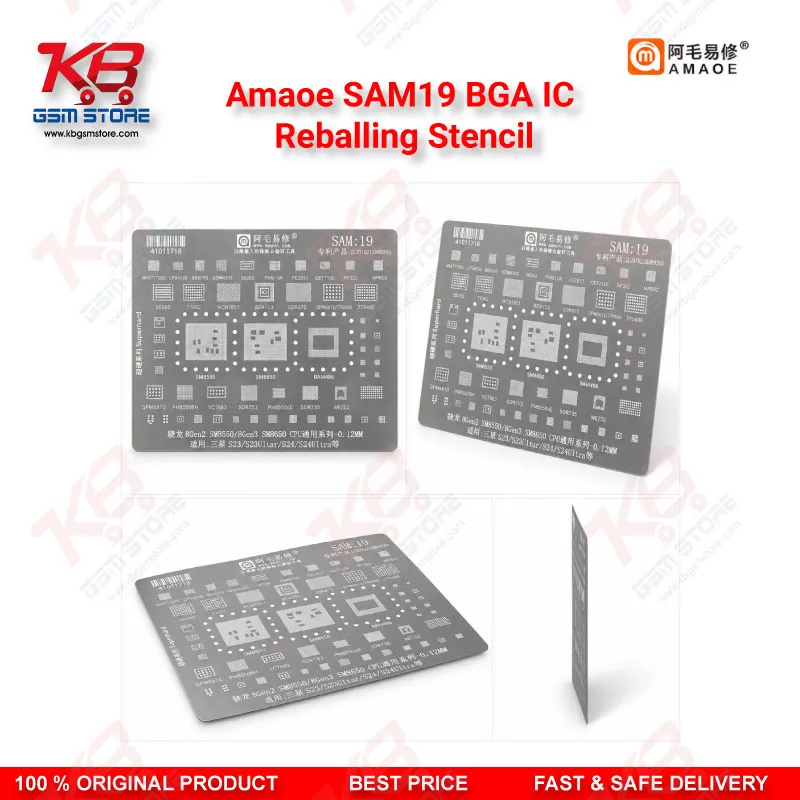

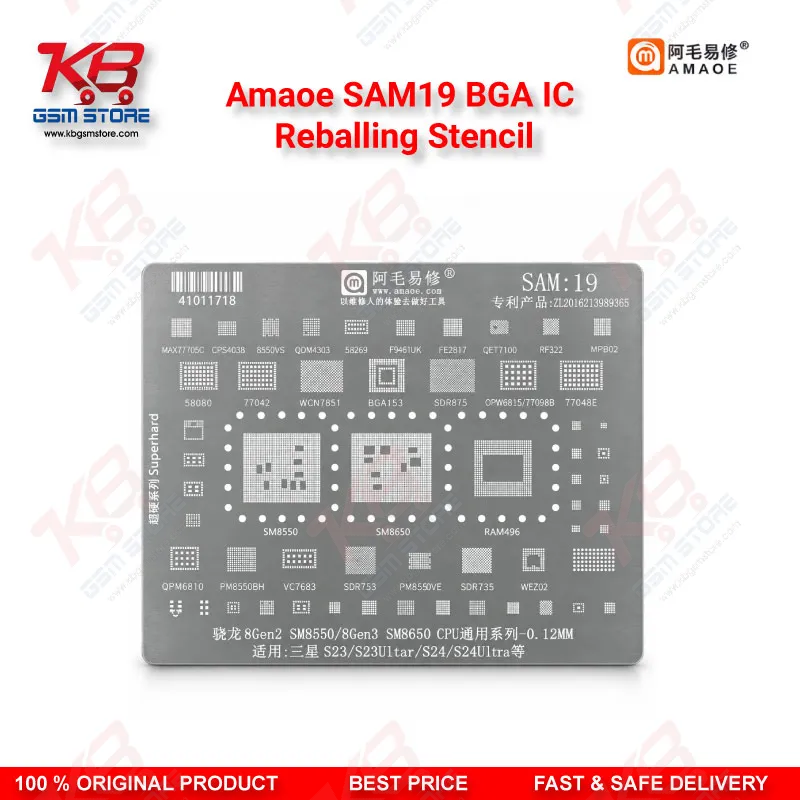

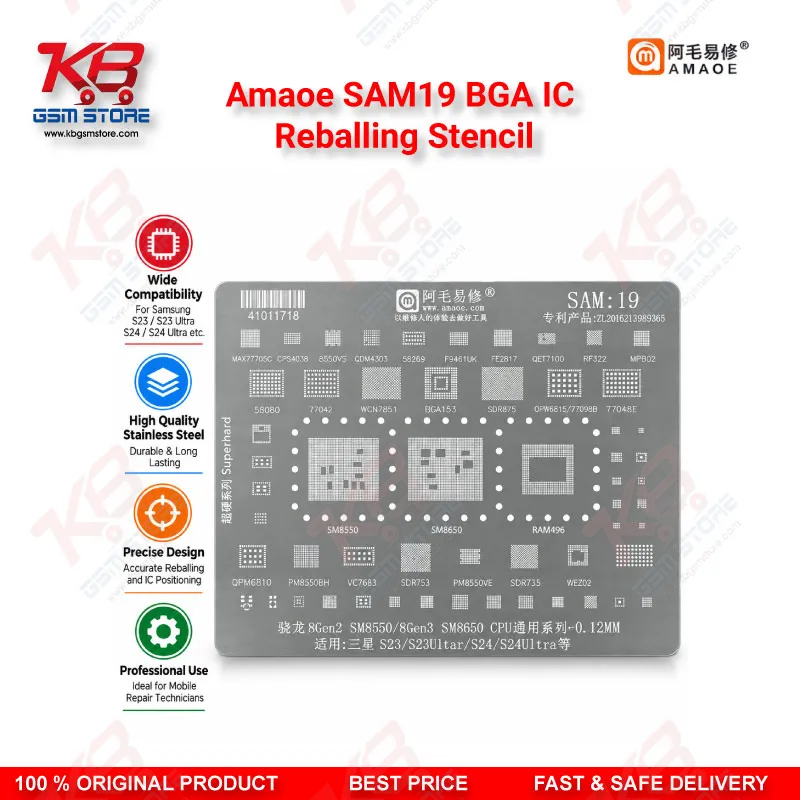

When a Snapdragon-powered Samsung flagship lands on your bench dead, hanging on logo, or failing after a bad flash attempt, tracing the fault back to the CPU means you eventually have to pull the chip, clean the pads, and reball it before it goes back on the board — and this is exactly where the Amaoe SAM19 BGA IC Reballing Stencil earns its place in your kit. Built specifically for the SM8550 (Snapdragon 8 Gen 2) and SM8650 (Snapdragon 8 Gen 3) CPU footprint found on Samsung Galaxy S23, S23 Ultra, S24, and S24 Ultra boards, the stencil's hole pattern lines up directly with the CPU's ball layout so you are not guessing at pad positions under the microscope. You lay the stencil flat on the cleaned chip, spread a thin layer of solder paste across the openings, then run your hot air gun over it at reflow temperature; the paste melts through each hole and forms individual solder balls sized correctly for that exact chipset, which is the difference between a first-time successful reball and a board that comes back with a short or an open connection. The 0.12mm profile matches the tight ball pitch these newer Qualcomm CPUs use, so you get consistent ball height across the whole grid instead of some balls forming taller than others — a common cause of a chip sitting unevenly once it goes back down and refuses to boot. Amaoe builds this stencil from a steel that holds its flatness through repeated heating cycles, which matters more than most technicians realize; a warped or bowed stencil lets paste run between pads and turns a routine reball into a bridging cleanup job under the microscope. The square-cut holes with eased inner corners let paste release fully when you lift the stencil away, rather than sitting trapped in the mesh the way cheaper reballing nets do, so you are not left scraping residue before you can reflow the CPU. On your bench this tool fits into the CPU repair and reballing stage of the workflow — after IC removal and pad cleaning, before reflow — and pairs naturally with a hot air rework station, flux, solder paste, and a stencil holder or reballing jig if you run these boards regularly. Because the SAM19 stencil is matched to a specific CPU family rather than sold as a universal mesh, you avoid the trial-and-error sizing that universal stencils force on you, and your success rate on Galaxy S23 and S24 series CPU jobs goes up once you have used it a few times and gotten a feel for paste thickness. Technicians running a busy repair shop or service center in Pakistan working through a stack of dead-after-flash or hardware fault Samsung units will find the Amaoe SAM19 pays for itself quickly, since a single failed reball attempt on a flagship CPU often costs more in wasted time and solder than the stencil itself. Store it flat, away from moisture, and it stays usable across dozens of jobs without deforming.
