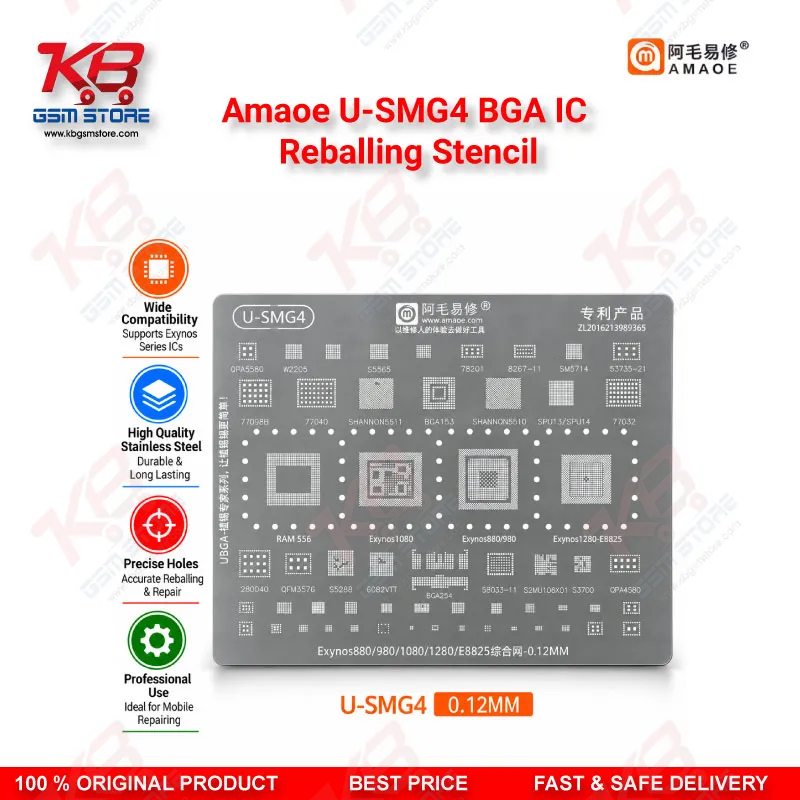

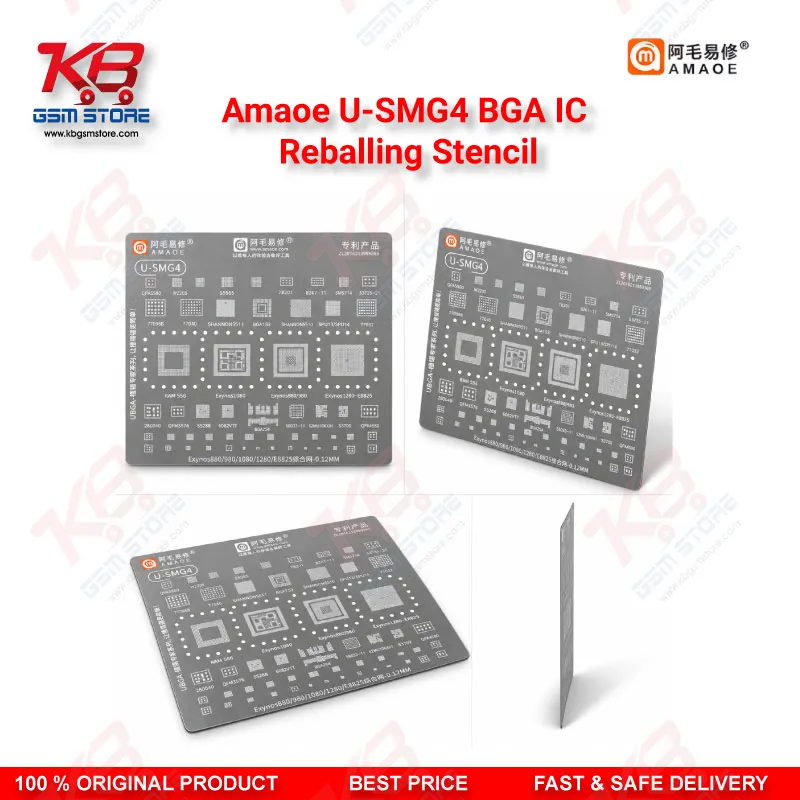

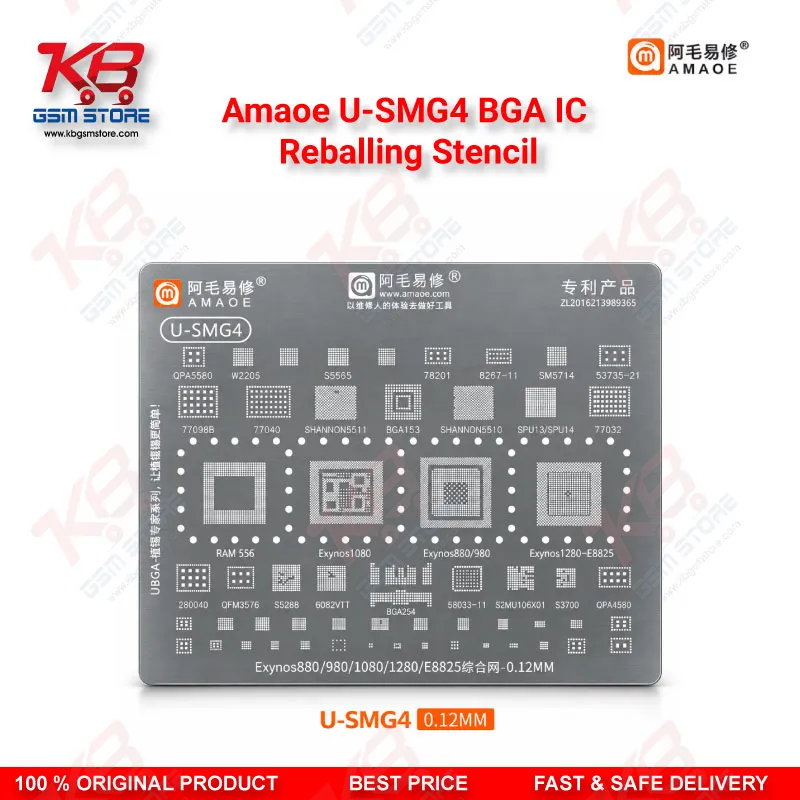

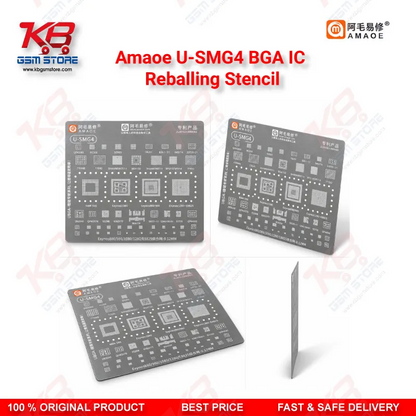

When a Samsung board comes in with a dead CPU, hang-on-logo fault, or power rail failure traced back to the Exynos processor, your reballing accuracy decides whether the repair holds or comes back to your bench a week later, and the Amaoe U-SMG4 BGA IC Reballing Stencil exists to remove that guesswork from the process. Built specifically for the Exynos 880, 980, 1080, and 1280 chipsets, along with E8825, SPU13, 14P, and 77098B variants, this stencil aligns directly over the CPU footprint so each solder ball drops into its correct pad position without manual measuring or trial-fit adjustments that waste flux and balls. The steel body holds its shape through the temperature swings that come with hot air rework, so you avoid the sagging or hole distortion that cheaper plastic templates develop after a few sessions on the bench. Laser-cut apertures keep every hole consistent in diameter, which matters when you are working under a microscope trying to get uniform ball height across a chip with dozens of connection points; uneven balls are one of the most common reasons a reballed CPU fails again after remounting. For a repair shop running Exynos-based Samsung units through the queue regularly, this template becomes a workflow tool rather than a one-off accessory: you clean the pads, apply flux, seat the stencil, drop the balls, reflow, and lift the template away with the IC left holding a clean, self-centered ball grid ready for remount. This fits directly into the CPU-level and PCB-level repair workflow that Pakistani technicians handle daily on Samsung motherboards, sitting between board diagnosis and final IC placement. Once you confirm through your ISP tool or boot-mode testing that the fault is CPU-related rather than software, the Amaoe U-SMG4 BGA IC Reballing Stencil becomes the next tool in line before you move to your hot air station and microscope for final placement. Reballing done without a matched stencil often leads to bridged balls, insufficient solder height, or misaligned pads, all of which show up later as intermittent boot loop or charging issues that trace back to a badly seated chip rather than a genuine hardware fault. Keeping a dedicated Exynos-series stencil on your bench also protects your existing ball stock from waste, since a mismatched template forces you to reheat and redo the ball-drop process multiple times before getting an even grid. Repair shops working across Samsung A-series and mid-range Exynos devices find this useful alongside their ISP pinout tools and UFS adapters, since CPU-level faults on these boards frequently accompany eMMC or power IC issues that get diagnosed in the same repair session. Pairing this stencil with a stable hot air station and a good flux gives you a repeatable, board-safe reballing process instead of relying on freehand ball placement, which shortens your turnaround time on jobs where the customer is waiting on a network issue or dead phone fix tied to a faulty CPU connection.
