Arduino USB Host Shield

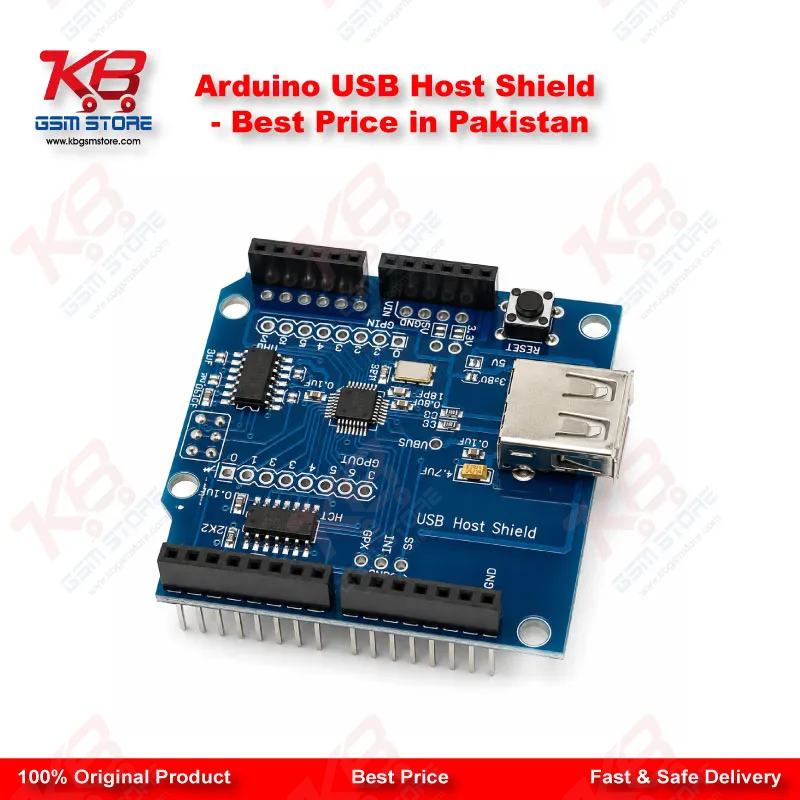

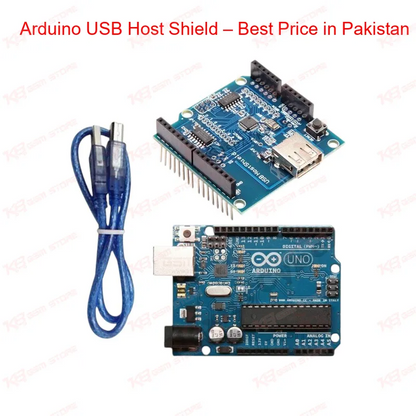

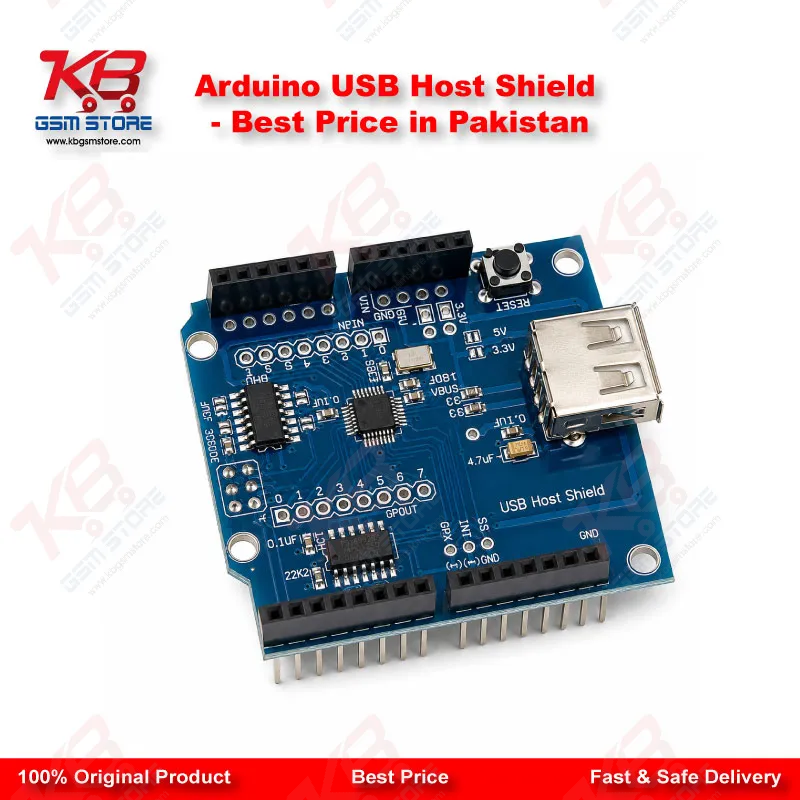

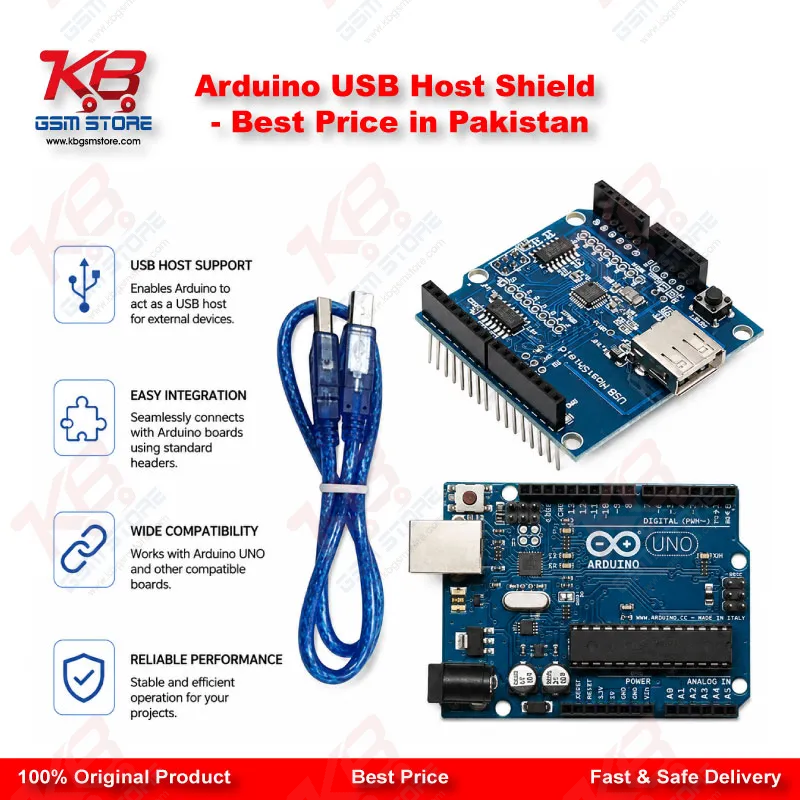

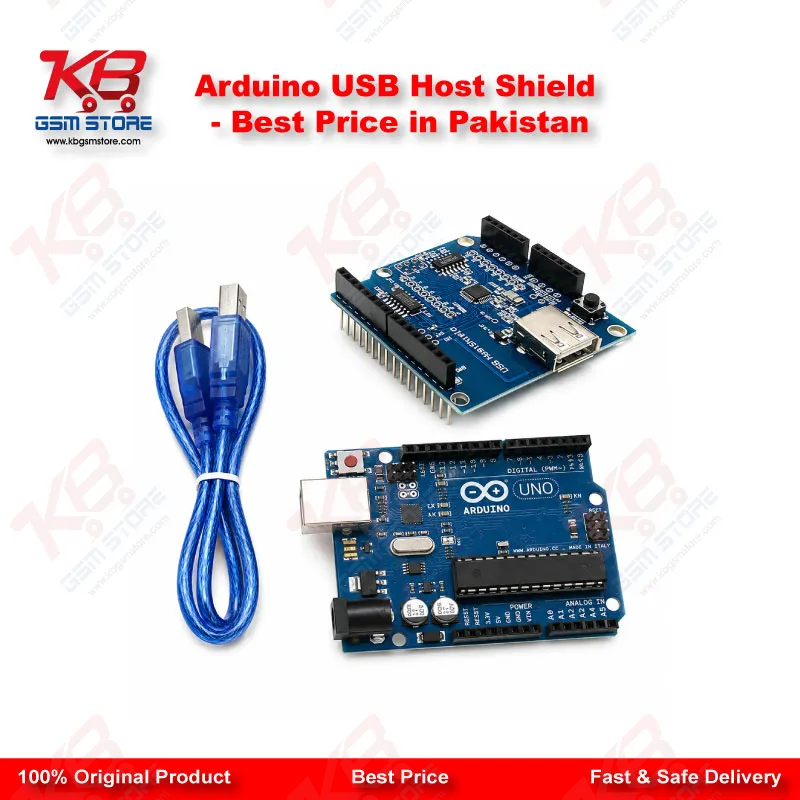

If you're working on an Arduino project that needs to talk to a USB device — a flash drive, a keyboard, a game controller, or even an Android phone — the Arduino USB Host Shield is the board that makes it possible. Normally, an Arduino can only act as a USB peripheral (the thing that plugs into your PC). This shield flips that role: it lets your Arduino become the host, meaning it can control and communicate with other USB devices plugged into it.At the core of the shield sits the MAX3421E, a dedicated USB peripheral/host controller chip. This IC contains all the digital logic and analog circuitry needed to implement a full-speed USB peripheral or a full-/low-speed host, fully compliant with USB specification rev 2.0. Instead of writing low-level USB timing and protocol code yourself, the MAX3421E handles the heavy lifting, and your Arduino talks to it over a simple SPI interface.You mount the shield directly on top of an Arduino Uno, Duemilanove, or Mega board, and it draws power from the Arduino itself — there is no separate power jack on the shield. Communication happens over SPI through the ICSP header: on an Uno that's digital pins 10, 11, 12, and 13; on a Mega it's pins 10, 50, 51, and 52. Pin 10 is used to select the MAX3421E on both boards. The shield also carries a Type-A USB receptacle where you physically plug in your USB device, along with TinkerKit-compatible connectors so you can quickly wire up sensors and modules without extra breadboarding.Power delivery depends on how your Arduino itself is powered. If your Arduino is fed through an external power supply connected to its power jack, the shield can supply up to 500mA to the connected USB device. If the Arduino is only powered through its own USB port, that drops to 400mA. This matters if you're planning to drive power-hungry devices like external hard drives — you'll want the Arduino on external power for stable operation.On the software side, the shield works with the USB Host Library for Arduino, maintained by circuits@home and further developed on GitHub. This library gives you working support for HID devices (keyboards, mice, joysticks), game controllers including Sony PS3, Nintendo Wii, and Xbox360 pads, USB-to-serial converters (FTDI, PL-2303, ACM chipsets), ADK-capable Android phones and tablets, digital cameras such as Canon EOS, PowerShot, and Nikon DSLR/P&S models over generic PTP, USB mass storage devices like flash drives and card readers, and Bluetooth dongles for wireless HID or SPP communication.For a repair bench or workshop in Pakistan, this shield is genuinely useful when you're building your own tools rather than buying off-the-shelf gear. You get a platform to prototype a USB flash-drive read/write tester, a custom keyboard/mouse input logger for testing dead-board diagnostics, a game-controller interface for robotics or bench automation, or a bridge to pull data off a USB-serial adapter without tying up a PC. It's also a solid teaching board if you're training junior technicians on how USB host communication actually works at the protocol level, since the MAX3421E datasheet and open-source library give full visibility into what's happening on the bus.Because the board is open-source hardware, schematics and design files are publicly available, which is useful if you ever need to understand exactly how a signal is routed or want to build a compatible board yourself. Keep in mind Arduino has listed this shield as discontinued from official production, so stock availability can be limited — buying from KB GSM Store secures you a genuine unit while supplies last.
