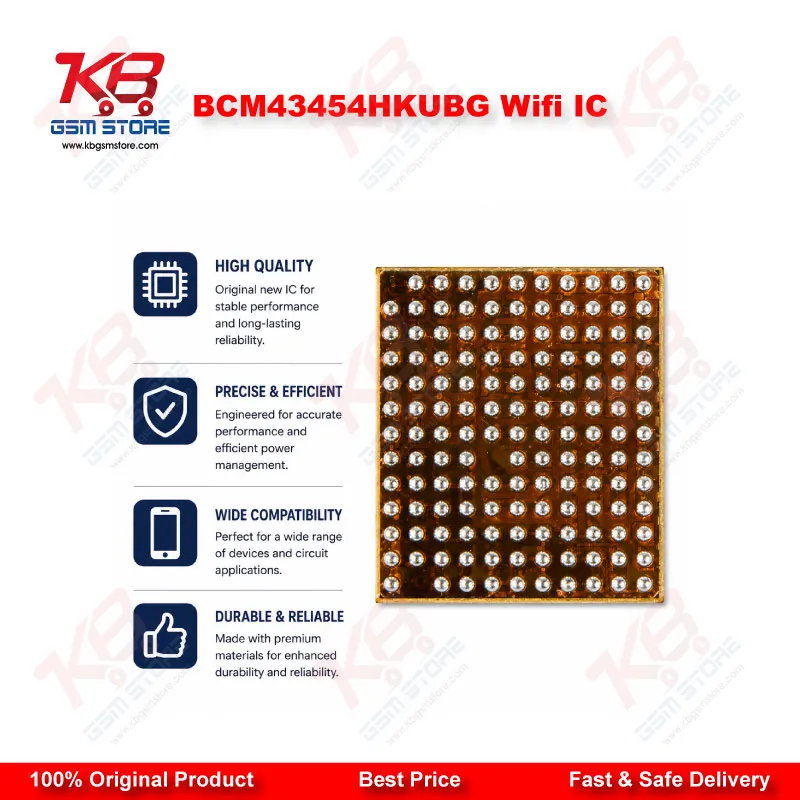

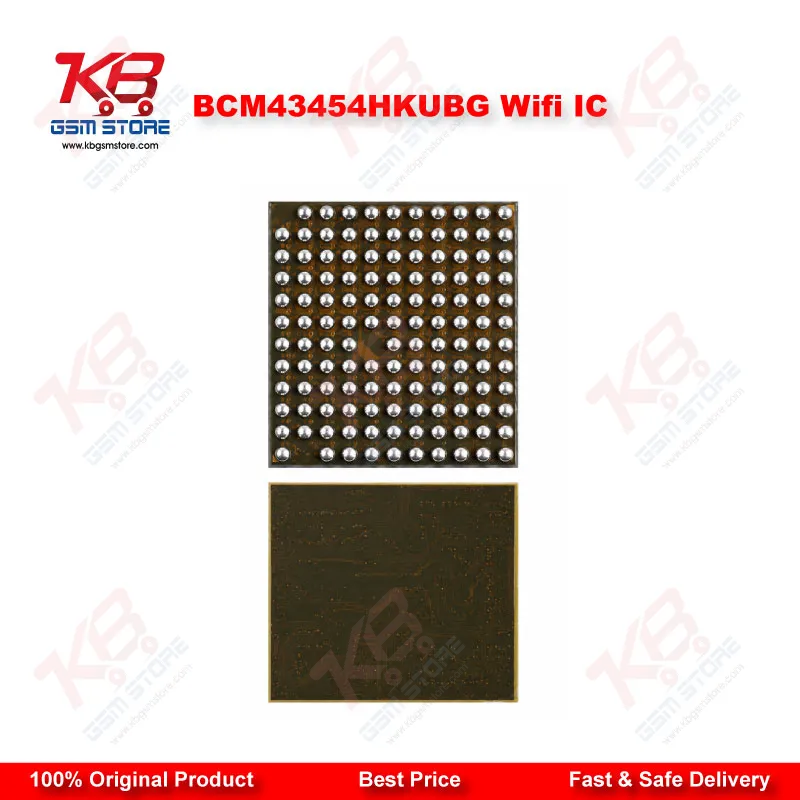

The BCM43454HKUBG sits on the mainboard as the single combo chip responsible for both Wi-Fi and Bluetooth radio functions on Samsung Galaxy A5 (2016) handsets. It ships in a WLBGA package with 140 balls, packed into a footprint of roughly 4.47 mm x 5 mm, which is why reflow work on this IC demands a steady hand, the right nozzle size, and controlled hot air temperature. Miss the pad alignment during reballing and you end up chasing a fresh set of Wi-Fi and Bluetooth faults on a phone that was working fine before you touched it.
On the repair bench, this IC comes up in a fairly predictable set of complaints. A customer brings in an A510F with no Wi-Fi networks showing at all, or Wi-Fi turns on but never finds a signal even standing next to the router. Sometimes the fault shows up after software marna — a full flash that should have fixed things but the Wi-Fi option stays greyed out afterward, which points the technician straight to hardware rather than software. Liquid damage is another common trigger, since corrosion under this chip breaks the tiny signal traces feeding it. Bluetooth pairing failures often ride along with the same fault, because both radios share this one chip, so isolating Wi-Fi-only versus Bluetooth-only symptoms during diagnosis helps confirm whether the IC itself is dead or whether it's a broken trace, damaged antenna connector, or a coil issue elsewhere on the RF path.
Before committing to an IC change karna job, run the basics first: check the Wi-Fi antenna flex and its connector, inspect the board visually under a microscope for corrosion or lifted pads, and test continuity on the antenna feed line. If those come back clean and the phone still won't detect networks, the BCM43454HKUBG itself is the next suspect. Replacing it is a hot air rework job — remove the old chip, clean the pads thoroughly with flux and braid, reball or use a direct-heat method depending on your workshop's preferred process, then reflow the new BCM43454HKUBG with tight temperature control since a WLBGA package this small tolerates very little heat variance before a jumper lagana fix becomes necessary just to catch a missed pad.
This chip fits into the wider mobile repair workflow around wireless subsystem diagnostics — sitting alongside your antenna testing, RF signal tracing, and board-level microsoldering work. For a repair shop juggling several A5 2016 units in Lahore or Karachi, keeping a stock of genuine BCM43454HKUBG chips means a Wi-Fi or Bluetooth complaint turns into a same-day fix instead of a multi-day parts wait. Since this exact part number is specific to the A510 series, don't substitute it from a different chipset family or a visually similar BGA chip pulled from another Samsung model — mismatched combo ICs will not initialize correctly against this board's firmware and RF calibration data, and you'll be back to square one after the reflow.
KB GSM Store tests every BCM43454HKUBG unit before it ships, so professional technicians get a part that's ready to reflow straight onto the board without an extra round of verification on your end. Whether you're running a solo repair bench or managing intake across a busier service center, having this IC on hand keeps Wi-Fi and Bluetooth hardware faults on the A5 2016 series moving through your workshop instead of sitting on a shelf waiting for parts.
