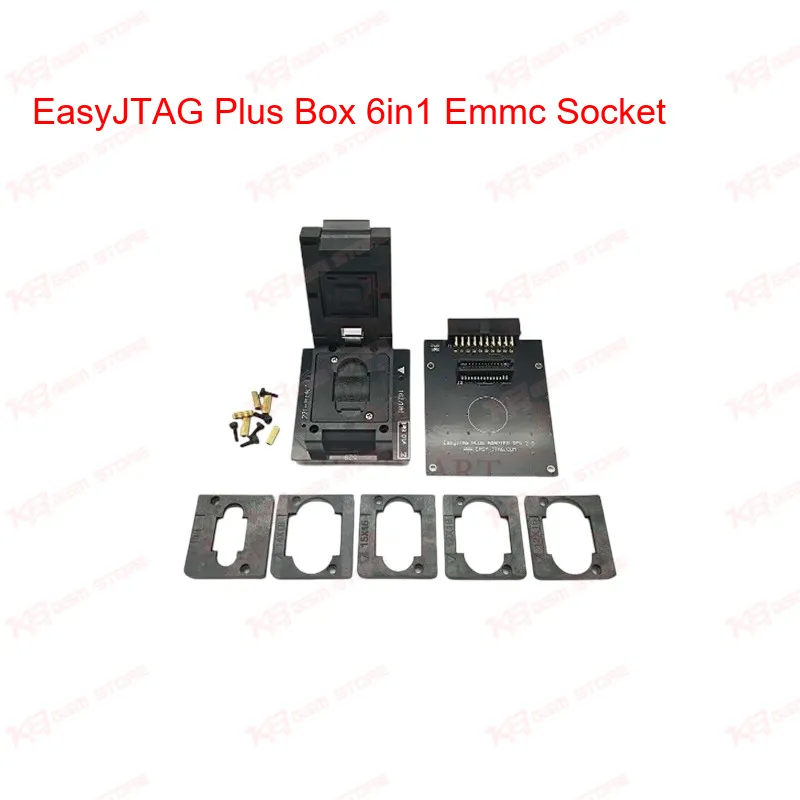

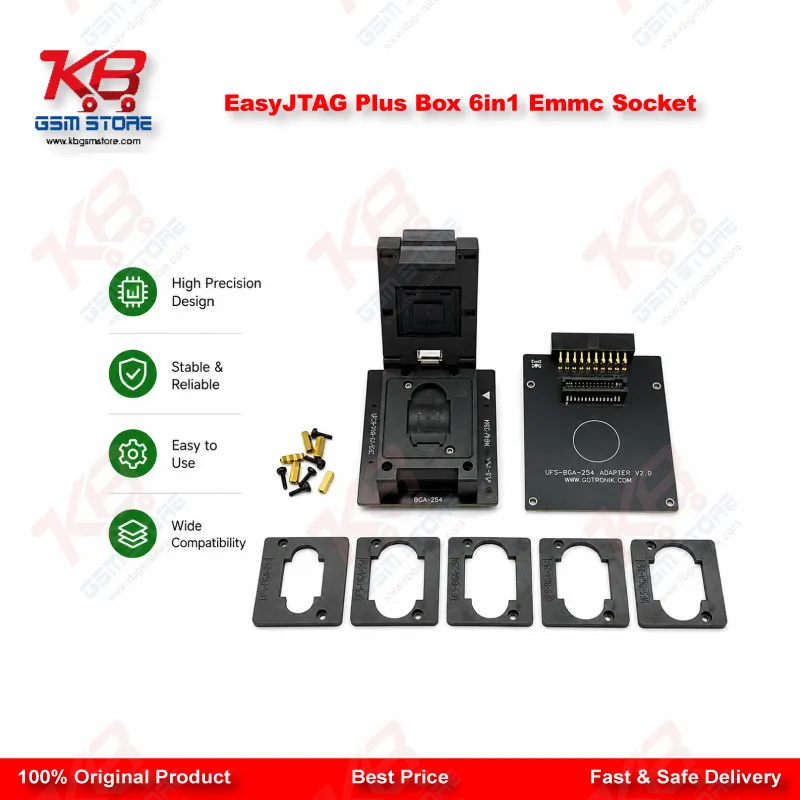

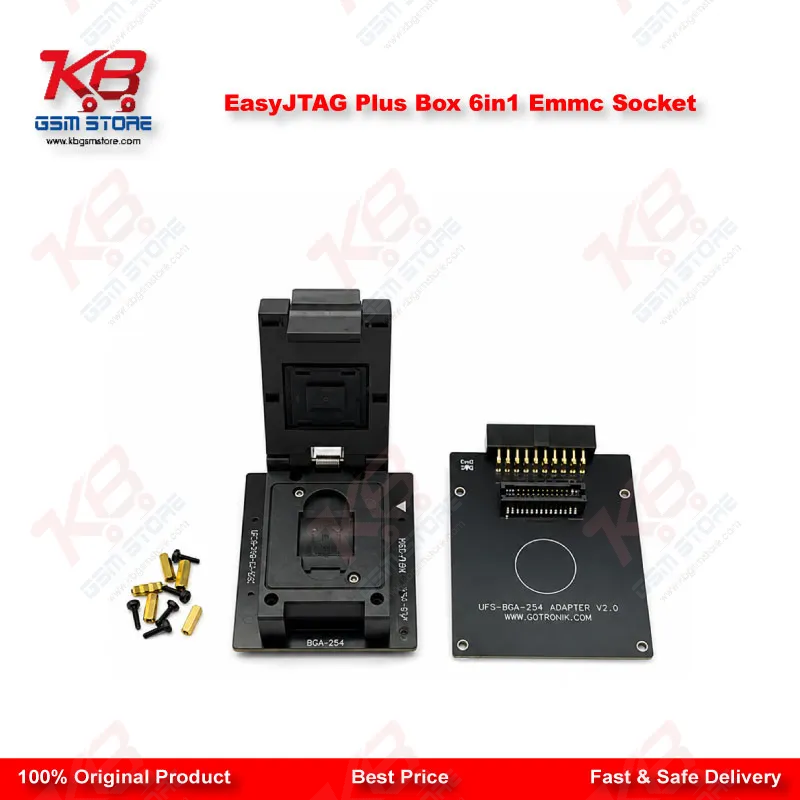

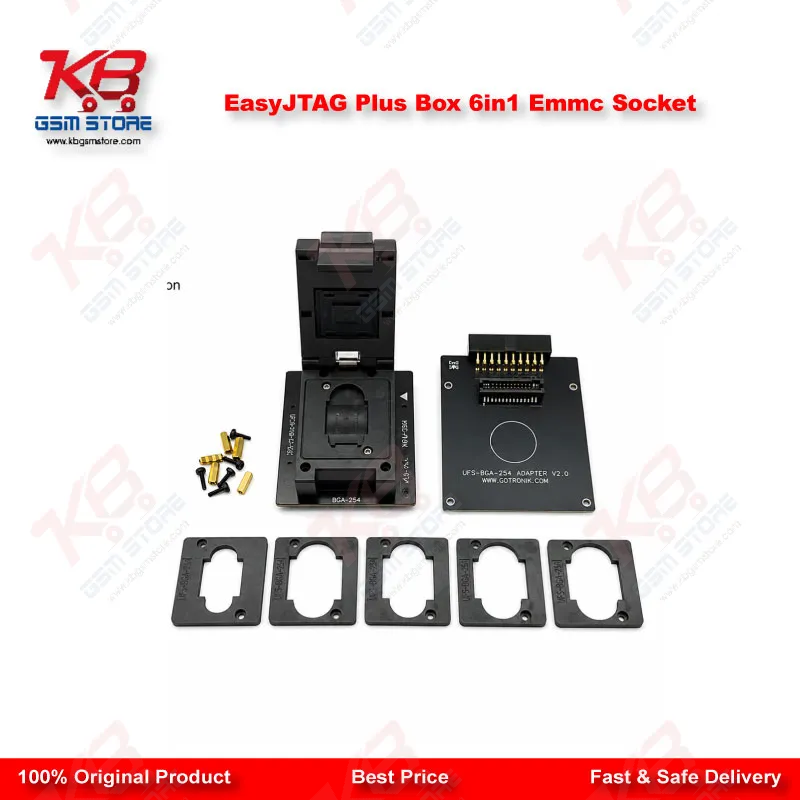

Every GSM technician who has spent hours chasing a dead-after-flash board knows the value of a box that does not fight you on socket compatibility. The EasyJTAG Plus Box with its 6in1 eMMC/UFS socket set solves exactly that problem. Instead of buying separate adapters for every BGA footprint you encounter, this single socket accepts BGA153, BGA159, BGA162, BGA186, BGA221, and BGA529 eMMC packages directly, letting you seat a chip and start reading in seconds. On a busy workshop day where you might handle a Samsung board in the morning and a Huawei board by afternoon, this kind of socket flexibility saves real time. At the core of the Plus generation hardware sits an Atmel SAM3X8E host MCU paired with a Xilinx Spartan-6 FPGA. This combination replaced the older LPC1768 MCU and Spartan-3 FPGA found in the first-generation Easy JTAG box, and the upgrade shows directly in throughput. The box communicates with your PC over USB 2.0 running at 480 Mbps High Speed, delivering box-to-PC transfer rates up to 35–40 MB/s. For eMMC operations specifically, the 8-bit high-speed interface reaches up to 26–28 MB/s, while eMMC 5.0 and newer chips running in 4-bit ISP mode can hit up to 12 MB/s. Standard 1-bit ISP mode operates at up to 4 MB/s, which still beats older single-bit-only boxes by a wide margin. For technicians who work SPI-based flash chips alongside eMMC repair, the integrated SPI engine runs up to a 21 MHz clock, covering the popular SPI memory flash ICs found on many mainboards. The box also carries a full digital PWM power management subsystem with ADC control, along with dedicated VCC and VCCQ switching that includes overcurrent protection. This matters when you are working with chips that draw variable current during read/write cycles — the protection circuitry reduces the risk of damaging a fragile board mid-operation, something every technician handling water-damaged or already-compromised boards cares about. The adapter-less ISP design is another practical advantage. Older-generation boxes required separate ISP adapters wired externally, adding another point of failure and another cable to manage on a crowded bench. The Plus box integrates the ISP soldering connectors for both 1-bit and 4-bit modes directly, along with a JTAG soldering connector and a 20-pin JTAG standard cable, so your ISP flashing setup stays compact and repeatable job after job. On the software side, this box handles a wide functional range: one-click device repair, boot repair, data recovery, eMMC firmware repair, partition management, eMMC service operations, and SPI memory programming. It supports SD card read, write, erase, lock, and unlock operations, and it works with the eMMC Android File Browser for direct filesystem navigation on the memory chip — useful when you need to pull user data off a board with hang-on-logo or dead-after-flash symptoms without triggering a full factory reset. The hardware is also UFS 2.0 and UFS 2.1 ready and NAND-ready, meaning the same box that handles your eMMC jobs today extends into UFS and NAND memory operations as your workshop takes on newer devices. Device coverage spans the repair scenarios Pakistani technicians deal with regularly: Samsung Android devices, LG phones, HTC and Sony Ericsson units, and other Android platforms including ZTE, Huawei, and Amoi hardware. If a board comes in with a dead phone, boot loop issue, or hang on logo caused by corrupted eMMC firmware, this box lets you go straight to the chip — read the current dump, repair or rewrite the firmware, and put the board back in service without needing a donor board or a full IC change in every case. Build quality carries through to the socket itself. The eMMC socket uses premium contact materials engineered for over 10,000 insertion cycles, which matters in a shop running dozens of chip insertions per week. Combined with EMI-resistant, low-noise circuit design inside the box, you get consistent read/write results even during long ISP sessions. Whether you run a mobile repair shop handling walk-in dead phone repairs or a service center doing eMMC and UFS data recovery as a core service line, the EasyJTAG Plus Box 6in1 set gives you the socket flexibility, transfer speed, and protection circuitry to keep that workflow moving without constant adapter swaps or compatibility guesswork.
