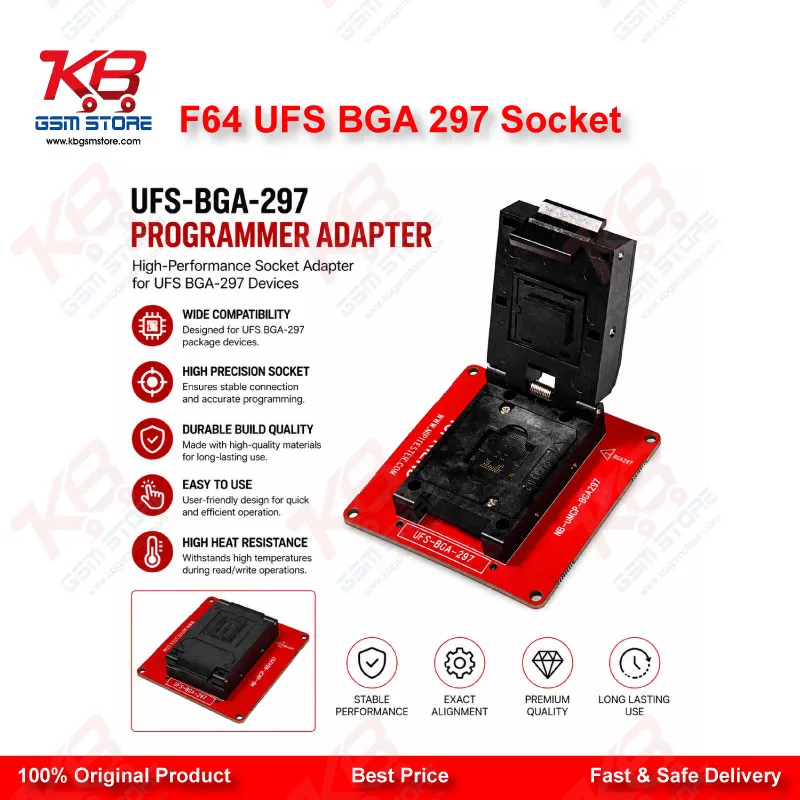

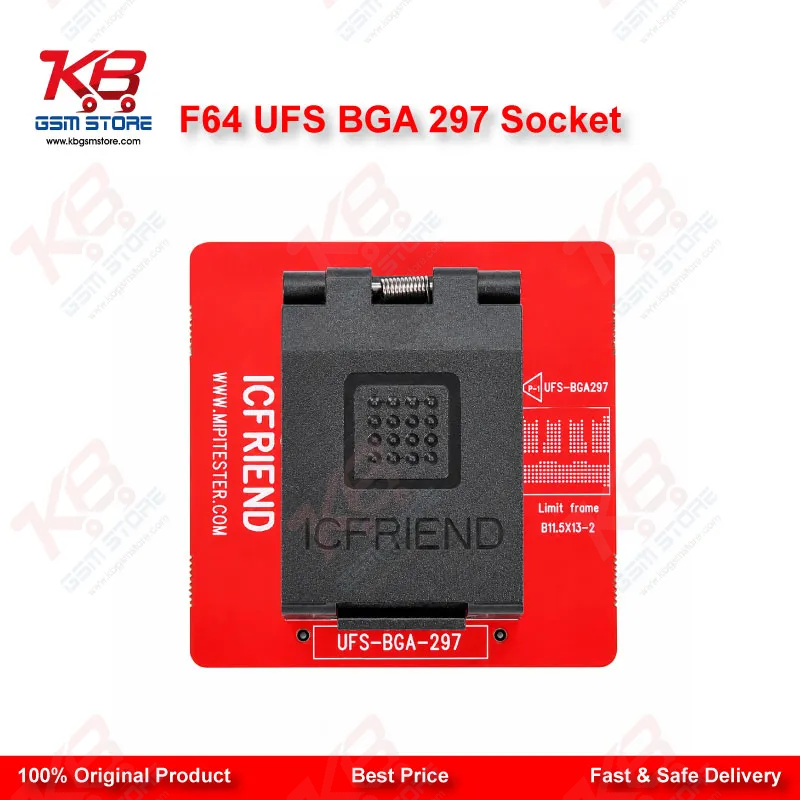

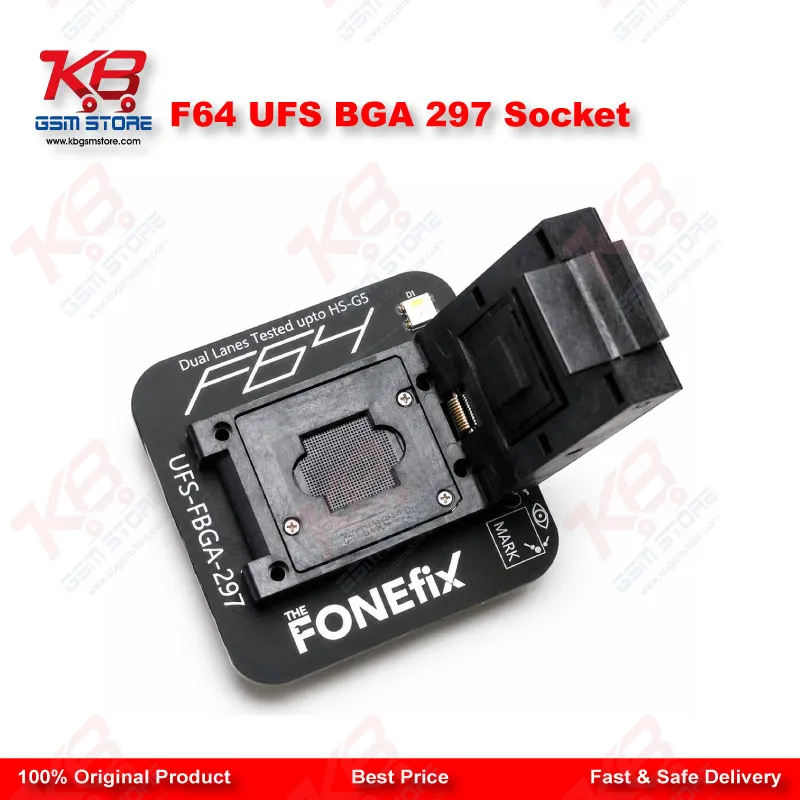

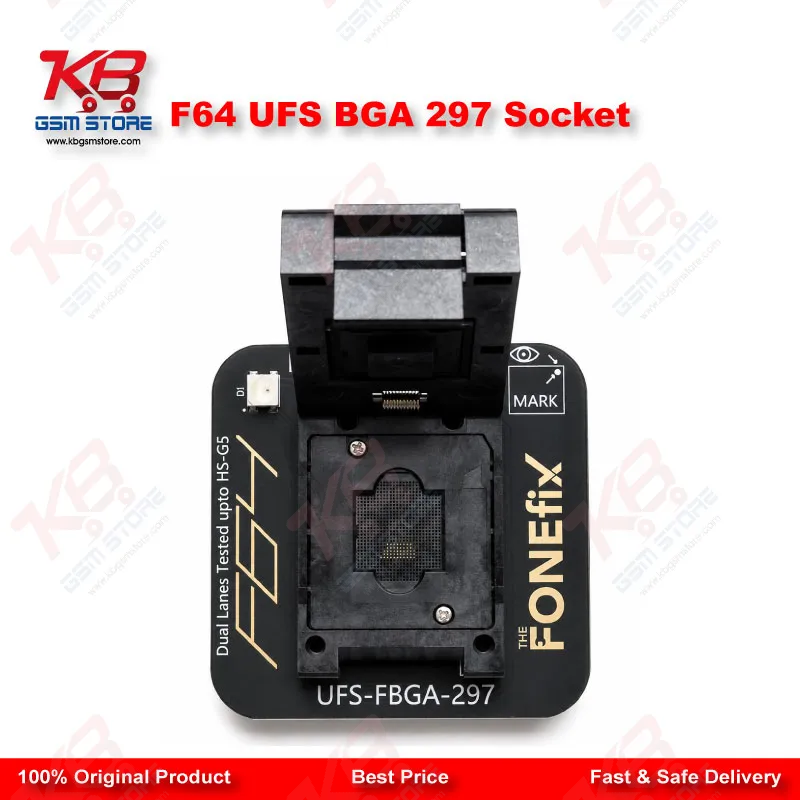

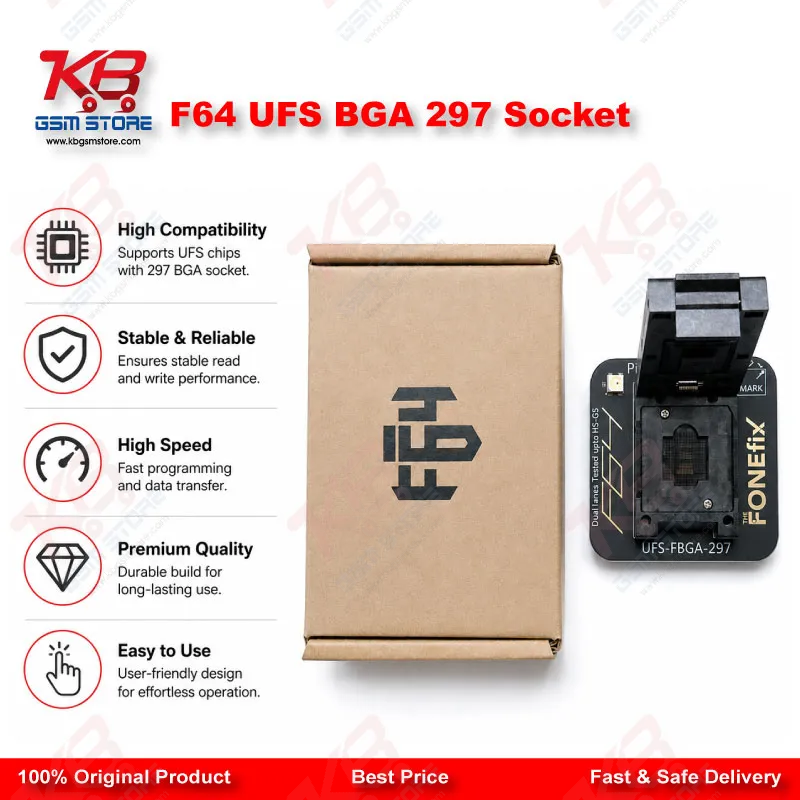

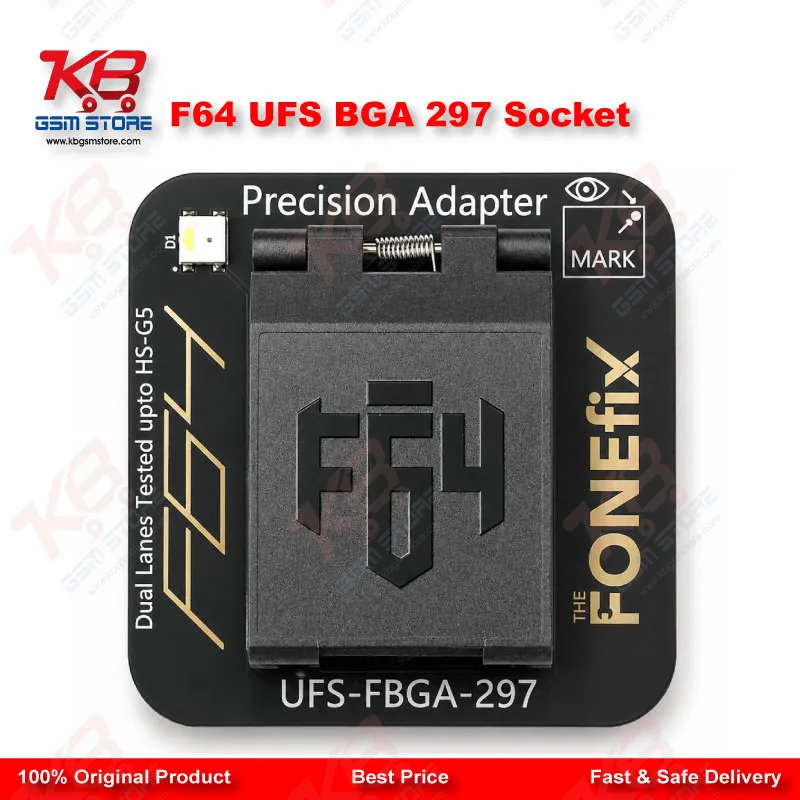

When a UFS chip comes off the board dead — no ISP response, no boot, corrupted controller — your only real option is chip-off, and chip-off only works if your socket matches the ball layout exactly. The F64 UFS BGA 297 Socket exists for that one job: seating a de-soldered BGA297 UFS chip so your Flash64 programmer can talk to it directly, pin for pin, with no jumper wires and no guesswork.
BGA297 is a specific ball-count and pitch layout used by several current-generation UFS packages. You'll run into it on a chunk of Xiaomi and OnePlus phones, along with newer MediaTek platforms that have moved away from the older 153 and 254 layouts. If you've ever tried forcing a 297-ball chip into a 254 socket, you already know it doesn't work — the pads simply don't line up, and no amount of pressure or flux fixes a physical mismatch. This adapter removes that problem by matching the footprint exactly, so contact is consistent across every pin on the first attempt.
In practice, this socket earns its place on the bench for dead-after-flash phones, hard brick recovery, water-damaged boards where the eMMC/UFS controller itself survived but the board didn't, and any job where ISP pinout access is physically damaged or unreachable. You remove the chip with your hot air station, clean the pads, drop the chip into the socket with correct pin-1 orientation, and the F64 box takes it from there — reading the raw dump, checking descriptors, or writing back a repaired image once you've rebuilt the firmware.
This is strictly a physical interface component — it has no firmware or software of its own. All protocol handling (UFS UPIU commands, descriptor access, chip authentication) happens on the Flash64 box itself once the chip is seated. That also means the socket's reliability comes down to mechanical build quality: consistent pogo-pin pressure, accurate ball alignment, and a locking mechanism that holds the chip flat without cracking it. A socket with worn or misaligned pins gives you intermittent reads, which on a UFS chip-off job can look like a dead chip when it's actually a dead connection — worth checking before you write off a board as unrecoverable.

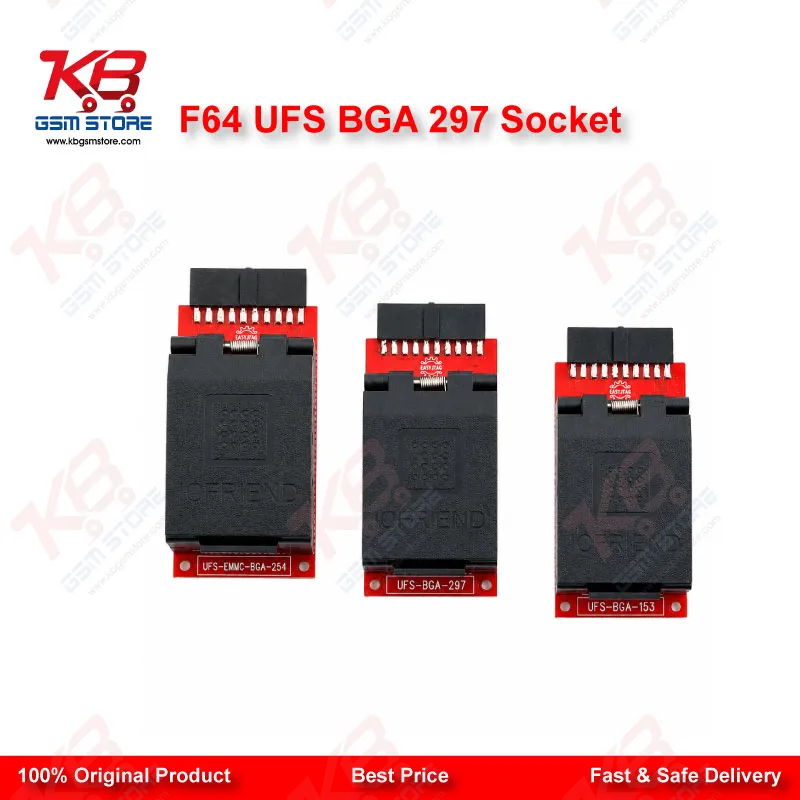

For a Pakistani repair shop running high volumes of Xiaomi and OnePlus boards, having the 297 socket alongside your 153 and 254 units means you're not turning away jobs because of a socket gap. It's a low-cost addition next to the price of the chip you might otherwise scrap, and it keeps your F64 setup covering the full range of UFS packages currently in circulation rather than just the older Samsung-heavy layouts.
Handle the socket the way you'd handle any precision test fixture — keep the contact pins free of flux residue, avoid forcing chips that don't seat flush, and store it away from dust when not in use. A clean socket is a repeatable socket, and repeatability is what chip-off recovery actually depends on.
