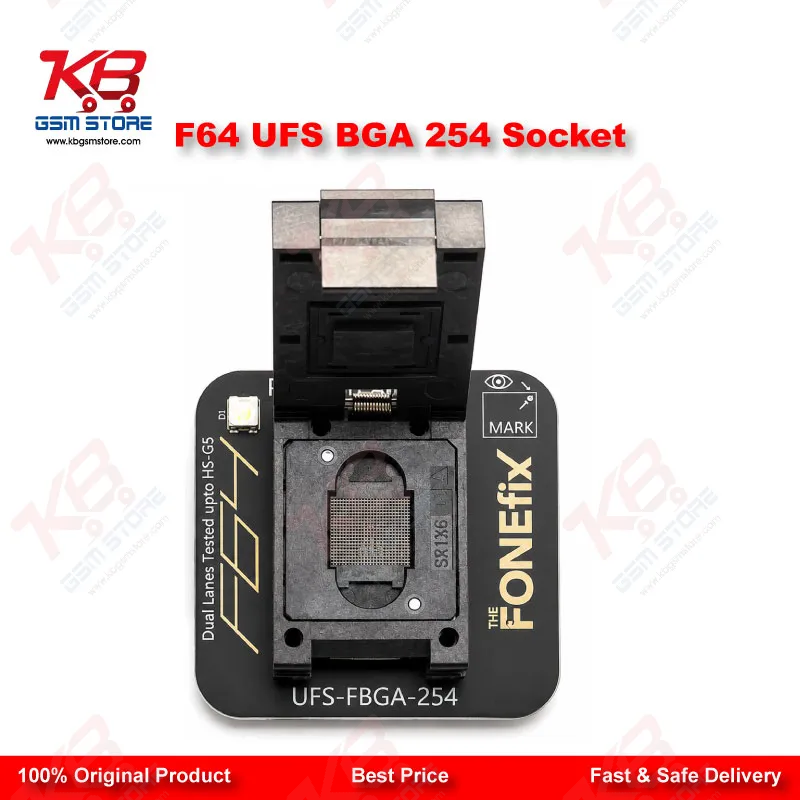

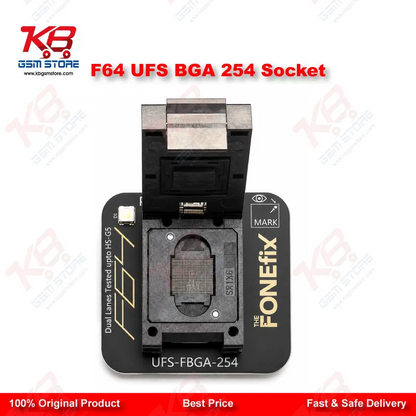

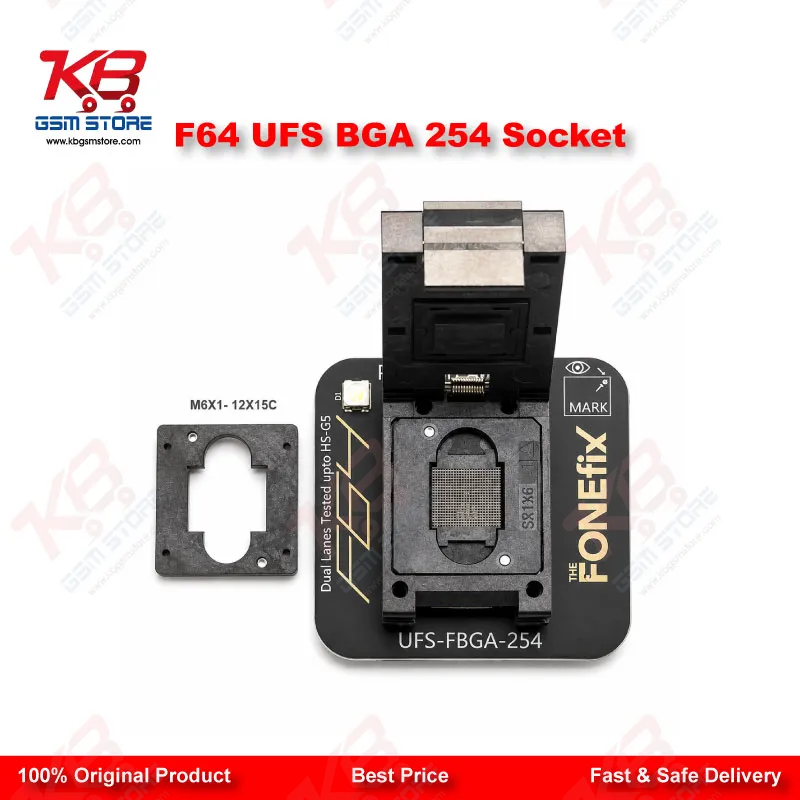

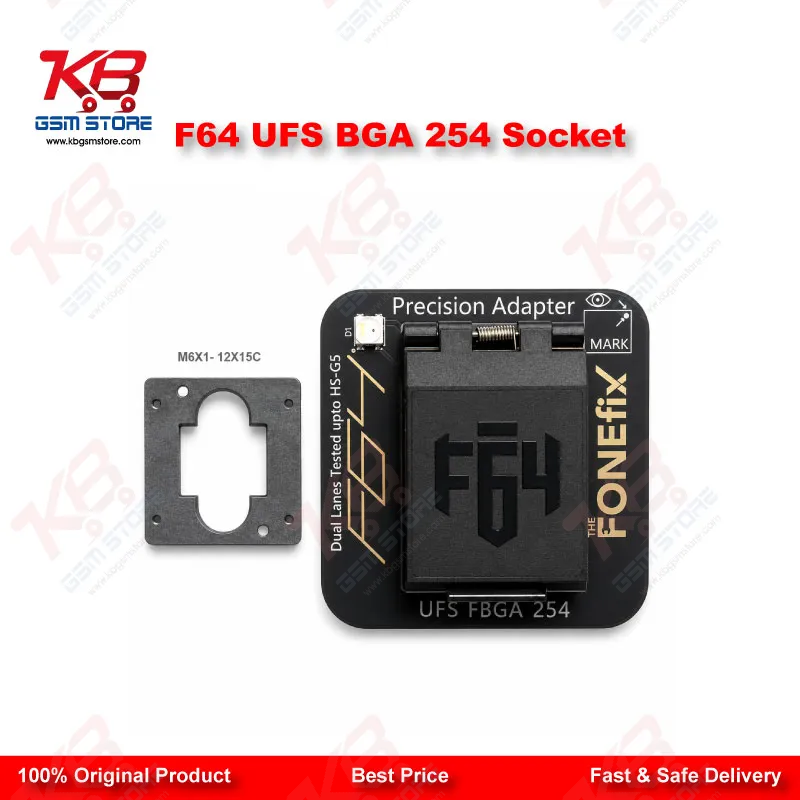

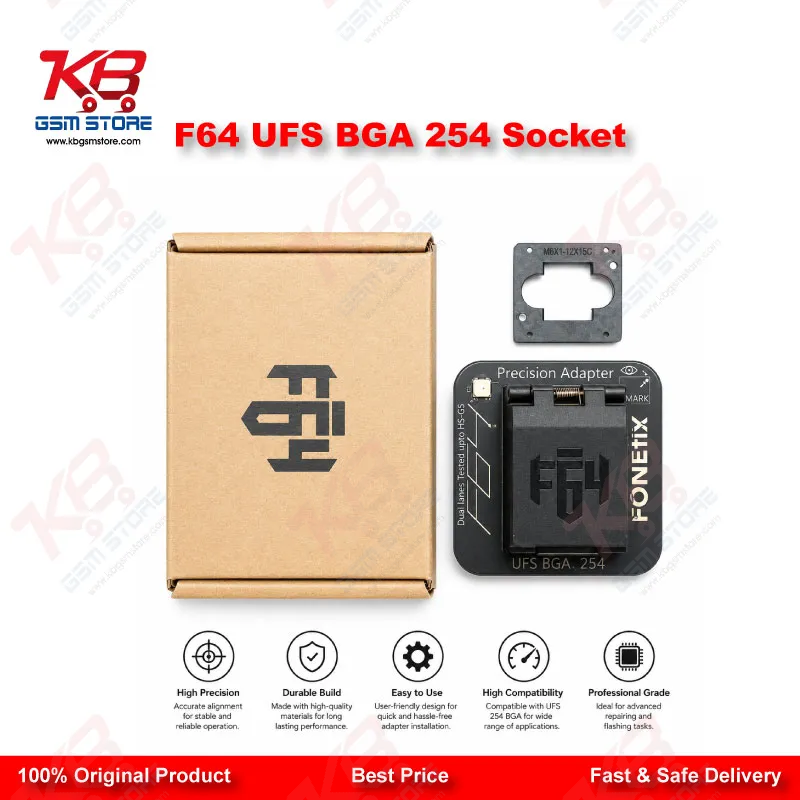

F64 UFS BGA254 Socket Adapter – Flash64 Chip-Off Programmer Socket

Working on a dead Samsung flagship with a corrupted UFS chip means one thing on most repair benches: reballing, testpoint hunting, and hours of risk to the PCB. The F64 UFS BGA254 Socket Adapter removes that step entirely. You place the chip directly into the socket, connect it to your Flash64 (F64) Box, and start reading or writing data — no heat gun, no solder paste, no risk of lifting pads on an expensive motherboard.
This adapter is built specifically for the BGA254 ball layout, which is the footprint you'll find on UFS chips inside flagship Samsung Galaxy S and Note series phones. If you're pulling a chip off a board for dead-after-flash recovery, boot loop repair, or straight-up data recovery from a phone that won't power on, this socket gets you there faster than a traditional chip-off setup.
Your workflow becomes simple: extract the chip from the board, seat it in the BGA254 socket, connect to your F64 box, and run your read/write operation. The adapter handles the electrical connection; the F64 box handles the UPIU-level communication with the chip controller. This matters because managed NAND chips like UFS don't respond to raw memory access — they need proper protocol-level commands, and a mismatched or poor-quality socket will fail to establish contact no matter how good your software is.
For technicians running service centers or repair shops, this socket pays for itself quickly. Instead of quoting a customer for a full motherboard swap because of a "hardware fault" on the storage chip, you get the option to attempt direct chip recovery. It's particularly useful for network issue diagnosis tied to IMEI/EFS partition corruption, FRP lock cases where software-only tools fail, and cases where the device is completely dead after a failed flash attempt.
The BGA254 socket is one part of a broader ecosystem — most technicians pair it with BGA153 and BGA297 adapters to cover the full range of UFS chip footprints across different brands and generations. Keeping all three on your bench means you're not turning away UFS repair jobs based on which chip package a phone happens to use.
Build quality on the socket contacts is critical here: unstable pin contact is the most common reason technicians report failed reads that aren't actually chip failures. A properly seated BGA254 socket gives consistent contact across all 254 balls, which reduces false negative reads and repeat attempts — both of which waste time on a busy repair bench.
This adapter is not a standalone tool. It requires the Flash64 (F64) Box (Ultra, Lite, or Pro variant) as the host programmer, and successful operation still depends on correctly identifying the chip manufacturer and UFS version before attempting a read or write. Skipping that identification step is one of the most common mistakes technicians make when moving from eMMC work into UFS chip-level repair.
If your shop is expanding into flagship device data recovery, dead phone motherboard-level repair, or advanced UFS servicing, the F64 UFS BGA254 Socket Adapter is a direct upgrade path from board-level guesswork to controlled chip-level diagnostics.
