Original F64 UFS FPC V2 + eMMC FPC V2 Flex Cable Set (For Flash 64 Ultra / Lite Box)

When a phone comes in dead after flash, stuck on logo, or completely unresponsive after a failed update, the fault usually sits in the eMMC or UFS chip, not in the mainboard logic itself. The Original F64 UFS FPC V2 + eMMC FPC V2 Flex Cable Set exists to give you a direct, low-resistance path between the Flash 64 Ultra or Flash 64 Lite box and that chip, so you can read, write, or rebuild the storage without lifting it off the board.

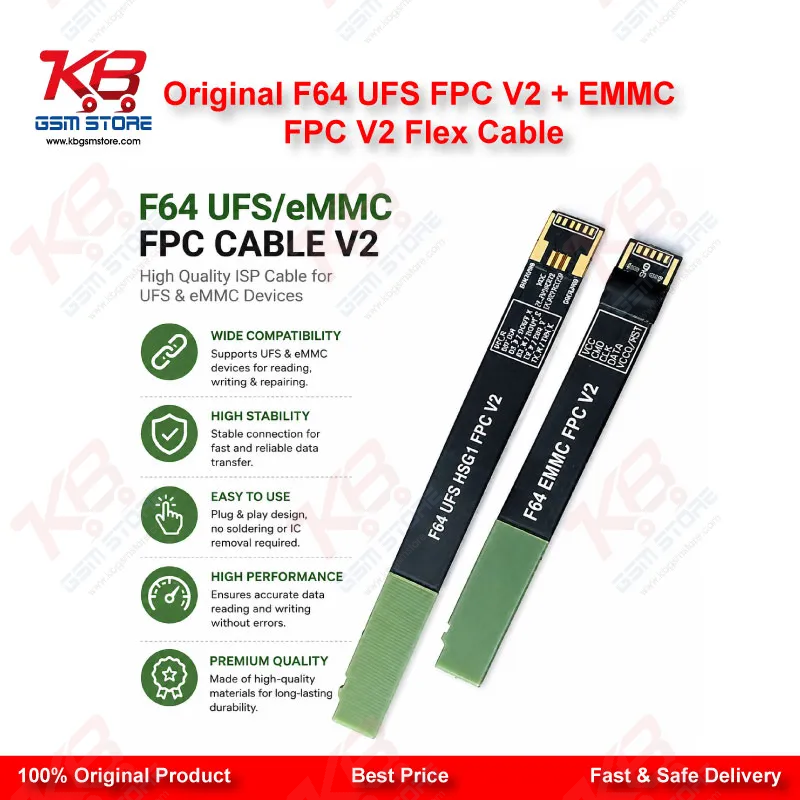

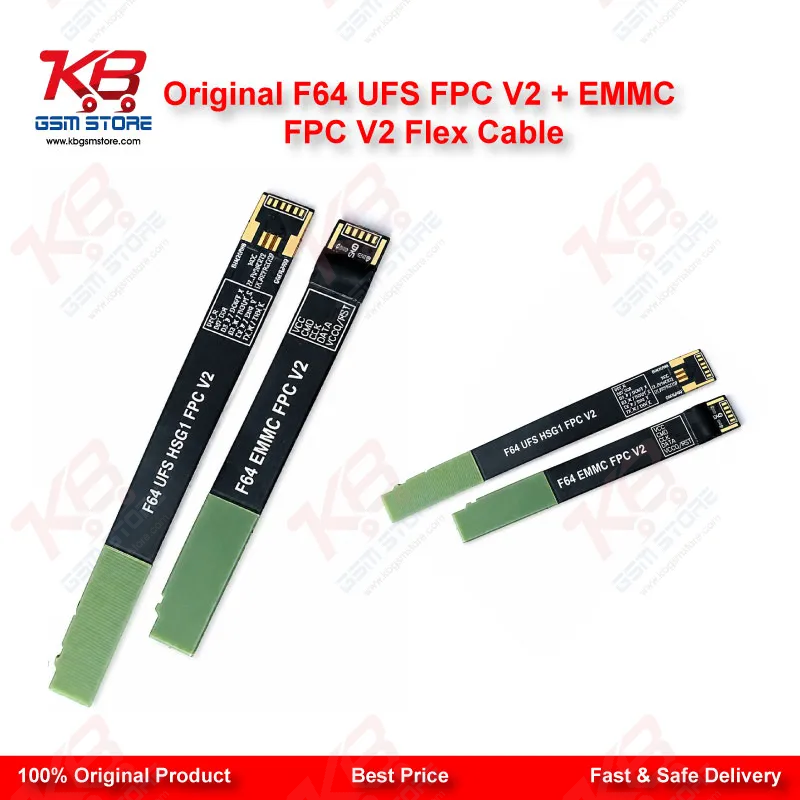

The set includes two flex cables. The UFS HSG1 FPC V2 cable handles UFS-based storage chips, the type found in most mid-range and flagship Android boards released over the last few years. The eMMC FPC V2 cable handles the older eMMC storage standard, still common in budget devices and TV boxes across the Pakistani repair market. Because both cables ship together and connect to the same F64 box, you switch between a UFS job and an eMMC job in the same sitting instead of keeping two separate cable sets on your bench.
Each cable is built as a flexible printed circuit, which matters more than it sounds. A rigid connector puts mechanical stress on fine BGA pads every time you reposition the board. An FPC cable flexes with your hand movement instead of transferring that stress to the chip, so the pads stay intact through repeated sessions. That translates into fewer failed reads on the first attempt and less risk of lifting a pad on a board you're already trying to save.
Setup is direct. You do not need to modify the F64 box or the cable itself — plug the correct cable into the box, align it with the chip pads, and start your session in the F64 software. This matters on a busy bench where every extra step between opening the box and getting a read is time you don't get paid for. Technicians running high volumes of eMMC and UFS jobs — dead boot, FRP lock removal at the chip level, pattern unlock via storage rewrite, or straight data recovery — depend on this kind of direct connection because clip-on and socket adapters introduce more contact points, and more contact points mean more chances of a failed handshake mid-write.
Within the repair workflow, this cable set sits at the ISP stage — after you've diagnosed a software marna case as a storage-level fault, and before you commit to a full IC change or reballing job. Getting a clean read here often tells you whether the fault is genuinely in the eMMC/UFS chip or somewhere else on the board, which saves you from an unnecessary chip swap. For data recovery jobs specifically, this direct connection lets you pull a full chip image before you attempt any repair, so a customer's data survives even if the repair itself doesn't go as planned.
Build quality on the connector pins is what determines how long a flex cable lasts on a repair bench. Gold-plated or similarly treated contact pins resist oxidation from daily handling and repeated insertion, keeping the connection stable job after job rather than degrading after a few dozen uses the way lower-grade cables do.
This set is a maintenance item for any bench already running a Flash 64 Ultra or Lite box. If your original cable has started giving inconsistent reads, showing intermittent connection drops, or simply worn out from daily use, this original replacement restores the same direct UFS and eMMC access without needing to replace the box itself.
