Every GSM technician eventually hits a board where the eMMC or UFS chip needs direct access and desoldering isn't worth the risk. That's the exact gap the Flash 64 UFS & EMMC ISP V2 Adapter with Flex Cable Set fills on your bench. Instead of lifting the IC off a dead phone, you land the ISP pins straight onto the chip pads while it's still soldered to the motherboard, then run your read, dump, flash, or unlock operation through the Flash 64 Box.

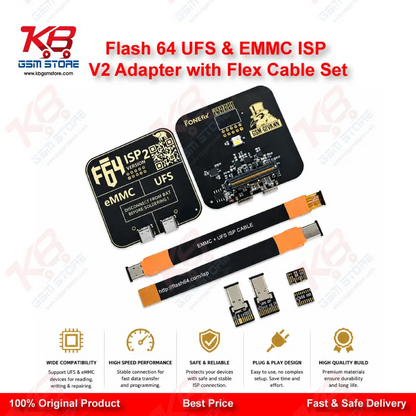

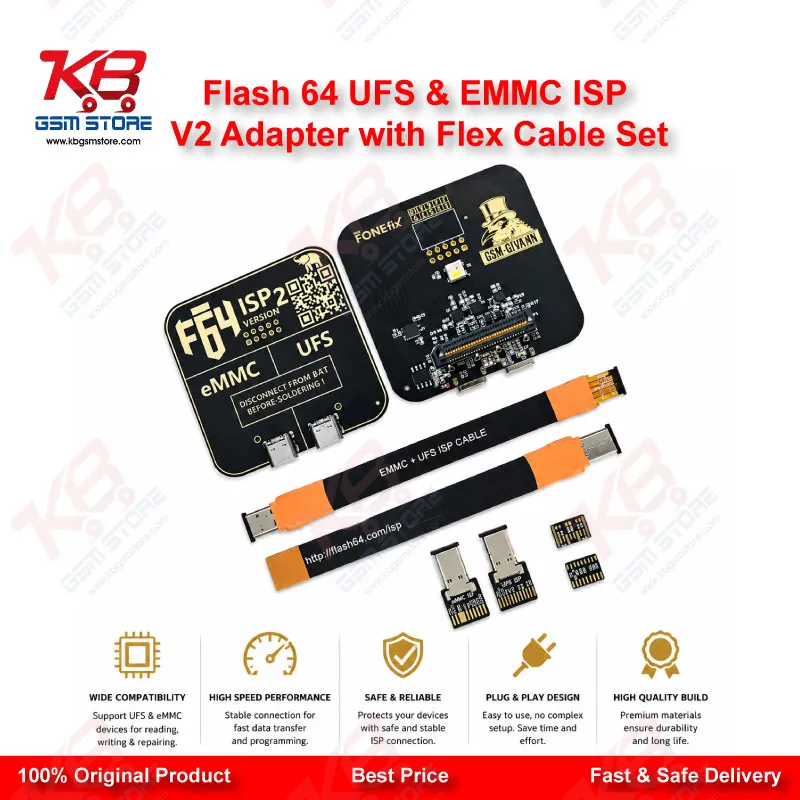

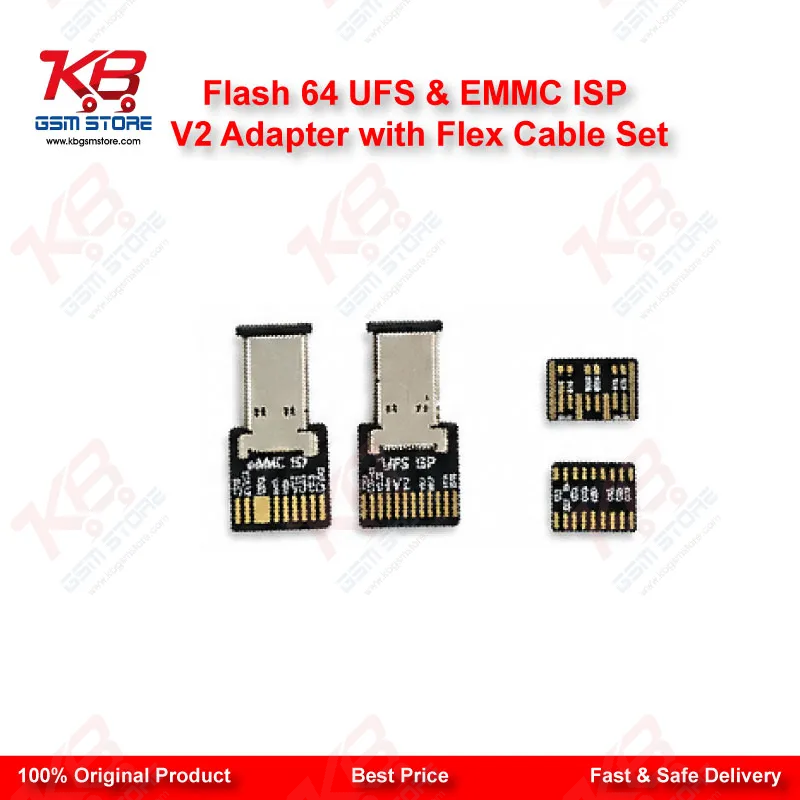

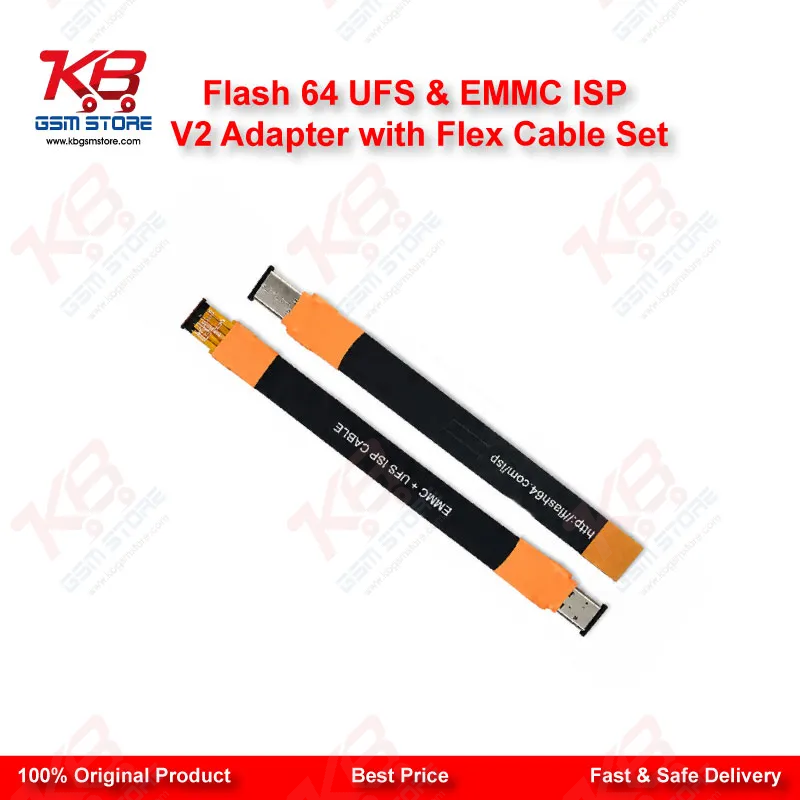

The set is built around the ISP V2 Main PCB, which acts as the bridge between your Flash 64 Box and the chip you're working on. From there, you get a Type-C eMMC PCB for eMMC-specific jobs and a separate Type-C UFS PCB for UFS chips, so you're not forcing one adapter to do two jobs badly. Two Type-C FRC flat cables handle the physical connection between the main board and your probe or test point setup, and two EXT small PCBs give you the extra reach needed on boards where the chip sits in an awkward spot. This is the kind of layout you want when you're doing ISP work daily — dedicated pieces for eMMC and UFS instead of one compromised adapter.
The "V2" in the name isn't just a label change. Compared to the older ISP flex cables, this version improves contact pressure and signal stability on the pads, which matters a lot when you're chasing a clean dump on a board with worn or slightly damaged test points. A weak connection during an eMMC or UFS ISP session usually means a failed read, a corrupted dump, or worse — a bricked chip. Better contact on the V2 cables cuts down on those failed attempts, so you spend less time reseating pins and more time actually finishing the job.
In a typical repair workflow, this adapter set sits right at the point where software troubleshooting stops and hardware-level intervention starts. If a phone is stuck on logo, stuck in boot loop, or dead after a bad flash and standard flashing tools can't touch it through the normal port, ISP is often the only way in. You connect through this adapter, pull a dump if you need to recover data first, then flash a known-good firmware image back through the same connection. For eMMC work specifically, this also opens the door to FRP lock removal and pattern unlock jobs where software-only tools have already failed. For UFS-based devices, which are now standard on most current mid-range and flagship phones, having a dedicated UFS PCB in the set means you're covered as your customer base moves away from older eMMC-only models.
This isn't a tool for occasional use — it's built for technicians who take on dead phone recovery and IC-level jobs as a regular part of their business. Repair shops and service centers running multiple ISP sessions a week benefit most from having separate eMMC and UFS adapters on hand rather than switching cables mid-job. It also fits naturally alongside your existing ISP pinout tools, test boxes, and microscope setup, since ISP work almost always means fine soldering-iron-tip precision and a stable magnified view of the pads while you work.
Because this set connects directly to the Flash 64 Box, make sure you already have that box running before ordering the adapter — it's an accessory set, not a standalone programmer. Once paired with the box, it becomes one of the more reliable ways to keep chip-level repair jobs in-house instead of turning away dead phone cases that need direct memory access.
