FNIRSI 2C53T 3-in-1 Handheld Oscilloscope Multimeter DDS Signal Generator 50MHz 250MS/s

Most mobile repair workshops run
diagnostics using a basic multimeter. It does the job for simple charging issue
checks and continuity tests — but when you face a hardware fault that needs
signal-level analysis, a multimeter alone won't tell you what you need to know.
The FNIRSI 2C53T solves this by combining a high-performance dual-channel
oscilloscope, a professional-grade multimeter, and a function signal generator
into a single handheld unit that fits your repair bench and your toolkit bag.

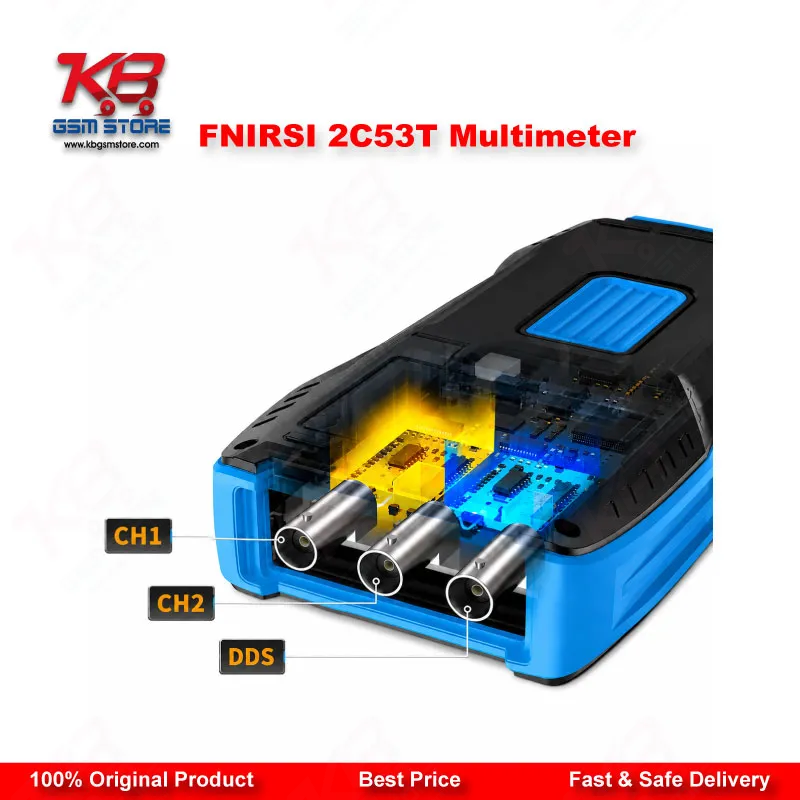

The oscilloscope section runs on
FPGA+MCU+ADC hardware architecture — the same kind of processing backbone found
in laboratory-grade instruments. You get a 50MHz analog bandwidth and a 250MS/s
sampling rate across two independent channels, with a 1Kpts waveform record
depth. Vertical sensitivity adjusts from 10mV/div to 10V/div, and the built-in
high-voltage protection module handles peak voltage measurements up to ±400V
safely. For mobile repair work, this lets you trace signal behavior on power
rails, verify battery charging circuits, and analyze IC output waveforms on a

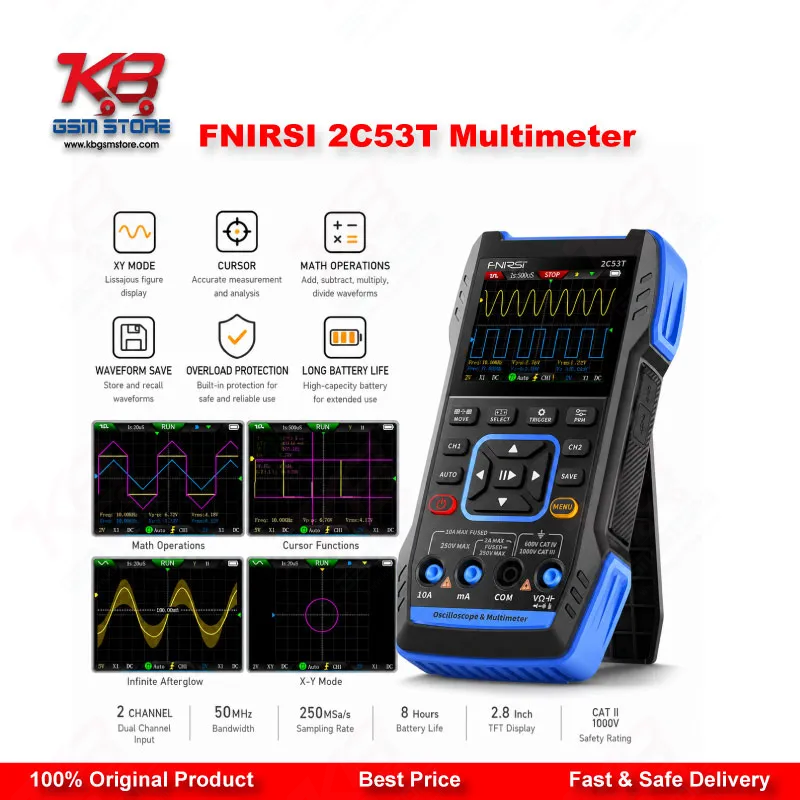

live PCB without risking the instrument. The oscilloscope also supports math
operations, cursor measurement, persistence mode, and XY mode — additions that
arrived with the 2C53T upgrade over the previous 2C23T generation.

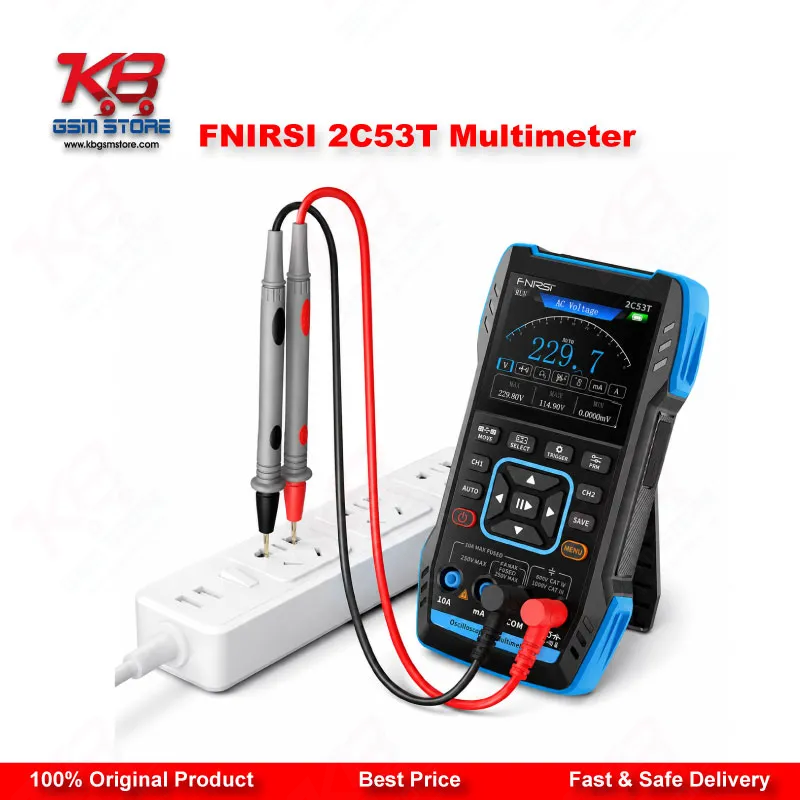

The multimeter function delivers 4.5-digit
19,999-count true RMS readings — a serious specification for a handheld
instrument at this size. AC voltage measurement covers 0–750V, DC voltage goes
up to 999.9V, and DC/AC current measurement runs up to 9.999A. Resistance
measurement extends to 19.99MΩ, capacitance reaches 99.99mF, and the meter
includes diode test and continuity measurement functions. For day-to-day repair
workflow, this handles everything from verifying a charging IC output to
checking filter capacitor values during a charging issue diagnosis or
confirming component integrity after IC change karna on a motherboard. The true
RMS function means AC readings stay accurate even on non-sinusoidal waveforms —
important for power supply and charger circuit testing.

The built-in DDS signal generator outputs
13 types of function signals including sine wave, rectangular wave, sawtooth
wave, half wave, full wave, positive and reverse step waves, exponential rise
and fall curves, DC, multi-audio, sinker pulse, and Lorentz wave. Maximum
output frequency reaches 50kHz with 1Hz step resolution, and you can adjust
output frequency, amplitude, and duty cycle independently. For technicians
testing audio circuits, display problem diagnostics requiring signal injection,
or verifying filter response on PCB-level fault analysis, the signal generator
adds a capability that no standalone multimeter can offer.

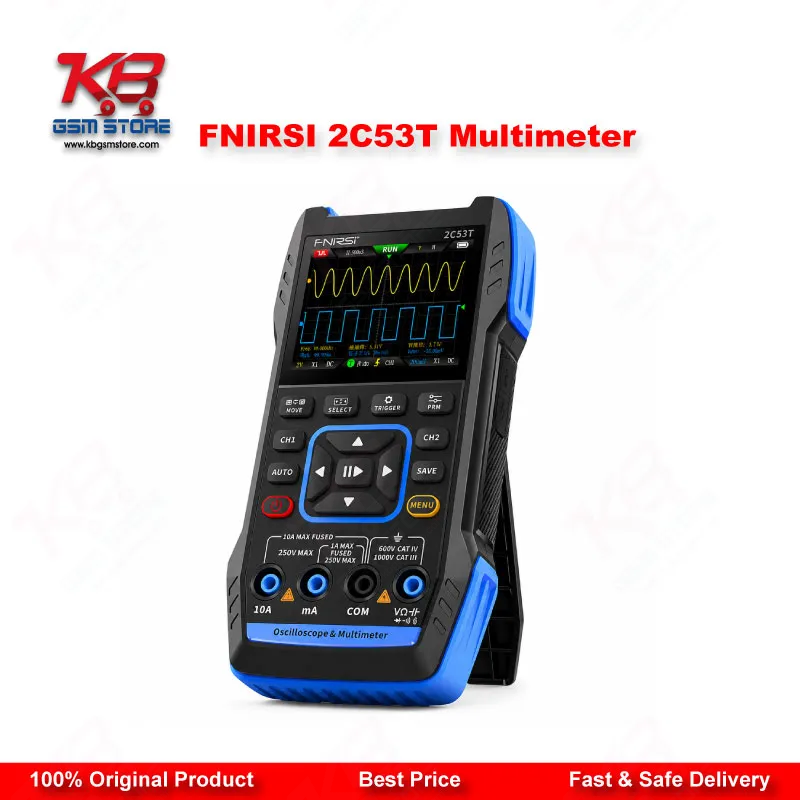

The 2.8-inch IPS HD LCD display runs at
320×240 resolution with a clear, readable interface. All three instrument modes
display their data cleanly, and the screen maintains visibility in workshop
lighting conditions. One-click waveform screenshot saving lets you document
readings and export them to a PC via the Type-C USB connection for further
analysis or record-keeping. This is genuinely useful when logging repairs or
tracking intermittent faults across repeat jobs.

Battery performance delivers up to 6 hours
of standby time from the built-in 3000mAh lithium-ion battery, with Type-C
5V/1A charging. The auto-shutdown feature — configurable at 15 minutes, 30
minutes, or 1 hour — protects battery life during busy workshop days. The
compact 170×90×35mm body with double injection molding construction keeps
weight manageable while maintaining durability for daily use on a professional
bench.

For a repair shop running PCB-level
diagnostics alongside standard software and hardware repair jobs, the 2C53T
pairs naturally with your existing test boxes, soldering stations, and
multimeters as a signal-level diagnostic tool. Use it alongside microscopes for
PCB inspection workflows, and alongside hot air stations and reballing kits for
rework validation. Whether you're chasing a network issue traced to a faulty RF
filter, investigating a dead phone with no charge response, or verifying a
replaced power IC is outputting correctly, the 2C53T gives you the waveform
evidence to confirm the repair — not just the continuity reading.

The FNIRSI 2C53T replaces three separate
instruments with one well-engineered package that Pakistani repair workshops
can depend on for both bench diagnostics and field service calls. It earns its
place as a permanent addition to any serious technical repair setup.
