Forward BF03 1300W Hot Air Rework Station – PID Controlled Desoldering Gun for Mobile Repair

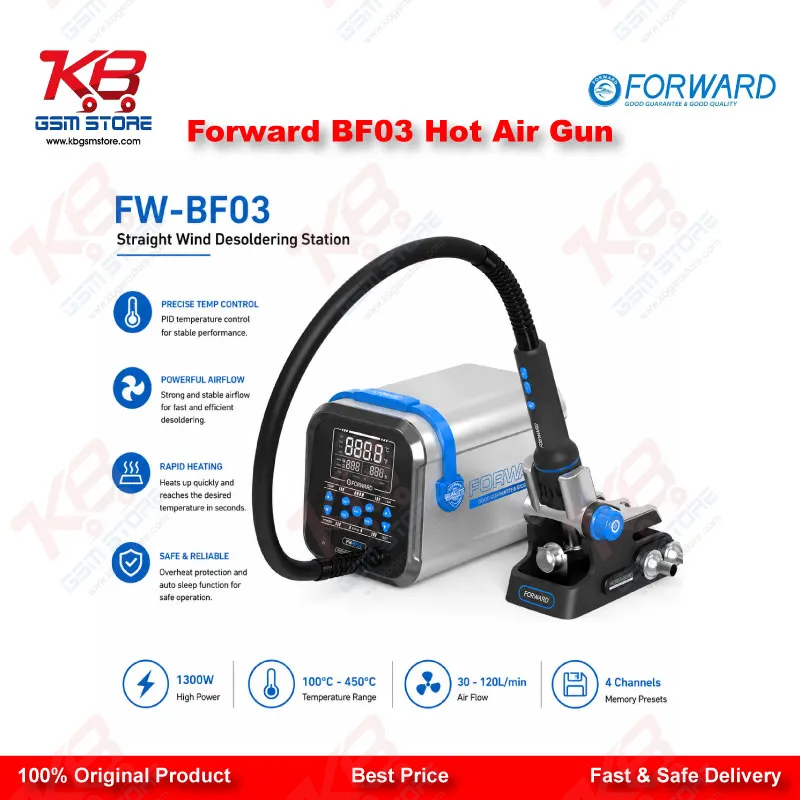

Every hot air station on a repair bench earns its place through one thing: how well it holds temperature when the job gets demanding. The Forward BF03 approaches this with a 1300W ceramic heating core driven by microcomputer PID control and K-type thermocouple sensing, keeping the working temperature accurate within ±2°C across a 100°C to 500°C range. For a technician moving between IC change karna on one board and a full CPU reball on the next, that kind of consistency removes the guesswork that cheaper guns leave behind.
Airflow comes from a high-speed brushless turbine fan spinning between 15,000 and 18,000 RPM, and you can dial the output anywhere from 5% up to 200% depending on the component in front of you. Low airflow settings suit small SMD parts and delicate flex connectors where you don't want to disturb neighboring components. Higher settings push through faster for BGA reballing, larger IC removal, or stubborn dead-after-flash boards where the solder needs consistent heat to release cleanly. The LCD display keeps temperature and airflow visible at a glance, so you're not second-guessing your settings mid-repair.

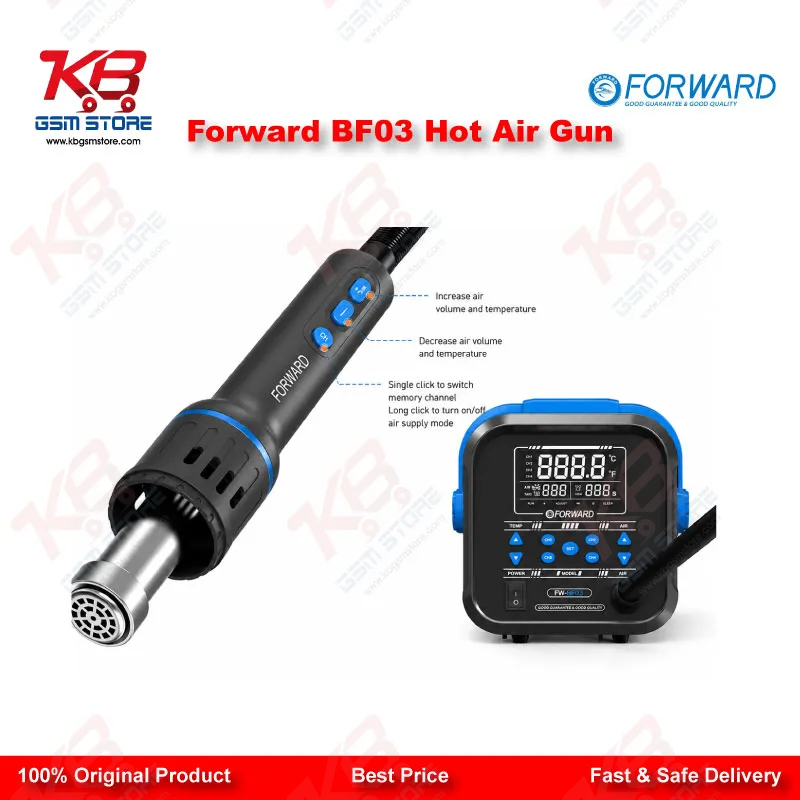

The handle itself is where the BF03 earns extra points for daily workshop use. It carries three buttons that let you switch between four memory channels, adjust temperature, and change airflow mode directly from your hand, without reaching back to the main unit. If you're running the same recovery process repeatedly, say, a jumper lagana routine on a common board fault, you set it once and recall it instantly on the next unit that comes across your bench.
A magnetic switch built into the handle cradle automatically activates the station when you lift the handle to work and drops it into a cooling standby mode the moment you set it back down. This isn't just convenience. It extends the working life of the heating element by avoiding unnecessary full-power idle time, and it keeps your workstation safer when you step away mid-repair. Paired with this is an automatic power-off safeguard that shuts the unit down if airflow stops unexpectedly, protecting the heating core from overheating rather than risking a burnout that takes the whole station out of service.
For technicians handling desoldering work with a strict time window, especially over multilayer boards or heat-sensitive components, the BF03 includes a countdown timer function. Set a specific duration for the desoldering task and the station manages the cutoff, reducing the risk of board damage from prolonged exposure. The rocker arm holding the handle can be adjusted to whatever angle suits your working position, which matters more than it sounds when you're doing repetitive rework across an entire shift.
Inside the housing, the BF03 runs on a dual-voltage design supporting 110V and 220V AC input, giving it flexibility across different workshop power setups. The main unit measures 174 x 230 x 173mm and weighs around 3.1kg, a compact footprint that doesn't crowd a repair bench already holding a microscope, ISP box, and soldering station.

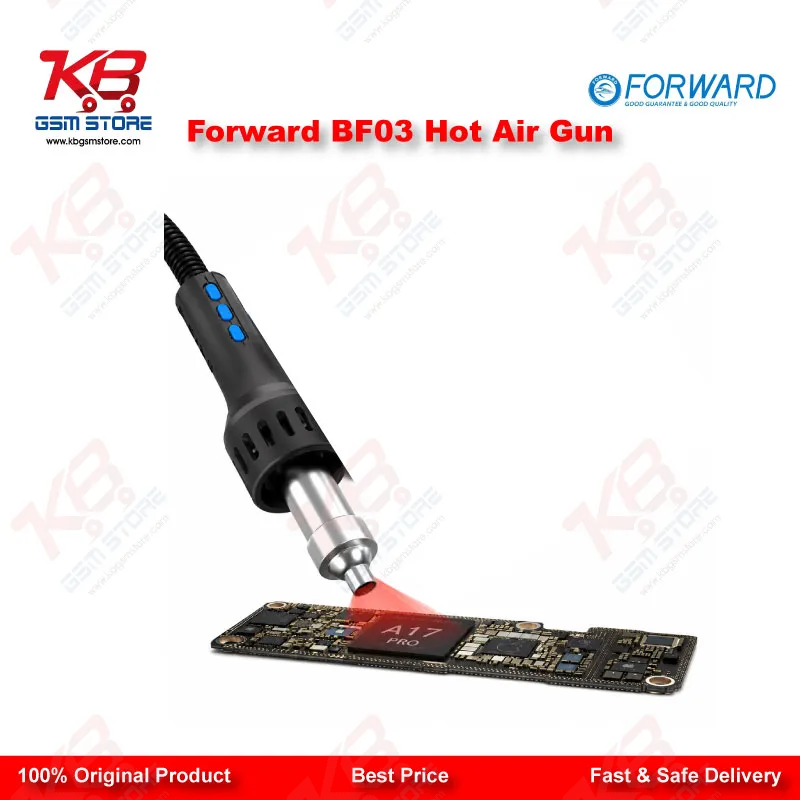

Where this station fits into your actual repair workflow matters more than any spec sheet. Hot air rework sits at the center of PCB repair, whether you're removing a faulty power IC before running diagnostics, prepping a board for a CPU reball after a hardware fault, or reflowing a connector after a charging issue complaint. The BF03's ±2°C stability makes it suitable for the more demanding side of this work: multi-layer motherboard rework, dead phone recovery where a board has been previously worked on by someone else, and controlled reflow around dense component clusters where uneven heat causes collateral damage.
For a service center handling volume, board after board, the memory channel setup reduces the setup time between jobs, and the magnetic standby feature reduces wear across a full working day. For a technician building out a bench from scratch, the BF03 pairs naturally with an ISP pinout tool for post-repair verification, a soldering station for finer touch-up work after reflow, and a microscope for inspecting BGA pad condition before and after reballing.
The Forward BF03 doesn't try to be everything on the bench. It's built specifically to do hot air rework well, with the temperature accuracy and airflow control that separates a station technicians reach for daily from one that ends up gathering dust after a few inconsistent jobs.
