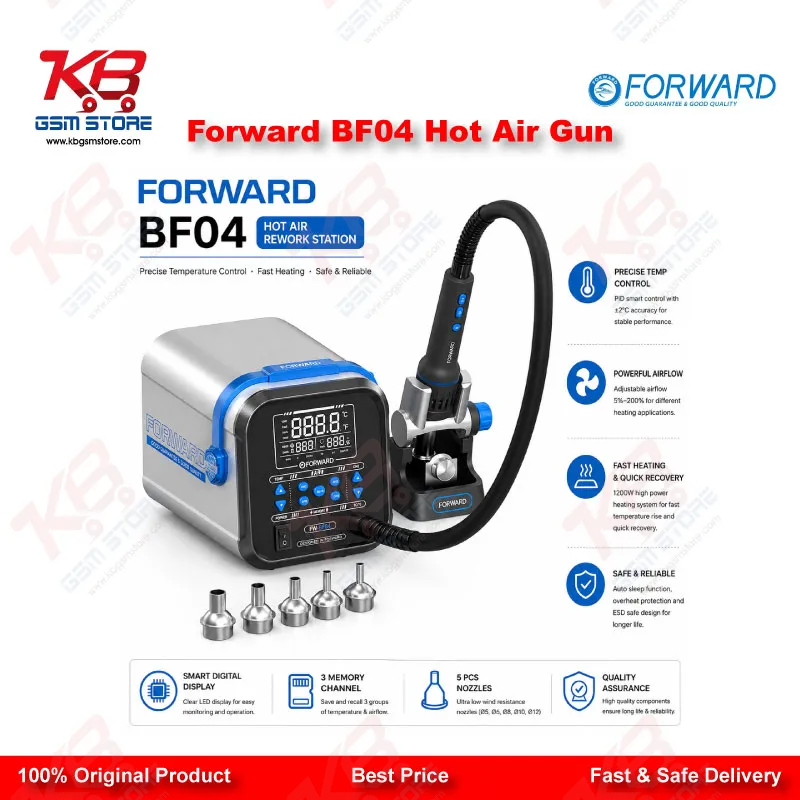

Every technician who does board-level repair knows the difference a stable hot air station makes. Push too much heat into a dead phone motherboard and you crack the PCB or lift a nearby pad. Run too cold and the IC never releases cleanly. The Forward FW-BF04 solves this with a 1300W ceramic heating core matched to K-type thermocouple sensing, feeding real-time temperature data back into a microcomputer PID control loop. The result is ±2°C accuracy across the full 100°C–500°C range, which matters when you're pulling a CPU off a board that already has other components soldered close by.
Airflow control on the FW-BF04 goes from 5% to 200%, giving you a wide working window between delicate SMD components and larger BGA chips that need sustained heat. A double ball vortex fan spins at 15,000–18,000 RPM to move that air, and Forward built the housing around a brushless turbine design that keeps noise down during long repair sessions — something you'll appreciate when you're running the station for hours at a service center bench.

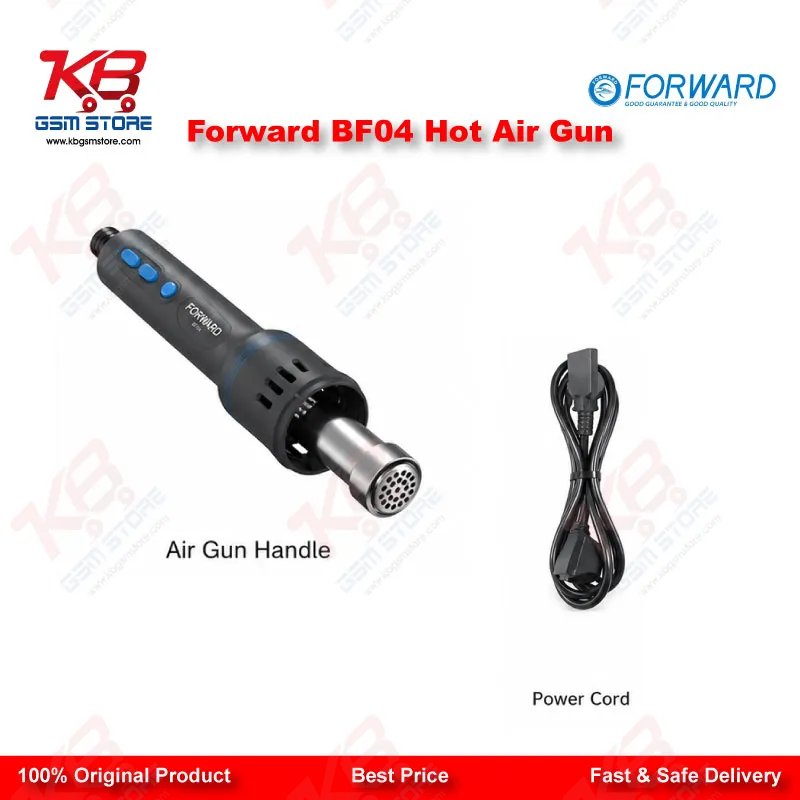

The handle itself does most of the daily work. Three buttons let you switch between four memory channels, adjust temperature, control air volume, and toggle air supply mode without reaching for the main unit every time you change jobs. If you're moving between a Qualcomm board needing one profile and a MediaTek board needing another, you set both channels once and switch with a button press. The handle also carries a magnetic switch: pull it off the bracket and the station goes into working mode automatically; place it back and it drops into standby with cooling airflow, which extends the life of the heating element and cuts power draw when you're not actively using it.
Safety is built into the core electronics. If airflow ever fails, the FW-BF04 cuts power to the heating core automatically rather than letting it sit and overheat — a fault mode that damages cheaper stations over time. The imported heating core is rated for a long service life under continuous workshop use, which lowers the replacement cost you'd otherwise face with lower-end hot air guns that burn out their elements within months.

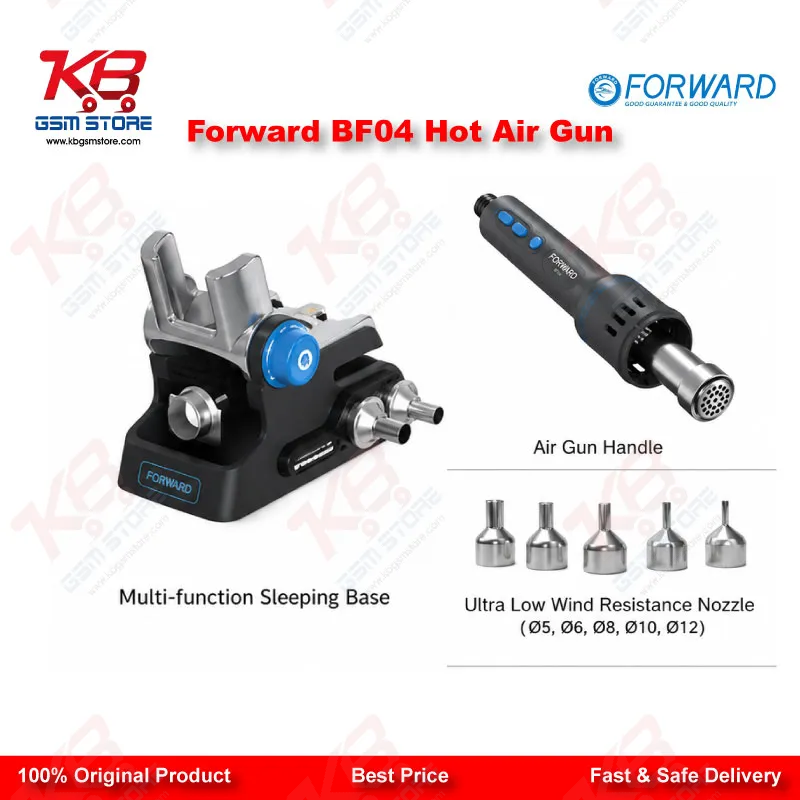

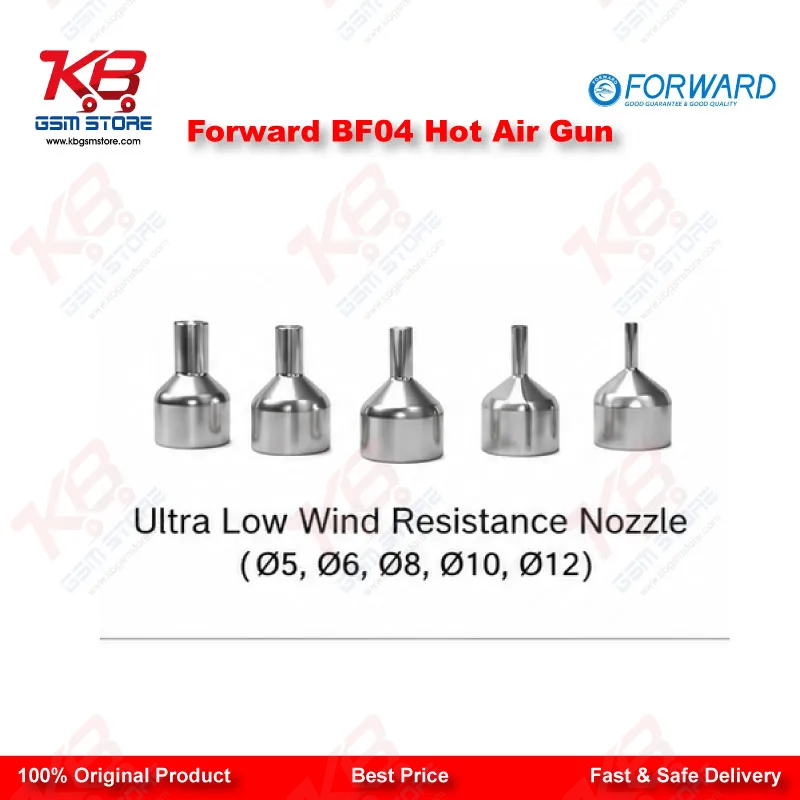

For hardware fault diagnosis and repair, this station fits directly into your existing workflow. Reballing a CPU or NAND chip requires even heat distribution and a stable hold temperature — the PID control handles that without you babysitting the dial. Removing an IC for jumper lagana or board-level trace repair means you need heat concentrated enough to release solder but controlled enough that you don't warp the PCB layer underneath. The adjustable airflow and nozzle compatibility on the FW-BF04 give you that control on both small SMD components and larger shielded ICs.
The main unit measures 174x230x173mm and weighs 3.1kg, with the bracket adding another 1.2kg — solid enough to sit steady on a repair bench without shifting during use. Handle tube length runs 800mm, giving you working reach without the cable feeling short when you're positioned over a board on a PCB holder.
Where this station earns its place on a professional bench is repeatability. A repair shop running multiple technicians on rotating shifts needs a tool where channel 1 always means the same temperature and airflow every time, regardless of who used it last. The four memory channels solve that directly — no guessing, no re-calibrating between users. That consistency matters most on jobs like hang on logo repair after IC reflow, where inconsistent heat is often the reason a repair fails a second time.
The FW-BF04 sits well within a full rework setup. Pair it with a PCB holder to keep boards steady during extended heat application, a microscope for visual inspection of pad condition before and after reflow, and an ISP tool or eMMC programmer for the software side of the same repair job. Technicians handling boot loop issues that trace back to hardware — rather than a software marna fix — will find the temperature stability here reduces the retry rate on chip reflows compared to fixed-output heat guns.
Whether you're running a solo repair bench or managing a service center with several technicians, the Forward FW-BF04 gives you the temperature control, safety cutoffs, and repeatable channel memory that board-level and BGA rework demands.
