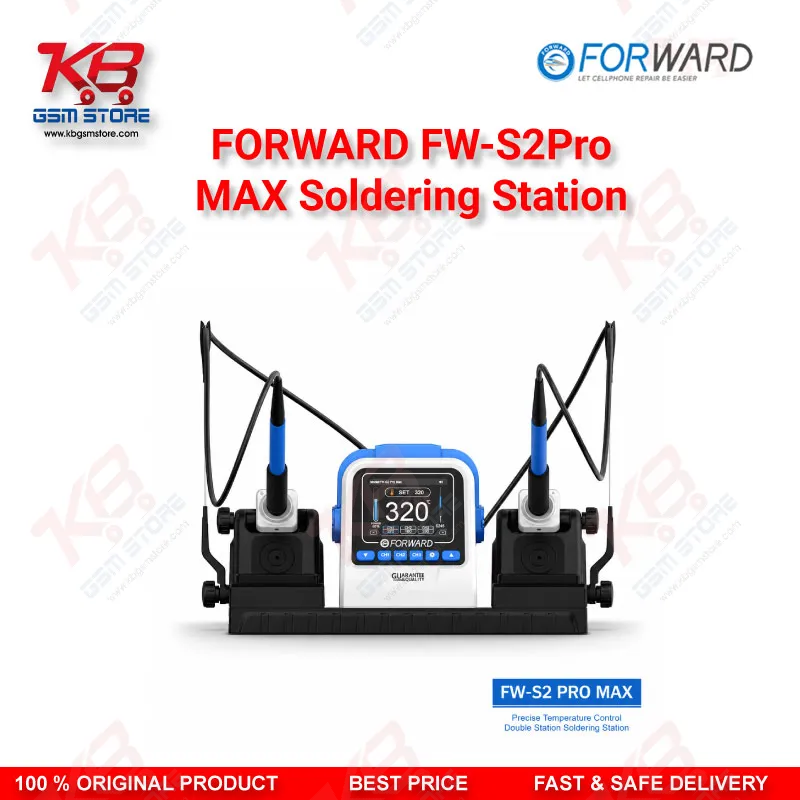

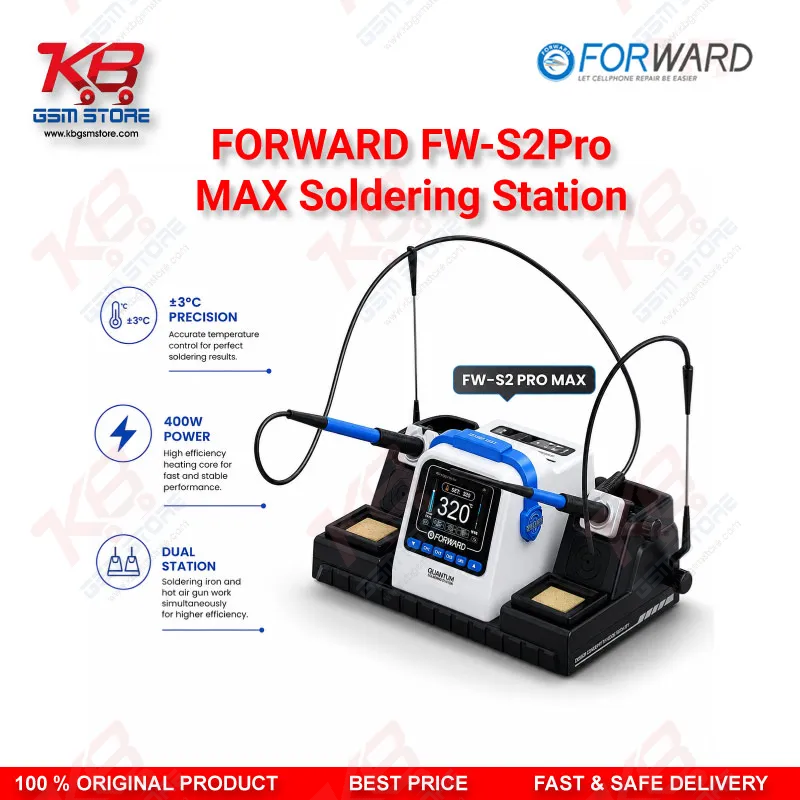

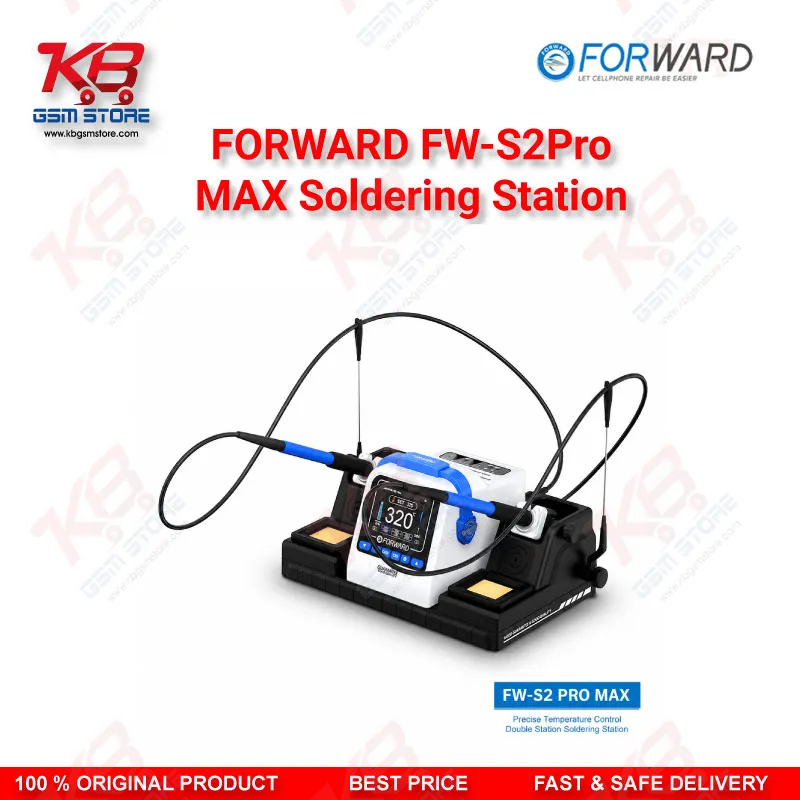

FORWARD FW-S2ProMax Double Station Soldering Iron Station – 400W Precise Temperature Control

Every mobile repair bench in Lahore, Karachi, or Islamabad reaches a point where one soldering iron just isn't enough. You're doing jumper lagana on a charging IC, then two minutes later you need a different tip for a fine pad on the same board, and swapping cartridges mid-job wastes time you don't have when a customer is standing at the counter. The FORWARD FW-S2ProMax solves that specific problem by running two soldering handles from a single 400W base unit, letting you keep one tip ready for detail work and the other for broader pad or ground plane soldering without touching a single screw.
The station pulls 400W of total power through an 80-260V AC input and steps it down to a 24VDC output, which keeps both handles heating fast and recovering quickly even when you're working on components that pull heat away rapidly, like large ground planes or multi-layer boards. Maximum input current sits at 2.7A on 110V lines and 1.4A on 220V lines, so it runs fine on Pakistan's standard 220V household and workshop supply without needing a step-up transformer. Temperature range spans 200°C to 450°C, covering everything from delicate SMD component work to heavier soldering jobs that need higher heat to flow properly.
Constant temperature accuracy rated at ±3°C matters more than most technicians realize until they've used a cheaper iron that drifts 15-20 degrees under load. When you're working lead-free solder or doing repeated jumper points on a board that's already been through a few repair attempts, that drift either cooks the pad or leaves you with a cold joint that fails a week later. The FW-S2ProMax holds its set point tight enough that you get the same result on jumper number one as jumper number twenty, which is exactly what you need when software marna alone won't fix a board and the real problem is a broken trace or a lifted pad.
Grounding resistance rated below 2mΩ is a detail that protects the sensitive ICs you're working around. A soldering iron with poor ground isolation can leak static or stray voltage straight through the tip into a PMIC or charging IC that's already sitting exposed on the board, and that's how a simple repair turns into a dead board after flash. This station keeps that risk low enough that you can work close to populated areas without worrying about static damage to nearby components.

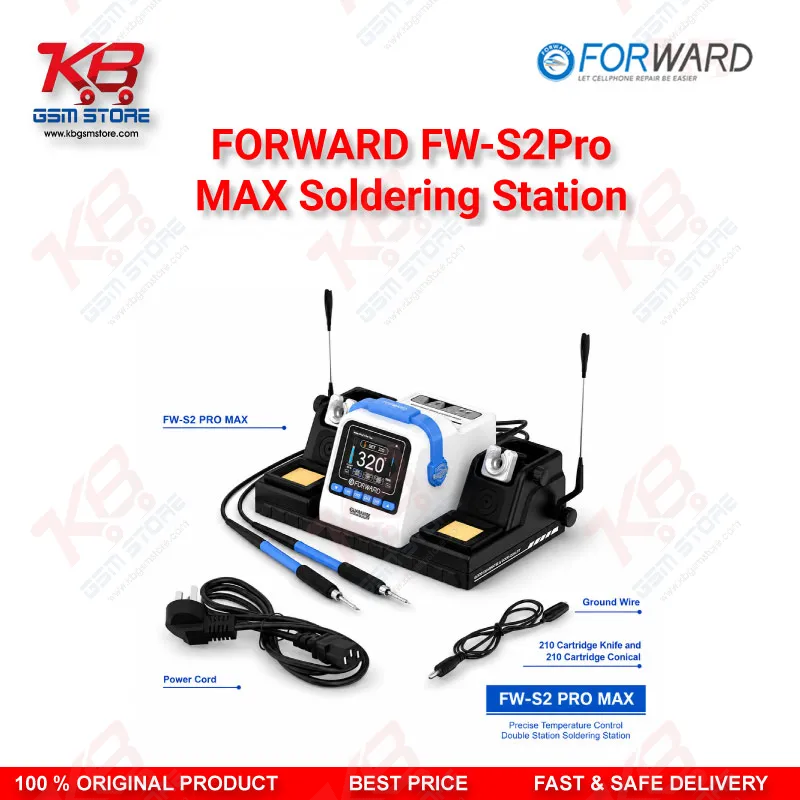

The heating core setup uses Type 210 and Type 245 cartridges, which is the same family most Pakistani repair shops already stock tips for, so you're not locked into a proprietary tip system that costs more to replace later. FORWARD sells the FW-S2ProMax in three handle combinations: the base FW-S2ProMax pairs two 210 handles (one knife tip, one conical tip), the FW-S2ProMax-A pairs a 210 knife with a 245 knife, and the FW-S2ProMax-B runs two 245 handles (one knife, one conical). That means you can pick the combination that matches the kind of work your bench actually does, whether that's mostly fine motherboard-level soldering or a mix of board-level and slightly heavier mechanical soldering.
On a typical repair bench, this station fits into the same workflow as your hot air station and your ISP or eMMC tools. You'll use the hot air side for reballing and chip removal, then move straight to the FW-S2ProMax for jumper lagana, connector resoldering, or reattaching a component after an IC change. Having two live handles means you're not waiting for one tip to reheat after switching jobs, which adds up over a full day of dead phone repairs, charging issue diagnostics, and board-level rework.
The host unit measures 26.4 x 15.6 x 13.0cm, compact enough to sit on a crowded workbench next to your microscope, power supply, and hot air gun without eating up your working space. Build quality on the FORWARD line has held up well in Pakistani workshop conditions, where dust, heat, and constant daily use wear out cheaper stations within months.
For a repair shop handling Samsung, Oppo, Vivo, Infinix, and Tecno boards where board-level work is a daily occurrence, this kind of dual-handle setup cuts down dead time between soldering steps. It's suited for technicians who do more than basic screen and battery swaps, covering the chip-level repair segment where hang on logo issues, boot loop problems, and charging faults often trace back to a bad solder joint rather than a software fault. A stable, dual-handle station like this becomes part of the core toolkit alongside your programmer, your test box, and your microscope, rather than a one-off purchase you outgrow in a few months.
