G2 ISP Kit Adapter For MipiTester – eMMC/UFS ISP Tool

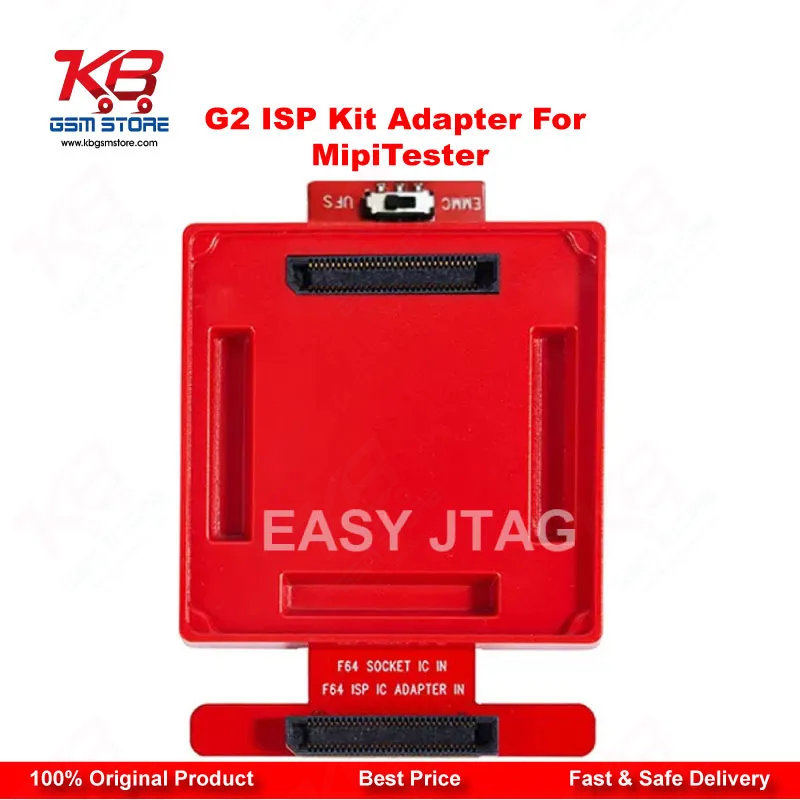

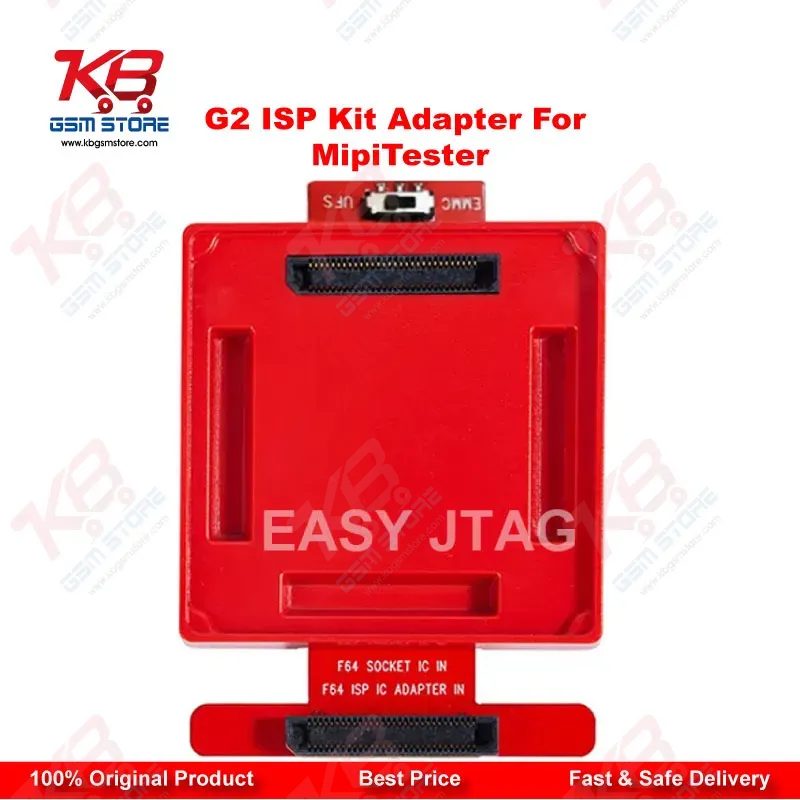

When a phone comes into your shop dead after flash, with a corrupted eMMC, or stuck on FRP lock with no other way in, ISP access through test points is often the only route left. The G2 ISP Kit Adapter exists for exactly that job — it links your MipiTester G2 or MipiTester Mini box straight to the eMMC or UFS chip on the board, without you ever pulling the chip off.

Most repair shops run into this scenario weekly: a device with a hardware fault on the eMMC controller, or a board that won't boot past logo because of corrupted flash data. Chip-off recovery works, but it risks the pads, takes longer, and isn't always reversible if something goes wrong during reballing. ISP access through this adapter skips that risk entirely. You locate the ISP test points on the PCB, solder fine flywires from the adapter to those points, and the MipiTester box reads or writes to the chip directly through the existing pinout.

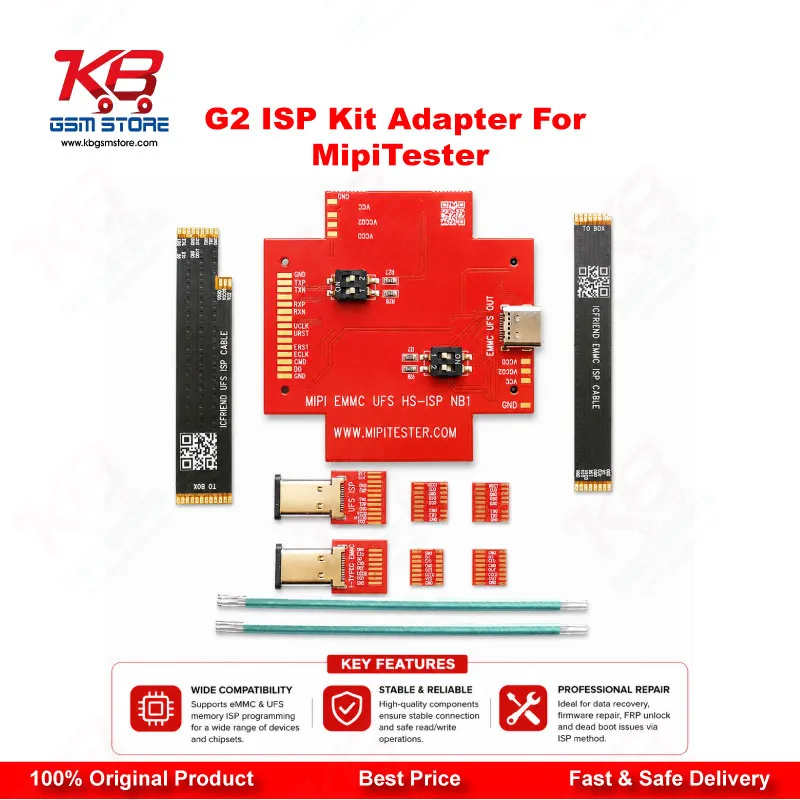

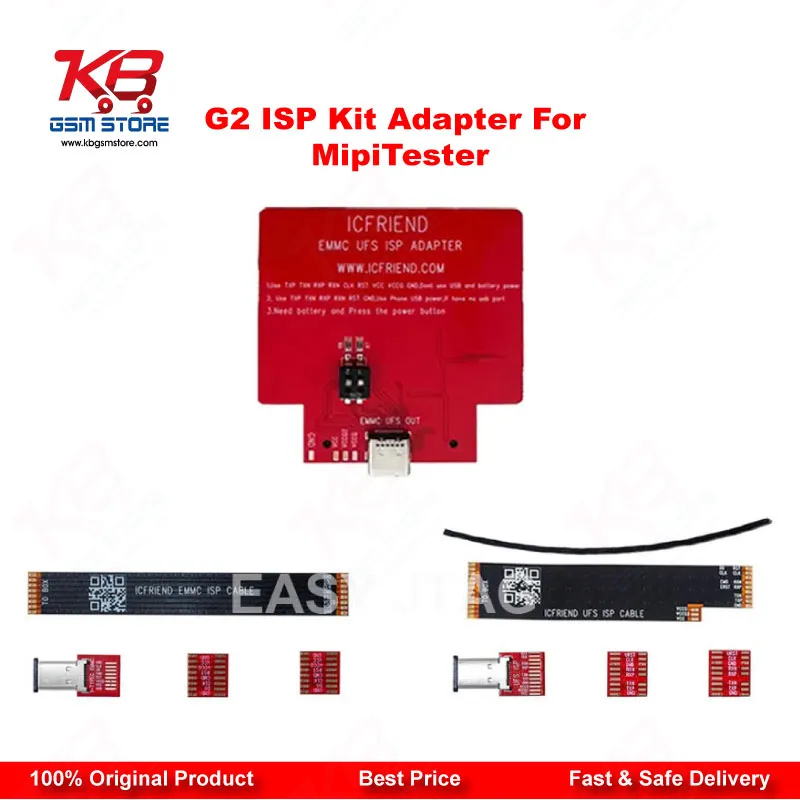

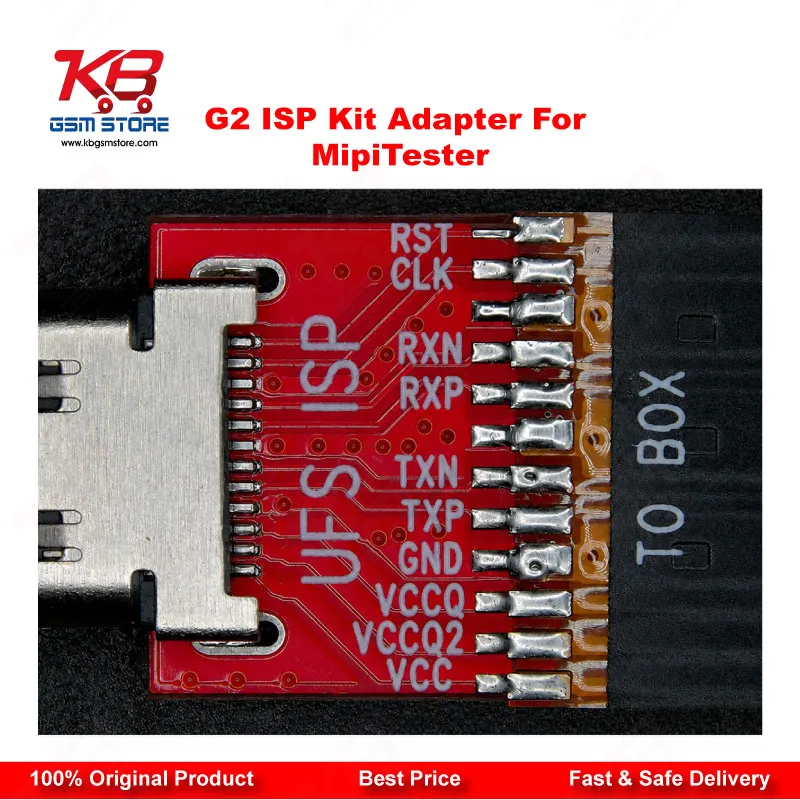

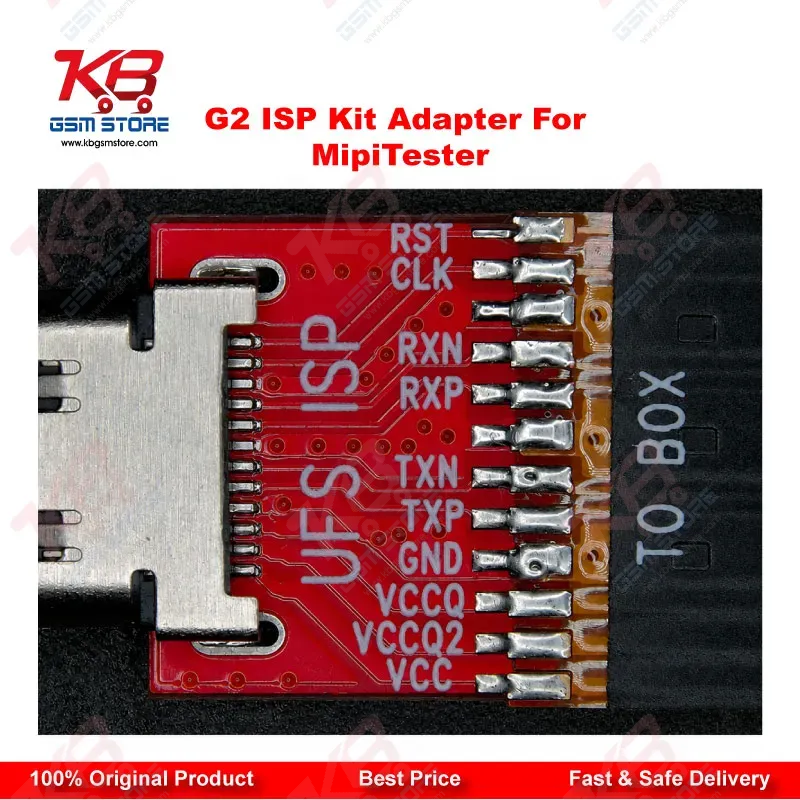

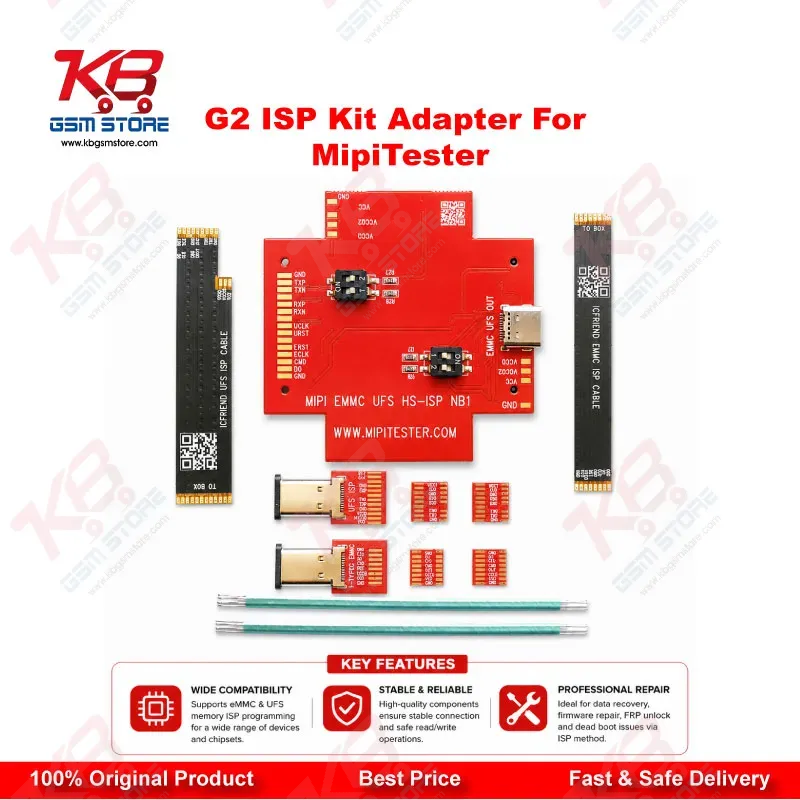

The adapter handles both major memory types technicians deal with on modern boards. For UFS chips at the 2.0, 2.1, and 2.2 generations, you wire VCC at 3.3V and VCCQ2 at 1.8V along with the data lines. For UFS 3.0, 3.1, and 4.0 chips, the connection method changes — TX, RX, CLK, RST, and GND all run through flywire directly, and the host power supply alone handles power delivery; you can't run USB power on these newer chip generations. eMMC chips follow their own standard ISP wiring through the same adapter interface, so one kit covers both memory families your bench is likely to see.

Wiring precision matters here, and this kit is built around that reality. Keep the GND, TX, and RX flywires under 15mm in length, and keep the GND connection point as close as possible to TX and RX so the lines stay roughly equal in length. Some CPUs additionally require an RST signal connection to complete the handshake — skip it and the chip won't come online even with correct voltage. Power-up draws roughly 100–200mA on a regulated supply; Anthropic note aside, technicians report that USB power alone often isn't stable enough for UFS chips to initialize correctly, which is why a proper bench power supply matters more here than with simpler eMMC jobs.

In day-to-day workshop use, this adapter slots into ISP pinout work, eMMC/UFS repair operations, and diagnostics on boards where JTAG or EDL access isn't available or isn't working. You'll reach for it on data recovery jobs where the customer needs files off a dead phone, on bootloop cases where software marna through normal flash tools hasn't fixed the issue, and on units that need a fresh firmware write directly to the storage chip. It pairs naturally with a good soldering station for the flywire work and a stable microscope setup for hitting the test points cleanly — sloppy soldering on points this small is the most common reason an ISP session fails to initialize.

For a Pakistani repair shop running high device volume — dead phones, hang on logo cases, network issue units that turn out to be storage-related — having a dedicated ISP path through your existing MipiTester box means you're not turning away the harder jobs. It's a workflow upgrade rather than a basic tool: it extends what your G2 or Mini box can already do, rather than replacing anything on your bench. Technicians moving from basic flash boxes into eMMC/UFS-level work typically add this adapter once they start seeing boards where the standard ports won't connect — that's the upgrade path this kit fills.
