When you're reballing a middle-layer board on an iPhone that came in dead after a drop or a failed repair attempt, mesh alignment decides whether the job holds or comes back to your bench in a week. The GSM-Sources MP-01 solves that problem with a magnetic positioning system built specifically around the iPhone 8 through 14 Pro Max range.

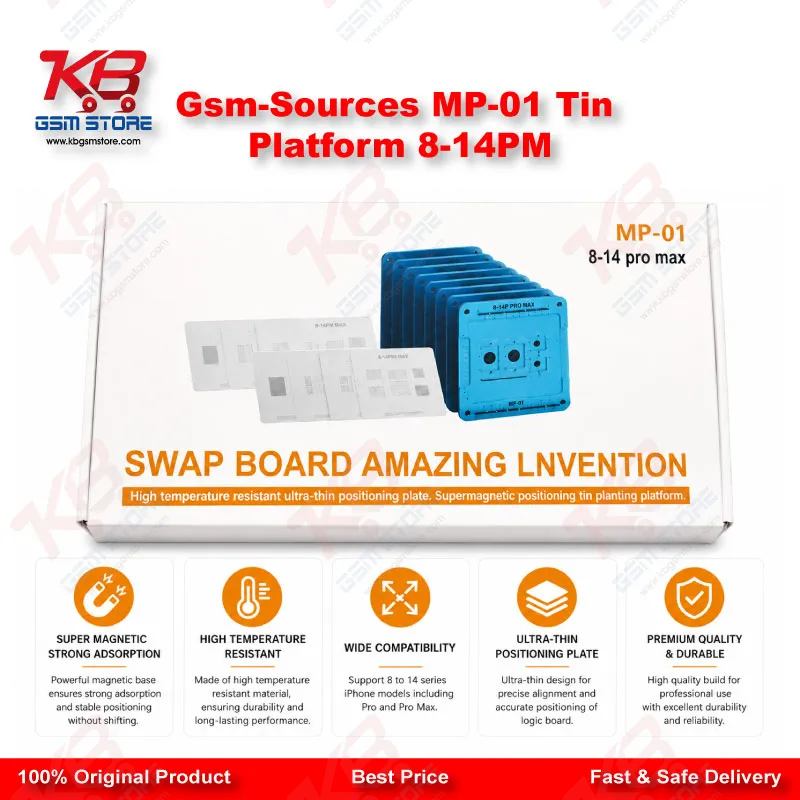

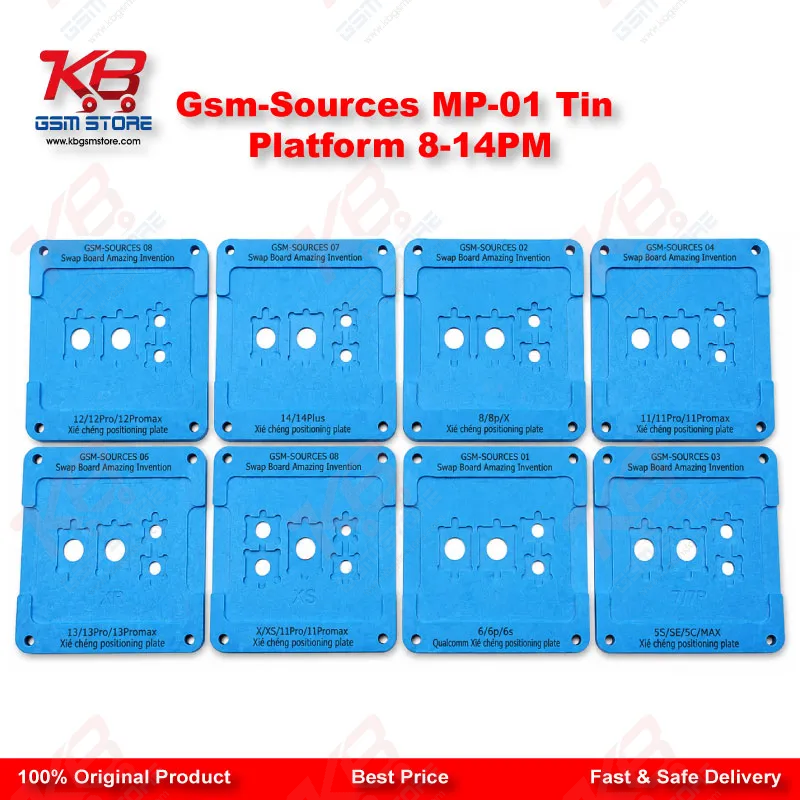

Most middle-layer tin planting jobs fail for one reason: the steel mesh shifts a fraction of a millimeter while you're applying paste or running the heat gun. The MP-01 uses a magnetic dynamic positioning base that clamps the mesh against an ultra-thin positioning plate. That thinness matters on middle-layer work specifically, because you need the mesh sitting almost flat against the board contact points, not raised on a thick fixture body that leaves gaps around the connector edges.
Your workflow on this platform stays simple. You place the board on the clamping position, matching the chip orientation with the small triangle marker on the fixture, then set the steel mesh into the slot of the magnetic suction base. The automatic positioning locks the mesh against the board without you holding anything steady by hand. Once it's seated, you apply solder paste through the mesh and run your hot air station until the paste reflows into clean, even solder balls.
The platform's high-temperature resistant build is worth mentioning here because middle-layer reballing isn't a one-pass job. You're often re-heating the same board multiple times across a repair session, especially on jobs where the first attempt showed uneven wetting or a cold joint. A platform that warps or loses its flat surface after two or three heat cycles turns into scrap within a month on a busy bench. The MP-01's plate is built to hold its shape through repeated exposure, so the fixture stays usable across hundreds of jobs instead of a handful.
Middle-layer BGA reballing sits in a specific spot in the repair workflow — after board separation and diagnostic testing confirm a hardware fault on the middle frame contacts, and before final board reassembly. If a phone is stuck on logo, has an intermittent charging issue, or came in dead after a board swap from a donor unit, technicians frequently trace it back to a bad middle-layer joint rather than a chip-level fault. The MP-01 is built for exactly that repair point, giving you a repeatable positioning method instead of relying on freehand mesh placement, which is where most reballing inconsistency comes from on busy repair counters.
Because the fixture covers iPhone 8 series through 14 Pro Max, you're not switching platforms every time a different generation lands on your bench. That range coverage matters for shops running mixed intake — one day it's an iPhone 11 with a charging issue, the next it's a 13 Pro Max that's dead after flash. Having one base handle that spread cuts down on fixture clutter and the time lost hunting for the right jig.

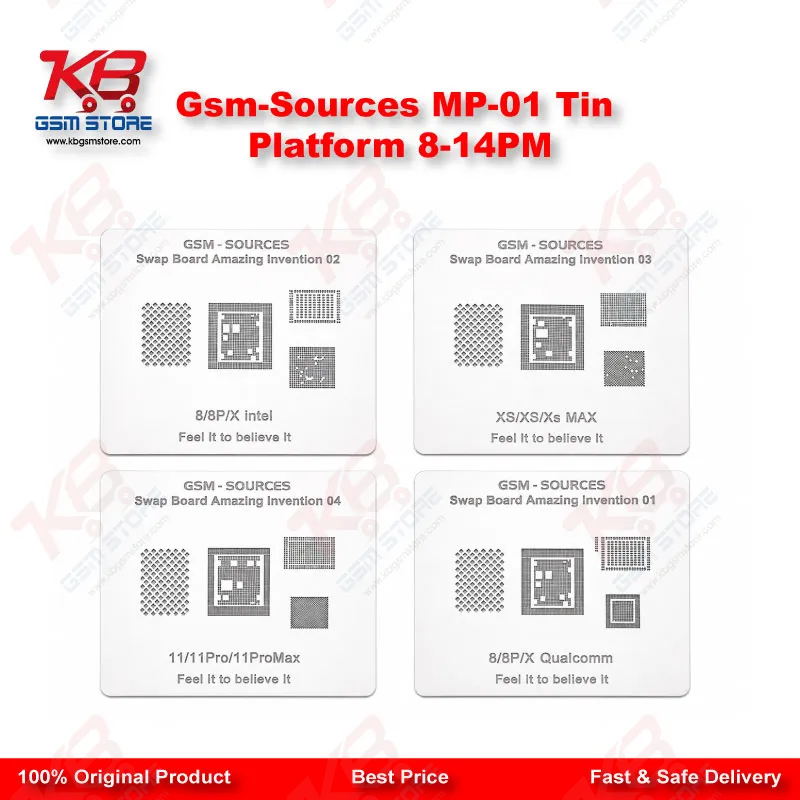

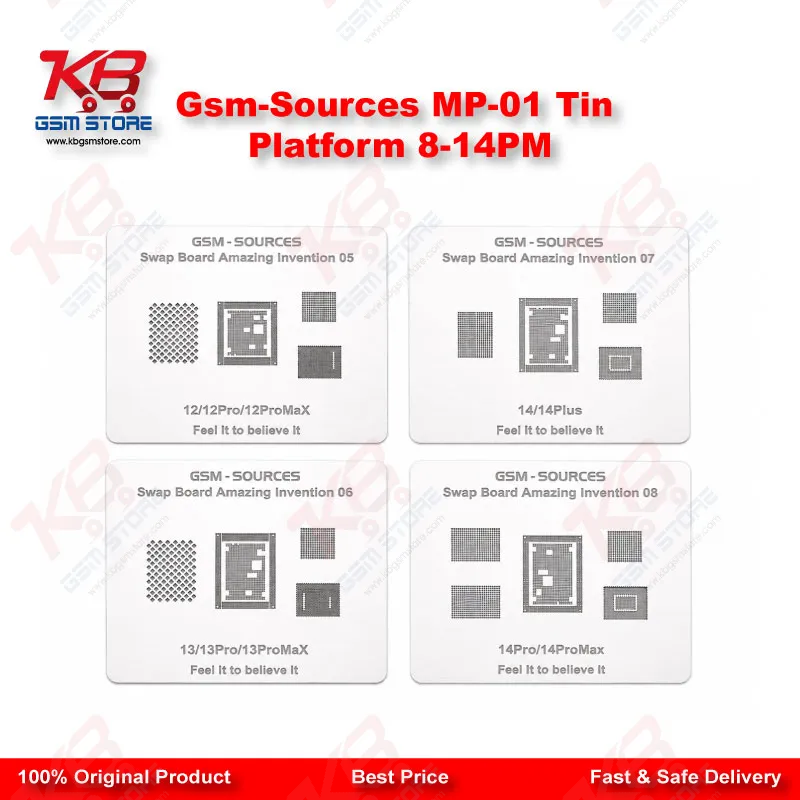

The stronger adsorption tin plating net is the other piece that separates this from basic mesh-and-clamp setups. Weak adsorption lets the mesh lift slightly during paste application, which shows up later as uneven or missing solder balls under magnification. The MP-01's net holds tighter contact through the full paste-and-reflow cycle, so the solder balls come out consistent across the board without a second pass.
For a repair shop or service center handling regular board-level work, a fixture like this reduces rework call-backs on middle-layer repairs, which is where the real cost sits — not in the tool price, but in redoing a job that should have held the first time.
