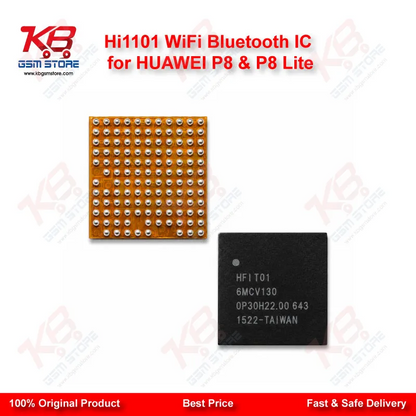

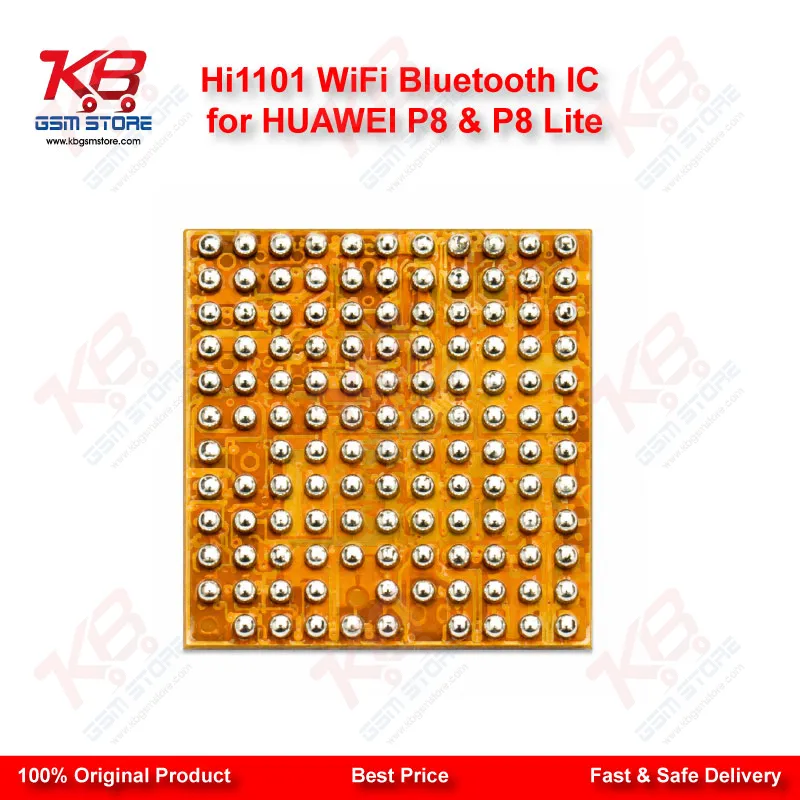

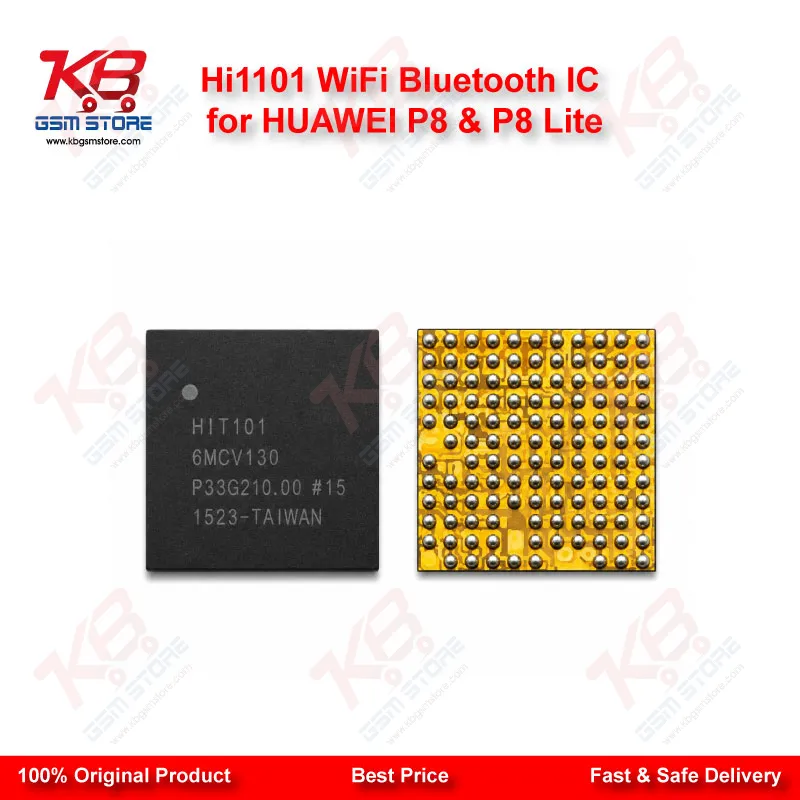

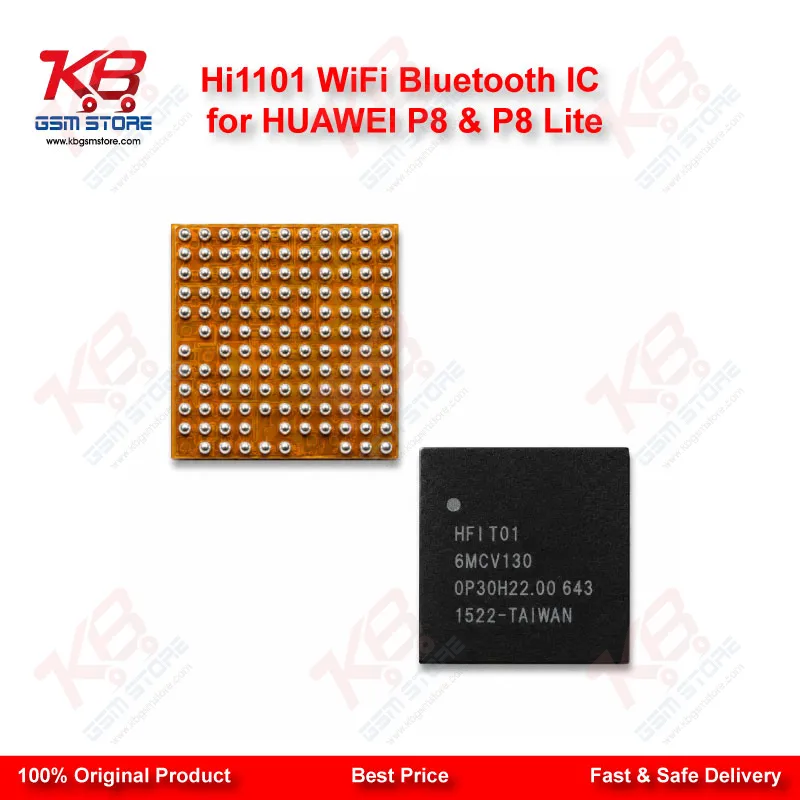

Hi1101 WiFi Bluetooth IC for HUAWEI P8 & P8 Lite

Huawei P8 and P8 Lite boards share a recurring fault pattern: WiFi option greyed out, Bluetooth refusing to turn on, or WiFi connecting to a router but showing no internet access even with a strong signal. In most of these cases, the board-level culprit is the Hi1101 combo IC, and replacing it solves both WiFi and Bluetooth problems together since one chip handles both radios. You'll usually diagnose this fault after ruling out software causes. If a factory reset and firmware reflash don't bring WiFi back, and the antenna connectors and flex cable test fine on the meter, the fault sits on the Hi1101 IC itself. A dry joint under the chip, moisture damage, or a short from a previous drop can all knock this IC out, and reflowing it only works for a short while before the same complaint comes back. At that point, IC change karna is the only lasting fix, and this replacement chip gives you a clean part to jumper lagana onto the board without guessing at compatibility. Handling this IC needs the same care as any other BGA-level board component. Set your hot air station to a controlled temperature so you don't lift nearby SMD components, use proper flux to keep the reflow even, and check board orientation carefully before mounting, since Huawei board layouts pack components tightly around this region. A microscope helps confirm clean solder joints on all sides of the chip before you close the board back up and test WiFi and Bluetooth together. This chip is stocked specifically for technicians working through high volumes of Huawei P8 and P8 Lite repairs, where WiFi and Bluetooth complaints are common enough to justify keeping several units on the bench. Rather than sending a board out for a full motherboard swap, or telling a customer their phone can't be fixed, this component lets you handle the repair in-house and keep turnaround times short. Where this fits in your repair workflow: after software-level checks fail and the board tests good for power and display, this IC is your next diagnostic step for connectivity complaints. It sits in the same repair category as antenna flex replacements and RF connector reworks, but addresses the actual chip-level fault rather than the peripheral hardware around it. For shops handling Huawei devices regularly in Lahore, Karachi, and Islamabad markets, having this part on hand cuts down repeat visits from customers whose WiFi issue keeps coming back after a temporary reflow. Testing after installation should include both WiFi and Bluetooth pairing, not just WiFi connection, since both functions run through this one IC. Confirm the phone holds a stable connection over a few minutes rather than connecting briefly and dropping, which points to a joint issue rather than the chip itself. A properly seated Hi1101 should restore both radios permanently, closing out the repair without a comeback.
