iPhone 11 Pro Max Earpiece Flex Cable (Original) – Ear Speaker with Proximity & Light Sensor

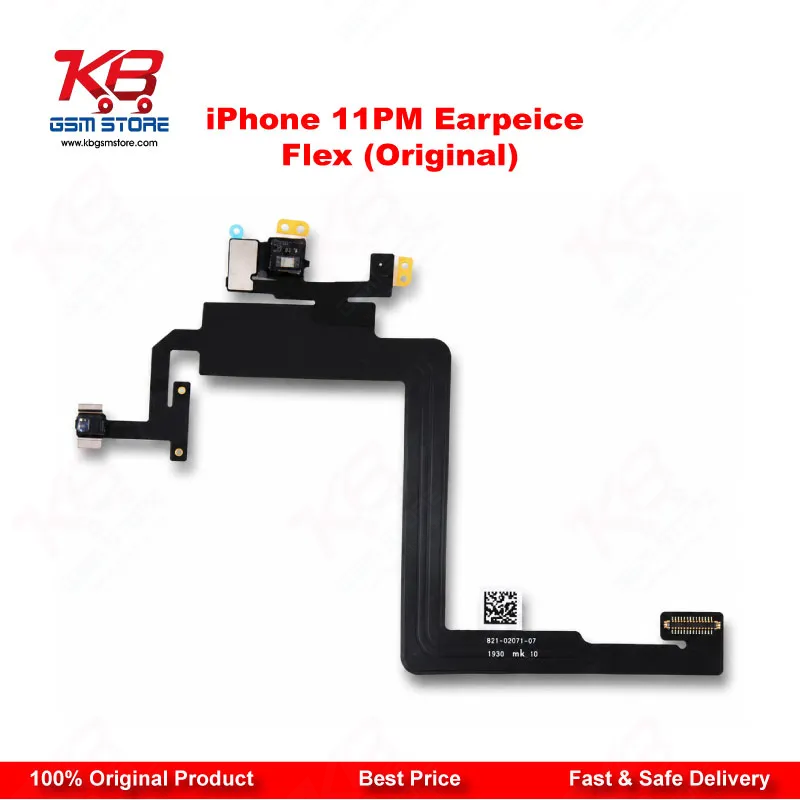

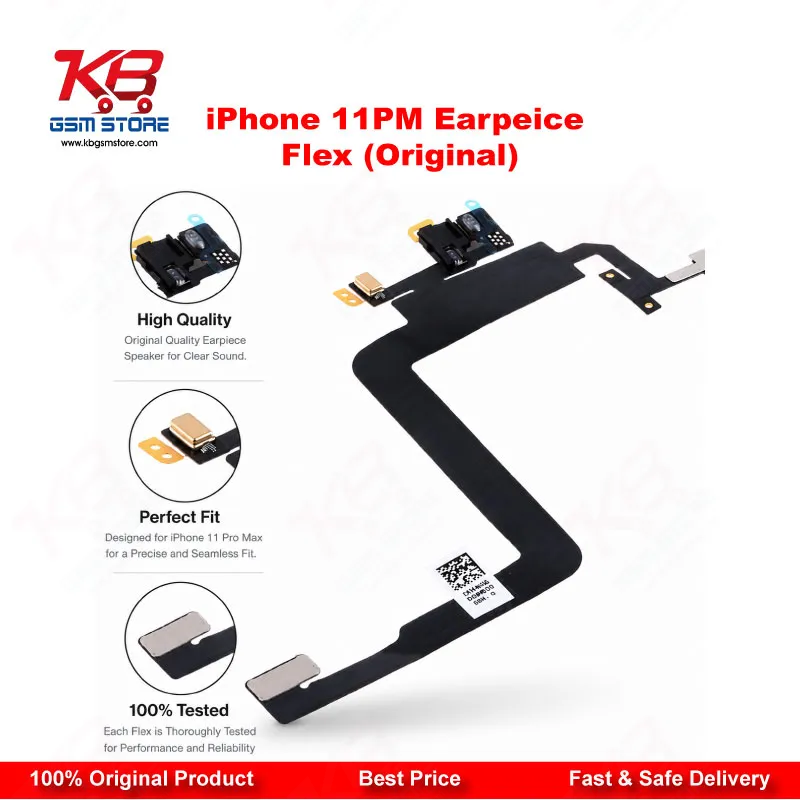

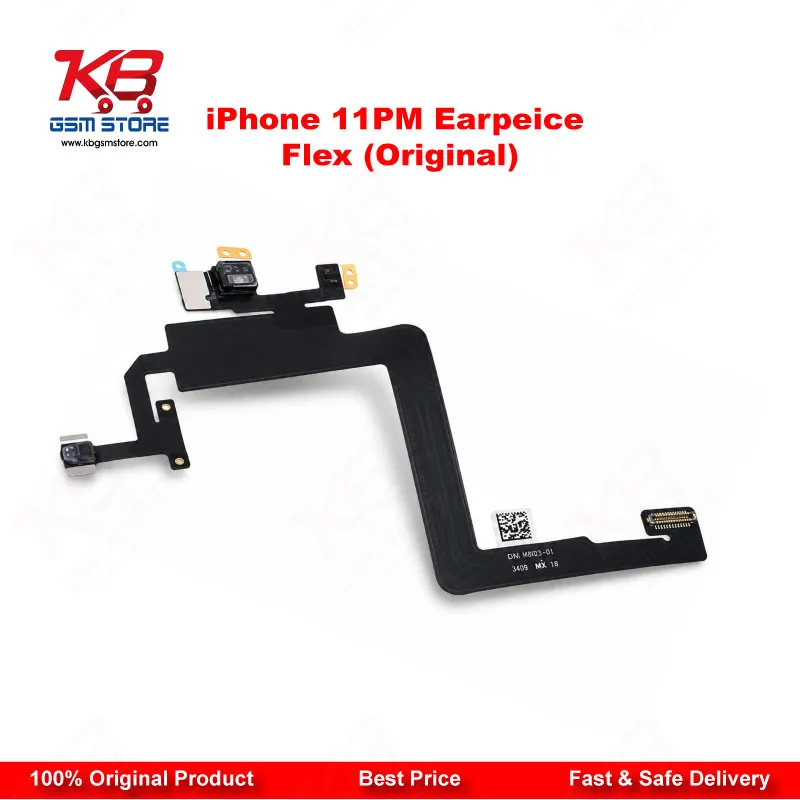

When an iPhone 11 Pro Max comes into the shop with a customer complaint of "no sound on calls" or "screen stays on during a call," the fault almost always traces back to this single flex assembly. The earpiece flex cable on the 11 Pro Max is a combined unit — ear speaker, proximity sensor, and ambient light sensor sit on one ribbon that routes from the top bezel area down to the logic board connector. Because Apple integrated these three components together instead of separating them, a fault in any one of them usually means the whole assembly needs replacing, not just one part.

This is one of the most commonly replaced flex cables on the 11 Pro Max bench, right alongside the battery and charging port. Drop damage near the top edge of the phone, a previous screen replacement done without disconnecting the cable properly, or simple wear after years of use are the usual causes. You will also see this part fail after a customer mentions their phone "got wet" — moisture ingress near the earpiece grille corrodes the connector pins long before it touches the logic board itself.

On the bench, the signs to check for before condemning this cable: call audio missing or distorted even though loudspeaker and mic work fine, screen not dimming when held to the ear (proximity sensor fault), or auto-brightness not responding correctly in different lighting (ambient light sensor fault). If two or three of these symptoms show up together on the same unit, it almost always points to this flex rather than a software issue, so a factory reset or software re-flash will not fix it.

Installation follows the standard 11 Pro Max teardown sequence. You disconnect the battery first, then work down through the upper shield covering the earpiece connector. The flex sits under a small bracket near the top speaker grille — remove the bracket screws, lift the old cable out, and route the new one along the same path. Reconnect it to the logic board connector before reassembling the display, since this connector becomes hard to reach once the screen is back in place. Pay attention to the adhesive strip on the earpiece mesh itself; reusing the customer's original mesh without proper resealing leads to dust getting trapped behind the speaker over time, so it's worth checking that the grille mesh is clean before final assembly.

This part is sourced as an original pull, meaning it comes from a genuine Apple device rather than an aftermarket reproduction. That distinction matters specifically for the sensor components — aftermarket clone sensors on this generation of iPhone are known for inconsistent proximity calibration, which causes the "screen won't lock during calls" complaint to come right back a few weeks after a cheap part is fitted. Using a genuine pull avoids that comeback and keeps the proximity behavior matching what the device shipped with from Apple.

For a repair shop, stocking this flex alongside your regular 11 Pro Max screen and battery inventory makes sense because earpiece and sensor complaints rarely arrive on their own — they often surface during a screen replacement when a tech notices weak call audio or a non-functioning proximity sensor while the phone is already open. Having the part on hand turns what would be a second visit into a single repair ticket.
