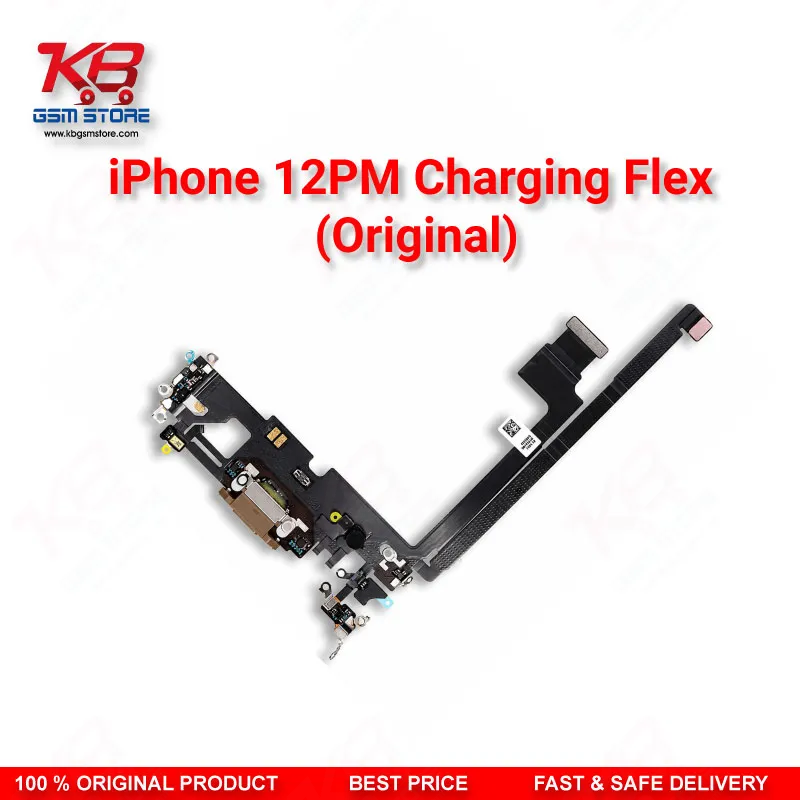

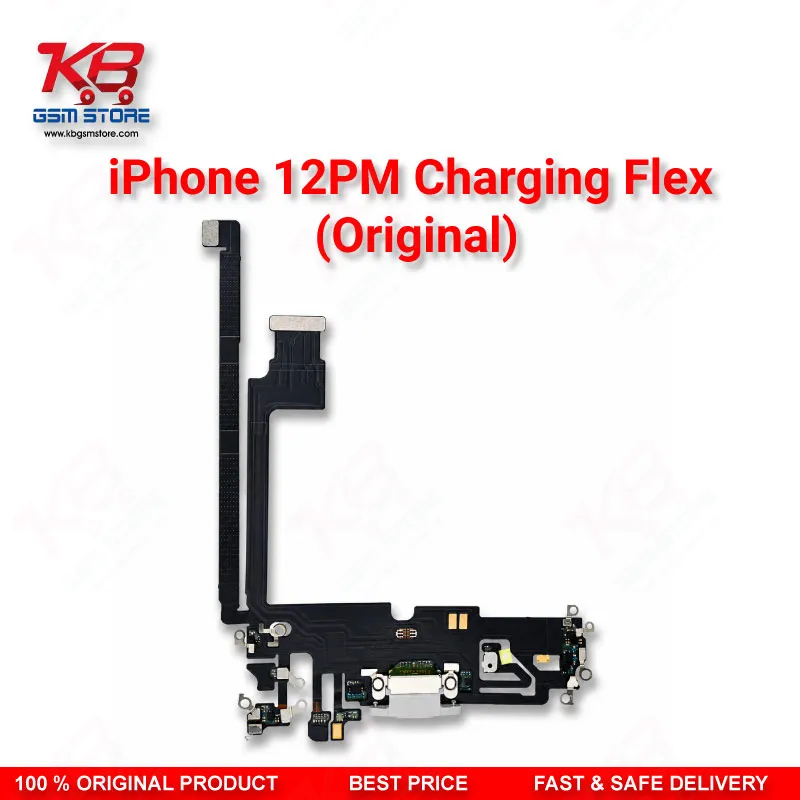

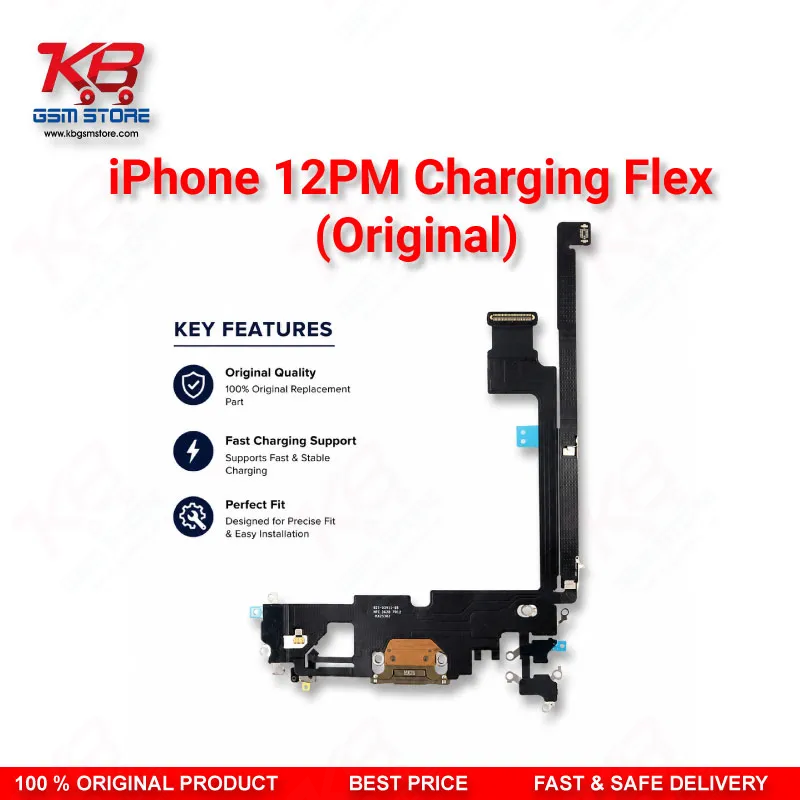

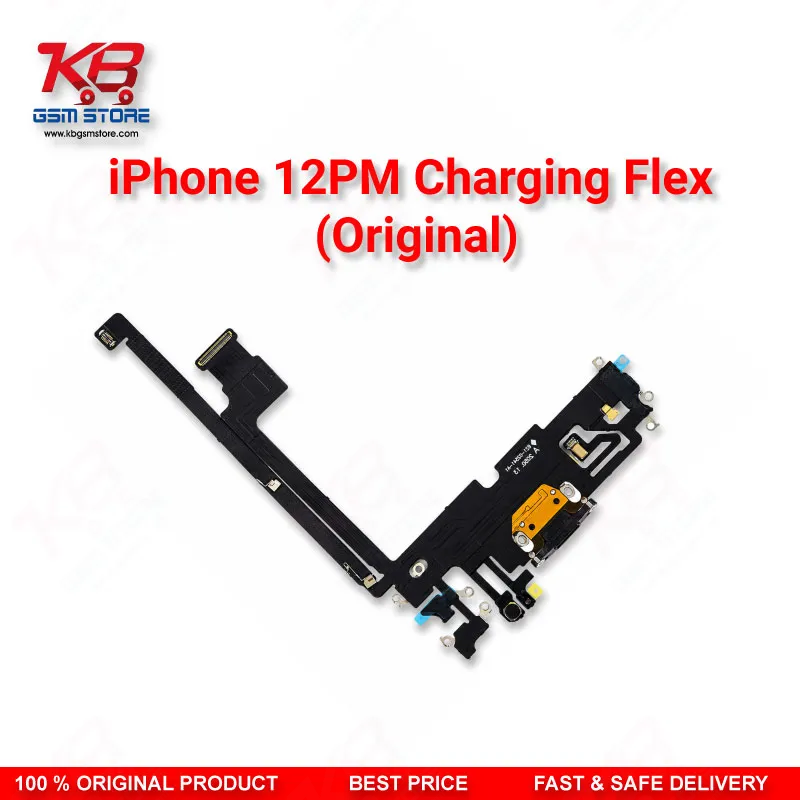

iPhone 12 Pro Max Original Charging Port Flex Cable (Dock Connector + Mic)

When an iPhone 12 Pro Max comes to your bench with a charging issue, the dock connector flex is usually the first thing you check before you touch the board. This charging port flex cable for iPhone 12 Pro Max gives you a direct replacement for the dock connector assembly, built around the same Lightning port footprint and PCB layout used on the original part, identified under MPN 821-02541-A on genuine listings. You don't need to rework the connector pins one by one; you remove the damaged flex and seat the new one.

The flex integrates the Lightning dock connector and the bottom microphone onto a single board. That matters on the bench because a phone that comes in with a charging complaint sometimes has a mic problem too, and customers rarely mention both. Installing this flex lets you close out two complaints with one part swap instead of ordering a connector and a mic flex separately.

Common faults this part addresses: a phone that won't charge at all after the customer says it got wet, a Lightning cable that only makes contact when pushed in at an angle, intermittent charging where the percentage jumps or resets, and "charging issue" complaints where the battery itself tests fine on a diagnostic box. If you've already ruled out a battery fault and the charging IC tests good on the board, the connector flex is the next logical step before you start reworking solder joints.

Fit is specific to the Pro Max body — model numbers A2342, A2410, A2411, and A2412 — so don't cross it with the standard iPhone 12 or iPhone 12 Pro flex, since the board length and connector position differ between the two chassis sizes. Match the model number from the back of the phone or from Settings before you order, especially when you're stocking multiple iPhone 12 variants for shop inventory.

Installation follows the standard bottom-flex procedure: remove the two pentalobe screws near the port, lift the display assembly, disconnect the battery first, then unscrew the bottom flex bracket and lift the old assembly out. Reroute the new flex through the same channel, reconnect the mic and dock connector contacts, and test charging before you close the back glass. Always disconnect the battery before you touch the connector — skipping that step is one of the most common ways technicians damage the charging IC on this board.

Once the flex is in, run a quick charge test with both a Lightning cable and wireless pad if the customer uses MagSafe, since some charging complaints trace back to the board rather than the port itself. If the phone still won't hold a charge after the swap, the next checkpoint is the charging IC or the battery connector on the logic board, not the flex you just installed.

For your inventory, this part pairs naturally with iPhone 12 series battery connectors, Lightning dock testing tools, and microscope setups for verifying flex pin alignment before reassembly. Stocking this alongside ISP pinout tools and reballing kits rounds out a bench that's ready for both connector-level swaps and board-level repair when the simple flex replacement doesn't resolve the fault.
