When a customer brings in an iPhone 12 Pro Max with low call volume, scratchy audio, or a screen that won't turn off during a call, the earpiece speaker and proximity sensor flex cable is usually the first thing you check on the repair bench. This component handles three jobs at once: it drives the ear speaker output, reads proximity sensor data to control the display during calls, and routes signal for the infrared sensor and FaceTime microphone line. A single damaged flex cable can produce symptoms that look unrelated — distorted call audio, a dark screen that won't wake, or a front camera that misbehaves in low light — which is why many technicians misdiagnose this part as a speaker or camera fault before checking the flex itself.

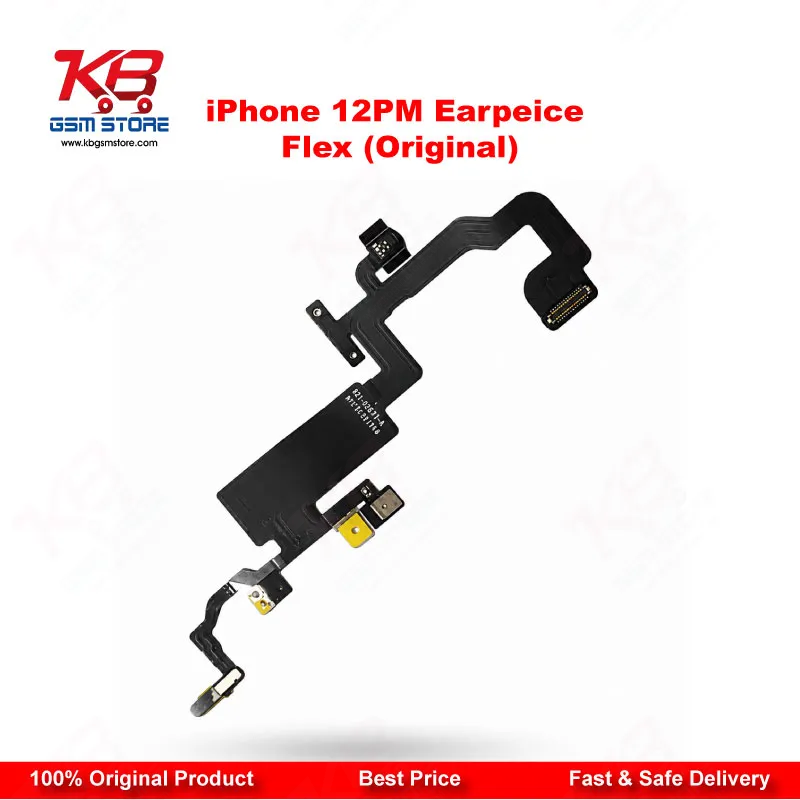

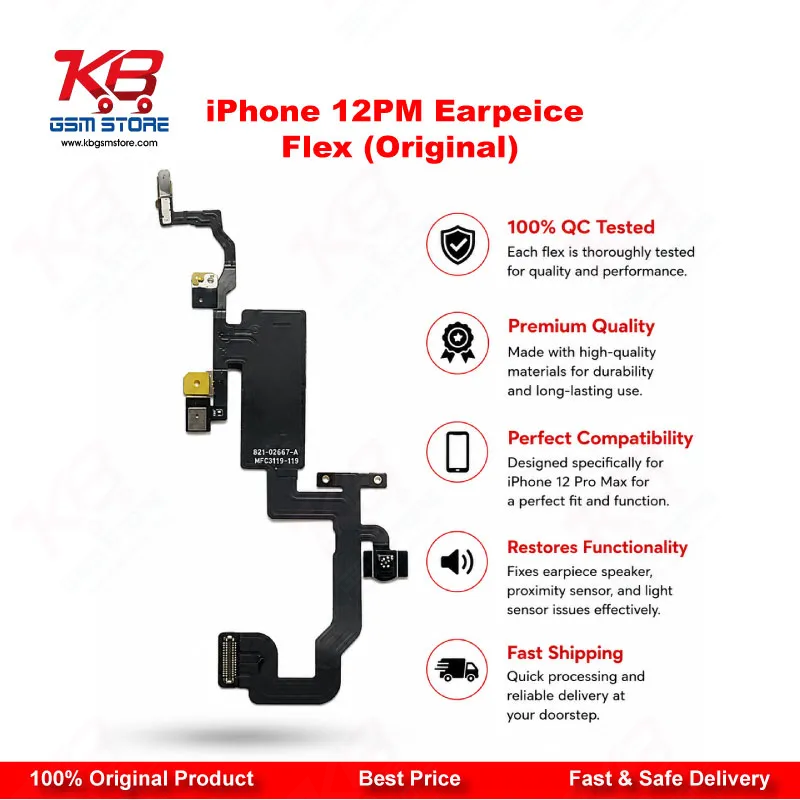

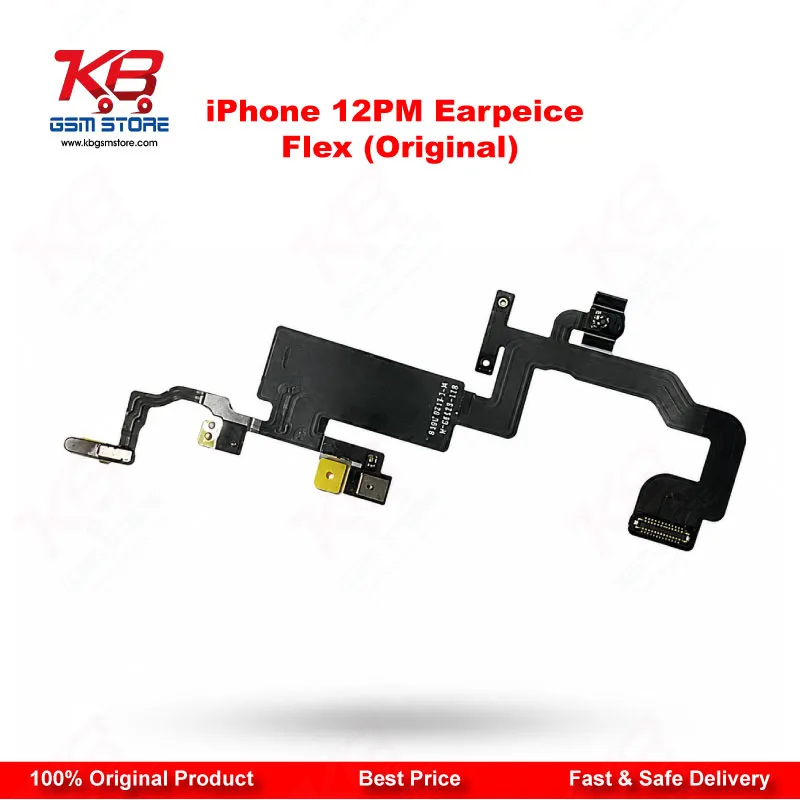

This replacement flex cable is built specifically for the iPhone 12 Pro Max 6.7-inch chassis, covering model numbers A2342, A2410, A2411, and A2412. You won't find this part working correctly on the standard iPhone 12 or 12 Pro, since Apple changed the internal flex routing and connector placement between these models. Before you open the device, confirm the exact model number on the customer's unit so you don't waste a repair cycle on a mismatched part.
Installation follows the standard mid-frame disassembly route on the 12 Pro Max: remove the display assembly, disconnect the battery, then access the earpiece module sitting near the top frame next to the front camera housing. The flex connects through a small board-mounted connector that doesn't need any soldering work, so you can swap the part directly on the bench without a hot air station or microscope for this particular job. Reseat the connector carefully, since a loose seat on this specific flex is one of the most common comeback issues technicians report after a quick earpiece job.
One detail you need to explain to every customer before starting this repair: this flex cable carries the infrared dot projector calibration data, and it's factory-paired to the original logic board. Swapping the full assembly means Face ID stops working permanently on that device — the phone will show an "Unable to Activate Face ID" message after the repair, and no software reset brings it back. If a customer wants to keep Face ID active, the only workaround is transplanting just the earpiece speaker unit onto their original flex through micro-soldering, which is a separate, more advanced job than a straight flex swap. Setting this expectation upfront avoids disputes after the repair is done.
This part fits naturally into your eMMC and ISP repair workflow shelf alongside other iPhone-specific flex cables, since 12 Pro Max jobs often come bundled with charging port or battery flex replacements during the same disassembly. Stocking this alongside your soldering stations, PCB holders, and microscope setup keeps your bench ready for the full range of iPhone 12 series hardware faults rather than just earpiece-specific calls.
For a repair shop handling regular iPhone volume, this is a part you'll reach for often. Drop damage, sweat exposure during summer months, and general wear after two to three years of daily use all push this flex toward failure, and replacing it resolves the issue cleanly when the diagnosis is correct. Test the earpiece audio and proximity sensor function immediately after reassembly, before closing up the display, so you catch a defective unit or a bad connector seat while the phone is still open on your bench.
