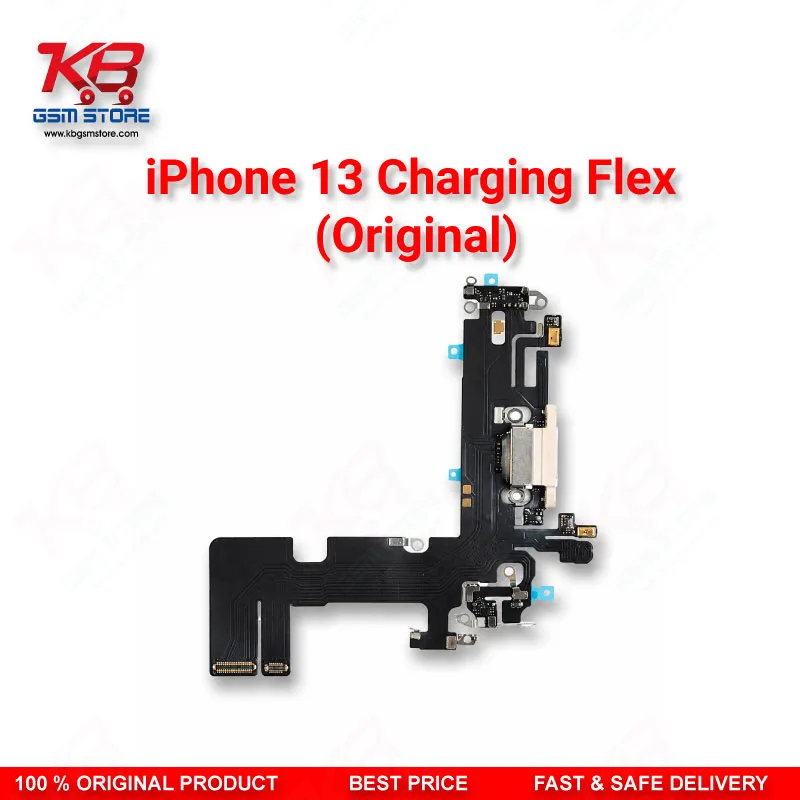

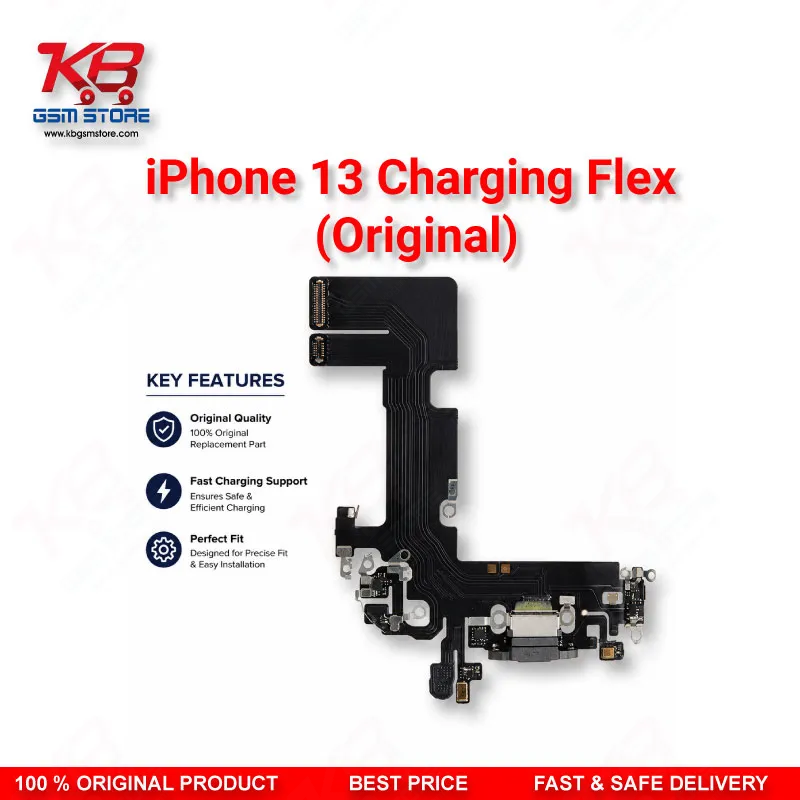

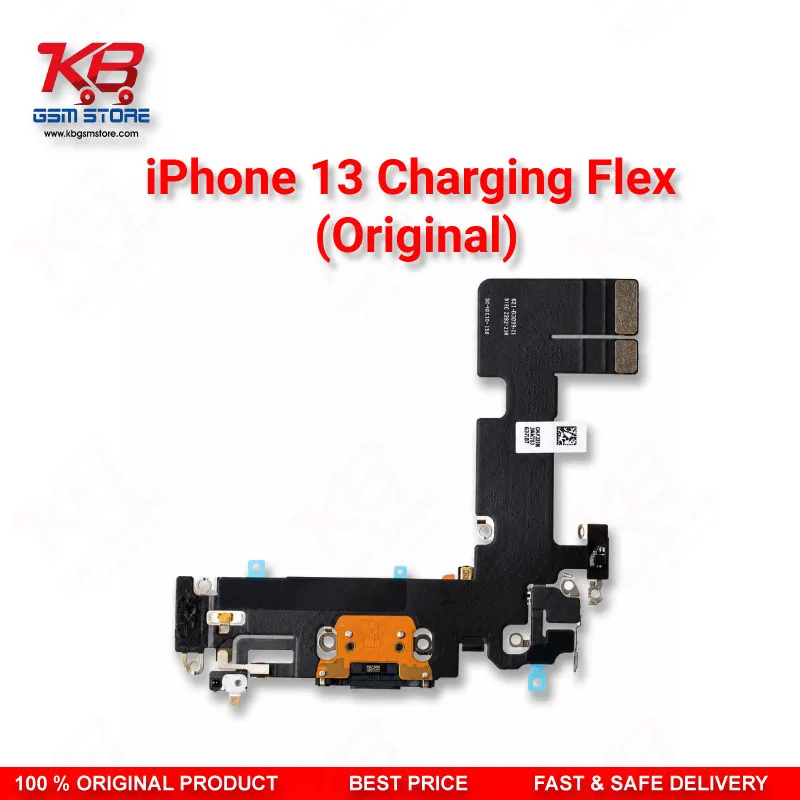

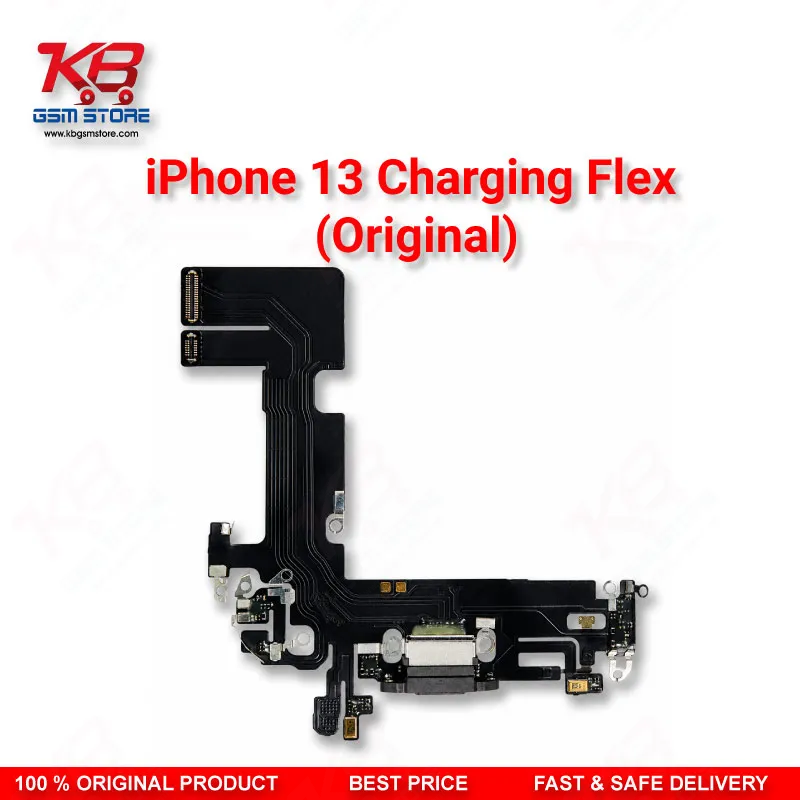

iPhone 13 Charging Flex Cable (Original) – Charging Port Dock Connector Replacement

When a customer walks into your shop with an iPhone 13 that won't charge, the fault usually traces back to one small but critical component — the charging flex cable. This part bridges the Lightning dock connector to the logic board, carrying power, data, and microphone signals through a single ribbon assembly. If the port pins are bent, the cable is torn, or moisture has crept in, charging stops working even though the battery itself is fine.

You'll recognize the need for this replacement during diagnosis when the phone shows a charging issue that doesn't go away after cleaning the port. A loose-fitting Lightning cable, intermittent charging, failed data sync with a computer, or a connector with visibly bent or worn pins are the typical symptoms. Sometimes the phone charges only when you hold the cable at a certain angle — a clear sign the dock connector itself has failed rather than the charger or cable being used.

This flex cable comes as a complete dock connector module, meaning the charging port and ribbon are already joined as one unit. That matters on the bench because it removes the need for micro-soldering during the swap — you disconnect the old assembly, seat the new one, and reconnect the flex to the board. For a technician running several charging issue repairs per day, this cuts down repair time significantly compared to parts that need port-to-flex soldering work.

The connector uses precision-machined contacts that align with the iPhone 13's internal frame without modification, so you won't be filing down housing or adjusting screw points to get a clean fit. Build material is selected to handle repeated insertion cycles, since the Lightning port sees constant daily plugging from the user after the phone leaves your shop. A part that fails again in a few weeks costs you a repeat visit and a frustrated customer, so fit and connector durability matter more here than on most other internal components.

Beyond charging, this flex cable also carries the microphone line in most iPhone 13 charging assemblies, so a customer complaining about call audio not being picked up properly during calls, alongside a charging problem, often points to the same root cause. Checking both symptoms together during your initial diagnosis saves you from a second teardown later.

Installation follows the standard iPhone 13 charging port flex replacement procedure: remove the two pentalobe screws at the base, separate the display assembly, disconnect the battery first for safety, then unscrew and lift out the old dock connector bracket before swapping in the replacement. Reassembly is the reverse. Technicians already familiar with iPhone teardown will find no surprises in the process, though care around the antenna flex routed near the charging assembly is necessary to avoid damaging Wi-Fi or cellular reception after reassembly.

For your workshop inventory, stocking this part alongside common iPhone 13 spares like the battery and screen assembly makes sense, since charging port failure frequently shows up bundled with battery health complaints — both are wear-related and tend to surface around the same usage period. Pair it on your bench with a basic point soldering setup only if you're working with a board-level flex variant rather than the complete dock assembly, though most shop-grade replacements ship as the full unit described here.

This part is built specifically for iPhone 13 compatibility — model numbers A2633, A2482, A2631, A2634, and A2635 — and is not interchangeable with iPhone 13 Pro, Pro Max, or mini variants, which use differently shaped connector housings. Confirming the exact model before ordering avoids a return trip for the wrong part, especially since the housings look similar at a glance but won't seat correctly if mismatched.

For shops serving high repair volume, this is a part you'll reorder regularly. Charging port wear is one of the most common reasons customers bring an iPhone 13 in for repair, right behind screen damage and battery degradation, so having stock on the shelf rather than ordering per-job keeps your turnaround time competitive.
