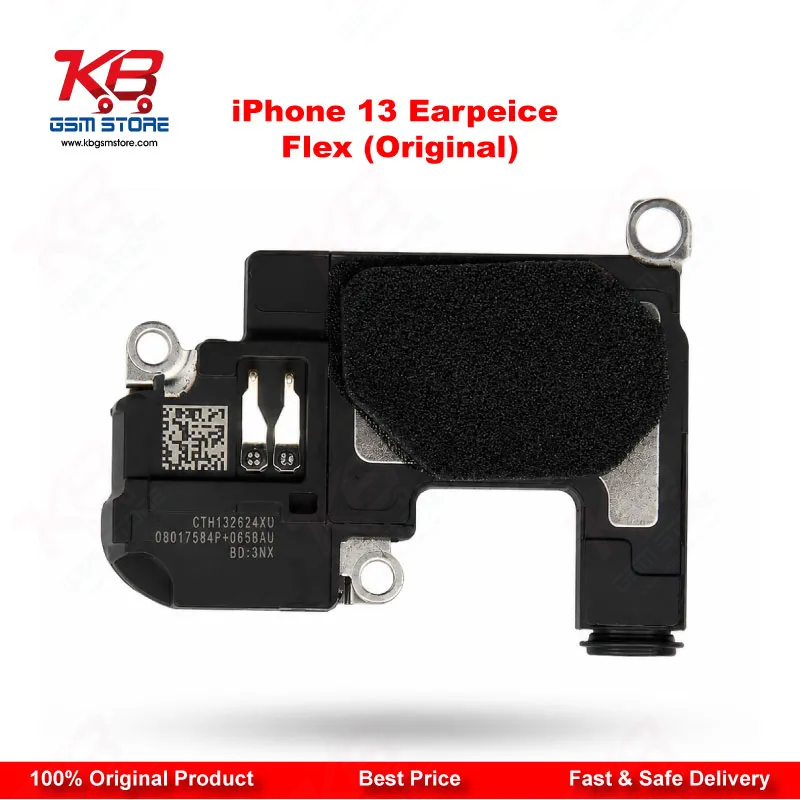

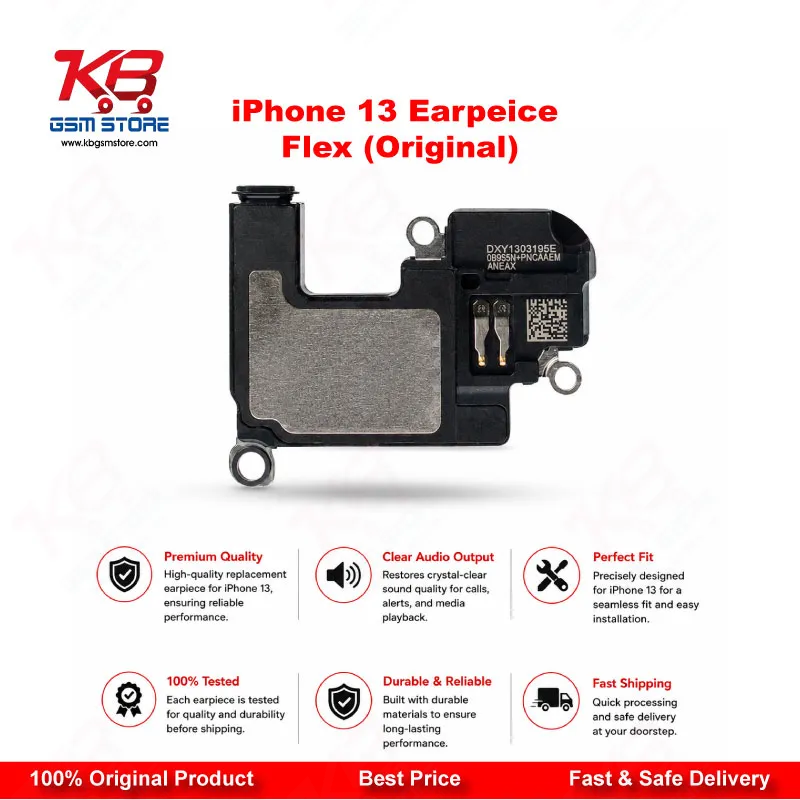

iPhone 13 Earpiece Flex Cable (Original) — Proximity & Ambient Light Sensor Replacement

When a customer brings in an iPhone 13 with call audio not working or the screen staying lit during a call, the fault usually traces back to one small part: the earpiece flex cable. This flex carries the connection between the earpiece speaker, proximity sensor, and ambient light sensor and the mainboard. A single crack, bend fatigue, or loose contact point on this cable produces a chain of symptoms that look unrelated unless you know where to check first.

You'll find this part necessary in three common bench scenarios. First, a phone comes in with "no sound during calls" but speaker and mic test fine on calls through speakerphone — this points straight to the earpiece flex. Second, the screen won't turn off when held to the ear, which means the proximity sensor inside this flex has failed or disconnected. Third, automatic brightness stops adjusting in different lighting — the ambient light sensor riding on this same flex has lost signal. Instead of replacing the whole earpiece speaker assembly or chasing software resets, swapping this flex cable resolves all three issues in one repair pass.

This flex fits the iPhone 13 6.1-inch models only — A2482, A2631, A2633, A2634, and A2635. It will not fit the 13 mini, 13 Pro, or 13 Pro Max, since each of those uses a different flex shape and connector position. Confirm the model number on the back of the device before you open it, especially when a customer hands you a device without its box.

On the bench, this is a screen-removal-level repair. Disconnect the battery first, lift the display assembly, and you'll find the flex routed near the top sensor housing. The connector is a press-fit type, so no soldering iron is needed for a standard swap — direct unplug and replace. If the original earpiece speaker is soldered to the factory flex for Face ID security, note that Face ID functionality depends on keeping that pairing intact on certain builds; check the specific unit before cutting anything, since flex variants differ on this point across suppliers.

This part sits early in your eMMC-to-display repair workflow when proximity or call-audio complaints come in. Pair it with a proper opening kit, anti-static tray, and a soldering station on standby in case the original speaker needs re-pairing instead of a full flex swap. Many technicians keep a few of these in stock alongside display assemblies and battery flex cables, since proximity sensor faults are one of the most common "phone looks fine but acts weird" complaints walking into a Pakistani repair shop.

Before sealing the phone back up, test the proximity sensor by covering it during a call simulation and confirm the screen blanks correctly. Test ambient light response by shifting the phone between bright and dark areas. If either fails after installation, recheck the seating on the connector before assuming the part itself is faulty — loose seating is the most common comeback issue on this specific flex.

For shops handling regular iPhone 13 traffic, stocking this flex cable alongside your ISP pinout tools, microscope station, and reballing kit keeps your sensor-related repairs moving without sending the phone out for a second visit.
