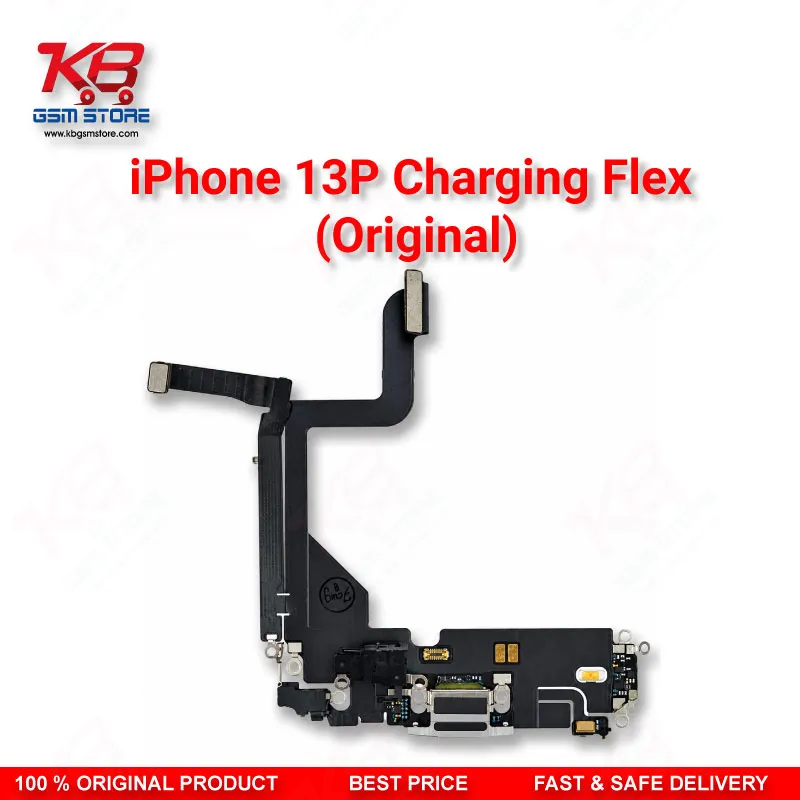

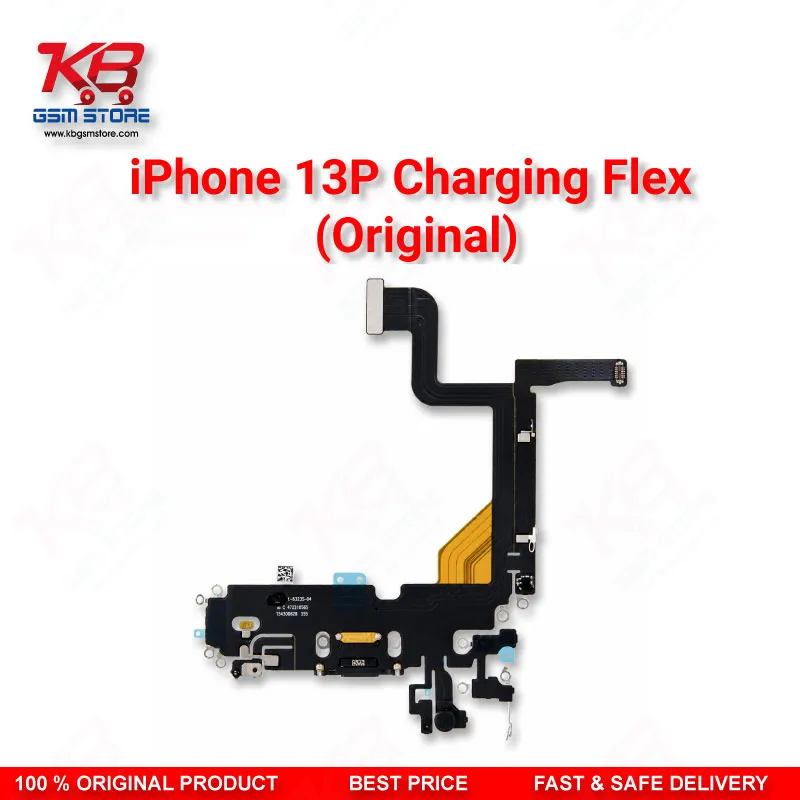

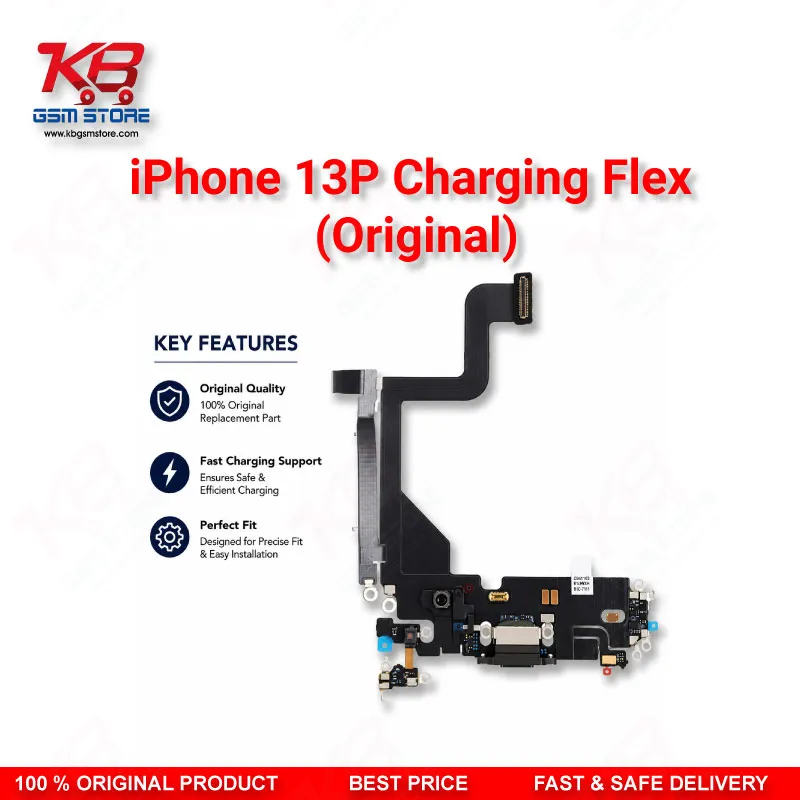

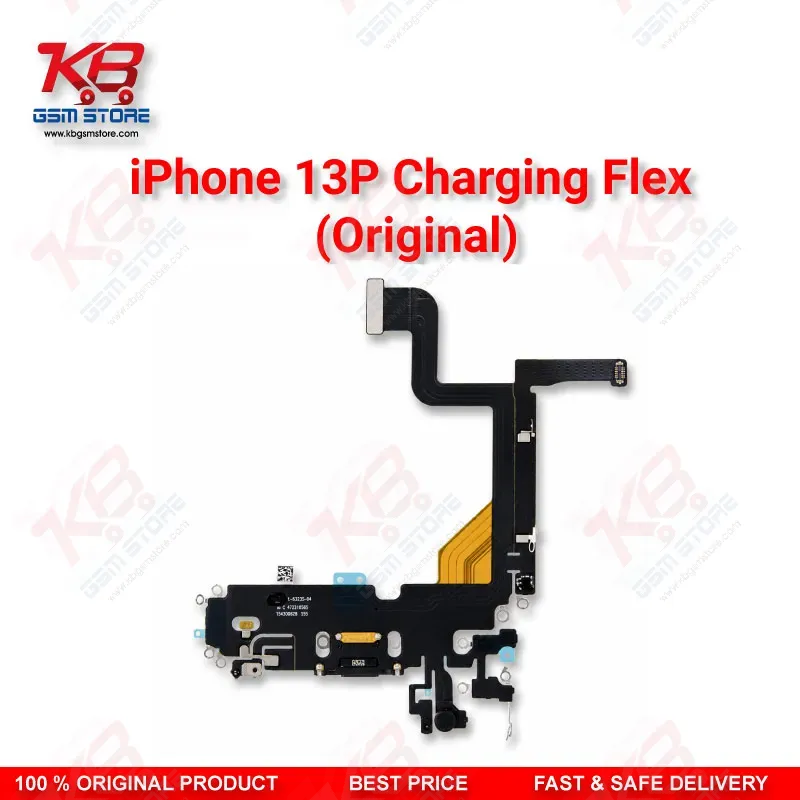

iPhone 13 Pro Charging Flex Cable (Original) – Dock Connector Replacement

A charging port complaint is one of the most common jobs that lands on a repair bench, and on the iPhone 13 Pro it almost always traces back to the dock connector flex. When a customer brings in a unit with a loose-fitting cable, intermittent charging, or a phone that simply won't charge no matter what cable you plug in, this flex cable is usually the fix — not the battery, not the board.

This part is the charging connector and flex cable assembly built specifically for the iPhone 13 Pro (models A2638, A2483, A2636, A2639, A2640). It carries the dock port itself along with the attached microphone flex section, since on this generation the charging port and bottom mic share the same flex run. You're replacing the full connector-flex unit, not just a cable — so fit and pin alignment matter more here than on older models with separate flex sections.

On the bench, the usual presenting symptoms are: phone not charging at all, charging only at certain angles when you wiggle the cable, USB data sync failing on iTunes/Finder, or bent and worn-out pins inside the port from years of cable insertion. Sometimes you'll also get a "charging issue" complaint paired with a weak or muffled bottom mic during calls — that's your sign the flex itself is failing rather than the battery or charging IC on the board.

Installation follows the standard iPhone teardown sequence: remove the two bottom screws, lift the display, disconnect the battery first, then work through the speaker assembly and Taptic Engine to free the charging flex from its connector points on the logic board. No soldering is needed for this swap — it clips into the board connector and is held by a few standard screws and brackets, so it's a connector-level job rather than IC-level rework. That makes it a fast turnaround repair once you've got the part in hand, usually finished well within a same-day service window.

Where this differs from a logic-board-level charging fault: if a unit is still not charging after this flex is swapped, and you're seeing no response at all when plugged in, the next step moves to board diagnostics — checking the charging IC, Tristar/Tigris-equivalent components, and fuses on the board itself with a power supply and multimeter. This flex resolves the connector-level fault; it won't fix a charging IC that's shorted or a U2 fuse that's blown. Knowing that distinction up front saves you from selling a customer a part swap that won't solve their actual issue.

For shops doing volume work on iPhone 13 series, it's worth stocking this alongside other 13 Pro flex parts — power/volume flex, battery flex, and the rear camera flex — since teardown for any of these touches the same screws and brackets. Keeping a few of each on the shelf means you're not waiting on a single part to finish a job that's otherwise ready.

Fit and finish on this part should match factory tolerances closely enough that there's no trimming or filing needed before reassembly — a loose or misaligned port after installation usually points to a damaged board-side connector rather than the flex itself, so check that connector seating carefully if charging still feels weak after the swap.

This part is sold as a connector/flex replacement only and does not include the SIM tray, screws, or adhesive — standard practice for this category, since most shops already keep these consumables on hand.

Specifications:

Category: iPhone Charging Port Flex Cable

Compatibility: iPhone 13 Pro

Supported Devices: A2638, A2483, A2636, A2639, A2640

Repair Type: Connector-Level Replacement (No Soldering Required)
