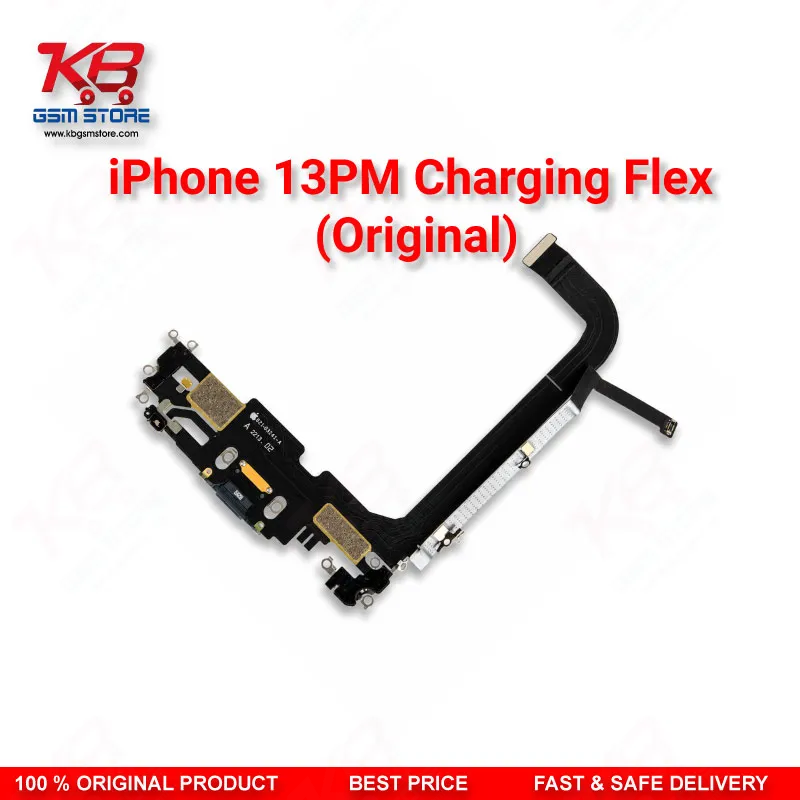

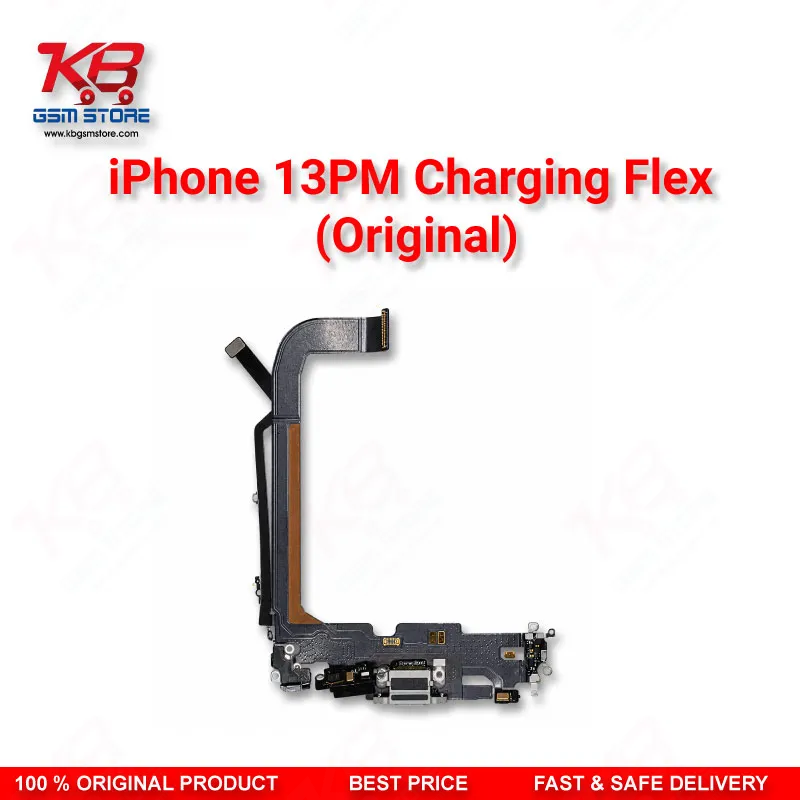

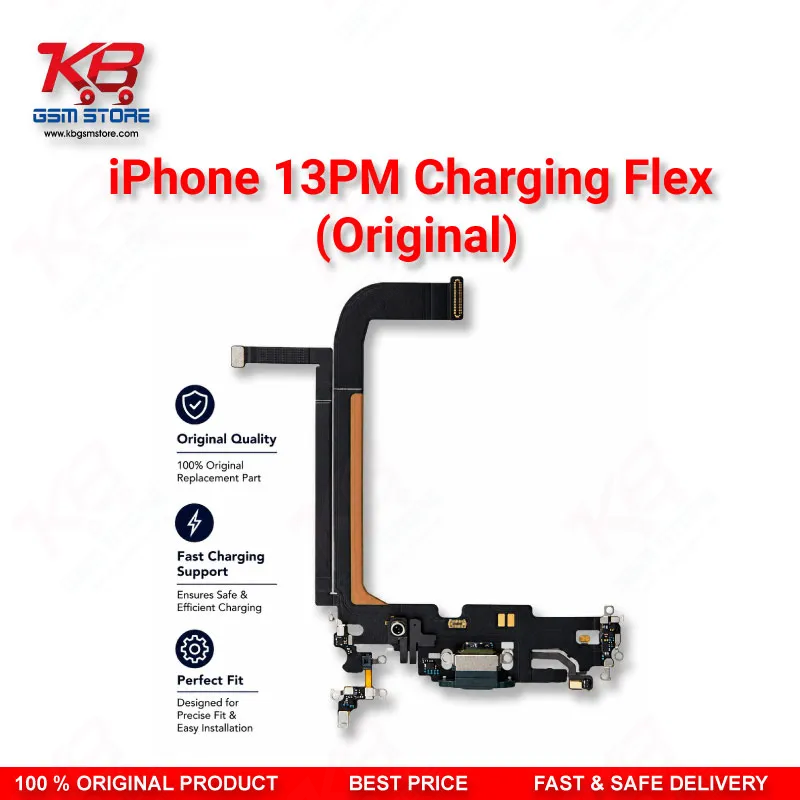

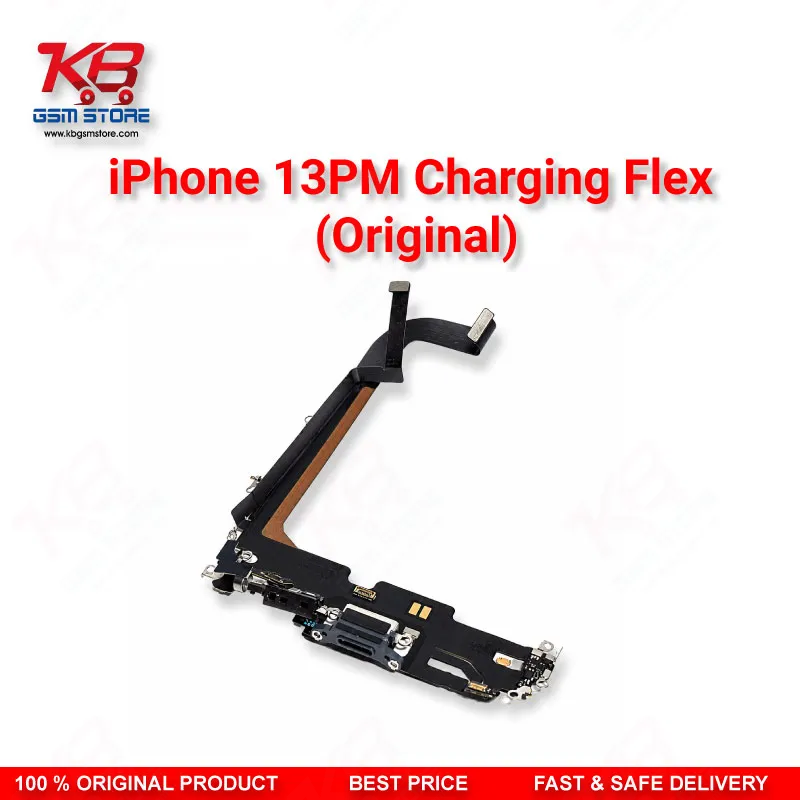

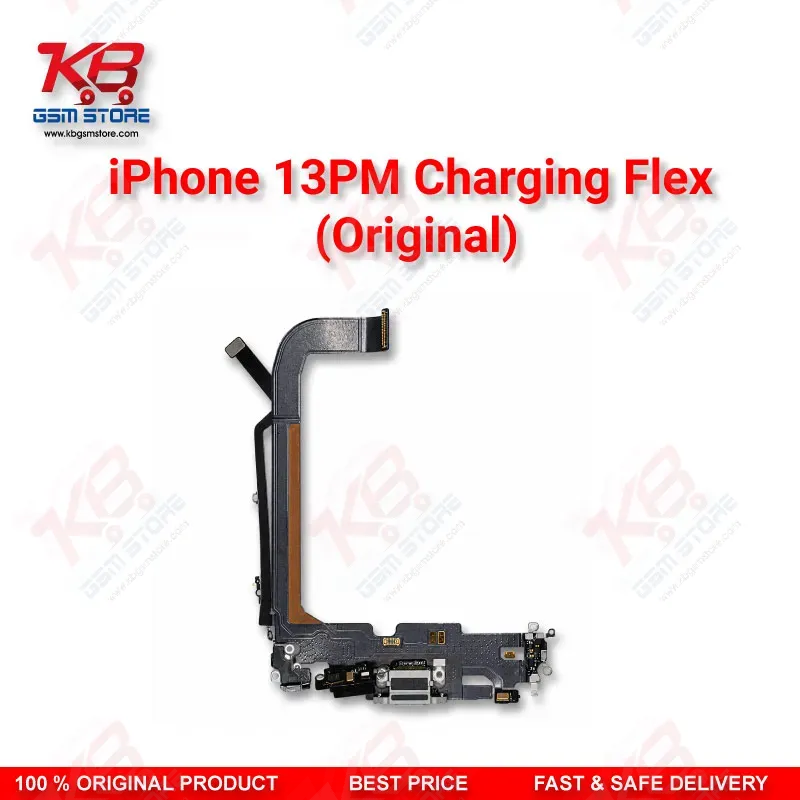

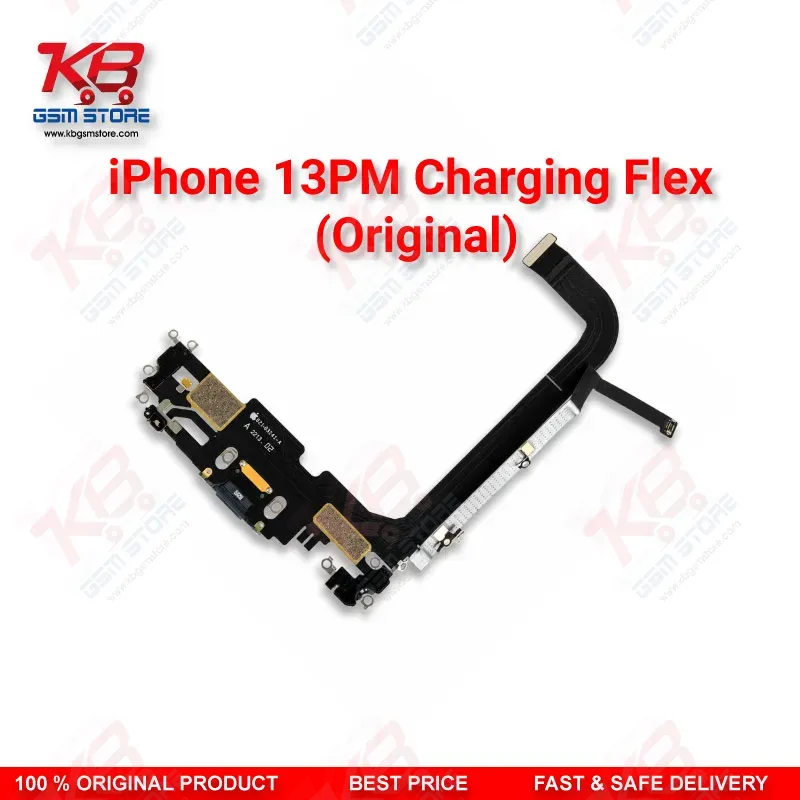

iPhone 13 Pro Max Original Charging Flex Cable – Lightning Dock Connector with Microphone & Antenna Assembly

When a customer walks into your workshop complaining about charging issue on their iPhone 13 Pro Max, the root cause is almost always the dock connector assembly — not the cable, not the adapter. The Lightning port on this model sits on a multi-function flex that also carries the bottom microphone signal and the antenna connection. One damaged connector affects charging, audio recording, and sometimes data sync simultaneously. That is why you need the original-quality charging flex, not a generic substitute that introduces new problems the next week.

This iPhone 13 Pro Max Charging Flex Cable is the complete dock connector assembly designed for factory-level replacement. The Lightning port connects directly to the charging IC on the main board, and any misalignment or poor-quality contact point creates intermittent charging — the kind of hardware fault that makes a phone charge sometimes and fail other times. With an original-spec part, you eliminate that variable entirely. The flex seats correctly, the ZIF connector locks properly, and your repair holds.

The assembly includes the bottom microphone integrated on the flex board. In many charging issue cases, the technician replaces only the port and later finds the customer is back complaining their mic is not working during calls. That happens when a cheap aftermarket flex leaves out the mic component or uses inferior ribbon material. This original assembly keeps both functions intact in a single replacement — charging restored and mic fault cleared in one job.

Antenna integration is the third function on this flex. iPhone 13 Pro Max routes part of its antenna path through the dock connector assembly. A low-quality replacement can cause network issue or weak signal after repair — a problem your customer will trace back to your workshop. Sourcing original-grade parts protects your reputation and prevents call-backs.

Model compatibility is critical on the 13 series. The charging flex for iPhone 13 Pro Max is not interchangeable with the iPhone 13 Pro, iPhone 13, or iPhone 13 Mini — each has a distinct connector layout and ribbon path. This part is confirmed for model numbers A2643, A2484, A2641, A2644, and A2645, which covers all regional variants of the iPhone 13 Pro Max sold globally including units common in Pakistan.

Workshop application is straightforward for any technician with iPhone repair experience. You remove the two pentalobe screws at the bottom, lift the display assembly, disconnect the battery first, then unscrew the dock bracket and unplug the ZIF connector. The new flex drops in with the same bracket screw pattern and the same connector path. No soldering required — this is a plug-and-play replacement at the flex ribbon level, though proper tools including a precision screwdriver set and a plastic pry tool are needed to avoid board damage during battery disconnection.

From a repair workflow perspective, this part integrates with your standard iPhone 13 Pro Max board-off repair process when the phone has been water-damaged or when you are doing IC change karna on the PMIC or Tigris charging IC after board-level diagnosis. After any board-level work, always replace the dock flex with a verified original part — a questionable flex on a freshly repaired board wastes your entire repair investment.

For repair shops sourcing parts through KB GSM Store, stocking this flex for the 13 Pro Max is a high-turnover decision. Charging issue is among the top three hardware faults on every iPhone model, and the 13 Pro Max is still a high-volume device in the Pakistani market. Keep this part available to handle same-day customer repairs without waiting on restocks.

Related tools and parts that support this repair: a PCB holder or PCB fixture keeps the board stable during connector work, a hot air station helps if adhesive or waterproofing tape needs softening, and a microscope is useful for inspecting ZIF connector pins before seating the new flex.
