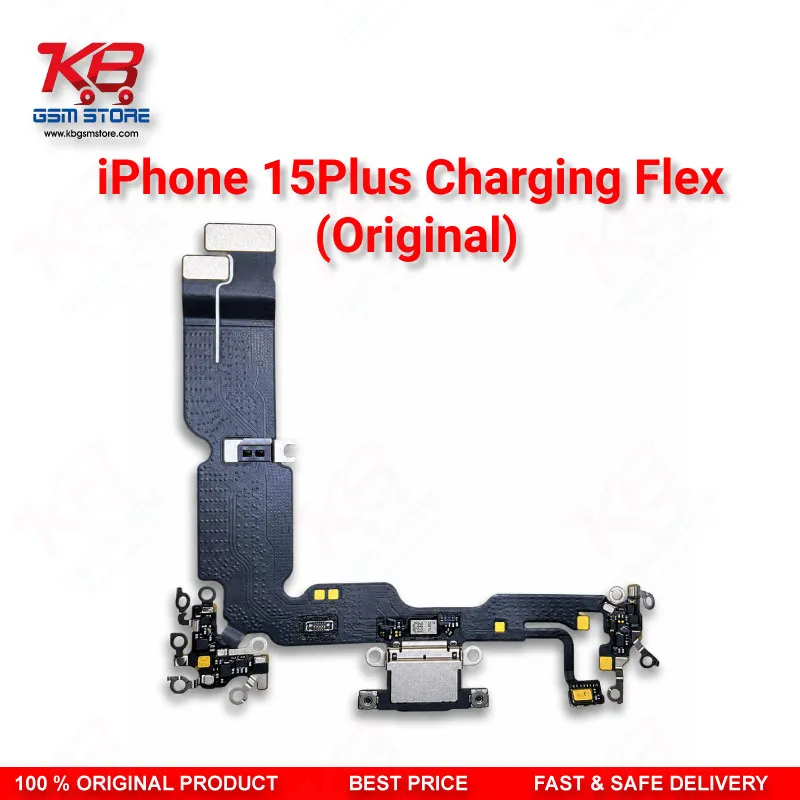

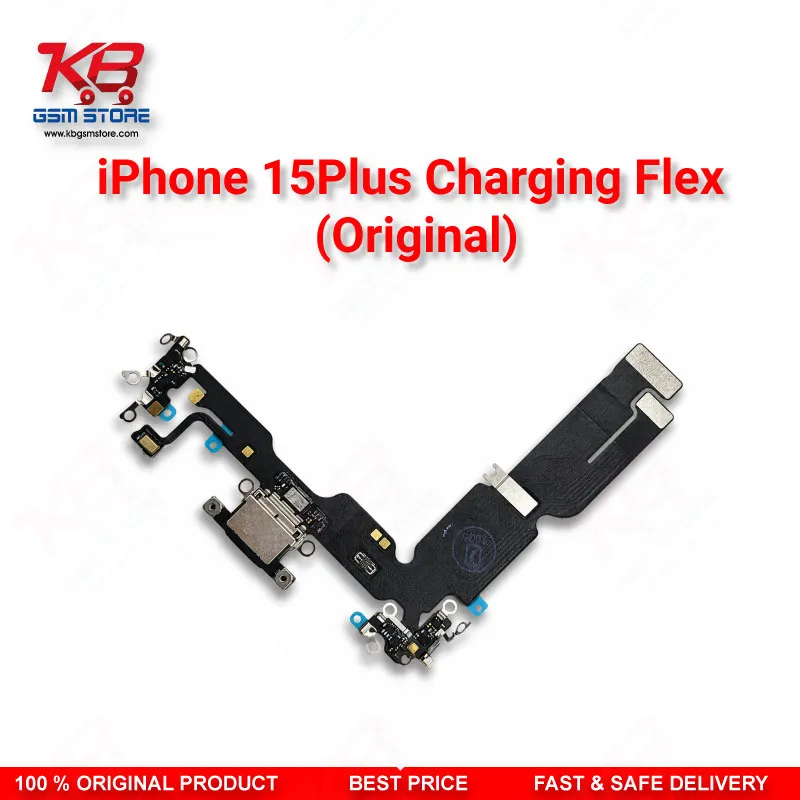

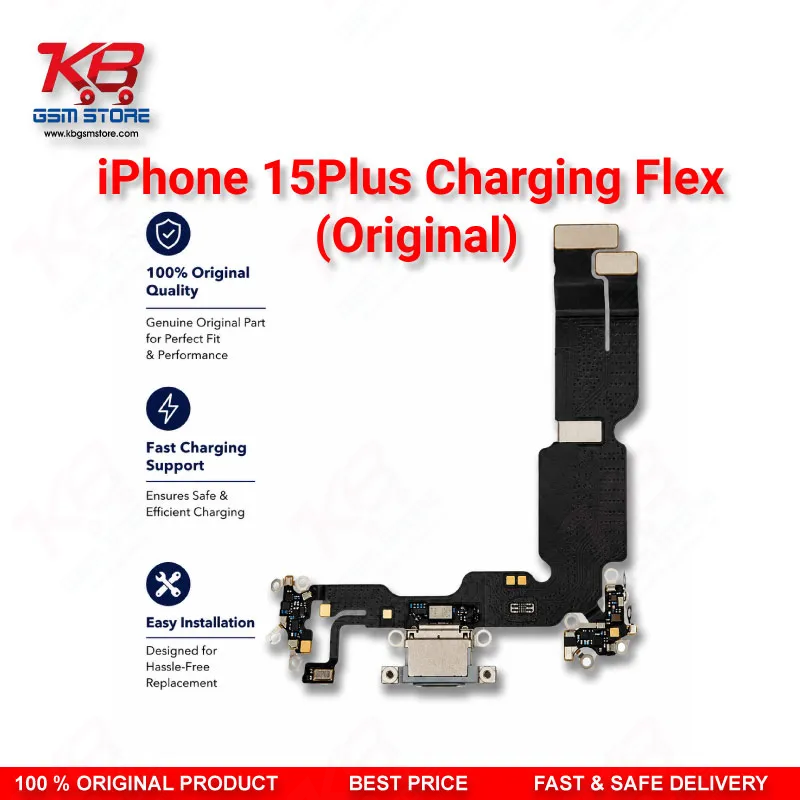

iPhone 15 Plus Original Charging Flex Cable – USB-C Dock Connector Assembly Replacement

When a customer walks into your workshop with a charging issue on iPhone 15 Plus, your first step is isolating whether the fault is software-based or hardware-based. After ruling out software marna and testing with a known-good cable and adapter, the charging port flex cable becomes the primary suspect. Bent pins, corroded contacts, physical impact, or liquid damage — all of these cause the port to fail at the connector level. That is the exact problem this replacement part solves.

The iPhone 15 Plus made a significant shift from Lightning to USB-C, introducing a new connector architecture inside the device. The charging flex assembly on the 15 Plus is not simply a port — it is a complete integrated unit that carries the USB-C socket, the flex ribbon routed through the lower chassis, and the ZIF connector that docks onto the logic board. If any section of this assembly is compromised, you get symptoms like the phone not charging at all, intermittent charging, the cable falling out easily, or the phone not being recognized when connected to a computer for flashing.

This original-quality charging flex cable is purpose-built for iPhone 15 Plus. The part number compatibility covers all carrier variants: A3094, A2847, A3093, and A3096. Before you order any charging flex for iPhone 15 Plus, confirming the model number from Settings → General → About is essential — this assembly is not interchangeable with iPhone 15, 15 Pro, or 15 Pro Max units.

Installation follows a structured process. You start by disconnecting the battery — always the first step before touching any internal component to avoid damage to the logic board. The lower speaker assembly and Taptic Engine sit over the charging flex path and must be removed first. After freeing the screws along the flex cable route, you can lift the old assembly out using tweezers. The new flex drops into place along the same routing channel, with screw holes and connector alignment guiding correct positioning. The ZIF connector seats onto the logic board without force — if you are pushing, something is misaligned.

For technicians running a busy workshop, this part handles the most common complaint on iPhone 15 Plus: "phone charge nahi ho raha." Before jumping to IC change karna or jumper lagana on the board, always replace the charging flex first. In the majority of hardware charging faults, the dock connector assembly is the root cause — not the PMIC or charging IC on the board. Replacing this part first keeps your repair time low and your diagnostic accuracy high.

The assembly also carries the microphone element and antenna connections in the lower section of the phone. If a customer reports poor call audio alongside a charging issue after a drop, this part addresses both problems in a single replacement. Technicians handling warranty jobs or insurance repairs will find this especially useful for efficient fault resolution.

Stock this part alongside your PCB holders, soldering stations, and hot air stations for a complete iPhone 15 Plus repair setup. The charging flex replacement is a non-solder job at the assembly level, making it one of the fastest revenue-generating repairs in any GSM workshop. With the right part in stock and a clean repair bench, the full procedure takes under 30 minutes for an experienced hand.
