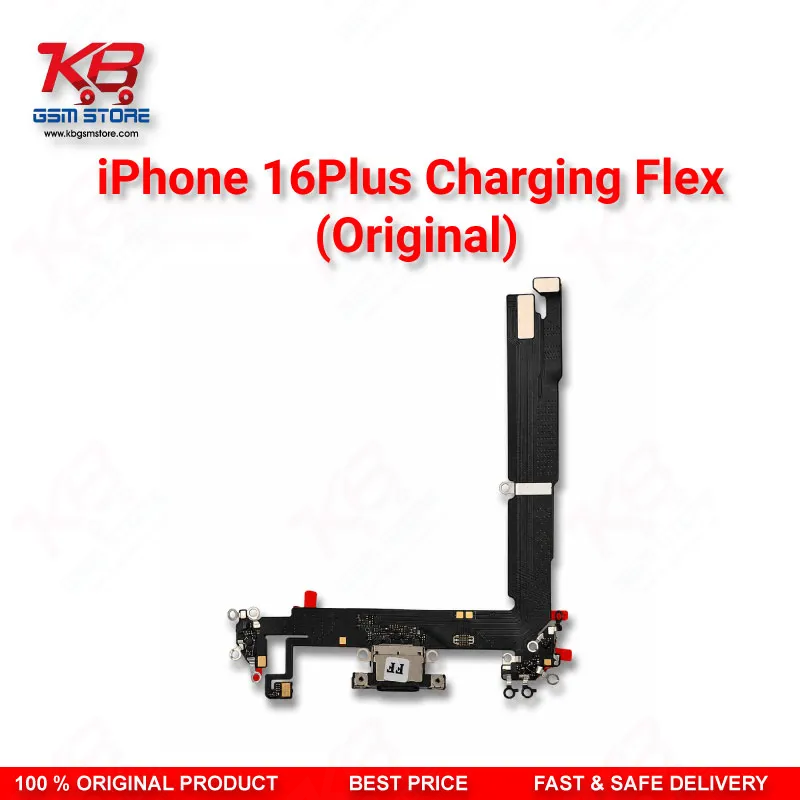

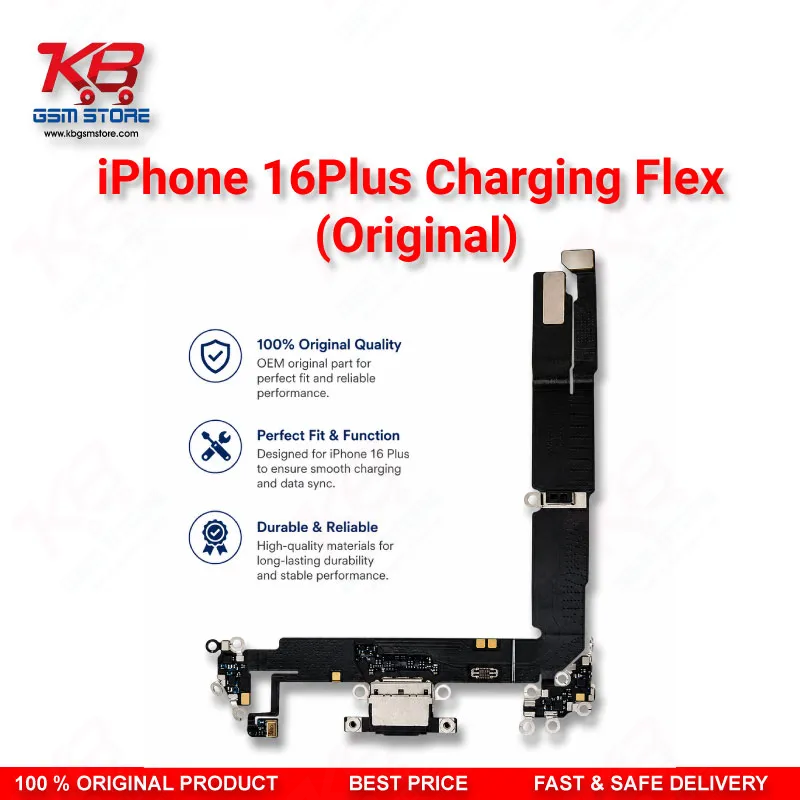

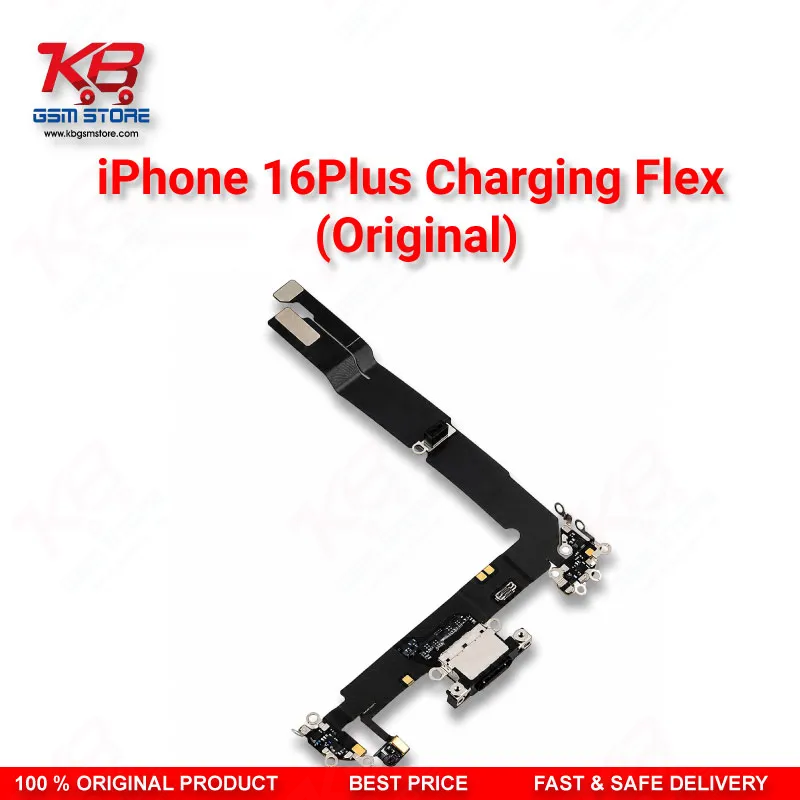

iPhone 16 Plus Original Charging Port Flex Cable – USB-C Connector Assembly Replacement

When a customer walks into your workshop and hands you an iPhone 16 Plus that refuses to charge — cable bolta hai, phone respond nahi karta — the first thing you check after ruling out software is the charging port assembly. The iPhone 16 Plus moved to USB-C with its 2024 launch, and the port flex cable on this model carries more responsibility than ever before: it handles wired charging up to 30W, USB 2.0 data transfer, and integrates the bottom microphone that affects call clarity and voice recording. When this component fails, the damage shows up in multiple ways — charging issue, no detection on computer, mic nahi kaam karta during calls, or dead after attempted IC change on a botched repair.

This original-grade charging port flex cable is the correct replacement part for the iPhone 16 Plus across all four model variants sold globally. The A3082 covers the United States and Puerto Rico, A3289 handles Canada, Japan, Gulf region, and Mexico, A3290 covers the rest of the world including Pakistan, and A3291 is the China mainland and Hong Kong variant. For Pakistani technicians ordering this part, A3290 is your primary reference, but this assembly fits all four variants with exact mechanical fitment.

How It Fits Your Repair Workflow

When you connect the iPhone 16 Plus to a DC regulated power supply at 4.2V and see no response — no boot current, no charge current — and your multimeter shows no 5V VBUS at the port interface, the flex cable is confirmed faulty. At that point, jumper lagana is not viable on a USB-C assembly of this complexity; the correct fix is a direct flex replacement. Disconnect the battery connector first, remove the Taptic Engine, then release the lower assembly cable from the logic board. The port sits secured to the rear frame, and after removing the relevant screws, the old assembly lifts out and the new one drops in with the same routing.

The bottom microphone integrated into this assembly is a commonly overlooked failure point. After installation, always verify mic functionality on a test call — technicians who skip this step get callbacks about "aawaz nahi arahi" on the customer end, which traces back to the mic connector not fully seated or the protective adhesive cover not removed before installation.

Why Original Grade Matters Here

The iPhone 16 Plus supports USB Power Delivery and communicates with the charger through the USB-C port's integrated controller signaling. Aftermarket ports often fail at the handshake level — the phone charges slowly or refuses fast charging even with a 20W+ adapter, because the port cannot correctly negotiate the power delivery profile. An original-grade assembly maintains proper VBUS path integrity and ensures the phone recognises both standard USB-C chargers and MagSafe accessories as expected.

For repair shops doing volume iPhone 16 Plus repairs, stocking this part directly reduces turnaround time. Charging issue repairs on this model — whether caused by lint packed into the port, a bent pin from a customer forcing in a cable, or corrosion from moisture — all resolve cleanly with a port swap when the motherboard current reading is normal. This part belongs in your parts drawer alongside your screwdriver set, PCB fixtures, hot air station, and microscope for any shop handling iPhone 16 Plus units seriously.

Compatibility Across Color Variants

The iPhone 16 Plus launched in five colors: Black, White, Blue, Green, and Pink. The charging port flex cable assembly is an internal component housed within the aluminum frame and does not vary by external color — this part fits all color variants without any modification.

Installation Notes for the Workshop

Use a heat plate or hot air station at low temperature to soften the waterproof adhesive around the bottom edge before attempting disassembly. The iPhone 16 Plus carries IP68 water resistance, meaning the port is sealed with waterproof tape from the factory. After replacing the flex, apply fresh waterproof adhesive before sealing the frame. Skip this step and your customer's phone will lose its water resistance rating — a customer complaint you do not want coming back to your shop.
