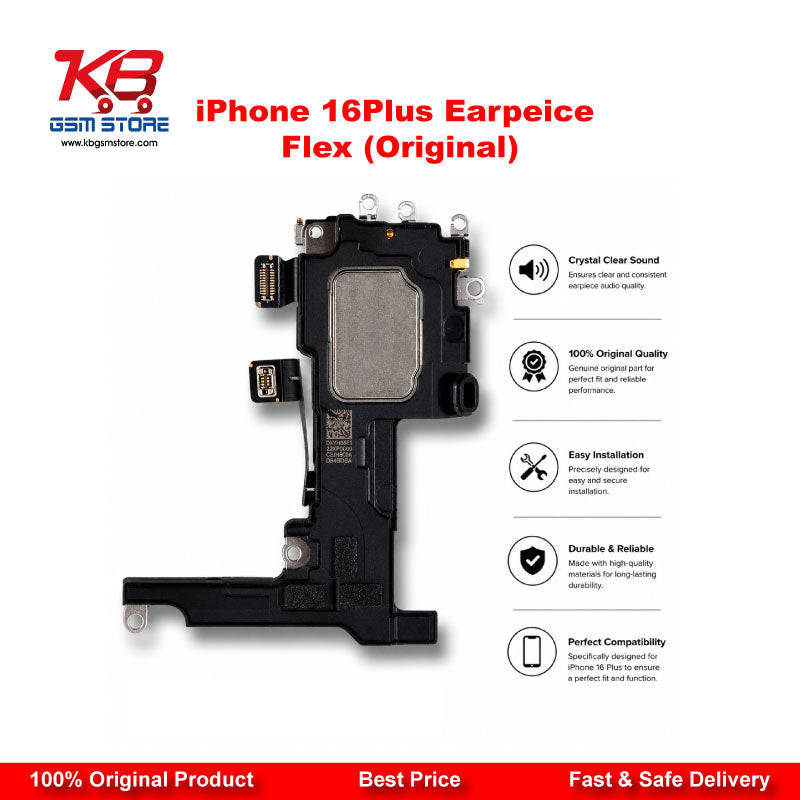

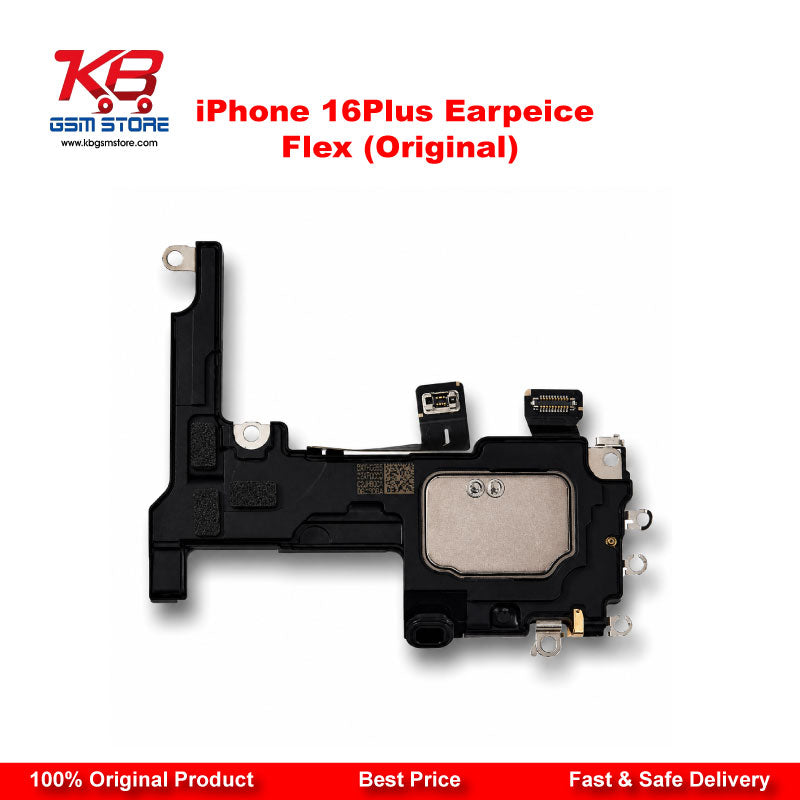

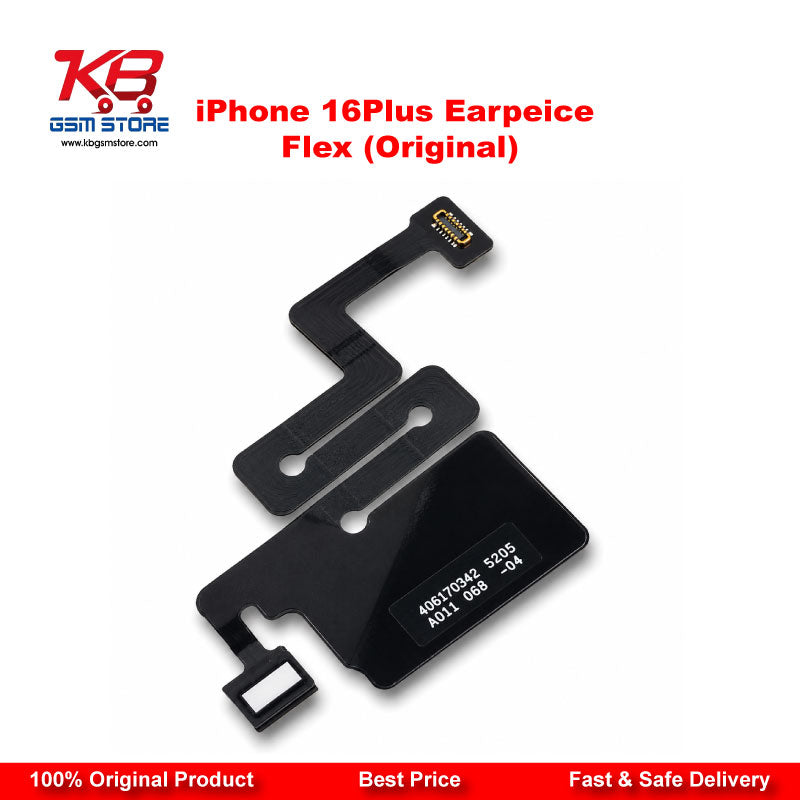

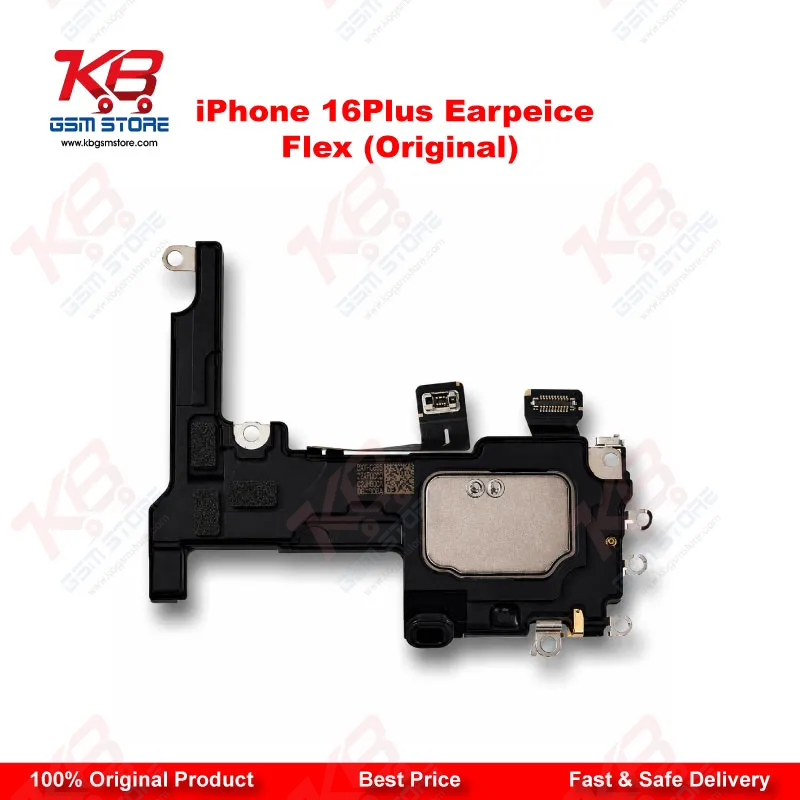

iPhone 16 Plus Earpiece Flex Cable (Original) – Proximity Sensor & Mic Connector

When a customer brings in an iPhone 16 Plus with no voice on calls, weak earpiece volume, or a screen that stays lit against the ear, the fault usually sits in the earpiece flex assembly, not the speaker itself. This flex cable carries three functions on one ribbon: the earpiece speaker connection, the front microphone link, and the proximity sensor circuit. Replacing the whole assembly instead of chasing a single broken trace saves you diagnostic time on the bench.

You'll find this part useful in a specific repair scenario. If the customer says the other person can't hear them clearly during calls, or the display refuses to turn off when held to the ear, check this flex before assuming a logic board fault. A torn or oxidized earpiece flex creates exactly these symptoms, and swapping it usually resolves the issue without touching the board.

One detail matters before you start the job: this flex does not carry Face ID hardware. The Face ID dot projector and infrared components stay on the original assembly, so you transfer them across during installation. Skipping this step or assuming the new flex includes Face ID parts leads to a phone that boots fine but fails Face ID setup, a common mistake technicians make when they rush a top-module swap.

Installation calls for proper micro-soldering equipment and a steady hand. The connector sits in a tight space near the front camera module and earpiece grille, so you need a fine-tip iron, flux, and a magnifier or microscope for accurate placement. Rushing the solder joints risks damaging the adjacent camera flex or proximity sensor housing, both of which sit close to this assembly on the iPhone 16 Plus chassis.

This part fits into the broader top-module repair workflow alongside front camera flex, proximity sensor seals, and screen adhesive replacement. Many technicians replace the earpiece flex during a screen job anyway, since the ribbon runs near the display connector and takes incidental stress during disassembly. If you're already inside the phone for a screen or battery job, inspect this flex for wear even if the customer didn't report an earpiece complaint.

Quality control matters here because a faulty replacement flex creates intermittent symptoms that are harder to diagnose than a clean failure. Look for consistent proximity sensor response and stable mic pickup during your post-repair test before handing the phone back. A signal-tested unit reduces callback visits and protects your shop's reputation with repeat customers who rely on you for iPhone hardware faults.

For shops running high volumes of iPhone 16 Plus repairs, stocking this flex alongside screen assemblies and battery units keeps your turnaround time short. Customers expect same-day fixes for call audio problems, and having the part on hand means you're not waiting on a supplier mid-job. Pair it with your existing micro-soldering kit and proximity sensor adhesive stock to keep this repair a routine bench job rather than a multi-day wait.
