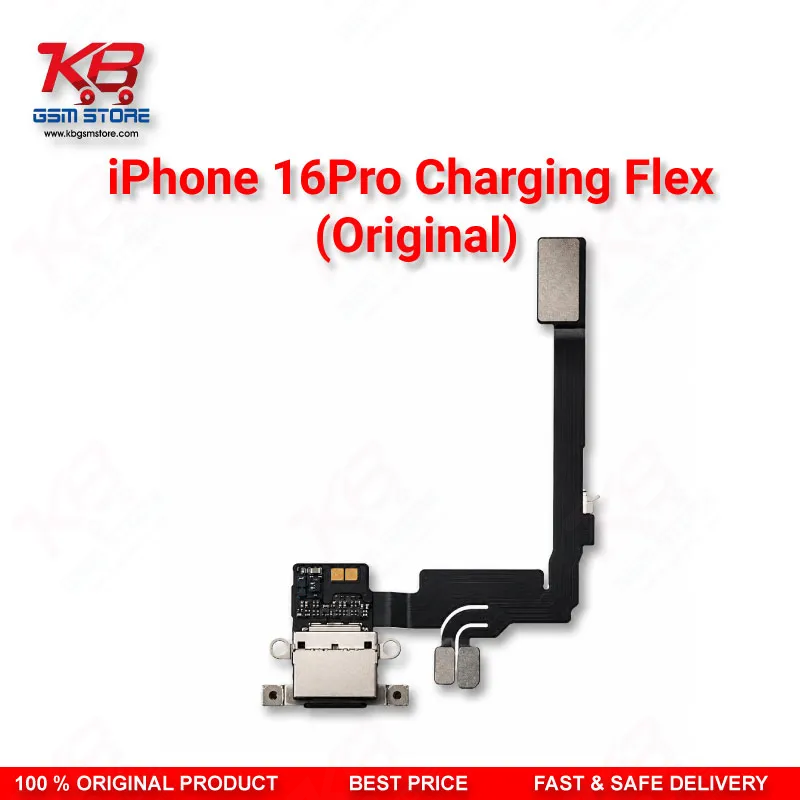

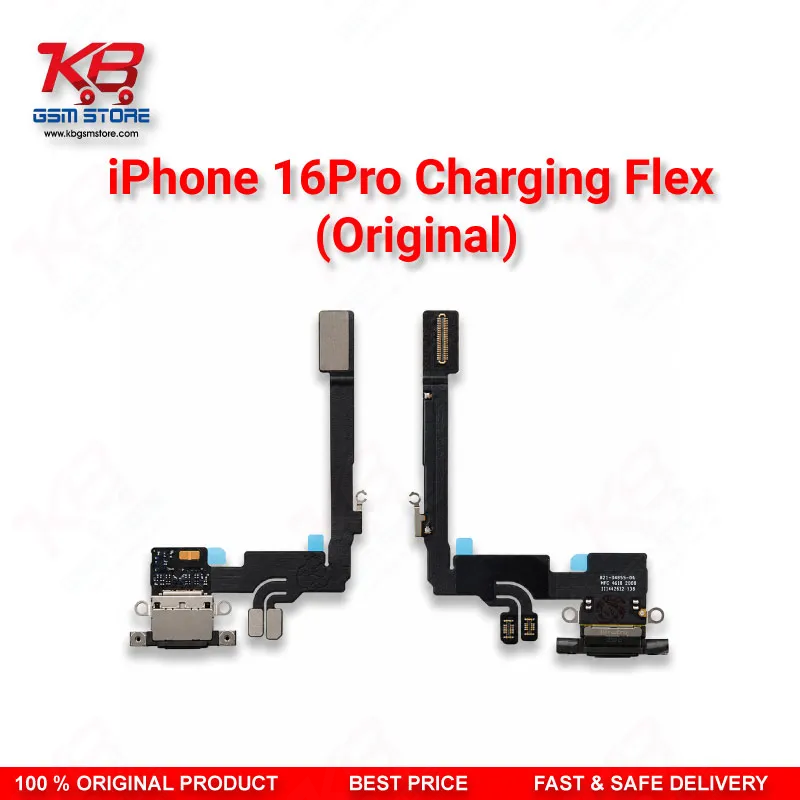

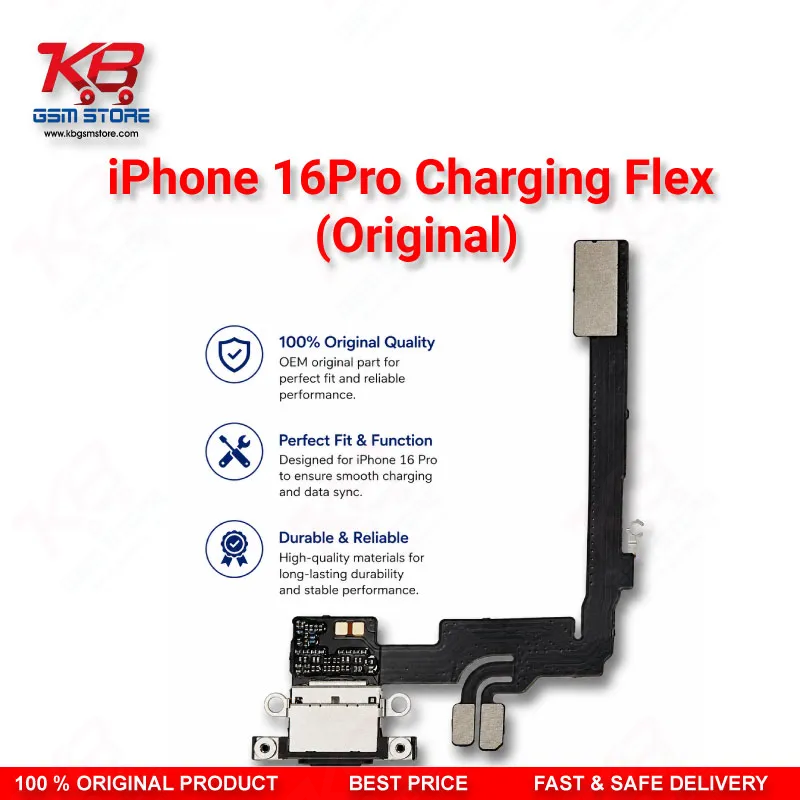

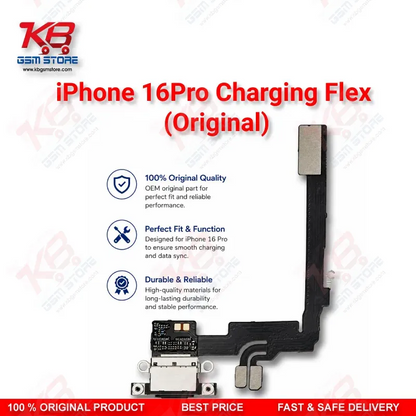

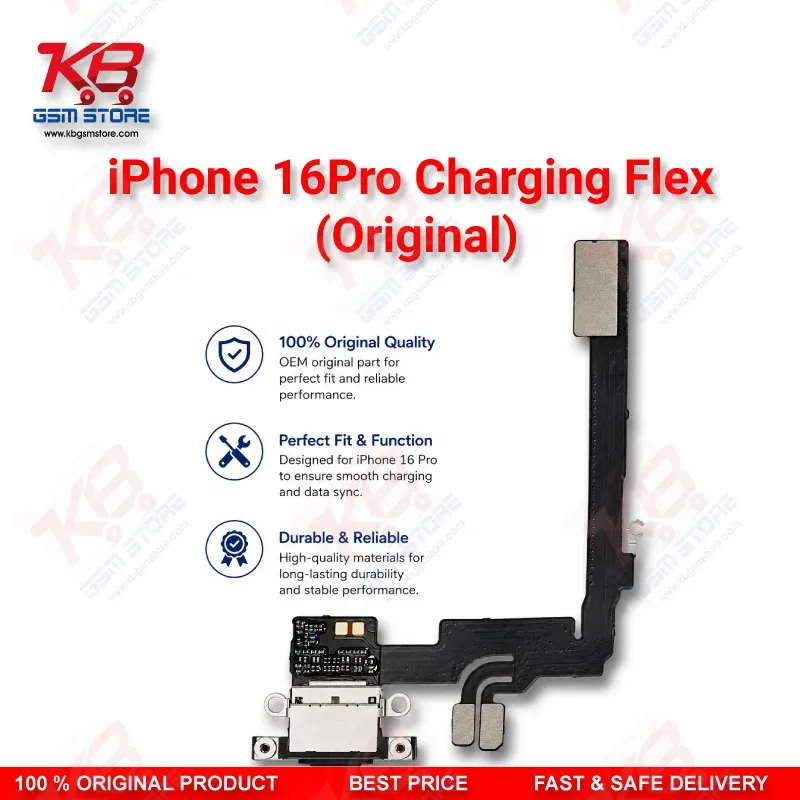

iPhone 16 Pro Original Charging Port Flex Cable (USB-C Dock Connector)

Every iPhone 16 Pro that comes into your workshop with a charging issue eventually points back to one part: the charging port flex cable. This ribbon sits between the USB-C connector at the bottom of the phone and the logic board, carrying both power delivery and data signal. When a customer says "phone is not charging" or "charging port loose ho gaya hai," you're usually looking at wear, corrosion, or physical damage to this exact flex — not necessarily the battery or the charging IC.

The iPhone 16 Pro uses a USB-C charging interface that supports fast charging and works with USB-C power adapters and computer ports. That charge gets carried internally through this dock connector flex before it ever reaches the battery or PMIC. So when you're diagnosing a charging issue, your workflow should always rule this flex in or out before you start reballing or chasing IC faults on the board. Apple Support

Where This Fits in Your Repair Workflow

On the bench, charging complaints follow a pattern. First check is the port itself, dust, lint, oxidation. Second check is continuity across the flex pins using your multimeter. Third, if continuity is fine but charging is still inconsistent, you check the charging IC and tristar/PMIC area. This flex cable replacement becomes your fix once you've confirmed the port or ribbon itself is physically damaged, bent pins, torn flex, water corrosion on the contacts, rather than a deeper IC-level fault.

For phones with charging issue after a dead after flash situation or liquid exposure, technicians often replace this flex as a first step since it's cheaper and faster than chasing a board-level repair, and it resolves a large share of charging port loose or intermittent charging complaints on its own.

Installation Considerations

This part requires careful disassembly, the flex routes near the bottom speaker assembly and connects with a small board-to-board connector or soldered pads, depending on revision. Technicians should handle the ribbon with care since these flexes are thin and tear easily if pulled at an angle. Static precautions apply as with any board-level component, ground yourself before handling.

Color Matching for Cosmetic Builds

Since the iPhone 16 Pro ships in titanium finishes, this flex is available in matching colorways, Black Titanium, White Titanium, Natural Titanium, and Desert Titanium, so shops doing cosmetic-grade repairs or full board swaps can match the original color scheme without mismatched components showing through.

Why Technicians Choose OEM-Grade Parts

Using a quality, OEM-grade flex rather than a generic aftermarket part matters here specifically because this component carries power delivery, a poorly made flex can cause charging instability, overheating at the connector, or premature failure, turning a single repair visit into a repeat complaint. For a repair shop building a reputation on solid charging port repairs, part quality on this specific flex is one of the most repeat-complaint-prone areas in iPhone service.

Common Symptoms This Part Resolves

Dead phone with no charging response, charging works only at certain cable angles, charging port loose or wobbly, intermittent connection during fast charging, and charging stopped working after a drop or liquid exposure. If your diagnostic process rules out the battery and the charging IC, this flex is very often the actual point of failure.

This is a board-level repair part intended for professional technicians and service centers equipped with proper ESD protection and disassembly tools, not a casual DIY swap for end users.
