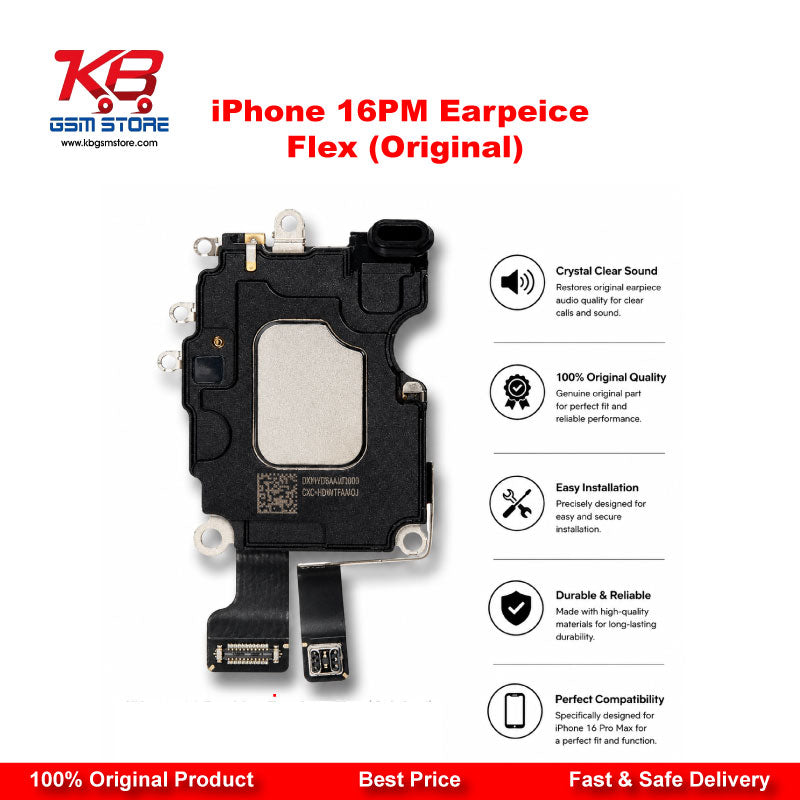

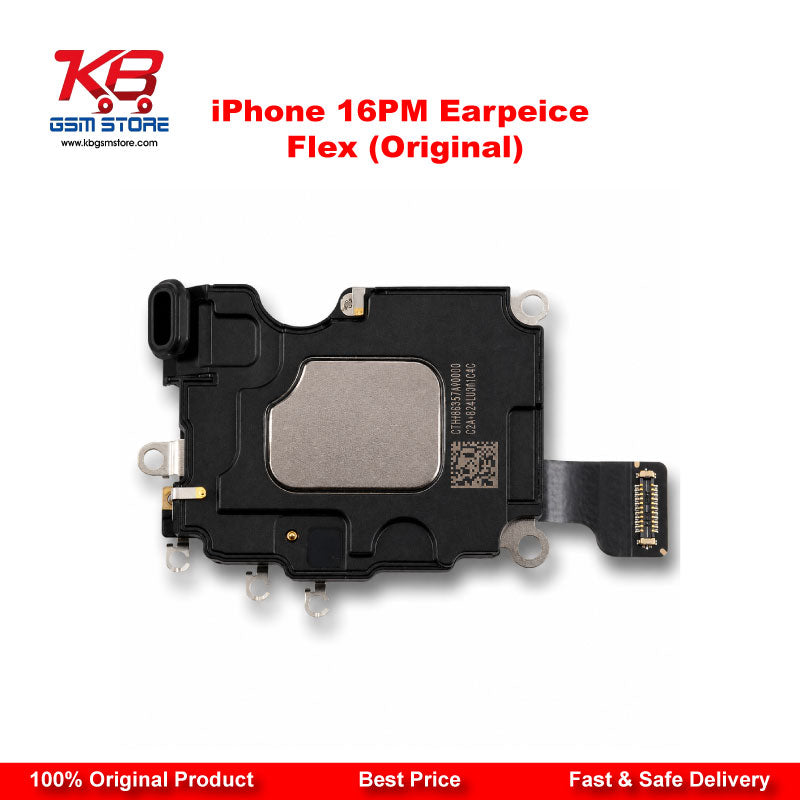

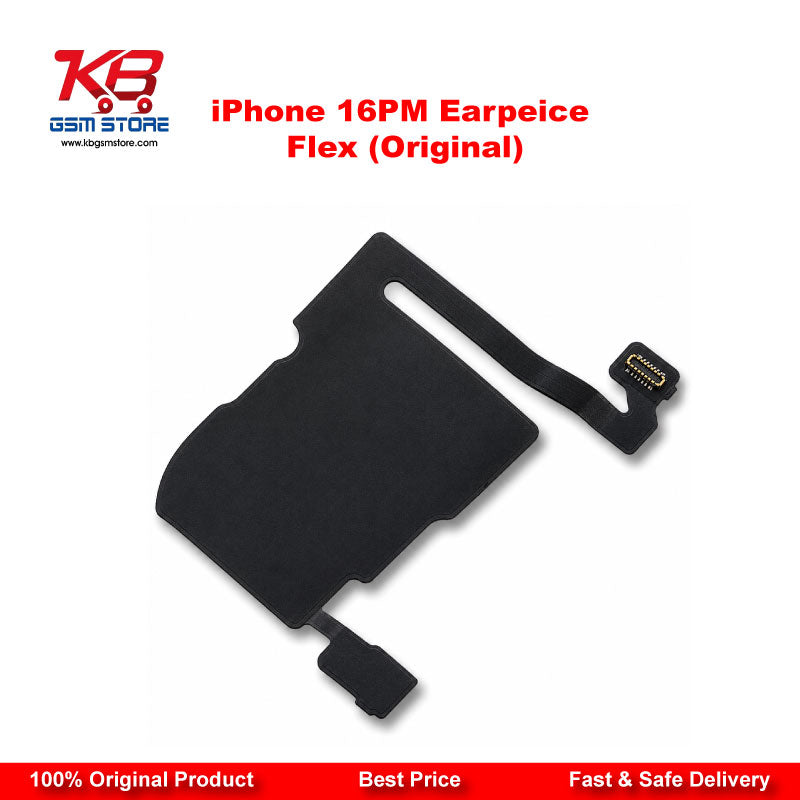

When a customer walks into your shop complaining their iPhone 16 Pro Max earpiece cuts out halfway through a call, or the screen refuses to turn off when they hold the phone to their ear, the fault almost always traces back to this flex assembly. The earpiece flex on the 16 Pro Max isn't just a speaker wire — it's the connection point for four separate functions: the earpiece speaker itself, the front-facing microphone, the ambient light sensor, and the proximity sensor that dims the display during calls.
You'll find this part sits near the top of the device, tucked close to the front camera housing, which is exactly why Face ID hardware shares the same real estate. The flex you're installing does not carry Face ID parts — those stay on the customer's original cable and need to come across during the swap. Rush this step or skip the transfer and you'll hand back a working earpiece with a dead Face ID, which turns a simple repair into a much bigger headache.
On your bench, this is the part you reach for in three common scenarios. First, intermittent or dead earpiece audio — the customer hears the caller fine through speaker mode but gets nothing or crackling through the earpiece. Second, proximity sensor failure, where the screen stays on during calls and the customer's cheek keeps muting calls or opening apps. Third, front mic dropout, where the other party can't hear the customer clearly during regular calls, separate from any bottom-mic or video-recording mic faults.
Diagnosing correctly before you order matters here. Run a quick test in the Settings or a diagnostic dialer code to confirm whether the fault sits on this flex or further back in the logic board connector. A flex swap won't fix a logic board-side hardware fault, and ordering the wrong part wastes both your time and the customer's money. Once you've confirmed the flex itself is the culprit — through visual inspection for corrosion, a continuity check, or simple swap-test against a known-good unit — this replacement gets the phone back to spec.
Installation calls for proper opening tools, a clean static-safe workspace, and a steady hand for handling the connectors near the camera and Face ID modules. This isn't a five-minute pull-and-replace; it sits in the same disassembly tier as front camera or proximity sensor jobs, so quote your labor accordingly. Technicians running a busy repair counter in Pakistan will recognize this as one of the more delicate top-of-board jobs, closer in difficulty to a Face ID dot projector swap than a battery change.
Pair this flex with a fresh set of pentalobe and Phillips bits, plastic pry tools, and a heat mat for adhesive softening before you start. Keep a spare set of original screws on hand, since these flex jobs often sit under the same bracket as the front camera assembly. Stock this part alongside your other iPhone 16 Pro Max top-module parts — front camera, proximity sensor, and display assembly — so you're not waiting on a single part to finish a job that's already opened up.
