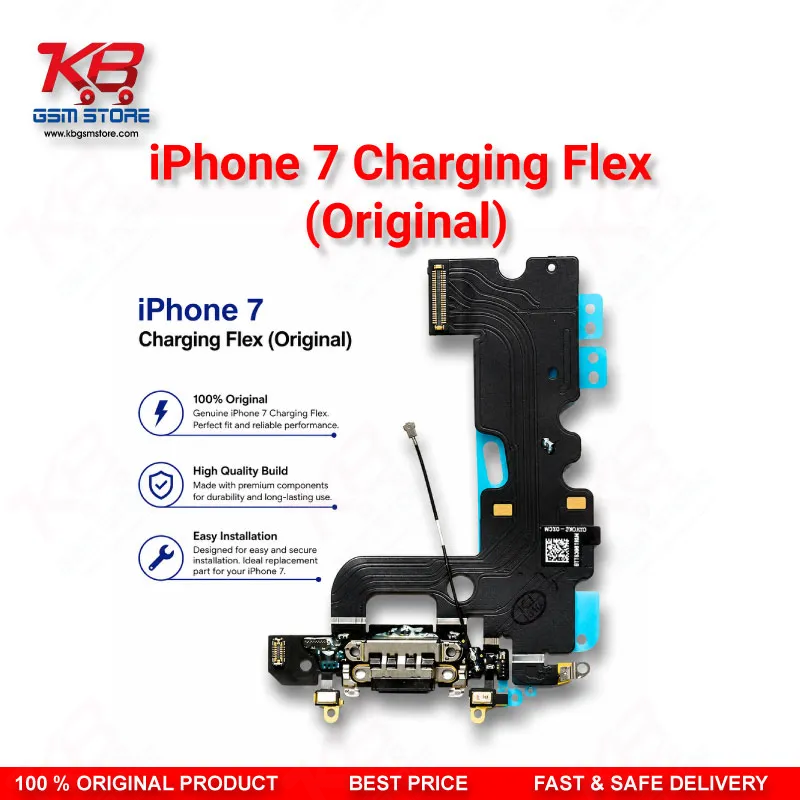

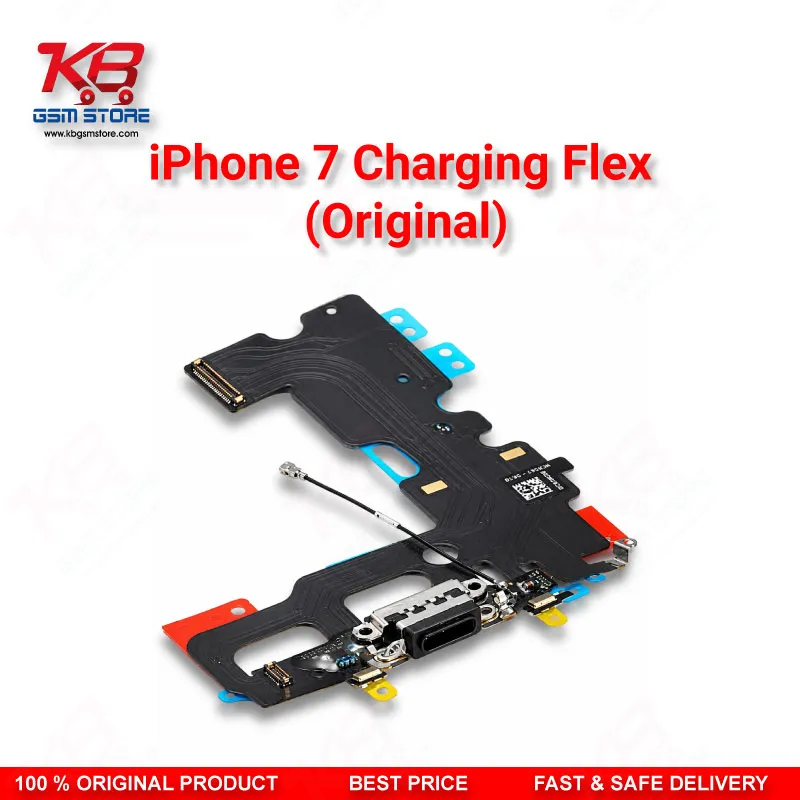

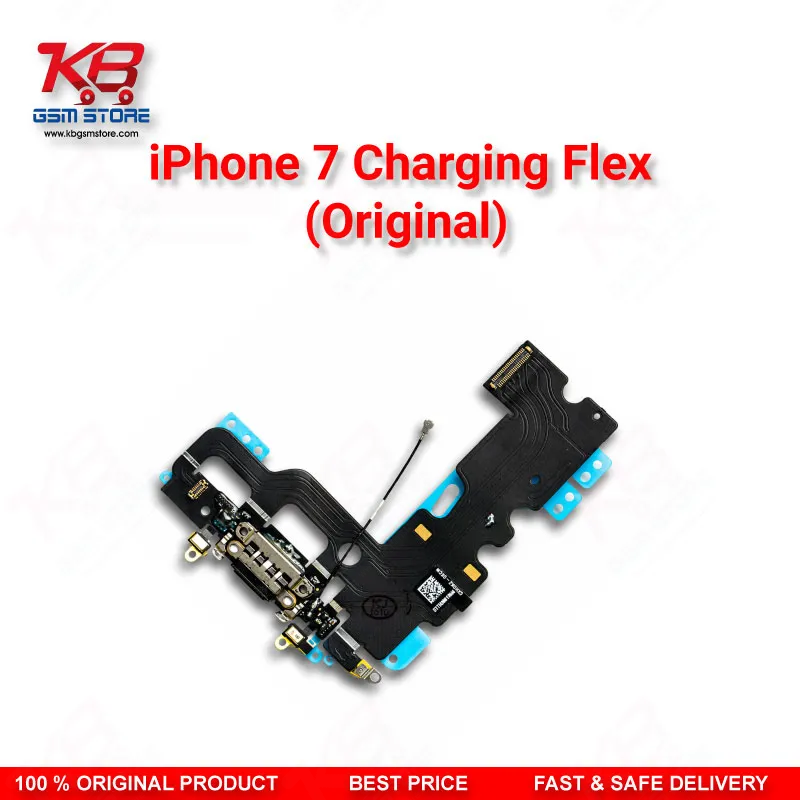

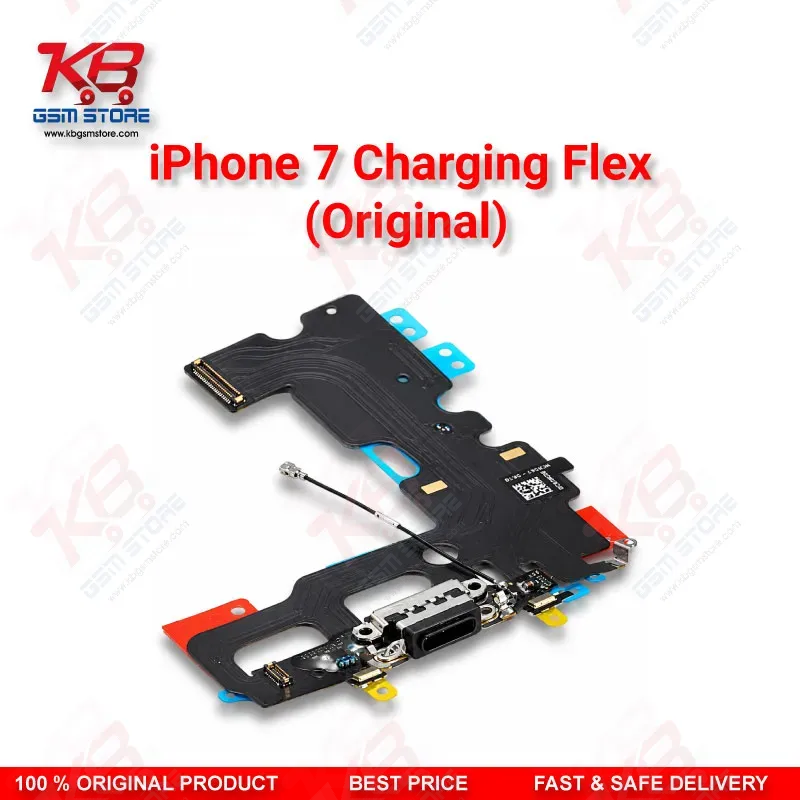

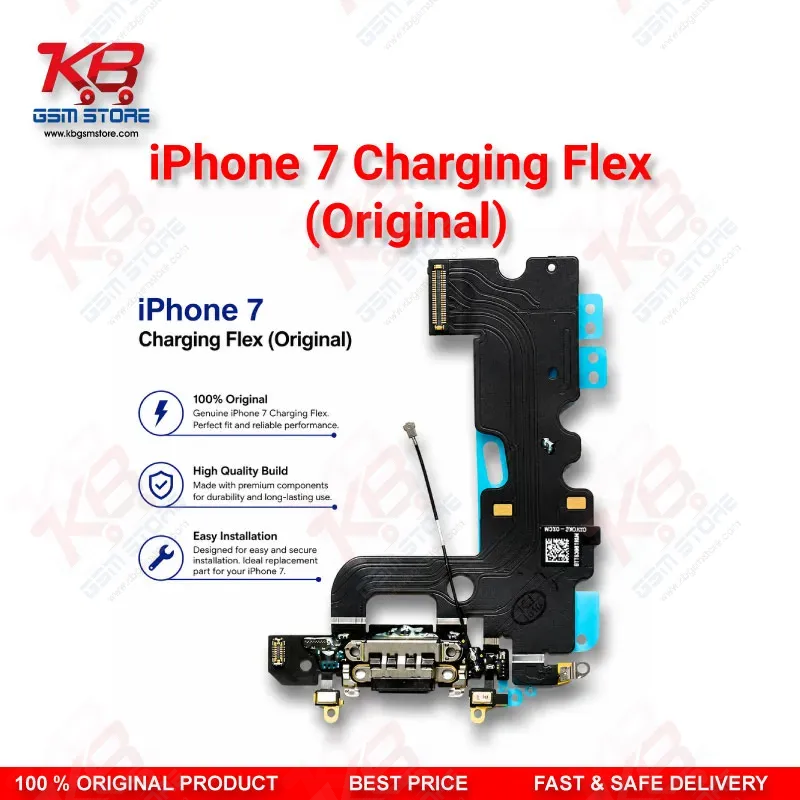

iPhone 7 Charging Flex Cable Original – Lightning Connector Assembly Replacement

When an iPhone 7 comes into your workshop with a charging issue, the first thing you check is the Lightning port — and nine times out of ten, the charging flex is the culprit. Whether the phone stopped charging completely, the customer says it charges only at a certain angle, or the mic has gone silent during calls, a single charging flex replacement solves all of it. That is exactly what this original iPhone 7 Charging Flex Cable is designed to do.

This is not just a charging port. The iPhone 7 Lightning connector assembly is a multi-function flex cable that combines three critical components into a single ribbon: the Lightning charging connector, the dual bottom microphones, and the cellular antenna cable. When any one of these fails, the whole assembly needs to go — and this original-grade part gives your customer a unit that fits precisely, connects cleanly, and performs exactly as the factory intended.

Fixing the Most Common iPhone 7 Faults

Pakistani iPhone 7 users bring these phones in with the same complaints every time. The phone refuses to charge, or the charger is detected only when the cable is held at a specific angle. Some units come in dead after mishandling — the port physically broken or corroded from moisture exposure. Others show a charging issue where the phone draws power but the battery does not actually fill. All of these trace back to a damaged Lightning flex.

Mic problems are equally common. Customers complain the other person cannot hear them during calls, or the voice recording in WhatsApp comes in muffled and distorted. That bottom microphone sits directly on this flex cable. Replace the assembly and you fix the mic at the same time — no need to diagnose both separately.

Assembly Compatibility and Part Identification

This charging flex is specifically matched to iPhone 7, covering models A1660, A1778, and A1779. The Apple part code for this assembly is 821-00270-08 (Black/Dark) and 821-00360-08 (White). Before ordering, confirm the model number from the iPhone's back panel — iPhone 7 and iPhone 7 Plus use different assemblies and they are not interchangeable.

The assembly is available in Black, White, and Dark Gray. Match the color to the customer's device for a clean finish, especially if the phone will be opened in front of the customer. Original-grade quality means the connector dimensions, the flex ribbon length, and the microphone positioning all match the factory spec — no trimming, no adapter needed.

Repair Workflow on Your Bench

Before you start, make sure to drain the battery below 25%. Work in a dry, dust-free space — preferably at your repair bench with proper lighting and a microscope nearby if you need to inspect the flex connectors. You will need a P2 Pentalobe driver to remove the bottom screws, a Y000 tri-point driver for the internal brackets, and a Phillips #000 for the logic board standoffs.

Open the display carefully using a suction cup and opening picks — do not lift more than 15 degrees or the display cables strain. Disconnect the battery first before touching any internal connectors. The charging flex runs along the bottom of the chassis; you will need to remove the speaker, Taptic Engine, and several antenna cables before the flex lifts out cleanly. Take your time with the antenna connectors — forcing them causes pad damage.

Once the new flex is seated and all connectors are clicked back into place, test charging before closing the phone. Plug in a Lightning cable and confirm the phone detects the charger. Test the bottom mic using the voice memo app. If everything checks out, seal the display with fresh adhesive and return the phone to the customer.

Why Original Grade Matters for iPhone Repair

Aftermarket charging flex cables for iPhone 7 are widely available in Pakistan, but low-quality units cause their own problems — poor antenna performance means the customer comes back complaining of network issues after the repair. Original and original-grade assemblies maintain the antenna routing integrity that keeps signal reception strong. For shops that offer a warranty on their repairs, using quality parts is the only way to avoid callbacks.

This part pairs naturally with other iPhone 7 components on your repair bench — keep iPhone 7 displays, batteries, back cameras, and speaker assemblies stocked alongside this flex for complete service capability. Tools like hot air stations and precision screwdriver sets are essential companions when handling this repair.
