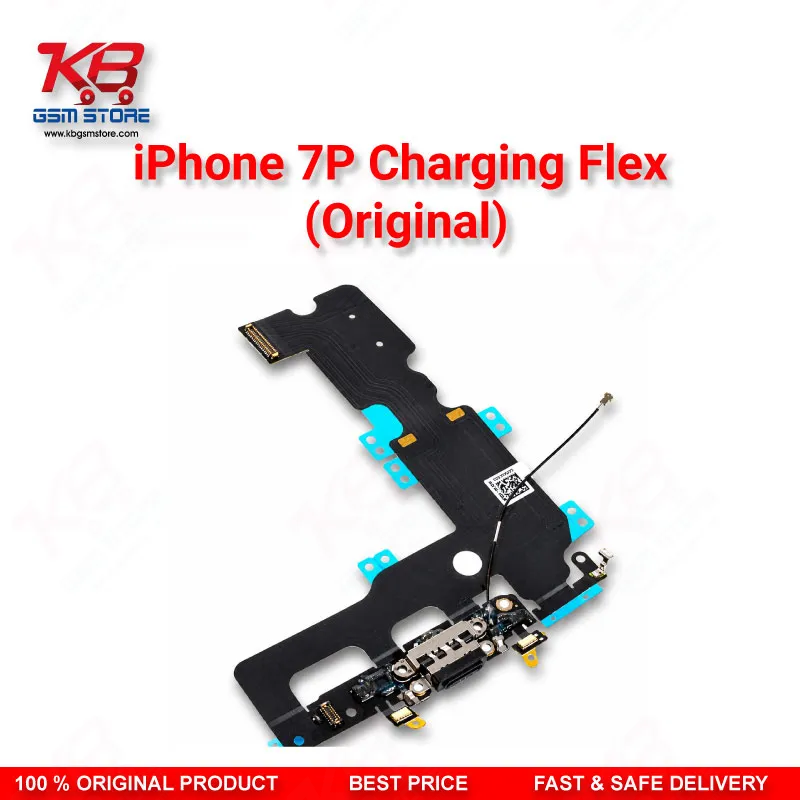

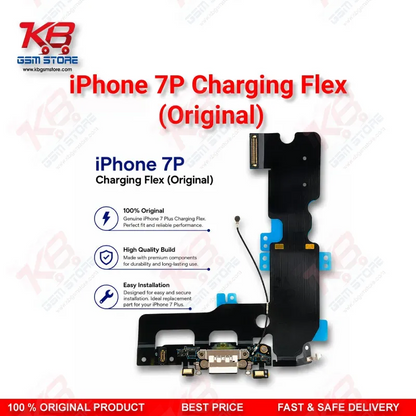

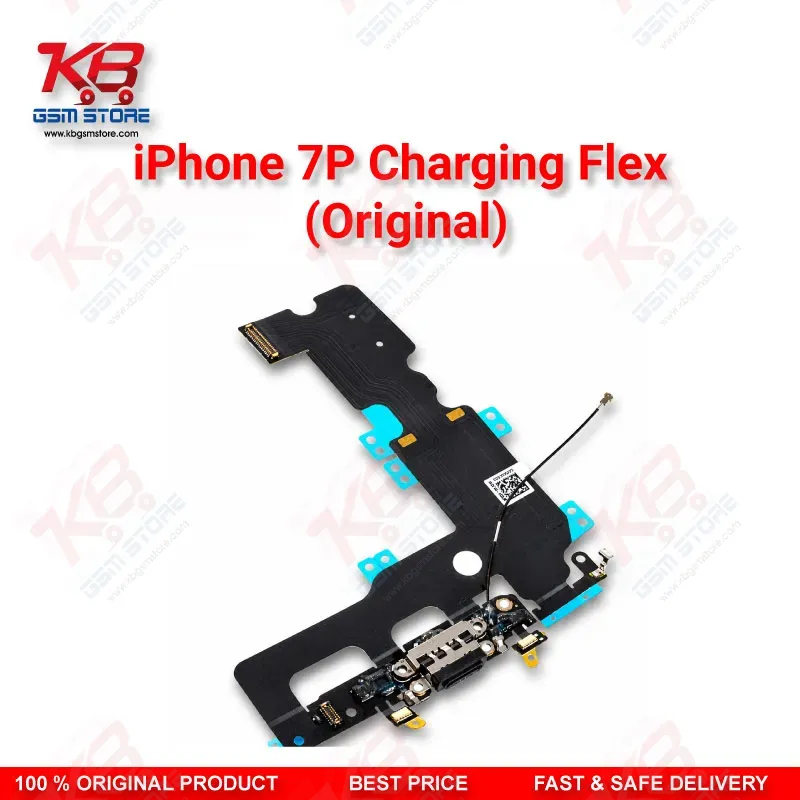

iPhone 7 Plus Charging Flex Cable Original — Lightning Port Dock Connector with Microphone and Antenna

Every technician working on iPhone 7 Plus knows that the bottom dock assembly carries more than just the charging port. The entire lower section — Lightning connector, bottom microphone, signal antenna path, and audio routing circuit — runs through one flex ribbon. When this part fails, your customer walks in with a charging issue, low call volume, weak signal, or a phone that simply stopped responding to any cable. Diagnosing this flex early saves you unnecessary motherboard investigation time.

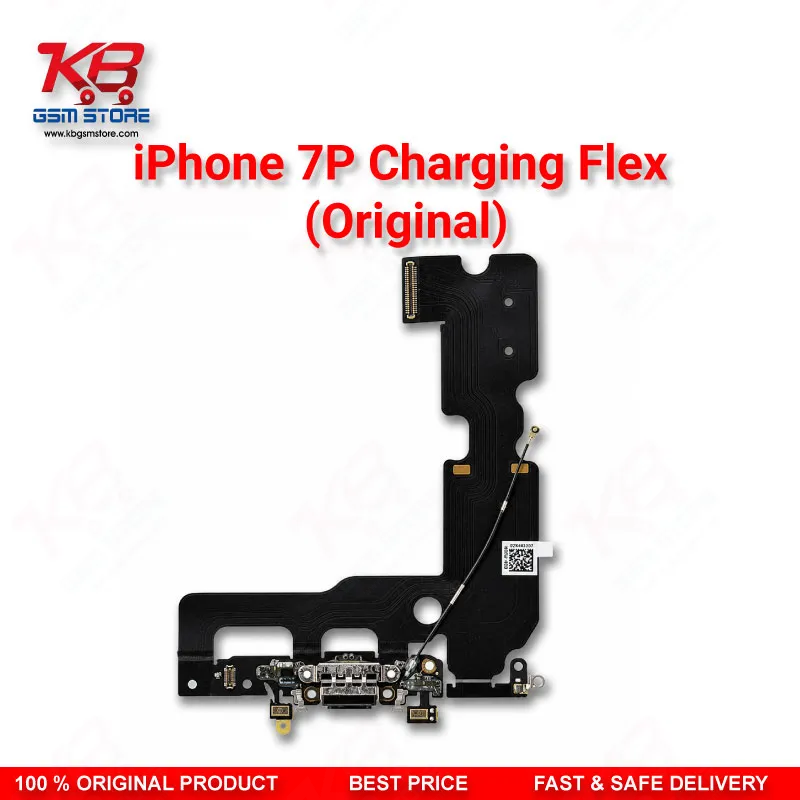

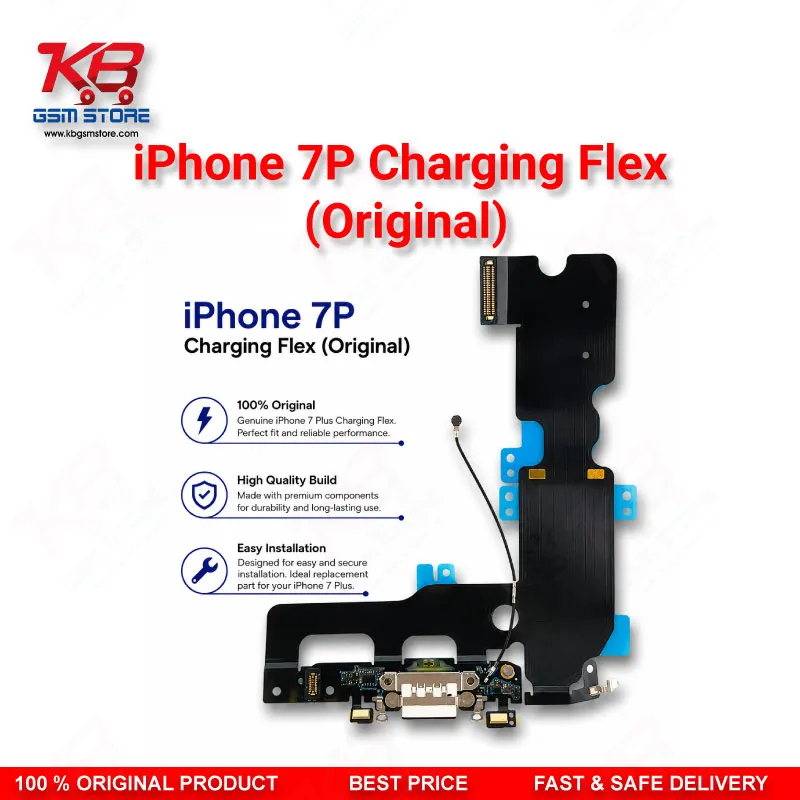

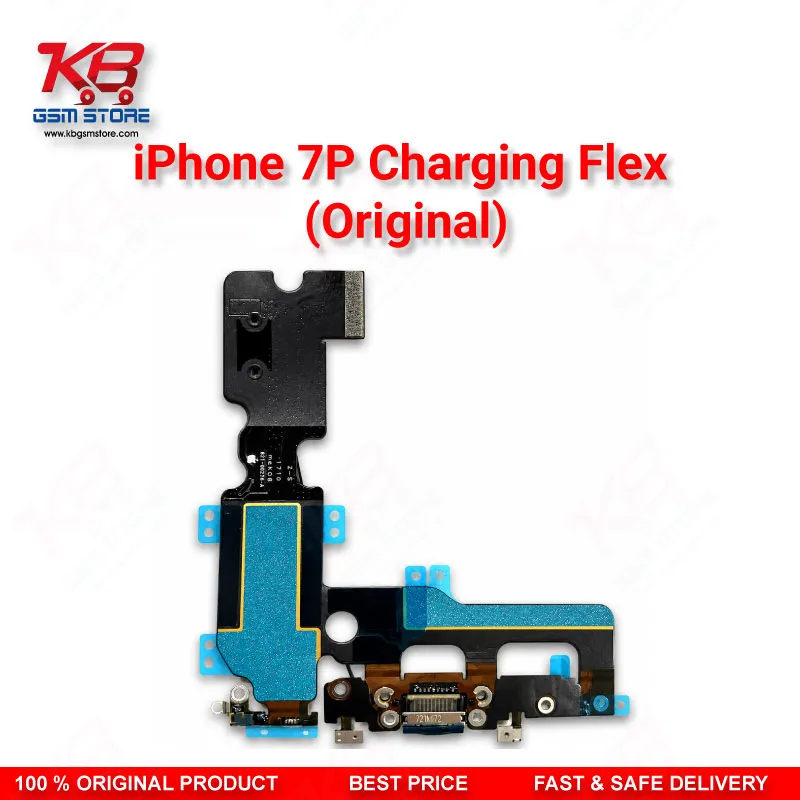

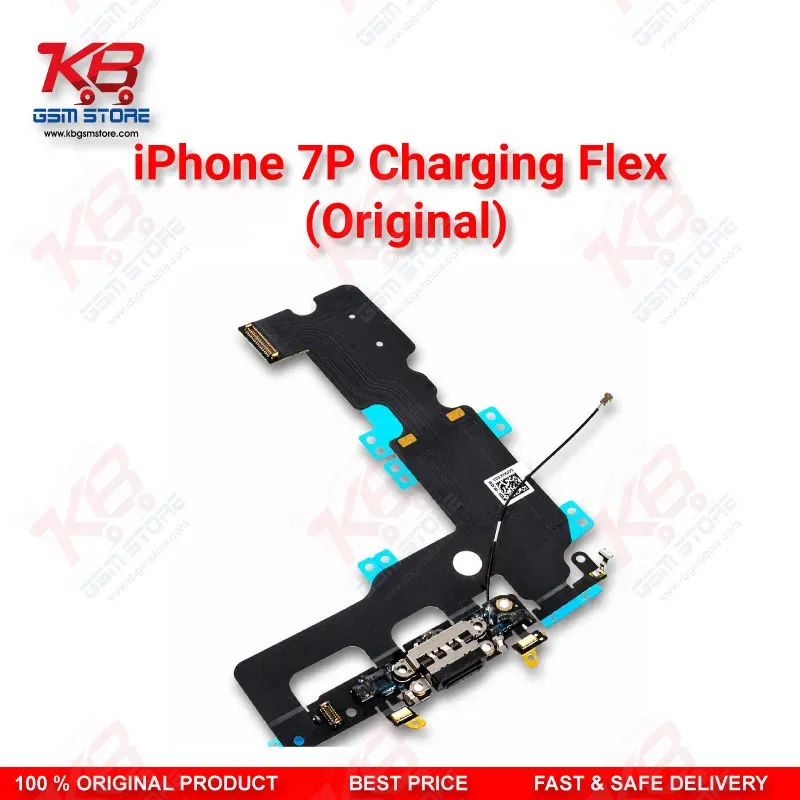

This iPhone 7 Plus Charging Flex Cable (Original) is a complete dock connector assembly compatible with all three iPhone 7 Plus model variants: A1661, A1784, and A1785. It replaces the damaged or worn-out bottom flex without requiring component-level work, making it the fastest repair path for common dock-related complaints in your workshop.

The part integrates four functional elements in one assembly. The Lightning port handles both charging and data sync. The bottom microphone picks up call audio and handles voice commands — when this mic goes dead, customers report that the other party cannot hear them during calls. The signal antenna component routes cellular connectivity through this flex, meaning a cracked or broken assembly can show up as a persistent network issue even when the baseband IC tests fine. The audio jack circuit, though unused for analog audio on the iPhone 7 Plus (Apple removed the 3.5mm jack on this model), routes audio signal paths that still run through this flex.

When you receive an iPhone 7 Plus with charging issue, start with cleaning the Lightning port using a non-metallic pick before condemning this flex. If the port is clean and charging still fails, test with a known-good cable and adapter. If charging remains absent and you've ruled out the battery, the charging IC (U2 tristar), and TIGRIS IC, the dock flex becomes the next logical replacement. Original-grade flex cables preserve the OEM contact geometry on the Lightning connector, which matters for reliable charging current delivery.

Fitting this flex requires removing the display assembly, disconnecting the battery, releasing the logic board partially to access the antenna and microphone connections beneath it, and threading the new flex cable into position. Pentalobe screws at the bottom edge and tri-point Y000 screws at the lower bracket must be managed carefully. Each screw placement should be tracked with a magnetic mat — iPhone 7 Plus uses mixed screw types and misplacing even one Phillips screw into a tri-point hole causes thread damage.

After installation, test the repair bench with a known-good cable before returning the phone. Confirm charging current draws correctly, verify bottom mic with a call test, and check signal reception. If the customer reported dead after flash symptoms where the phone charged fine before but stopped responding to cables post-flash, also check the U2 Tristar IC for damage before replacing this flex — a shorted Tristar can burn a new dock cable within days.

In busy repair shops handling Xiaomi, Oppo, Vivo, and iPhone mixed queues, keeping original-grade iPhone 7 Plus dock assemblies in stock eliminates wait time on reorders. This part ships as a ready-to-install assembly with no pre-work required — no soldering, no reballing, no stencil work. Swap, reconnect, and test.

For shops investing in systematic iPhone repair capability, pairing this flex with the right tools matters. Use a microscope for connector inspection before swap, a DC power supply to monitor current draw during charging test, a hot air station only if adhesive removal around the port area is needed, and a PCB holder to stabilize the logic board during partial removal. Multimeter testing across the Lightning connector pins before swap confirms whether the fault is mechanical at the connector or electronic upstream toward the charging IC.
