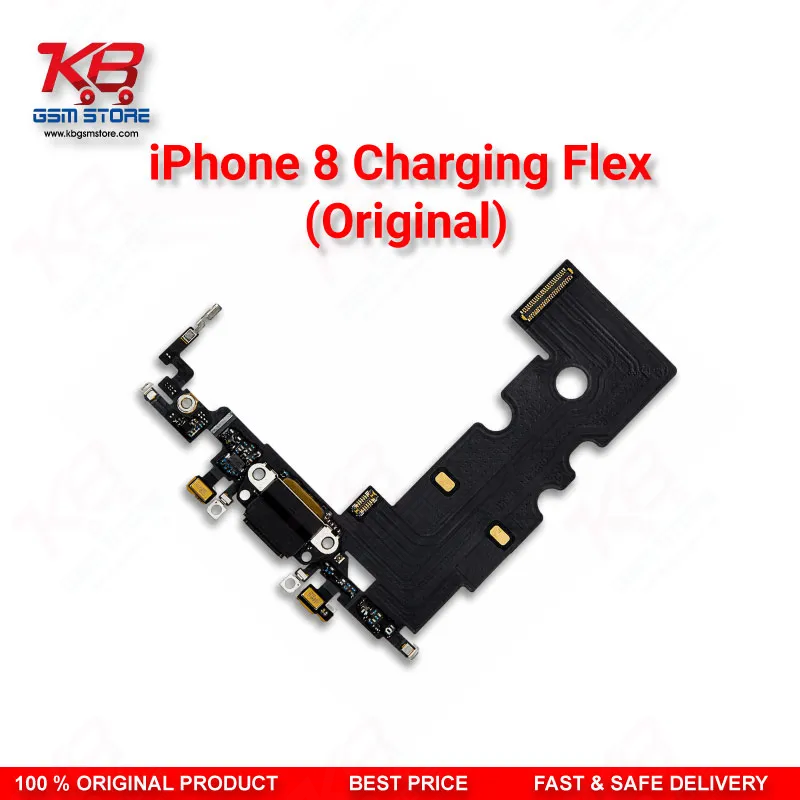

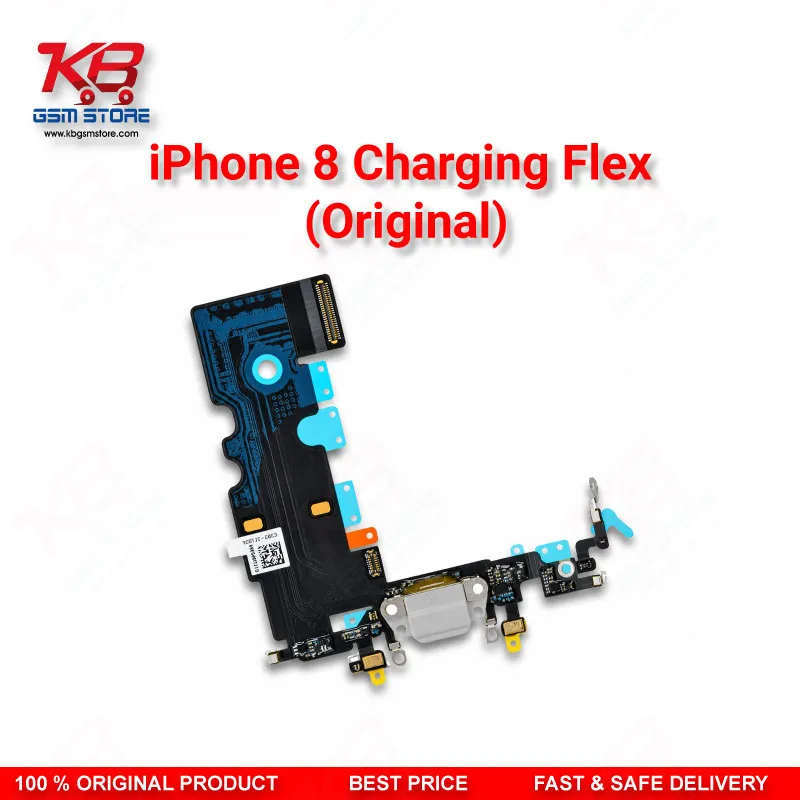

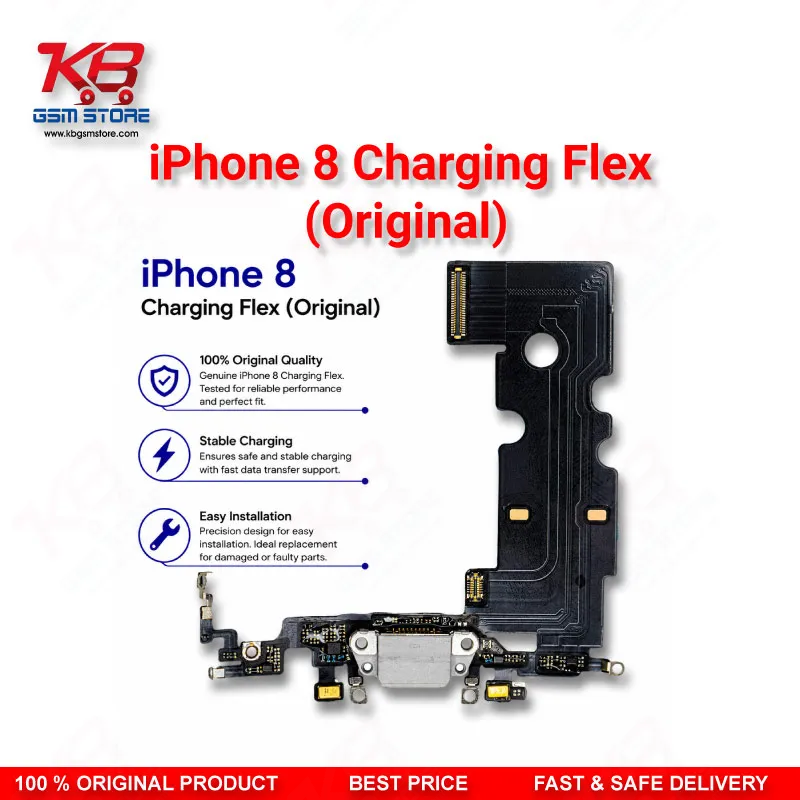

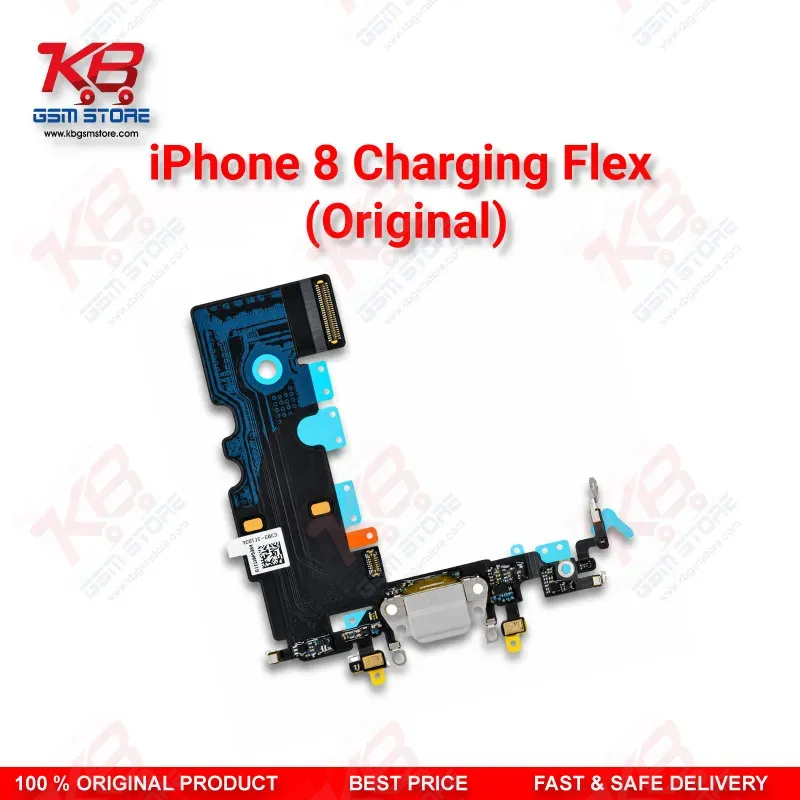

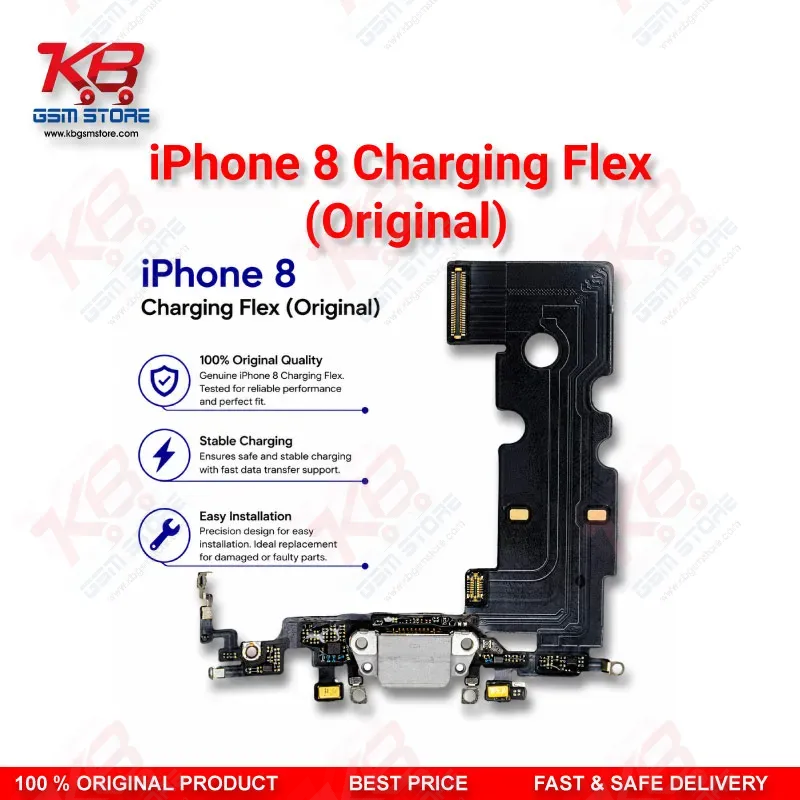

iPhone 8 Charging Flex Cable (Original) – Lightning Dock Connector with Microphone & Antenna

When an iPhone 8 comes to your workshop with a charging issue, the first hardware suspect is always the Lightning connector assembly. A bent pin, lint-packed port, or a dock connector damaged during a rough cable pull stops the phone from charging — and sometimes triggers a boot loop issue or makes the phone appear completely dead. Before you replace the battery or start probing the charging IC, swapping out the charging flex is the right first move.

This iPhone 8 Charging Flex Cable (Original) gives you a complete replacement assembly — not just the Lightning port alone. The assembly integrates the Lightning dock connector, dual bottom microphones, and the cellular antenna converter cable. When you pull the old flex out and snap this one in, you restore USB charging, USB data sync, bottom microphone function, and cellular antenna connectivity in one go. That saves time on your repair bench and avoids the common mistake of fixing charging while unknowingly leaving a faulty mic assembly behind.

The part is designed for a precision fit inside the iPhone 8 chassis. The connector routes along the lower section of the frame and connects directly to the logic board through its ZIF-style socket. No soldering required — the installation is a connector swap job using standard iPhone repair tools: pentalobe screwdriver, Phillips driver, spudger, and tweezers. If you are doing an iPhone 8 repair job regularly at your service center, this flex should always be in your parts stock.

One common problem in the Pakistani mobile repair market is technicians receiving iPhone 8 units that stop charging right after a software flash — "dead after flash" syndrome. In most of these cases, the charging port was already weak before the flash, and the current drawn during the process finished it. Replacing the charging flex with an original-grade part gets the phone back to full charge functionality without any additional hardware fault to chase.

This part also covers iPhone SE 2020 (2nd Generation), since Apple used the same Lightning connector assembly across both models. If your workshop handles iPhone SE 2020 units alongside iPhone 8 stock, this single part covers both devices — one less SKU to manage in your parts drawer.

The assembly carries the Lightning connector that Apple designed for the iPhone 8 platform — a compact 8-pin Lightning port that supports USB 2.0 data transfer, USB audio output, and standard 5W/18W fast charging compatibility via Apple's Power Delivery protocol. The dual bottom microphones built into this flex handle both call audio pickup and video recording input, so a clean replacement immediately restores voice clarity for your customer.

For repair workflow integration, pair this charging flex job with a microscope inspection of the charging IC area on the logic board — particularly the Tigris (U2) IC which handles USB negotiation on iPhone 8. If the charging issue was caused by an IC fault rather than a physical port problem, you will identify that after the flex swap when charging still does not function. From there, your multimeter and hot air station are next in line for IC-level diagnosis.

Stock this part alongside your soldering station, hot air station, and iPhone board repair accessories for a complete iPhone hardware repair setup.
