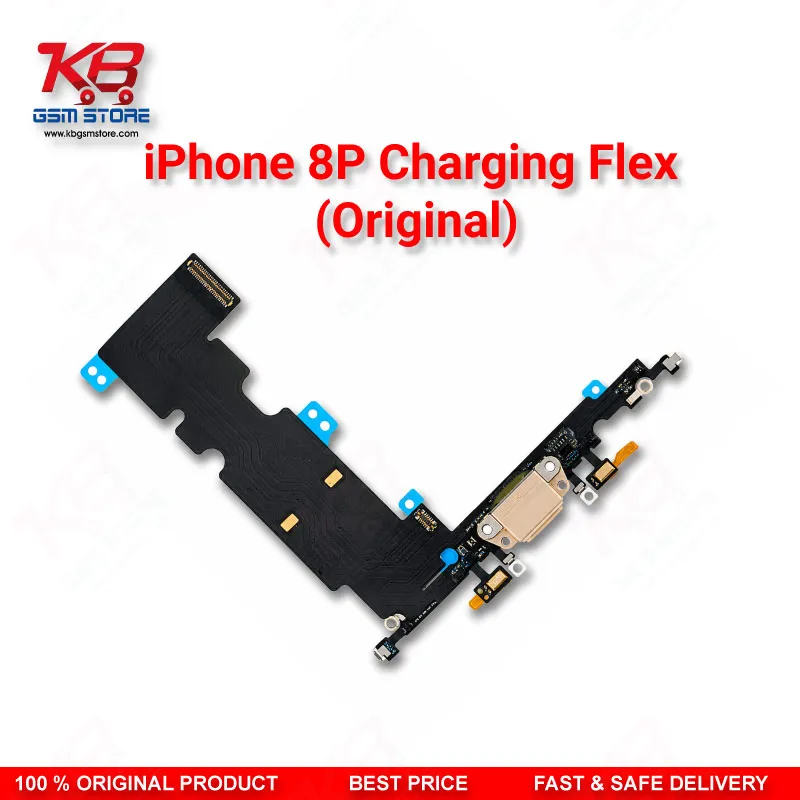

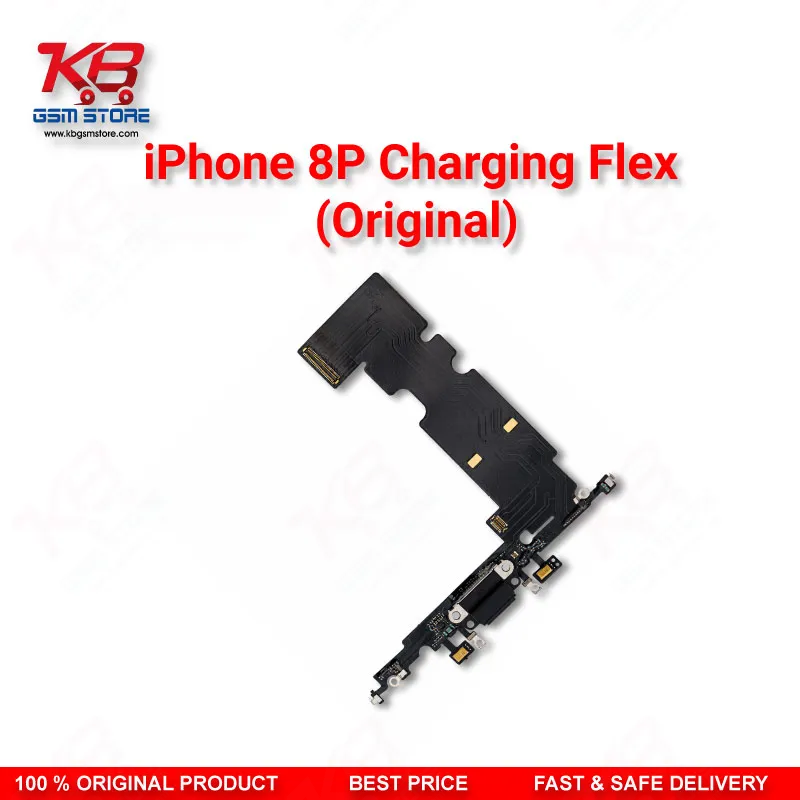

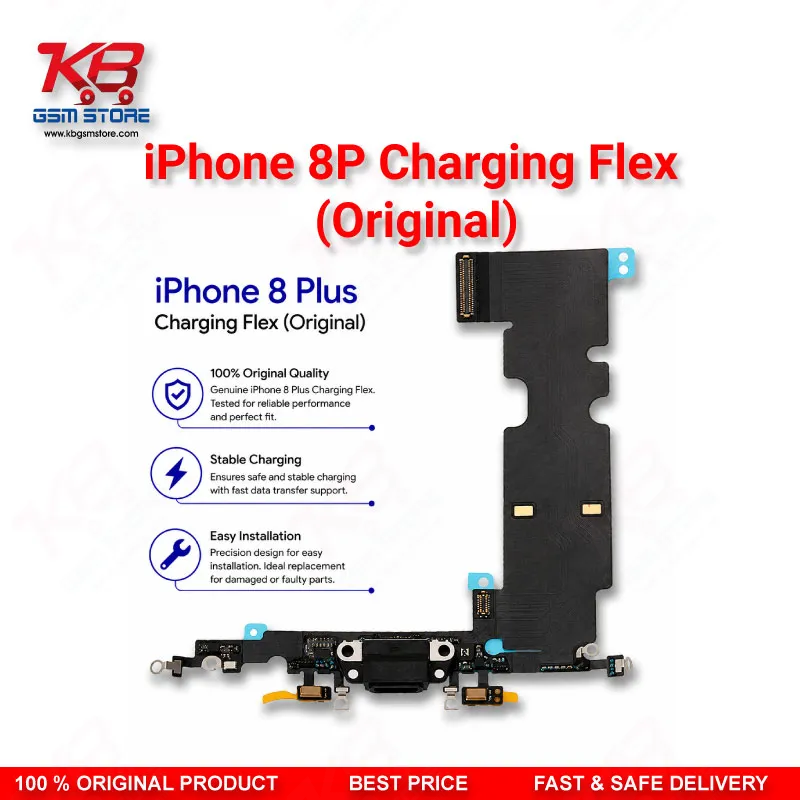

iPhone 8 Plus Original Charging Flex Cable – Lightning Port Replacement Part

When an iPhone 8 Plus comes in with a charging issue, your first step is always the charging flex. A damaged or worn-out Lightning port assembly causes more than just slow charging — it affects your microphone, vibration motor, and data connection all at once. The iPhone 8 Plus Original Charging Flex Cable is the part that covers all of these functions in a single assembly, making it one of the most critical replacement components in your iPhone repair workflow.

This charging flex cable is manufactured to original equipment specifications for Apple iPhone 8 Plus, compatible with all carrier variants — model numbers A1864, A1897, and A1898. The flex ribbon connects the Lightning dock connector to the logic board and carries multiple signal paths in one flat cable assembly. When this part fails, your customer's phone stops charging, the microphone stops working during calls, and the Taptic Engine may lose contact entirely.

Pakistani repair technicians know the frustration of a phone that charges intermittently or not at all. Instead of spending time probing the board for a hardware fault, swapping this flex first eliminates the most common cause quickly. If the phone was dead after flash or had a software marna situation and the technician accidentally bent the port during the process, this replacement brings things back to working condition without board-level intervention.

The original-grade build on this flex cable means the Lightning connector sits flush, maintains stable pin contact, and handles repeated insertion without loosening. Lower quality flex cables develop intermittent charging after a few weeks because the connector pins lose tension. With an original-spec part, your customer doesn't come back with the same complaint.

This flex assembly also includes the cellular antenna connection point, the microphone ribbon, and the vibration motor connector. That's why replacing this part solves multiple complaints at once — network issue, microphone problem, and no vibration all traced back to a single flex. Knowing this saves time in diagnostics and makes your repair more efficient.

Installing this part requires standard iPhone tools: a Pentalobe P2 screwdriver to remove the bottom screws, a suction cup and spudger to open the display assembly, and a Phillips screwdriver for the internal bracket. Battery discharge below 25% before starting is mandatory for safety. The flex threads through the frame and connects to the logic board via a pressure connector — no soldering required. A PCB holder and spudger set on your repair bench makes the process smoother and reduces the risk of damaging the surrounding components.

For repair shops handling a volume of iPhone 8 Plus units — a common model still in active use across Pakistan — keeping this flex in stock is essential. It covers charging issue repairs, microphone dead cases, and hardware fault diagnostics all with one part. Pair it with a multimeter for port continuity testing before installation to confirm the board-side connector is intact, and you'll have a clean repair every time.
