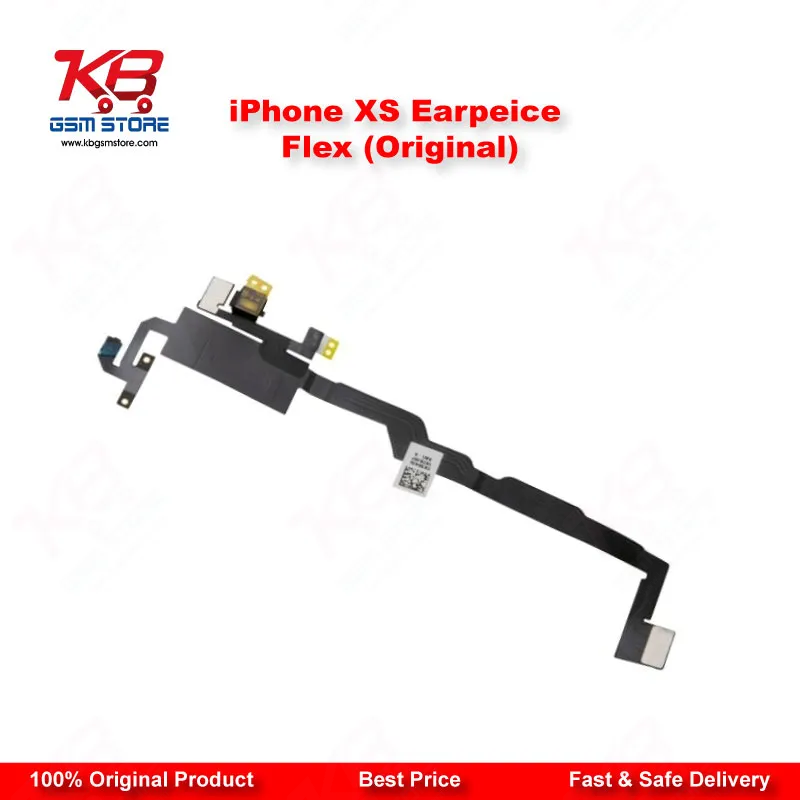

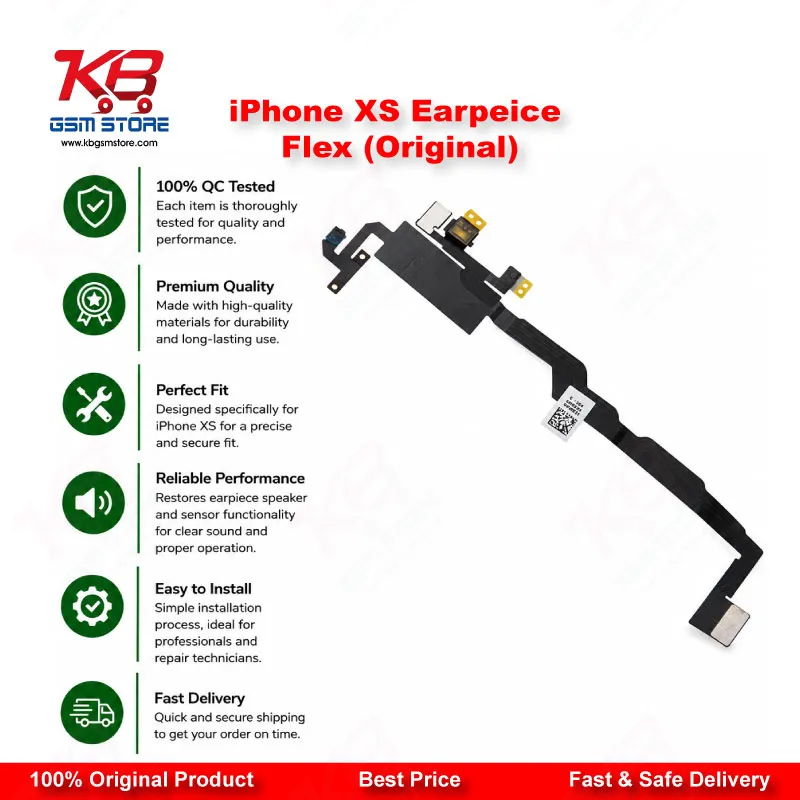

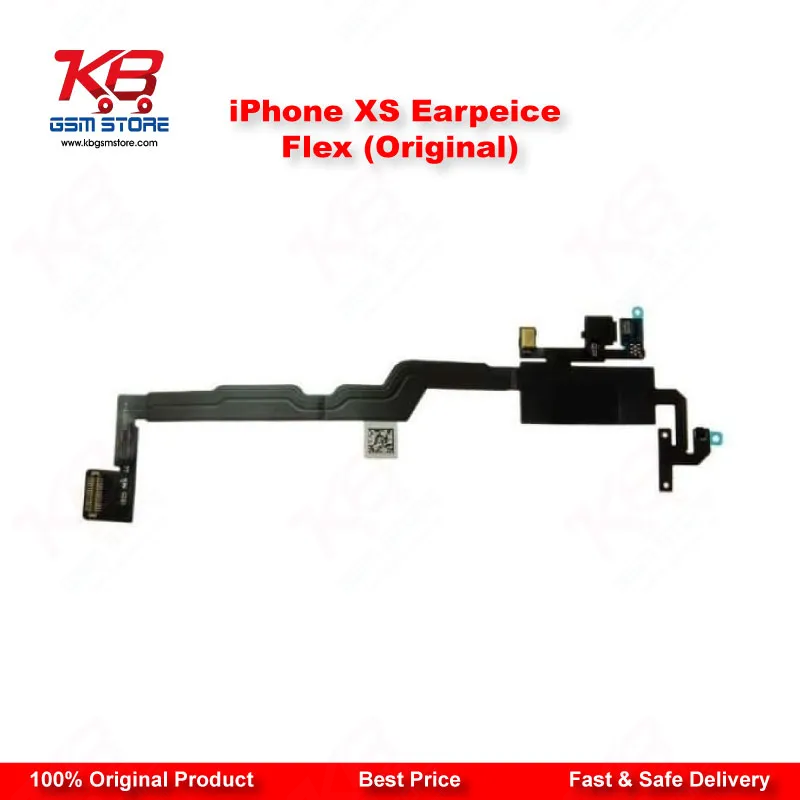

iPhone XS Earpiece Speaker Flex Cable (Original) – Proximity Sensor Replacement Part

When a customer brings in an iPhone XS with a "no sound during calls" or "distorted voice" complaint, the earpiece flex cable is usually the first thing you check after ruling out software glitches. This flex cable carries the earpiece speaker, proximity sensor, ambient light sensor, and front microphone connection points that sit behind the display assembly. If the earpiece speaker has gone weak, crackly, or completely silent, or if the proximity sensor stopped detecting your customer's face during a call (leaving the screen on and getting random touches), this part fixes both problems in one replacement.

You'll find this flex cable attached to the upper display bracket on the iPhone XS, tucked beneath the earpiece speaker housing near the front camera module. It connects to the logic board through a small board-to-board connector, and it's lightly adhered in place, so removal needs a steady hand and a plastic spudger rather than force. Pulling on the cable itself instead of lifting from the connector edge is the most common reason technicians end up with a torn flex during this job — keep that in mind while working.

One thing every technician handling iPhone XS earpiece issues needs to know before quoting the job: the front sensor assembly on this model is paired to the individual logic board from the factory as part of the Face ID system. If the original earpiece/sensor assembly is damaged and you fit a new, unpaired flex cable, Face ID stops working on that device — only Apple's internal pairing process can restore it. Earpiece audio and proximity sensing will function normally on the replacement cable, but Face ID is the one feature that doesn't carry over. It's worth explaining this clearly to the customer before you open the phone, especially for dead phone or hang on logo cases where the front assembly already needs touching during board-level work.

This part is a regular bench item for repair shops handling iPhone XS display problem and charging issue jobs together, since the front sensor flex often gets disturbed during display swaps. If you're already removing the screen for a cracked glass replacement, it's worth inspecting this flex cable for adhesive wear or bent contacts at the same time, rather than waiting for a separate earpiece complaint later.

Installation follows the same sequence as a standard XS display opening: power down the device, remove the two bottom screws, separate the display using a heat gun or opening pick, then lift the earpiece flex from its bracket and transfer or replace it before reassembly. No microsoldering is required for a standard connector swap — this is a connector-level replacement, not a board-level repair.

Stock this alongside your iPhone X and XS Max earpiece flex variants, since the connector and mounting position differ slightly between models and customers often mix up which generation they own. Pairing it with a Y000 screwdriver and a fresh battery adhesive strip covers most of what you'll need for a complete XS front-assembly job.
