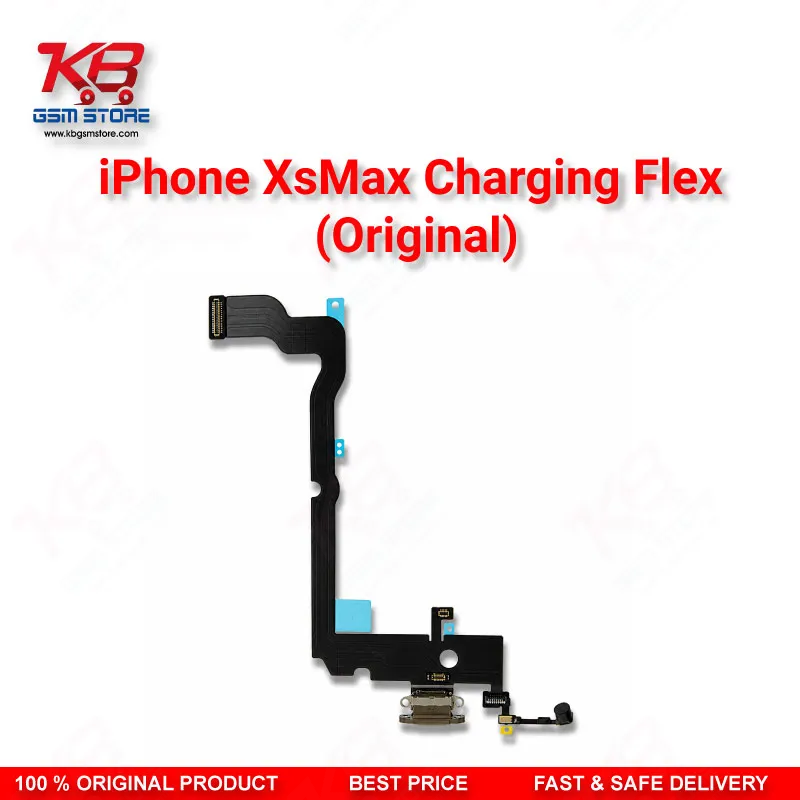

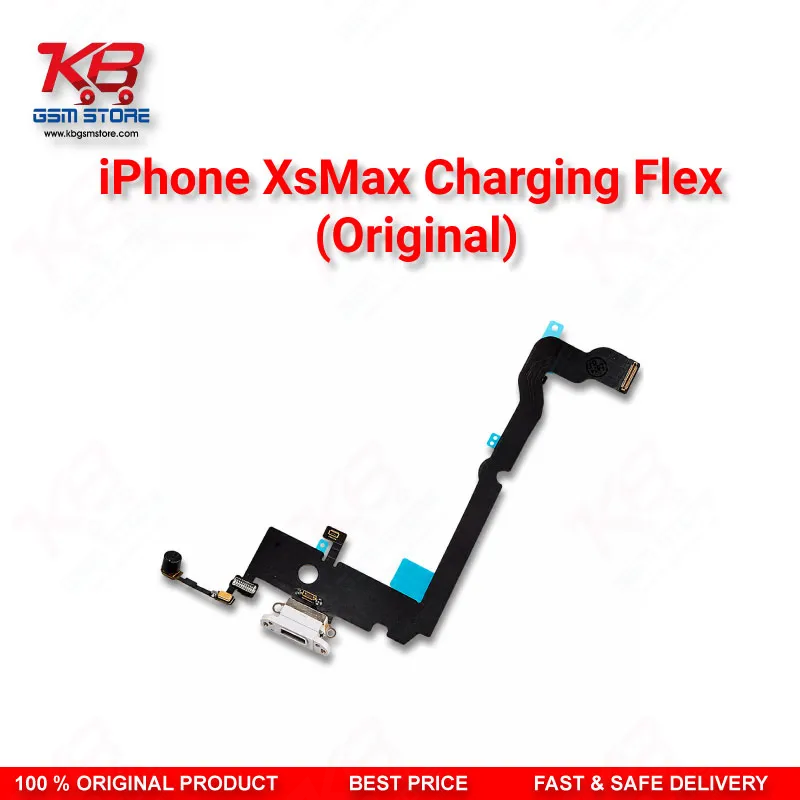

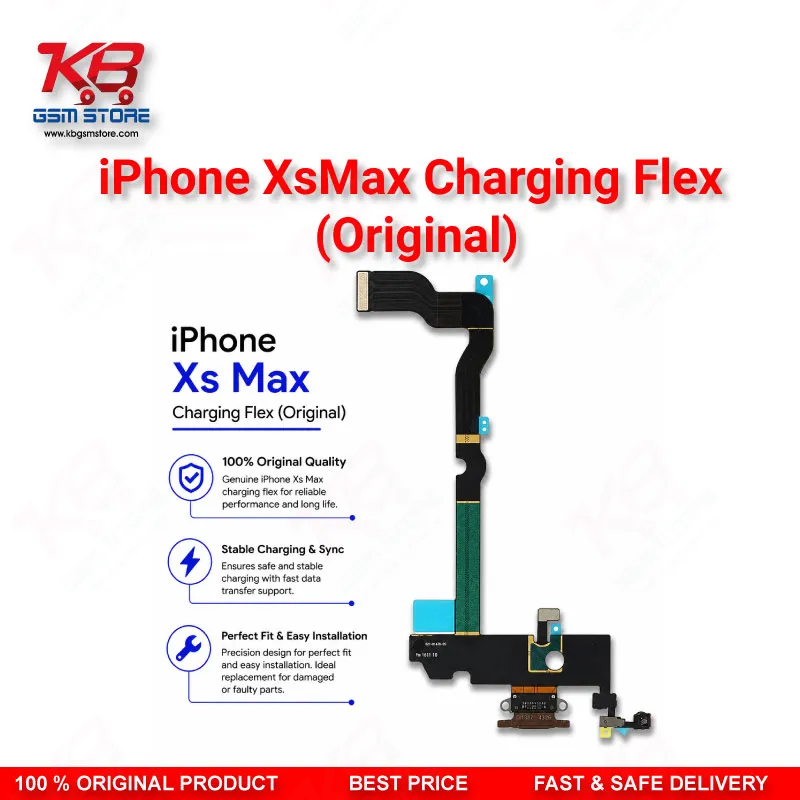

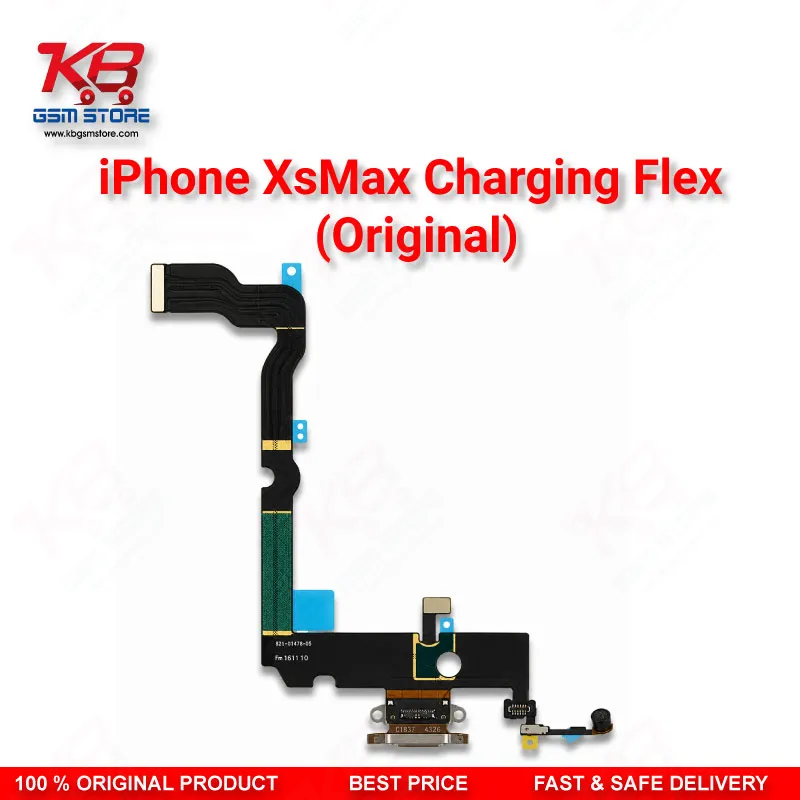

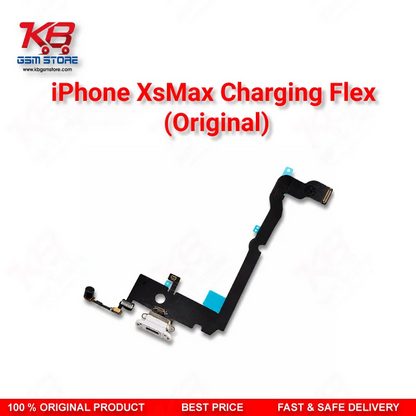

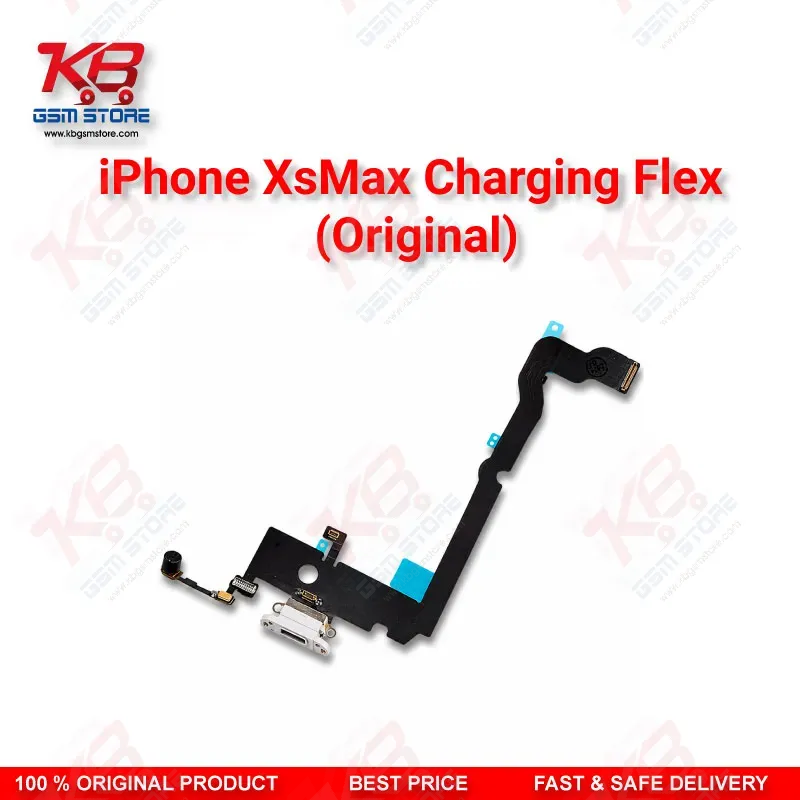

iPhone XS Max Original Charging Port Flex Cable – Lightning Dock Connector Assembly

When an iPhone XS Max lands on your repair bench with a charging issue, your first step is always the charging flex. The port takes daily wear from cable insertions, lint buildup, and liquid exposure — and when it fails, the entire bottom assembly needs a clean swap. This original-grade charging port flex cable gives you a direct-fit replacement that brings the phone back to full function without any motherboard work.

The assembly covers the complete lower dock section of the iPhone XS Max. Inside this single flex you get the Lightning connector socket itself, the bottom primary microphone, and the signal antenna ribbon that runs alongside the speaker bracket. A dead phone with no charge response, a phone that charges only at a specific angle, a handset where the customer's voice cuts out on calls, or a device that the computer does not recognize over USB — all of these faults trace back to this one component. Replacing this flex resolves all four in a single repair step.

Compatibility covers all iPhone XS Max model variants — A1921, A2101, A2102, A2103, and A2104. Whether your customer's unit is a local market model or an international import, the flex seats correctly in every variant. The part number reference is 821-01415, which aligns with Apple's original assembly specification for this device.

The physical installation follows a straightforward process. You remove the two pentalobe screws at the base, lift the display, disconnect the battery, and then work through the speaker bracket and antenna cable before sliding the old flex out. The new unit drops into the same channel and locks into the logic board connector cleanly. No soldering, no jumper lagana, no motherboard removal needed for a standard port-fault case. Any technician comfortable with iPhone-level disassembly handles this in under thirty minutes.

For workshops handling a volume of iPhone repairs, stocking this flex is essential. The XS Max remains a widely used handset across Pakistan and charging port failure is among the most frequent walk-in faults on this model. A genuine-grade replacement ensures the repair holds long-term and avoids callbacks, which aftermarket alternatives frequently cause due to poor pin contact tolerance.

This flex also directly addresses microphone faults that get misdiagnosed as audio IC issues. Before you reach for your microscope or start inspecting the audio IC on the motherboard, swap the charging flex. If the bottom mic was the culprit, the repair is done in minutes. This saves diagnostic time and prevents unnecessary board-level intervention on a perfectly functional motherboard.

Compatible tools for this repair from your bench setup include a pentalobe screwdriver, a spudger or pry tool for antenna connectors, and a PCB holder or repair fixture to keep the phone stable during reassembly. A hot air station is not required for this repair under normal conditions.
